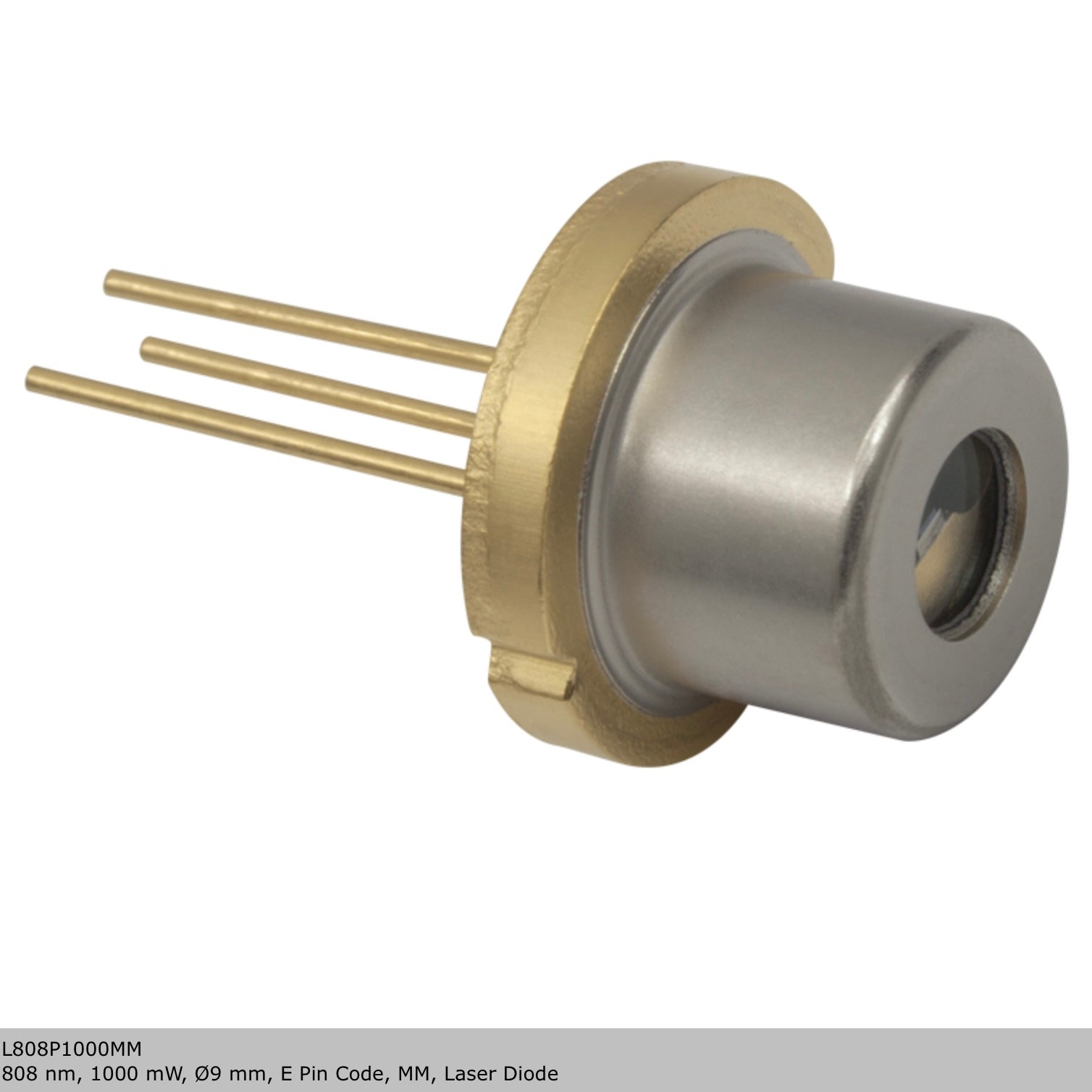

Thorlabs L808P1000MM 808nm 1000mW Ø9mm Laser Diode E-Pin Multimode New

The Thorlabs L808P1000MM is a high-power 808 nm multimode laser diode with a maximum optical output of 1000 mW. Designed for pumping Nd:YAG lasers and other demanding applications, it features a Ø9 mm TO-can package with E pin configuration and excellent thermal performance when used with a heatsink. This diode is compatible with Thorlabs TEC drivers and diode mounts.

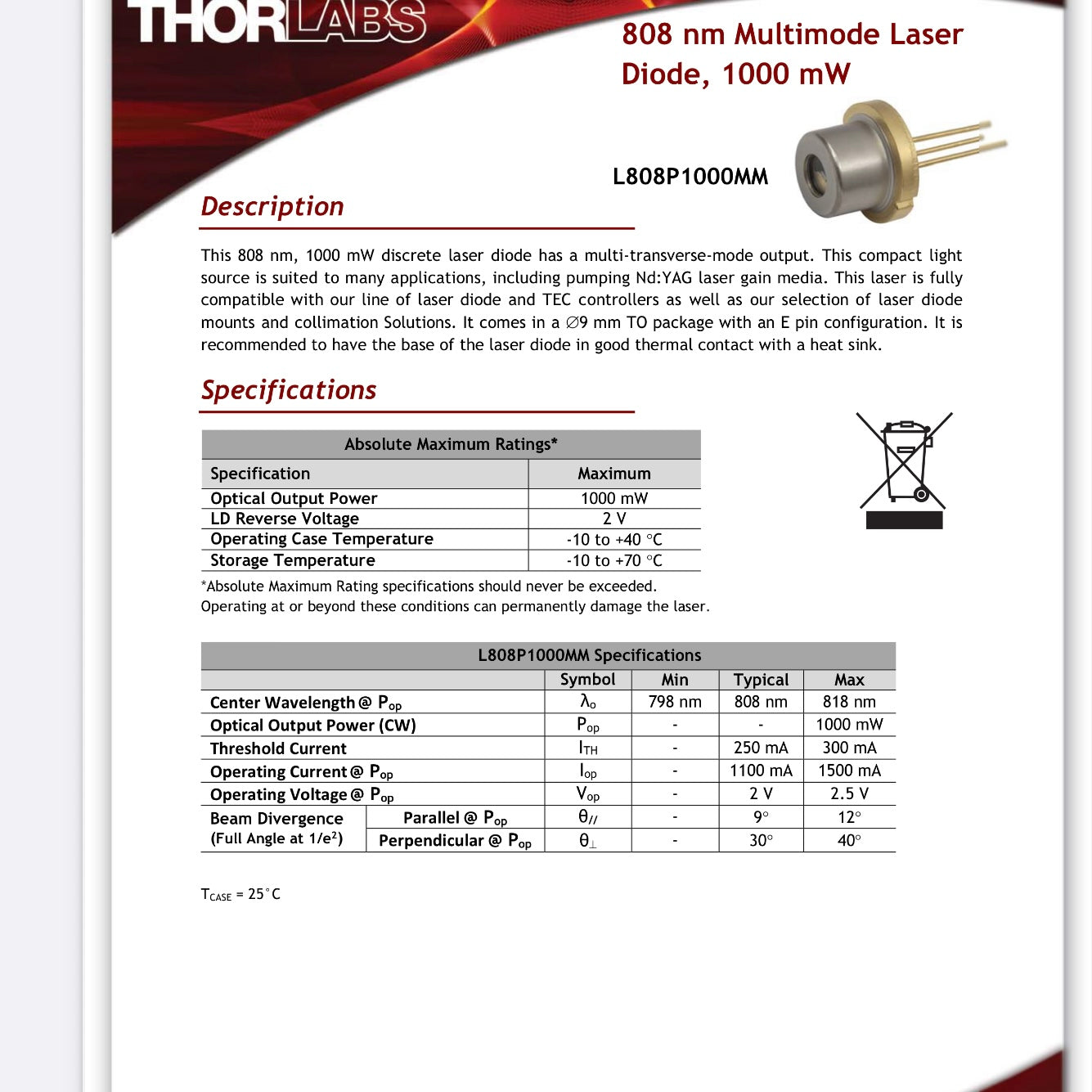

Key Specifications:
Model: L808P1000MM
Wavelength: 808 nm (typical)
Output Power: 1000 mW (CW)

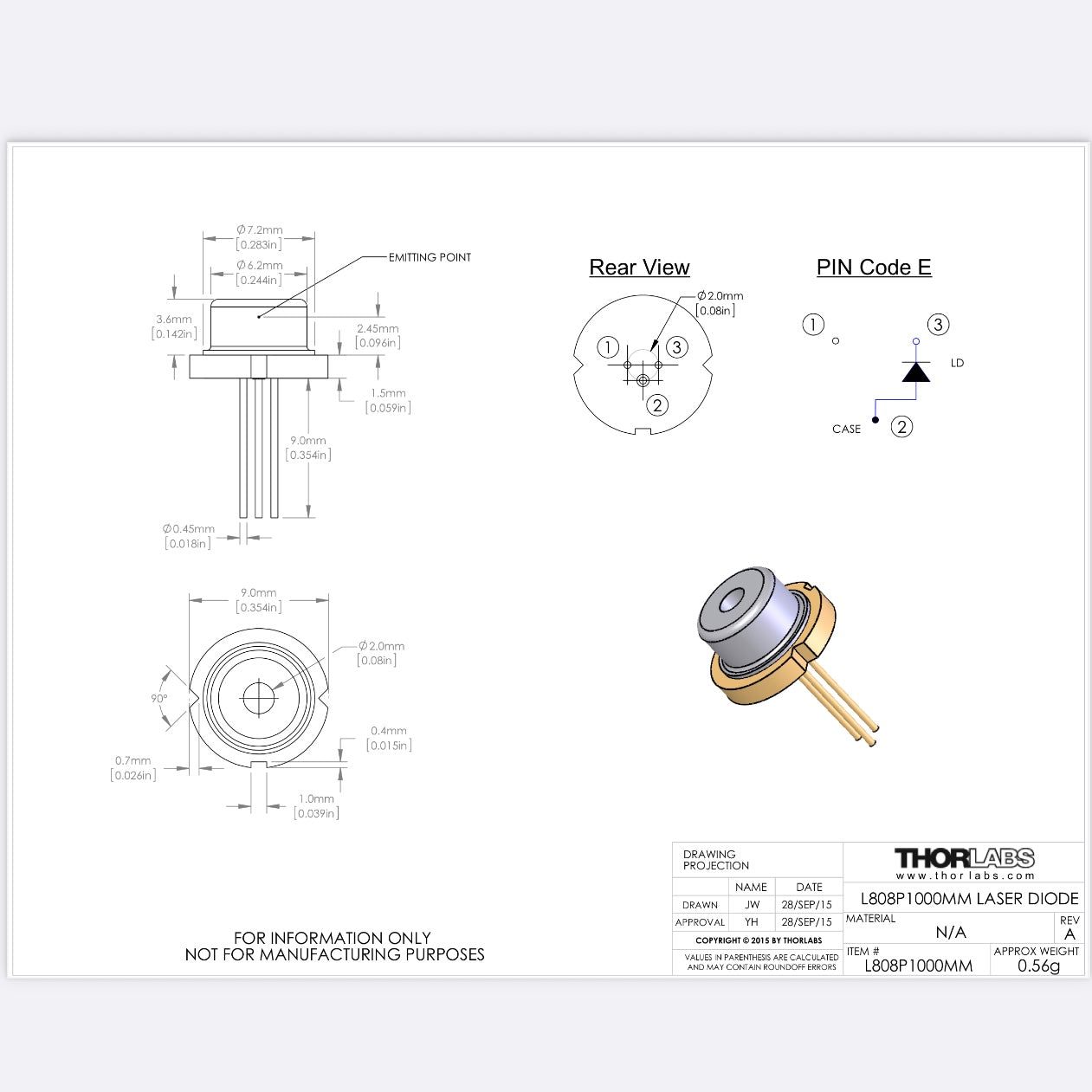

Package: Ø9 mm TO-can
Pin Configuration: E Pin Code
Threshold Current: 250–300 mA
Operating Current: 1100–1500 mA
Operating Voltage: 2.0–2.5 V
Beam Divergence (Parallel): 9°–12°
Beam Divergence (Perpendicular): 30°–40°
Operating Temp Range: -10 to +40 °C
Condition: New

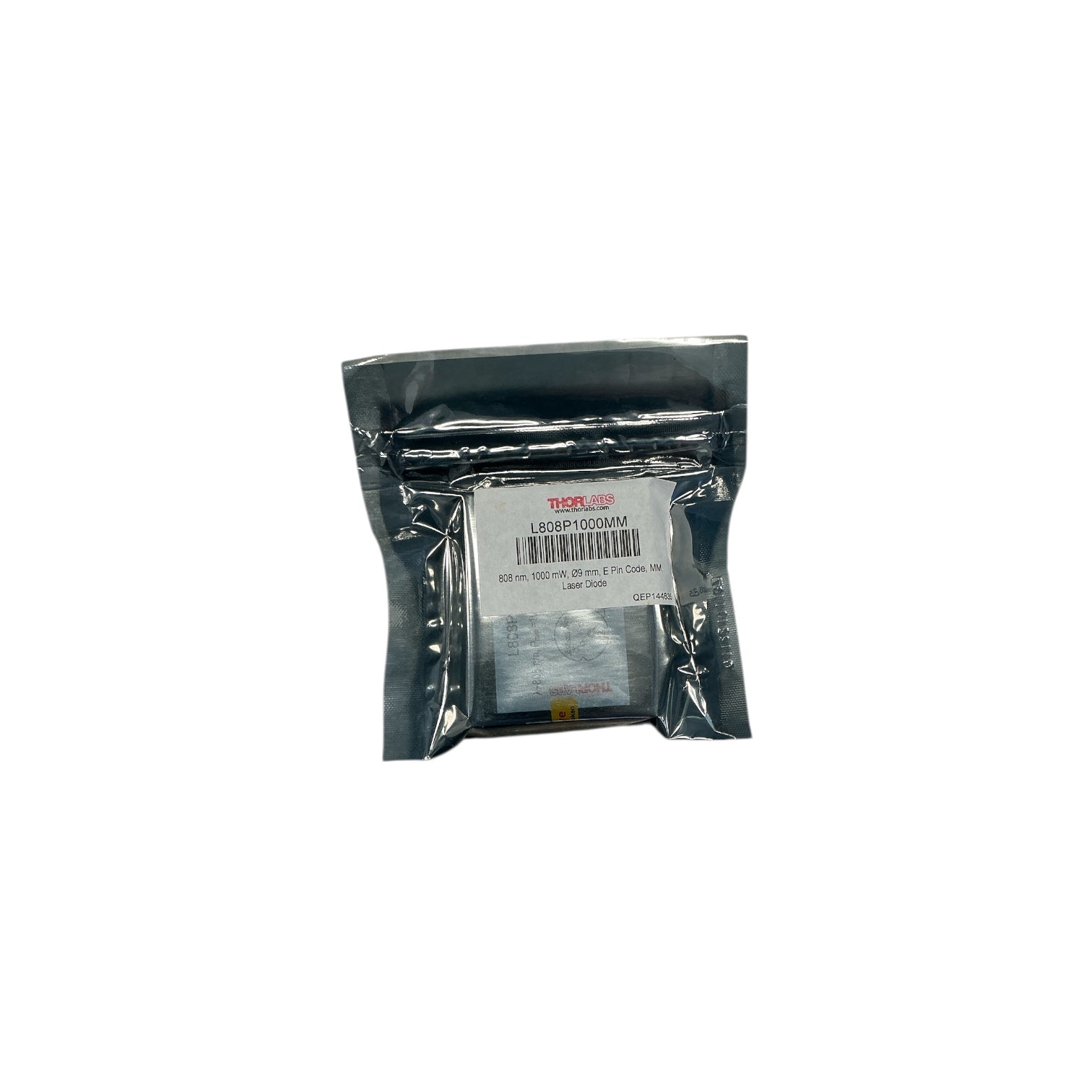

Included: Laser diode only
