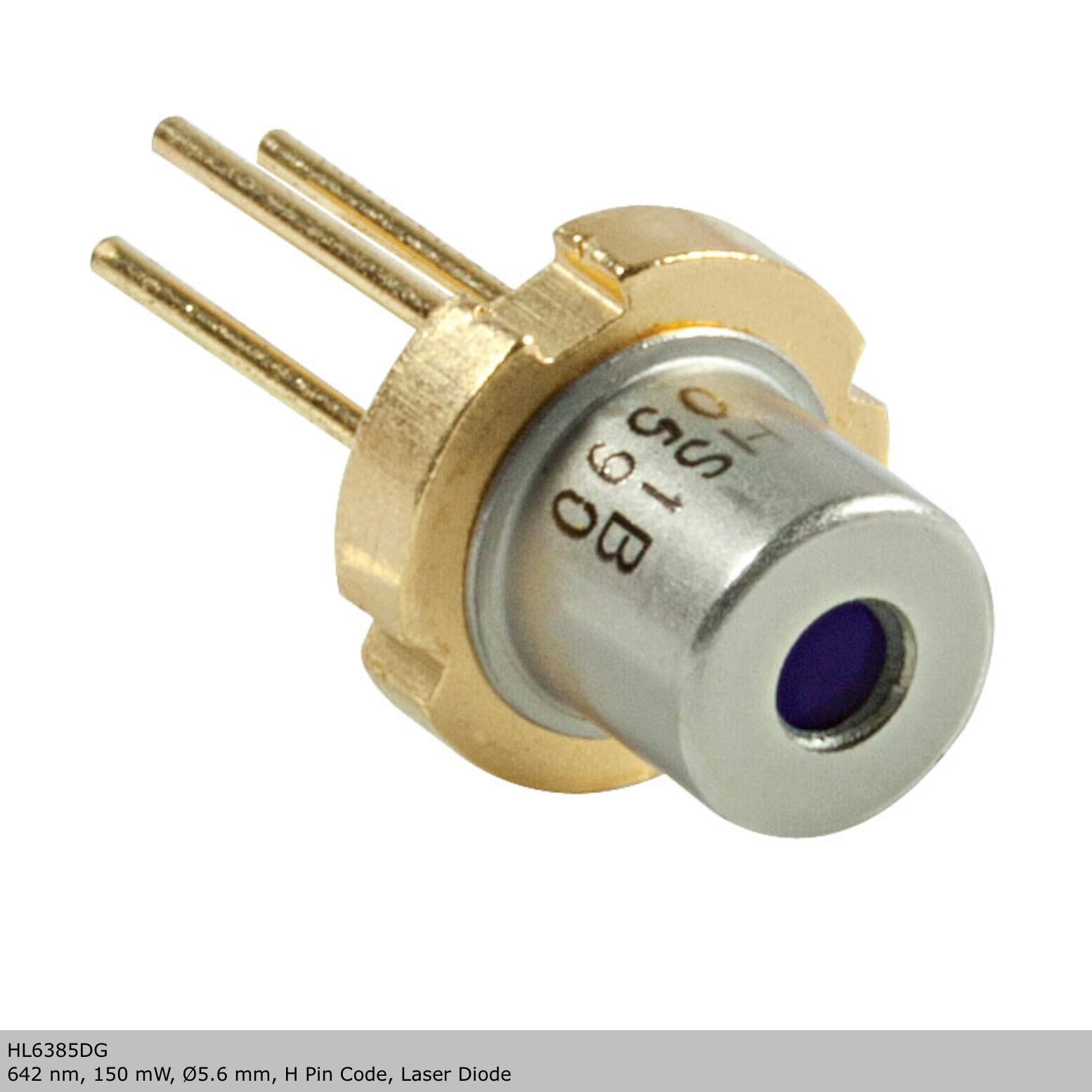

Thorlabs HL6385DG 642nm 150mW Laser Diode - New

The Thorlabs HL6385DG is a high-performance 642 nm, 150 mW laser diode in a sealed Ø5.6 mm TO-can package with an H pin configuration. Designed for precision optical applications, this diode outputs a single transverse mode and is ideal for laser displays, instrumentation, and custom light sources. This unit is brand new and factory sealed.

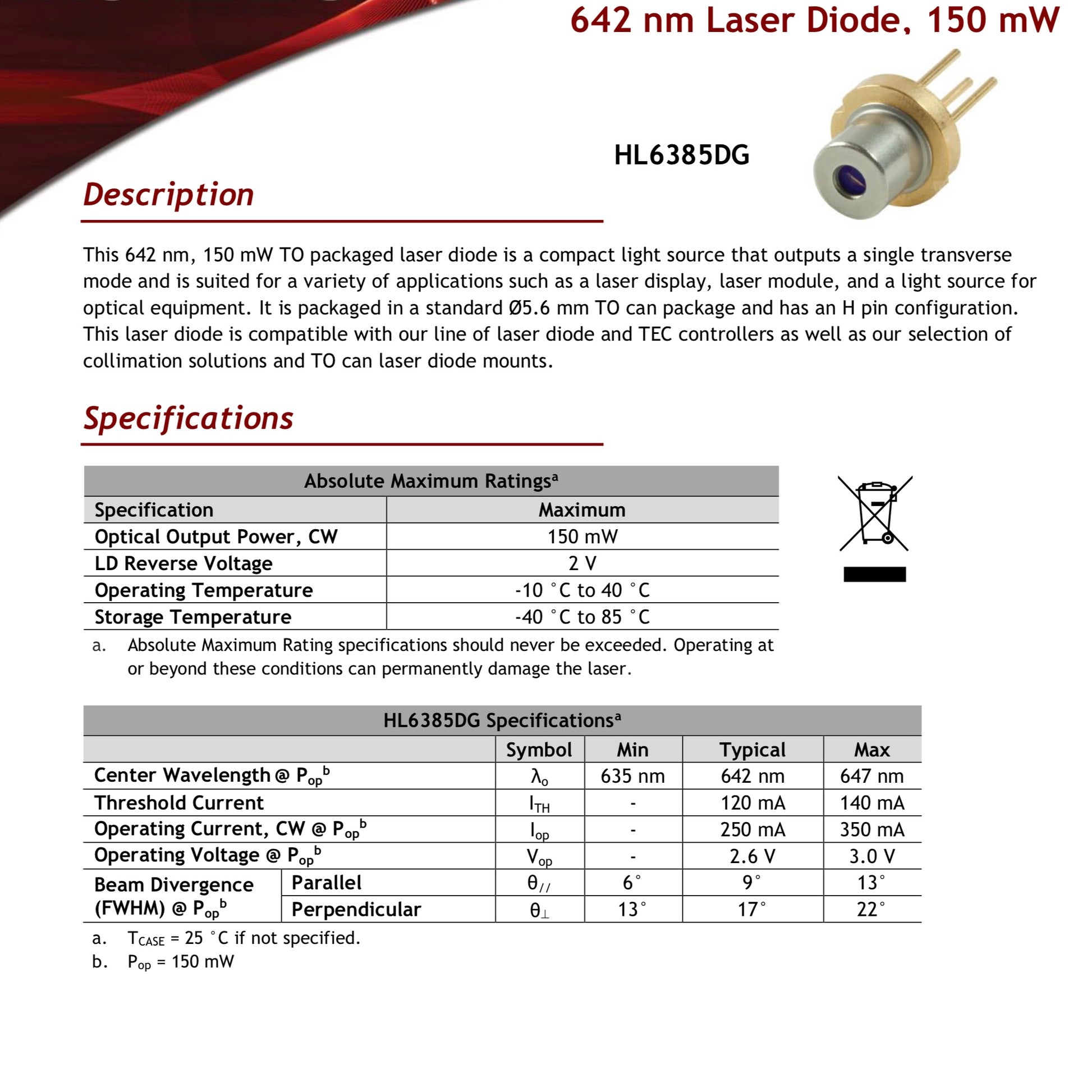

Key Specifications:
Model: HL6385DG
Wavelength: 642 nm (typical)
Output Power: 150 mW
Threshold Current: 120–140 mA
Operating Current: 250–350 mA
Operating Voltage: 2.6–3.0 V
Beam Divergence: 9° parallel, 17° perpendicular

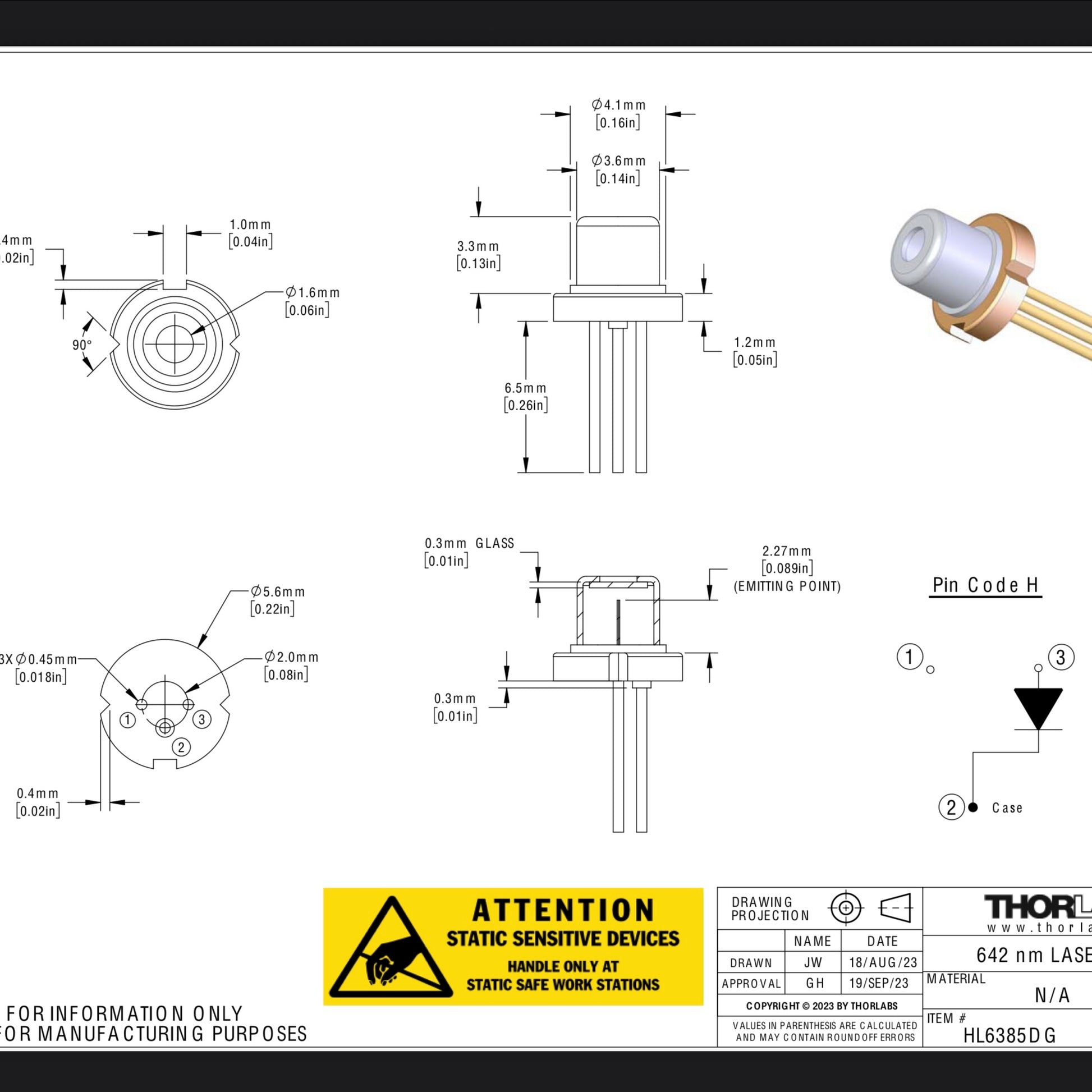

Package Type: Ø5.6 mm TO-can
Pin Configuration: H code

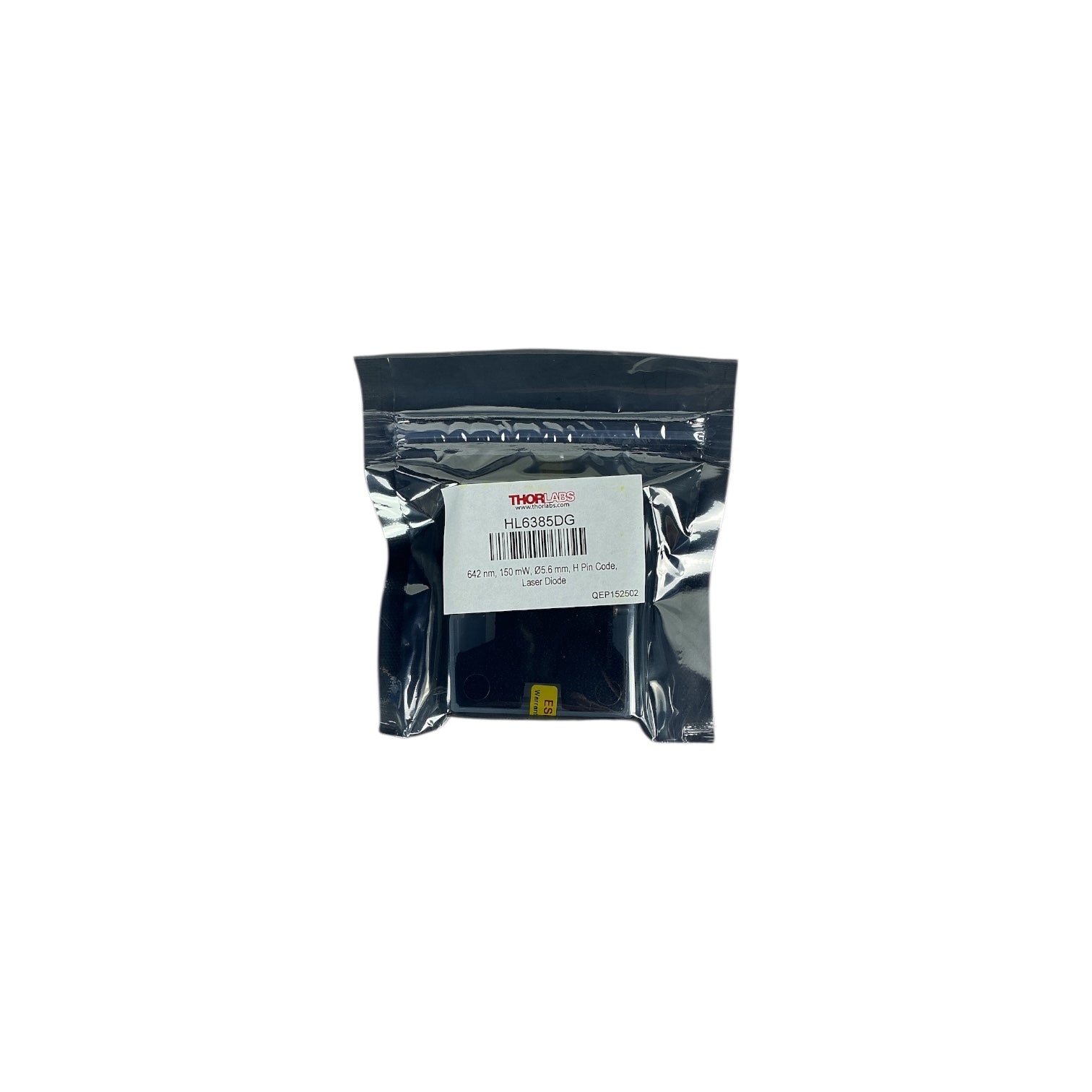

Condition: New sealed
Included: Laser diode only
