Cosmetic Condition:

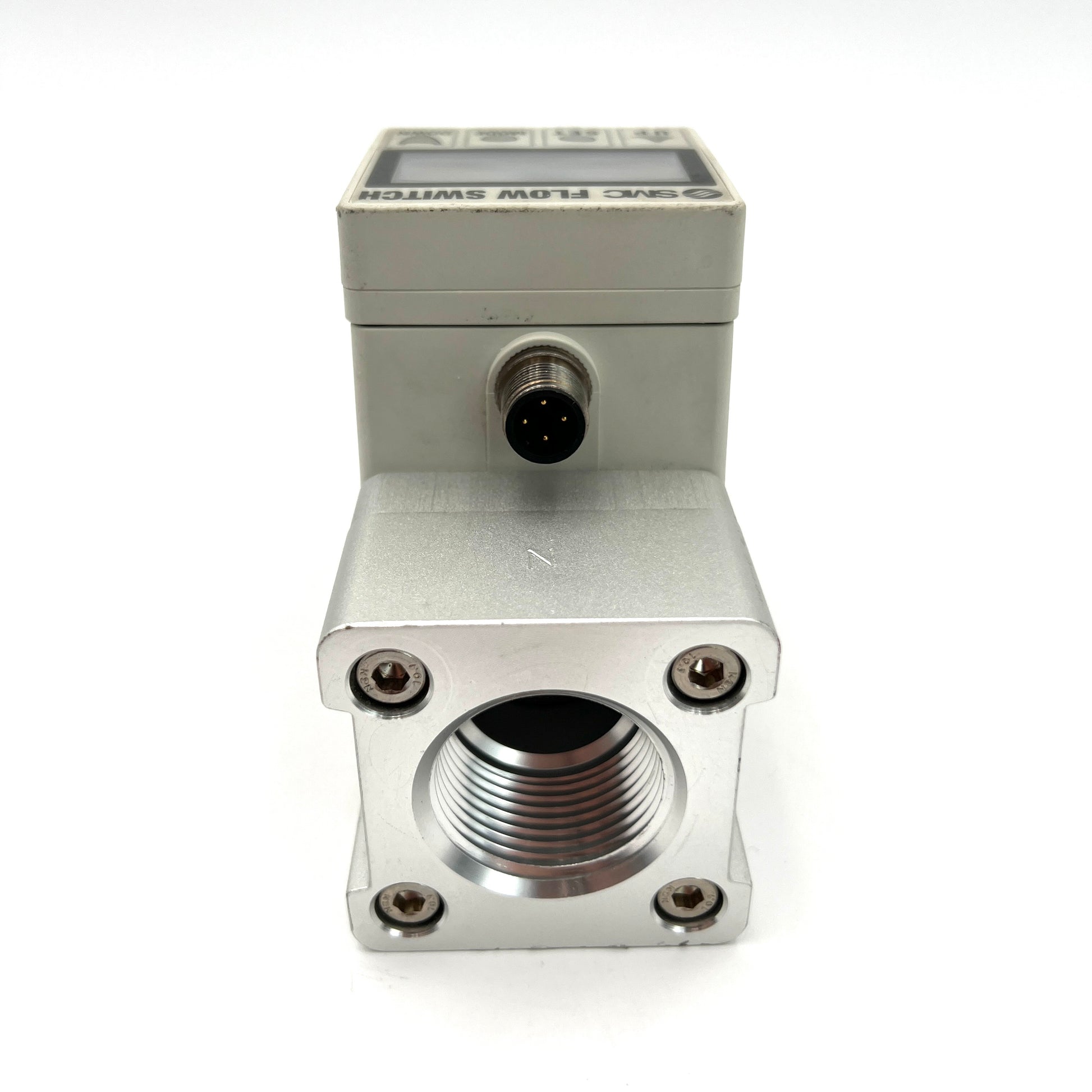

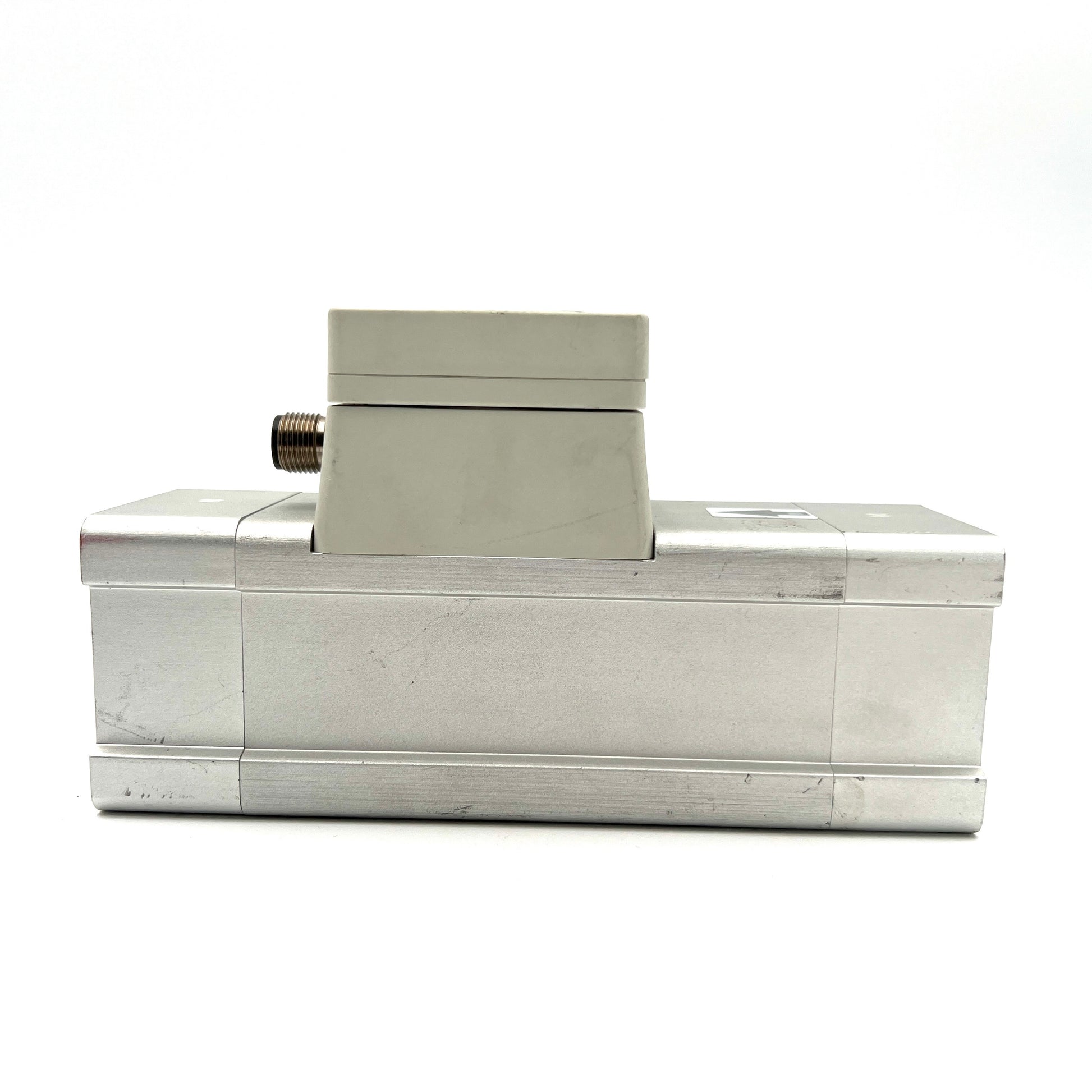

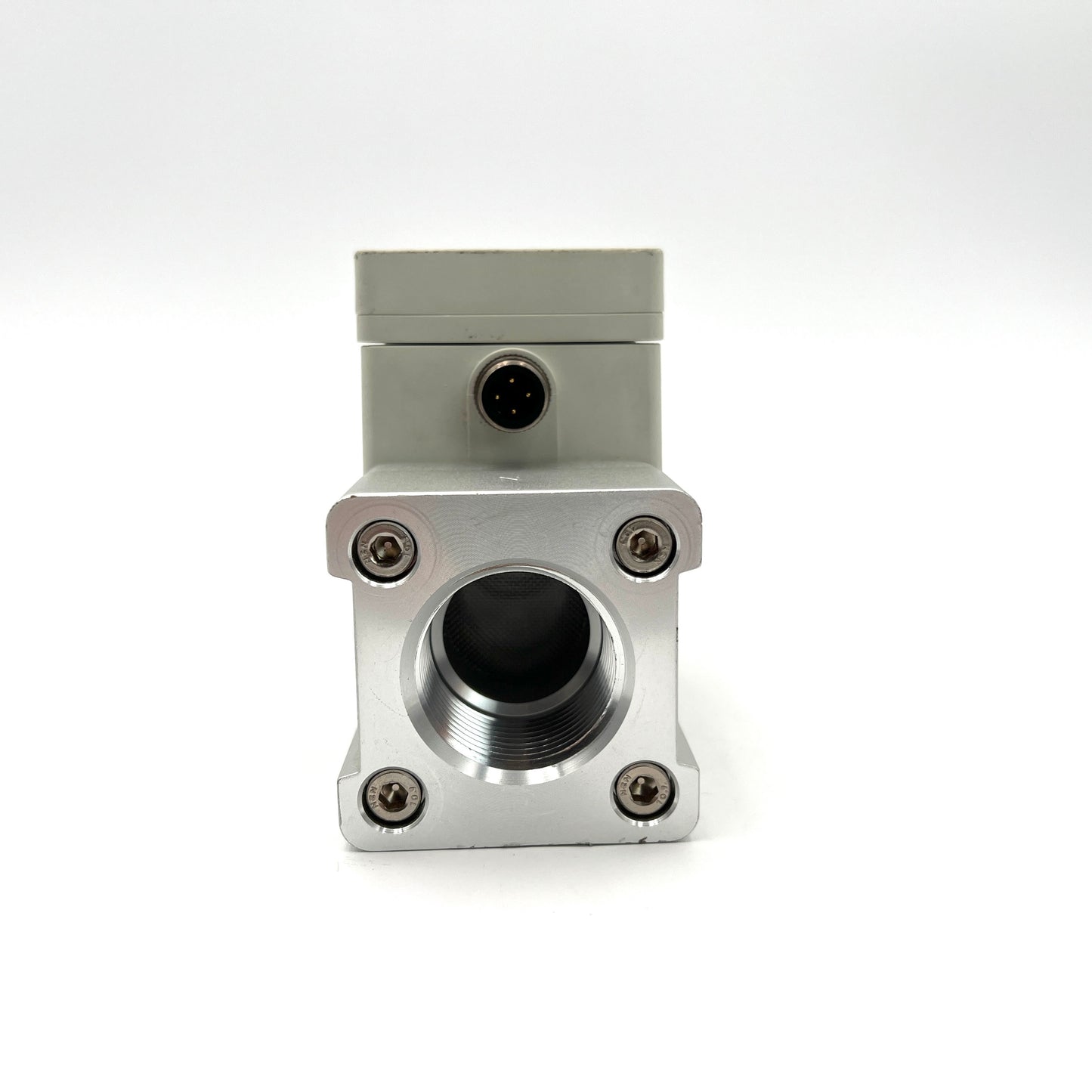

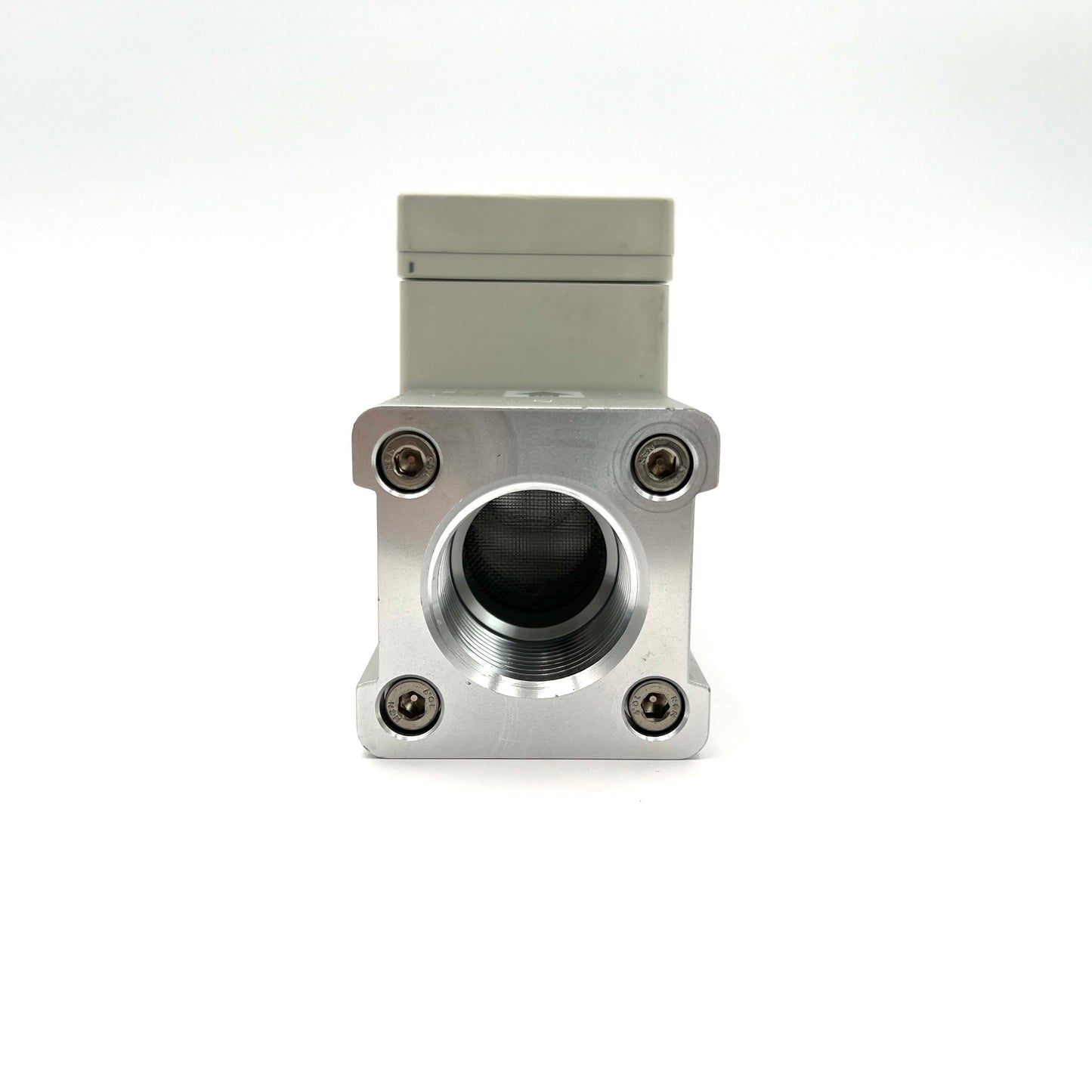

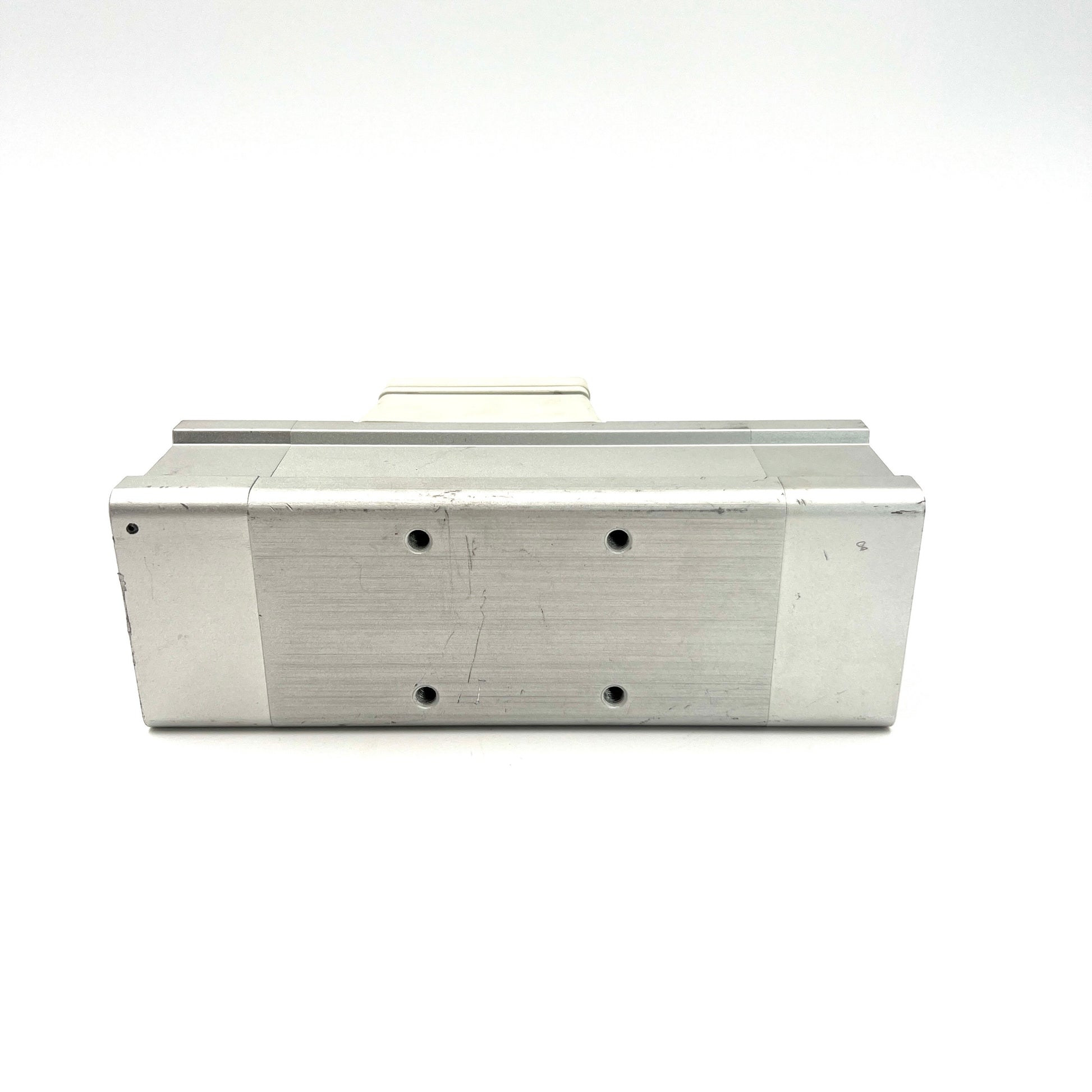

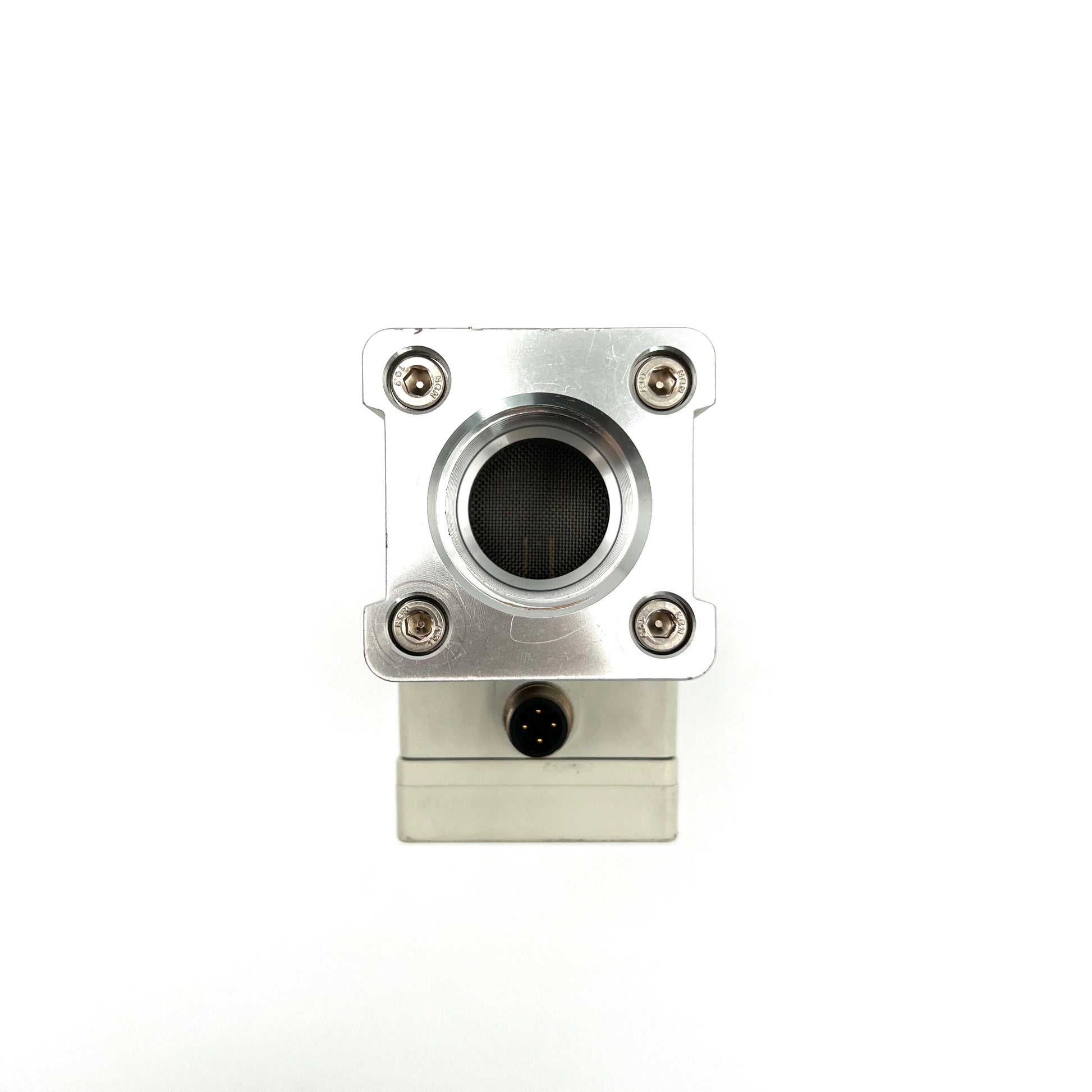

B Grade, Item has minor but generally unnoticeable signs of use, including but not limited to scratches, scuffs, paint discoloration, and/or glue residue. See Photos and Description for more details

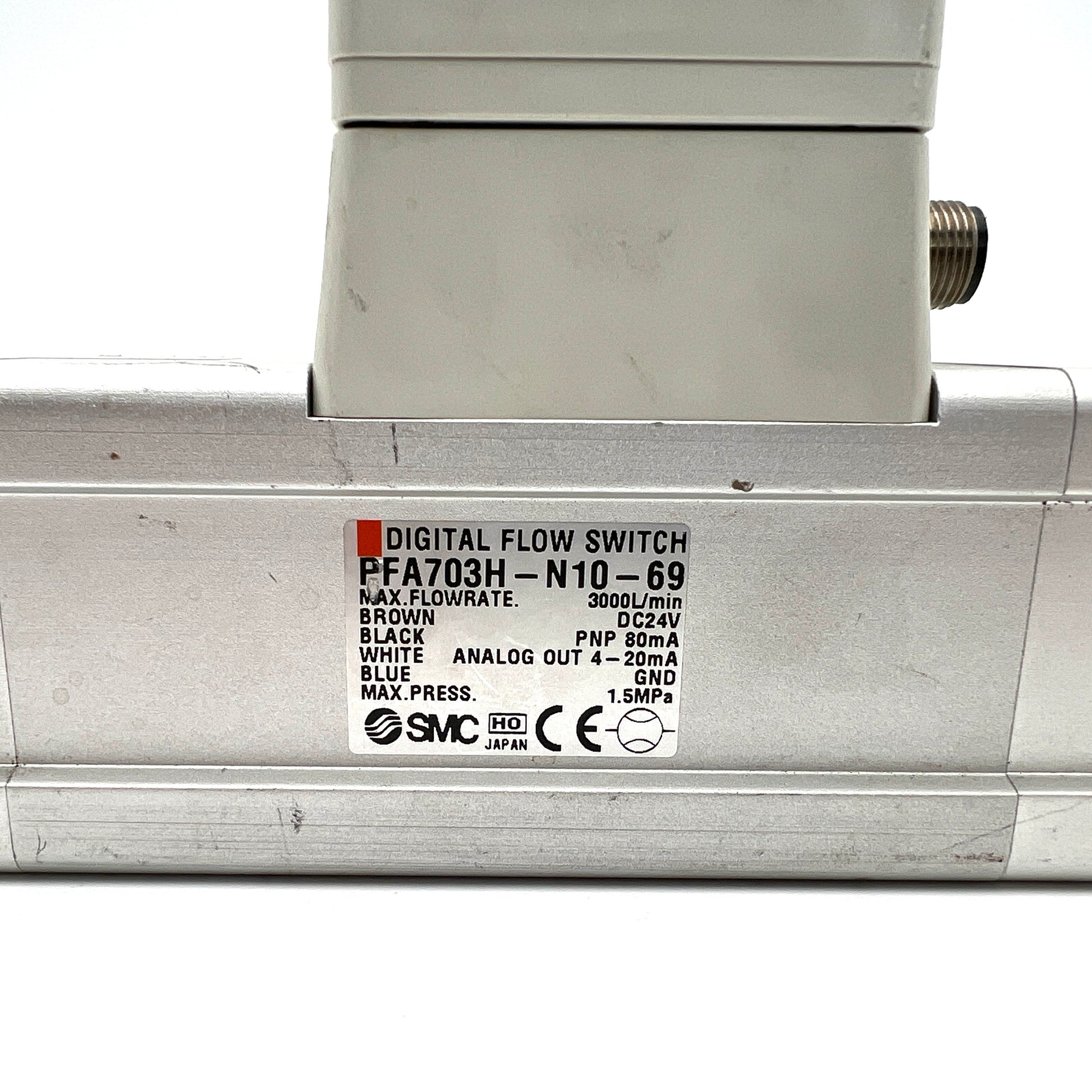

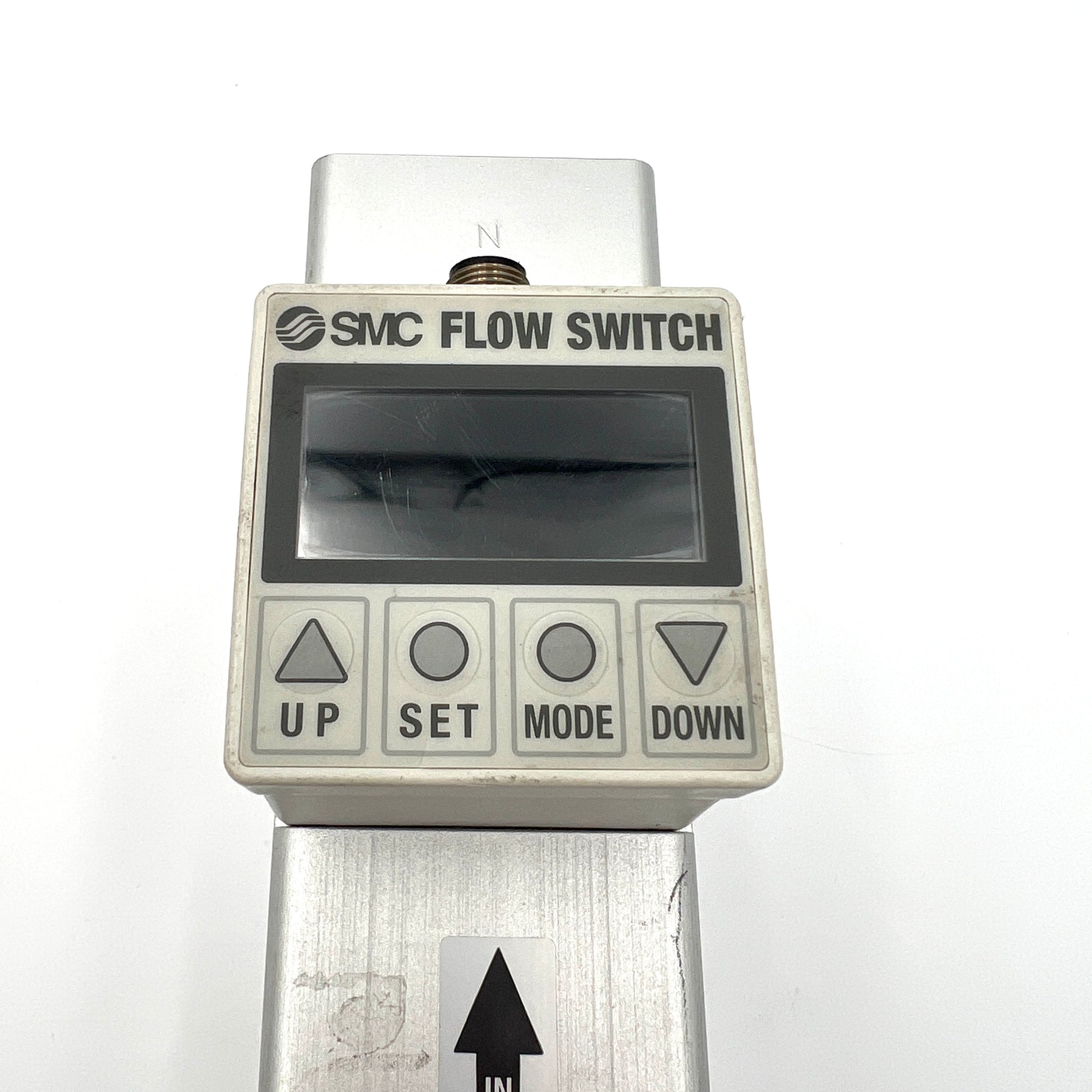

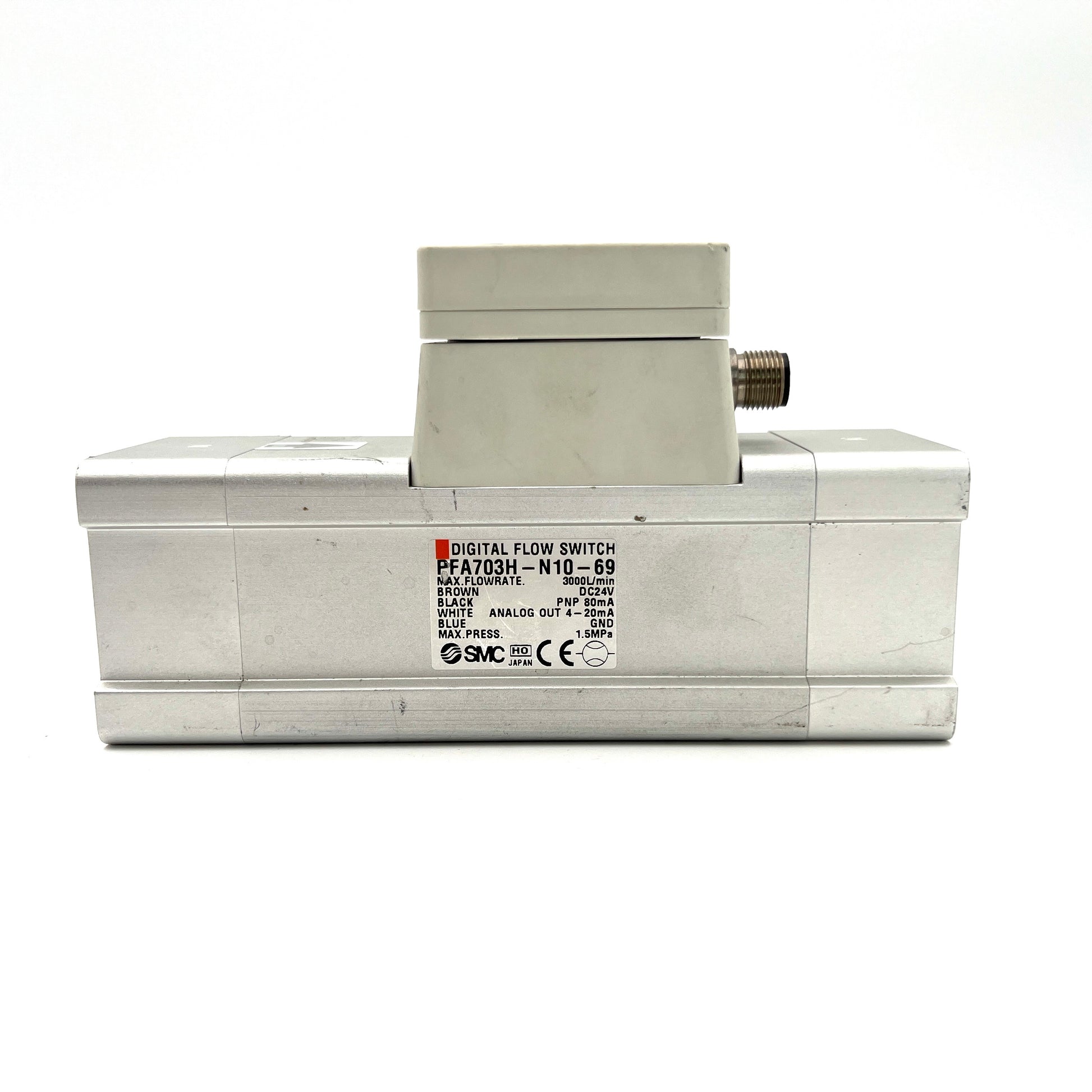

The SMC PFA703H-N10-69 is a digital flow switch designed for high flow rate applications, particularly suitable for airflow measurement. It features an integrated display for real-time monitoring and control.
Key Specifications:
Flow Rate Measurement Range: 150 to 3000 liters per minute (L/min).
Port Size: 1-inch connection.
Output Specifications:
Output Type: NPN open collector.
Output Modes: Two independent flow rate settings are possible, allowing for versatile control options.

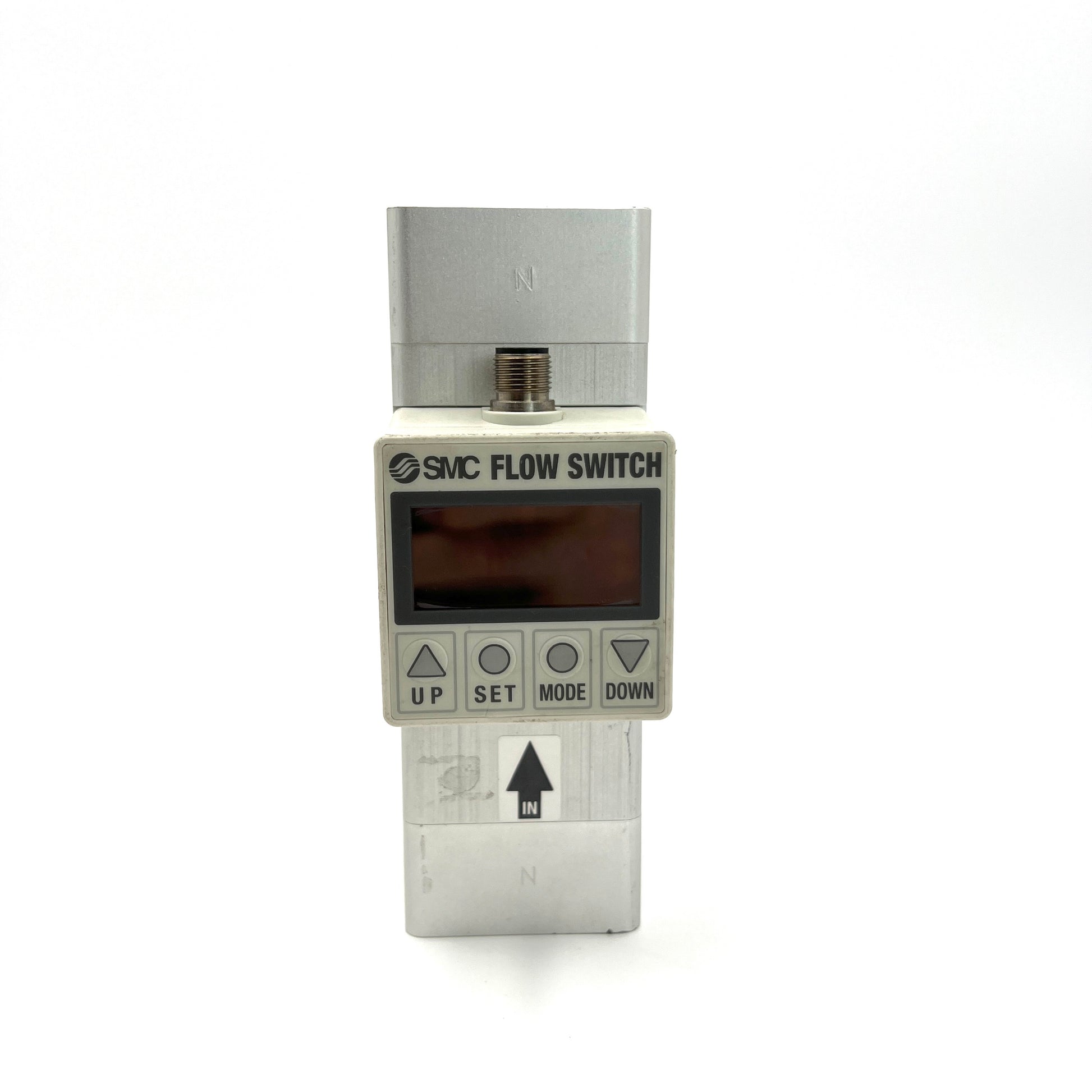

Display: Equipped with a new LCD display that reduces power consumption without compromising visibility.
Operating Pressure Range: 0 to 1.5 MPa.
Withstand Pressure: 1.0 MPa.
Pressure Loss: 3 kPa (at 100 L/min).
Operating Temperature Range: 0 to 50°C (with no condensation).
Linearity: ±1% Full Scale (F.S.) or less.
Repeatability: ±0.5% F.S. or less.
Power Supply Voltage: 12 to 24 VDC.
Current Consumption: 55 mA or less.
Enclosure Rating: Equivalent to IP65, making it suitable for various industrial environments.
This flow switch is ideal for applications requiring precise monitoring and control of high air flow rates. Its robust design and advanced features make it a reliable choice for industrial processes.
Join our email list to be the first to claim discounted equipment when it drops!
Choosing a selection results in a full page refresh.
Opens in a new window.
×
Please wait...
Make An Offer
SMC Digital Flow Switch PFA703H-N10-69
$140.00
SMC Digital Flow Switch PFA703H-N10-69
The SMC PFA703H-N10-69 is a digital flow switch designed for high flow rate applications, particularly suitable for airflow measurement. It features an integrated display for real-time monitoring and control.
Key Specifications:
Flow Rate Measurement Range: 150 to 3000 liters per minute (L/min).
Port Size: 1-inch connection.
Output Specifications:
Output Type: NPN open collector.
Output Modes: Two independent flow rate settings are possible, allowing for versatile control options.
Display: Equipped with a new LCD display that reduces power consumption without compromising visibility.
Operating Pressure Range: 0 to 1.5 MPa.
Withstand Pressure: 1.0 MPa.
Pressure Loss: 3 kPa (at 100 L/min).
Operating Temperature Range: 0 to 50°C (with no condensation).
Linearity: ±1% Full Scale (F.S.) or less.
Repeatability: ±0.5% F.S. or less.
Power Supply Voltage: 12 to 24 VDC.
Current Consumption: 55 mA or less.
Enclosure Rating: Equivalent to IP65, making it suitable for various industrial environments.
This flow switch is ideal for applications requiring precise monitoring and control of high air flow rates. Its robust design and advanced features make it a reliable choice for industrial processes.
