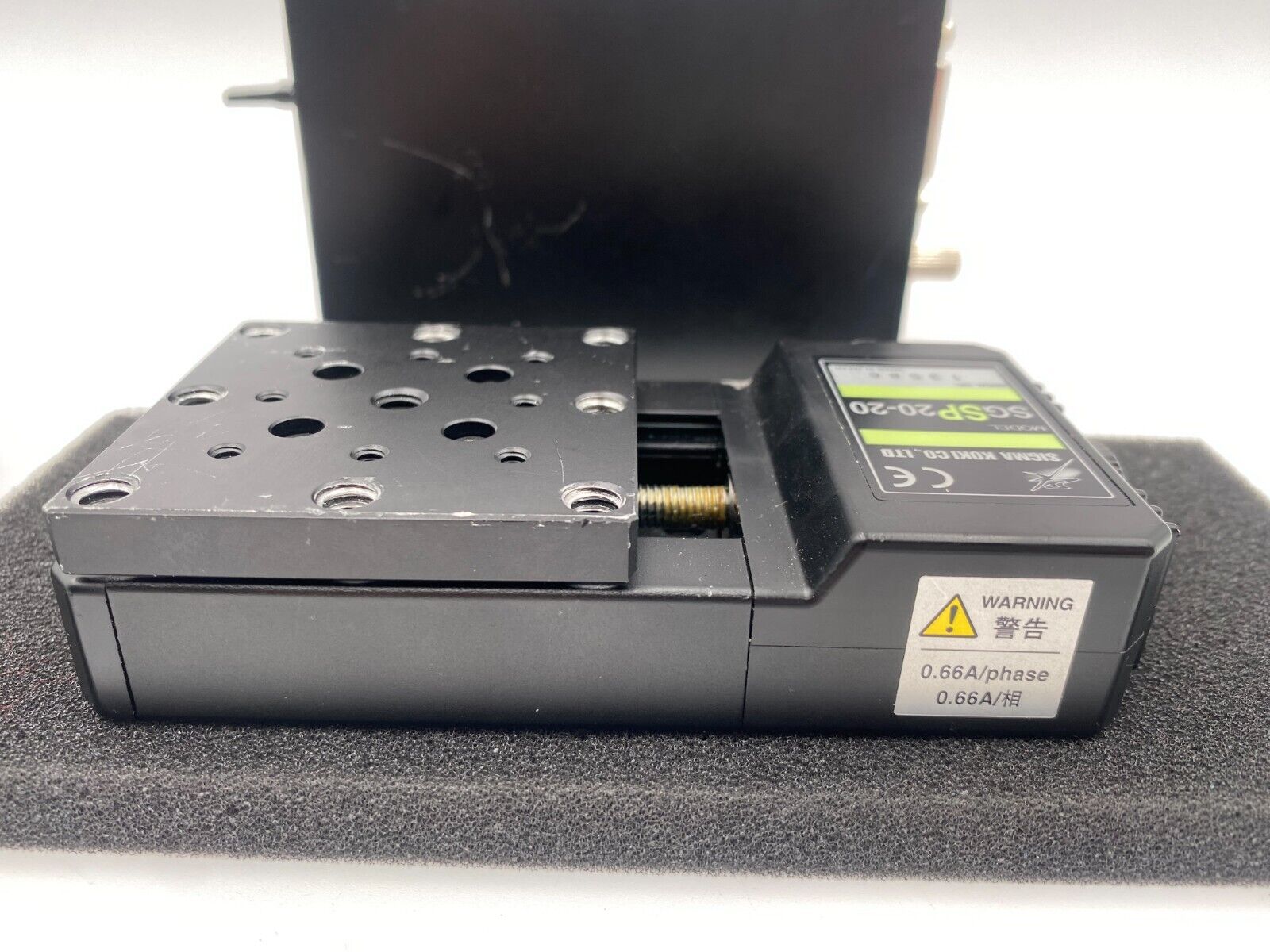

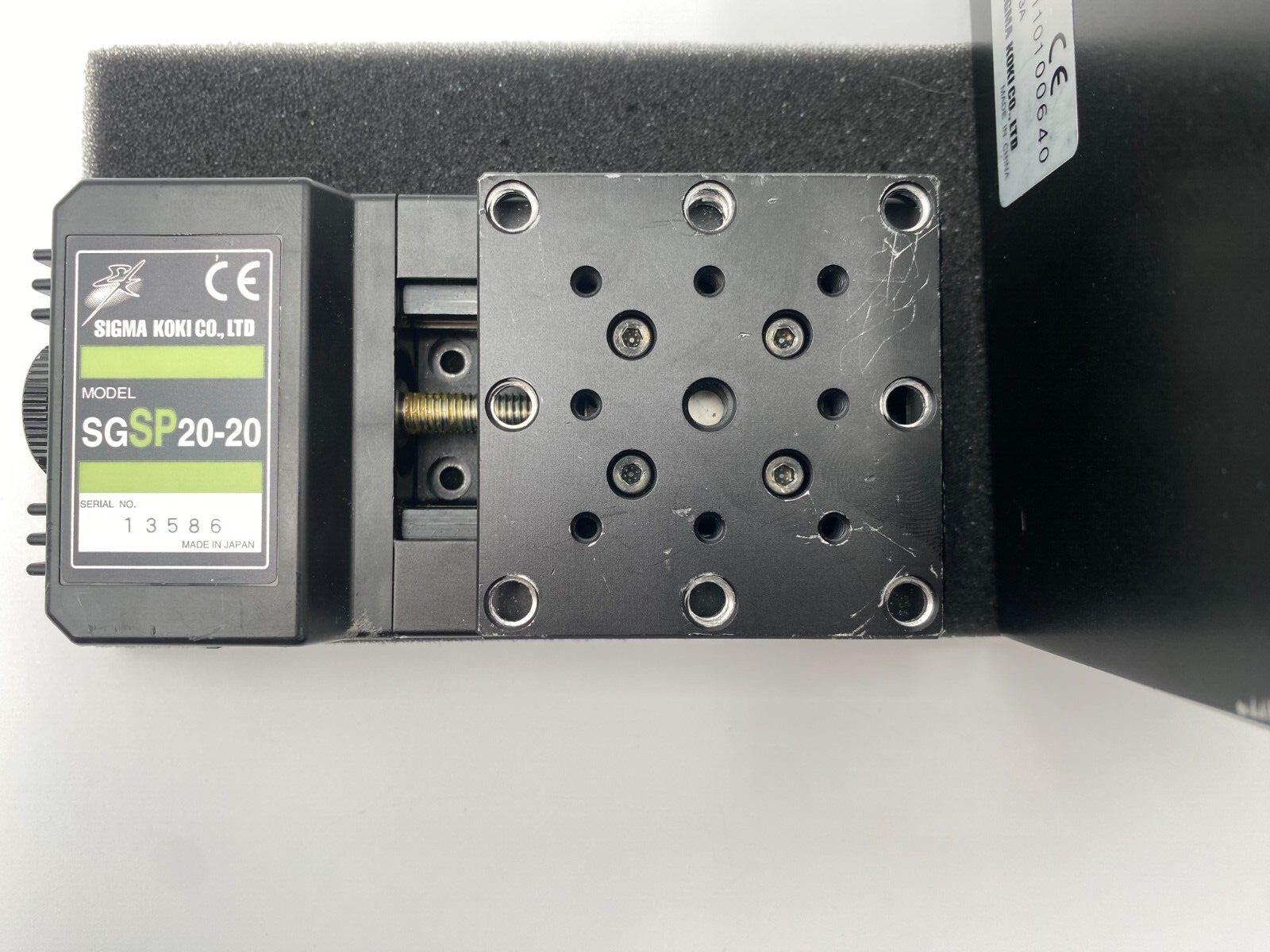

SIGMA KOKI Linear Stepping Motor Stage SGSP20-20 & GSC-01 Single Axis Controller

Stepper Motor:

• Equipped with a 2-phase stepper motor for precise positioning.
• Motor resolution: Typically 200 steps/revolution.

Stage Size:

• Width: 20 mm
• Length: Compact size allows for integration into setups with limited space.

Load Capacity:

• Supports moderate loads, depending on application conditions (often around 5–10 kg, but specific capacities depend on model variants).

Drive Mechanism:

• Uses a precision lead screw to convert rotational motion into linear displacement.

Positioning Accuracy:

• High repeatability, typically within a few microns, ideal for precise applications.

Mounting Options:

• Multiple mounting holes to ensure flexibility in installation.

Material:

• Made from high-strength aluminum with a black anodized finish for durability and resistance to wear.



• GSC-01


  The Sigma Koki GSC-01 is a compact stepping motor controller designed to drive stepping motors in various precision positioning applications. It is typically used to control motorized stages, including linear and rotary stages, for accurate movement in laboratory and industrial setups.

  Key Specifications of the GSC-01:

  1. Motor Compatibility:

     • Designed to control 2-phase stepper motors, making it compatible with a wide range of Sigma Koki motorized stages (like the SGSP series).

  2. Control:

     • Supports pulse control input, where the controller moves the motor by receiving a step pulse signal.
     • Typically interfaces with external control systems like a PC, controller interface, or manual input devices.

  3. Input Voltage:

     • DC Voltage: Typically operates at 24 V (confirm the specific model for voltage requirements).

  4. Current Output:

     • The controller can output up to 2 A per phase for reliable performance in driving the stepper motors.

  5. Microstepping:

     • The controller may support microstepping for smoother and more precise movements, depending on the configuration.

  6. Interface:

     • Offers digital I/O ports for triggering specific actions, such as homing or limit switches.
     • Pulse rate control for stepper motors, allowing precise control of speed and position.

  7. Protection:

     • Includes built-in overcurrent protection to ensure the safety of both the controller and connected motors.

  8. Compact Size:

     • Small and lightweight, making it suitable for compact experimental setups or integrated systems.
