Cosmetic Condition:
A Grade, Item has unnoticeable signs of wear, including light scratching or scuffs that do not affect functionality

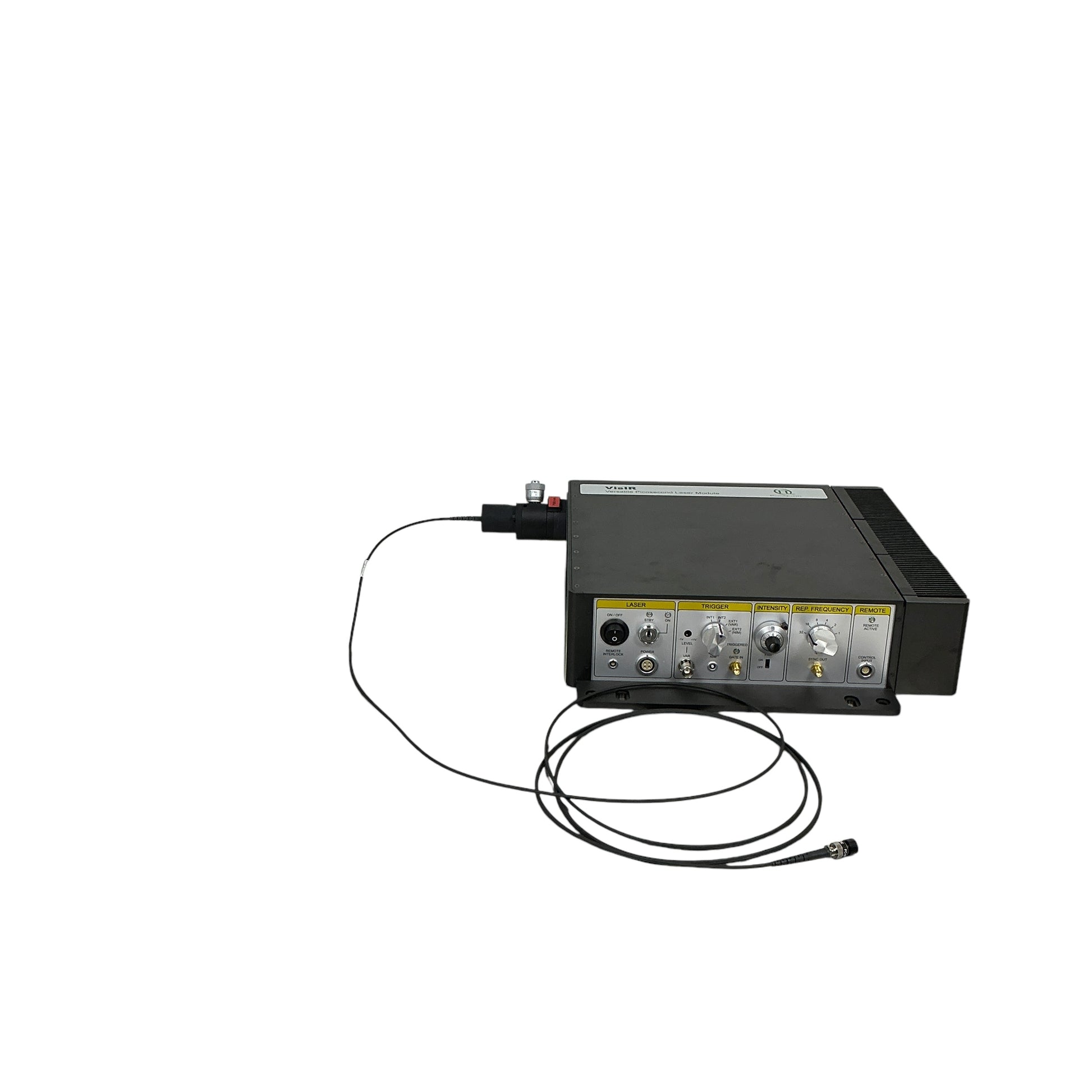

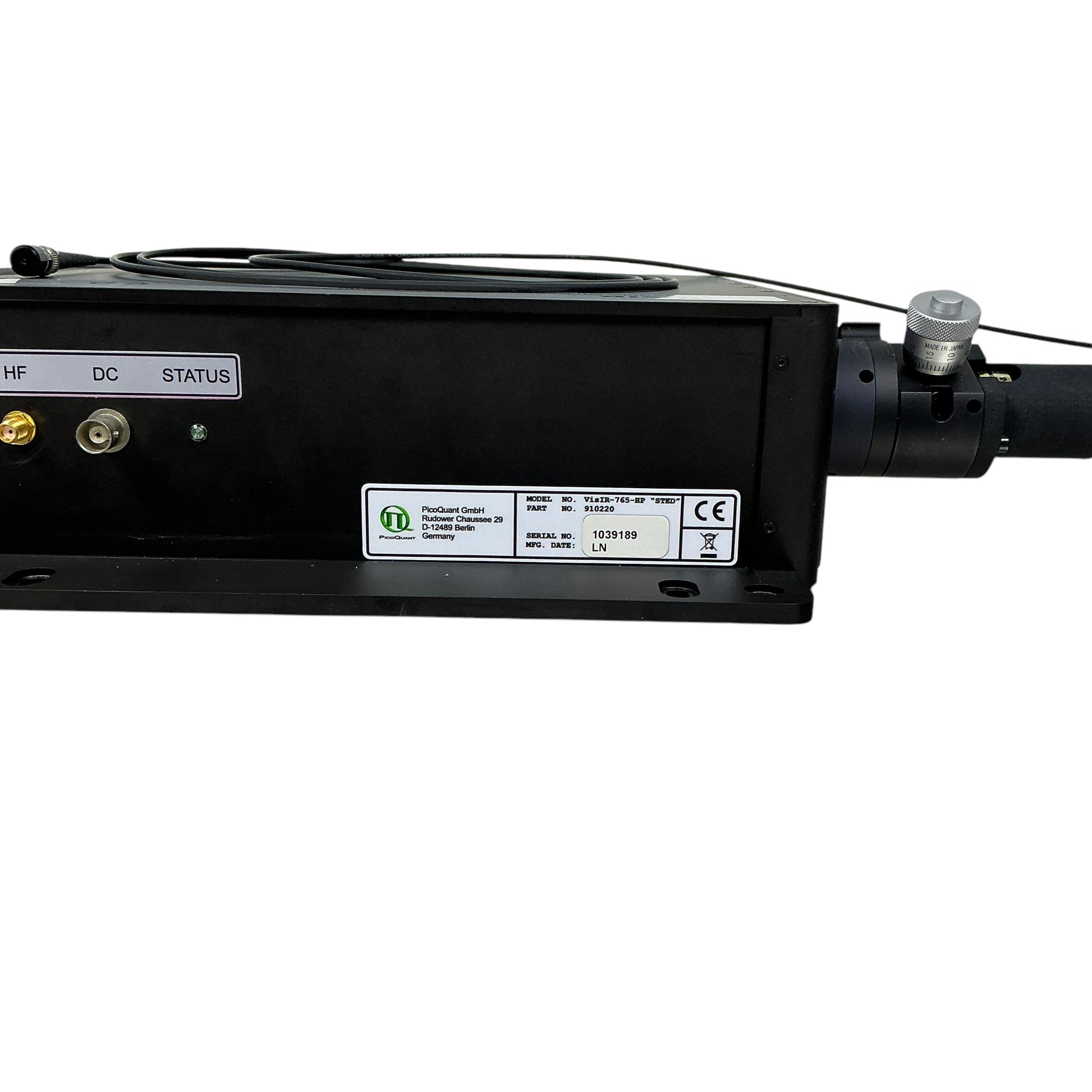

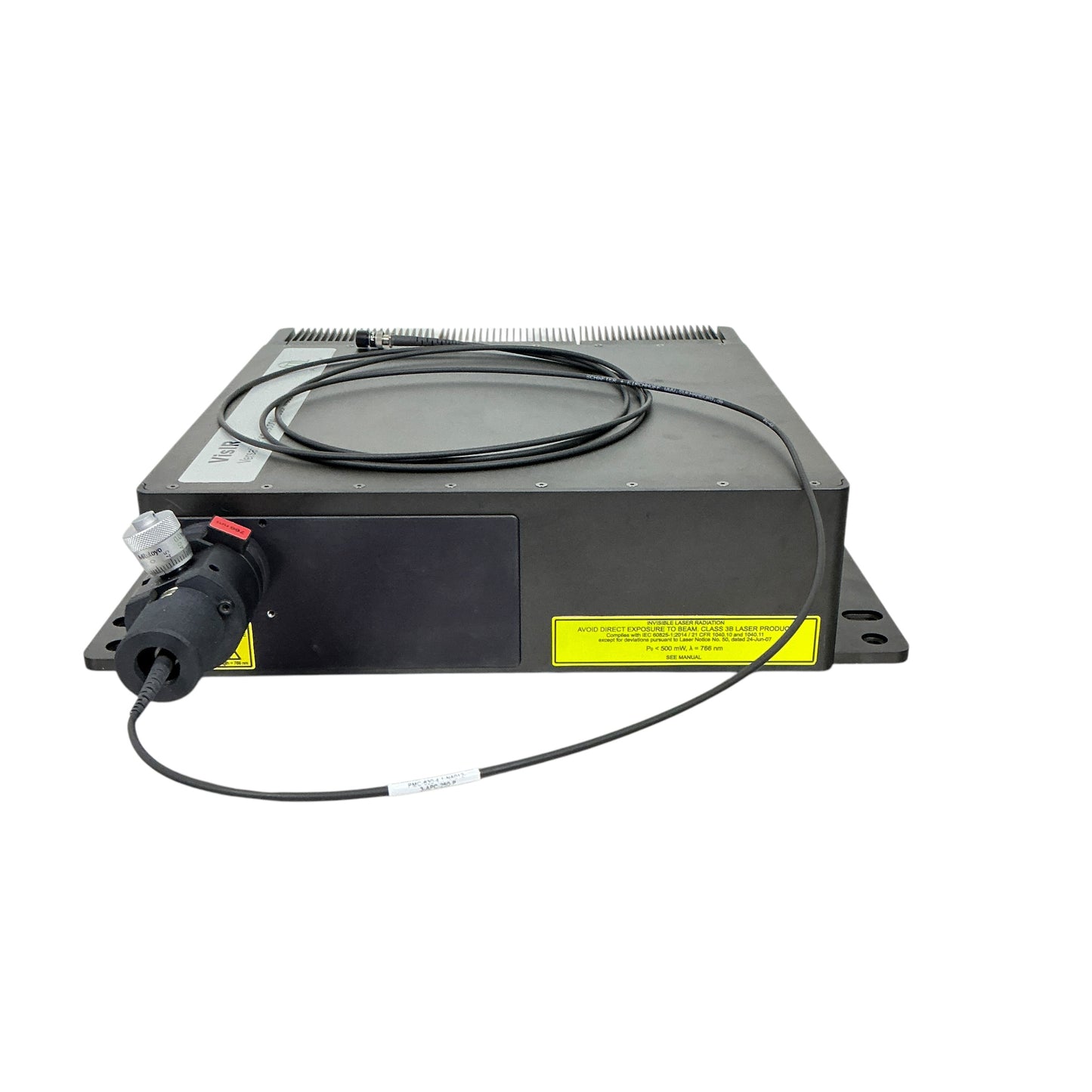

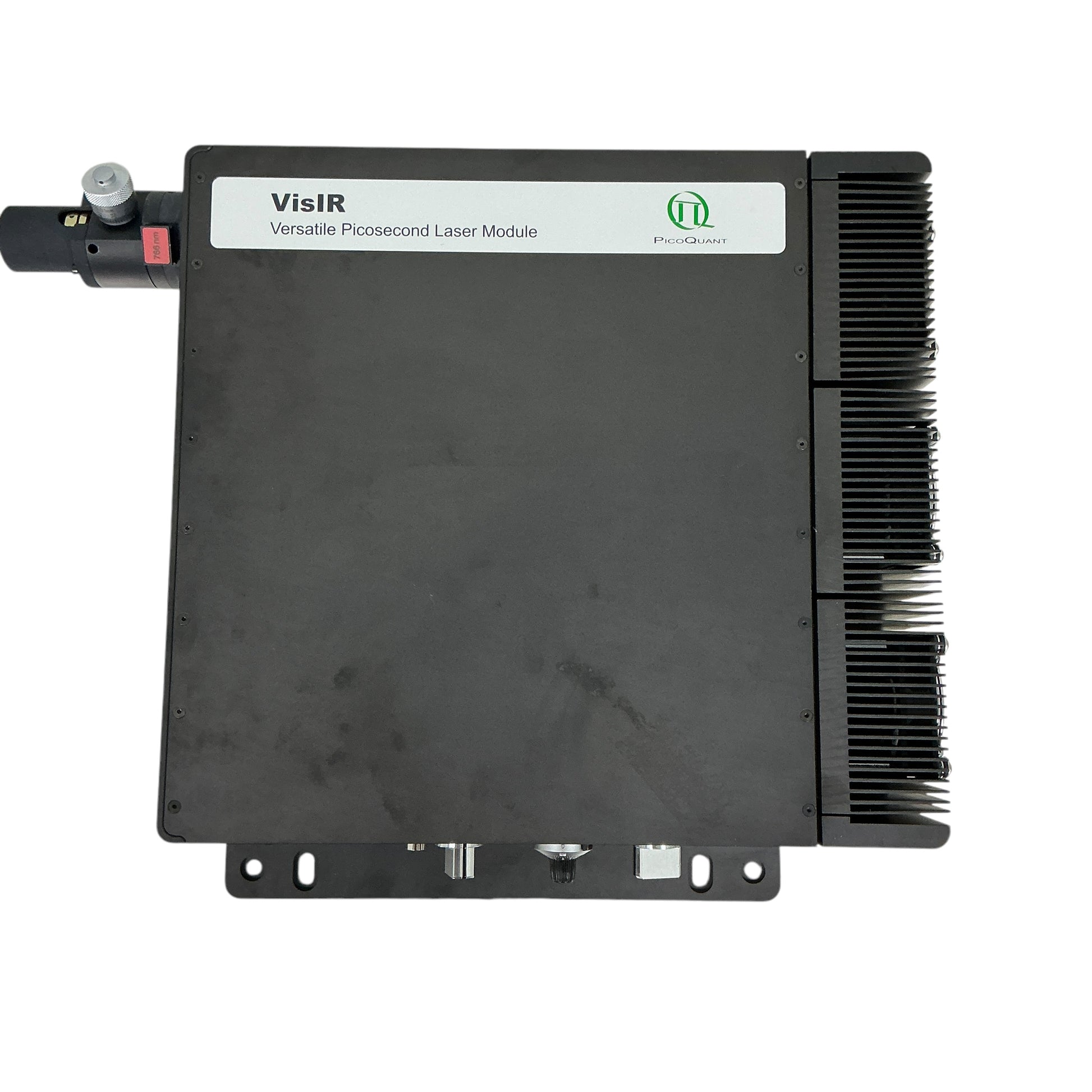

PicoQuant VisIR-765-HP "STED" – Overview
The VisIR-765-HP is a high-power, picosecond pulsed laser module developed for STED (Stimulated Emission Depletion) microscopy and other time-resolved optical applications.
Specifications:
Wavelength: 766 nm (range: 765–767 nm)
Pulse Width: Typically 0.5 ns; configurable 0.15–0.5 ns with external pulse generator
Repetition Rate: Selectable 31.25 kHz to 80 MHz; external triggerable (TTL or NIM)
Average Power: >1.5 W
Pulse Energy: >150 nJ
Beam Quality: TEM₀₀, M² < 1.1

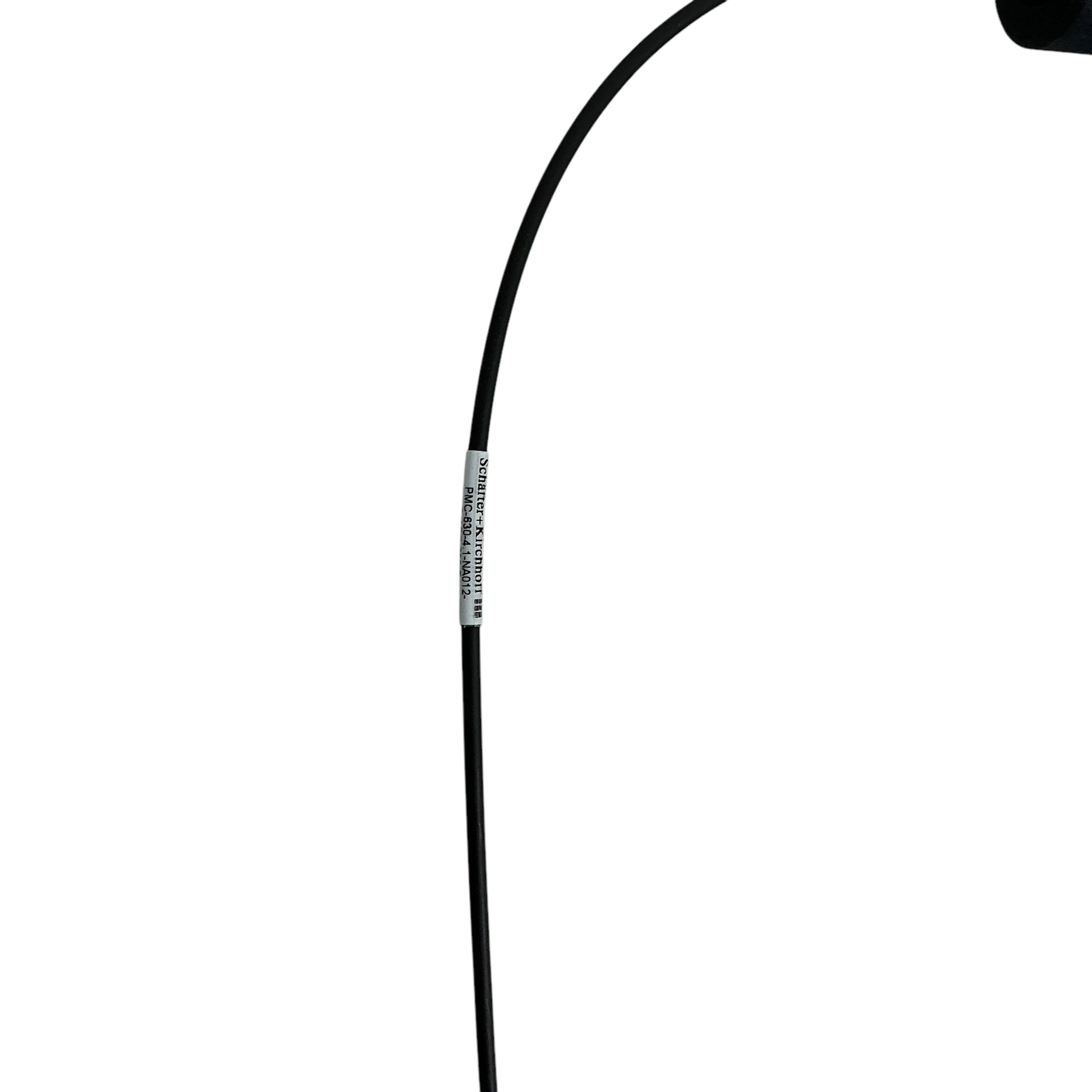

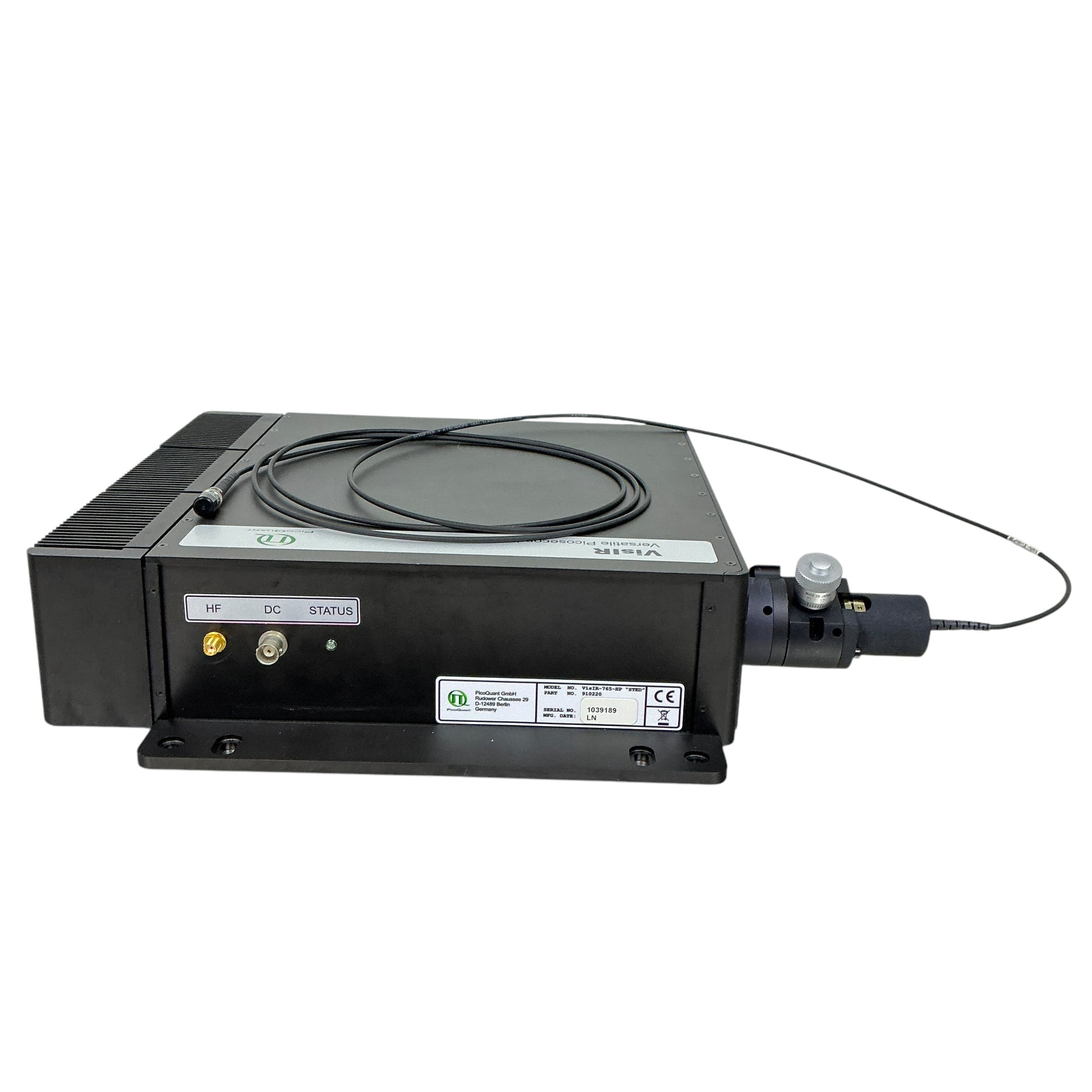

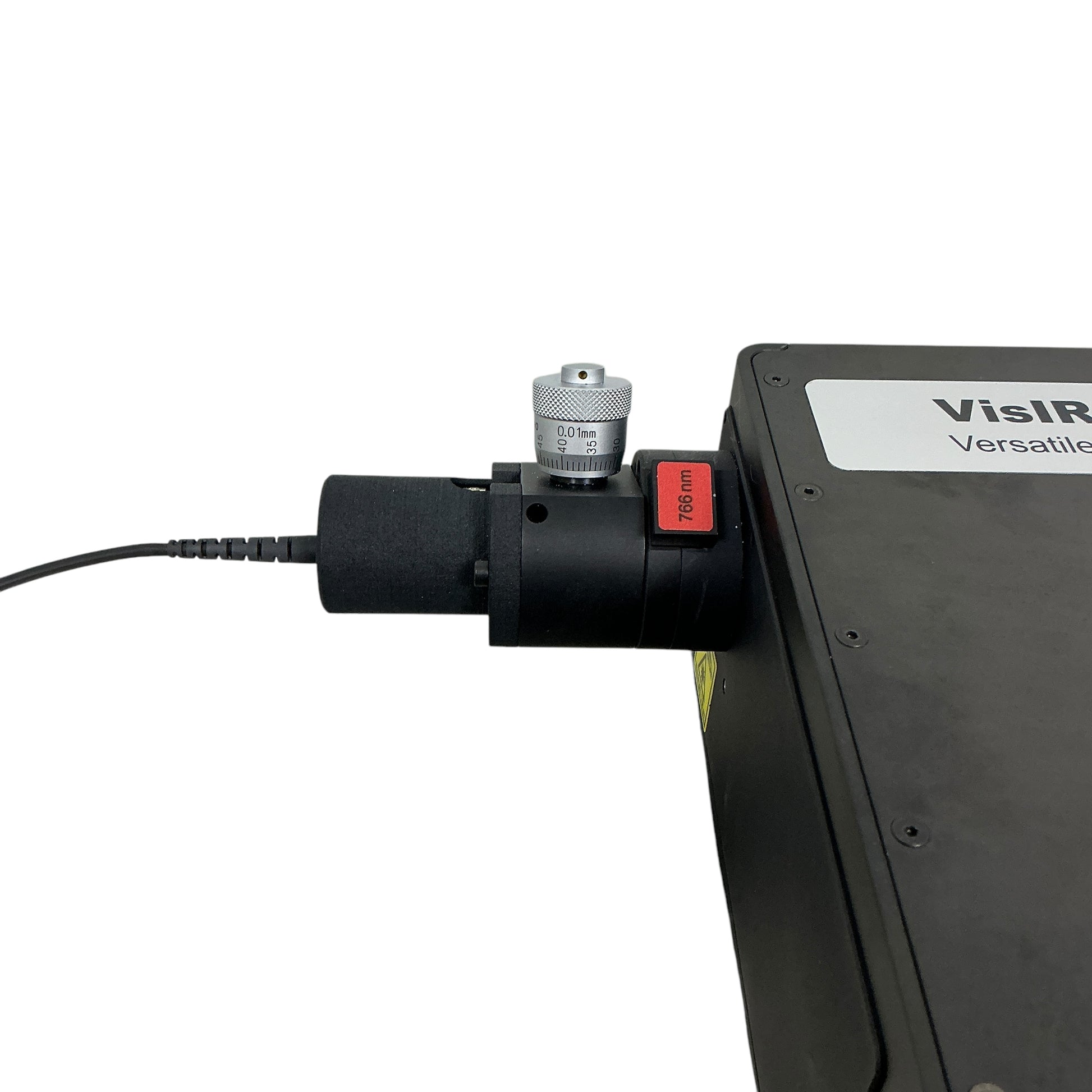

Output: Free-space beam; fiber coupling optional

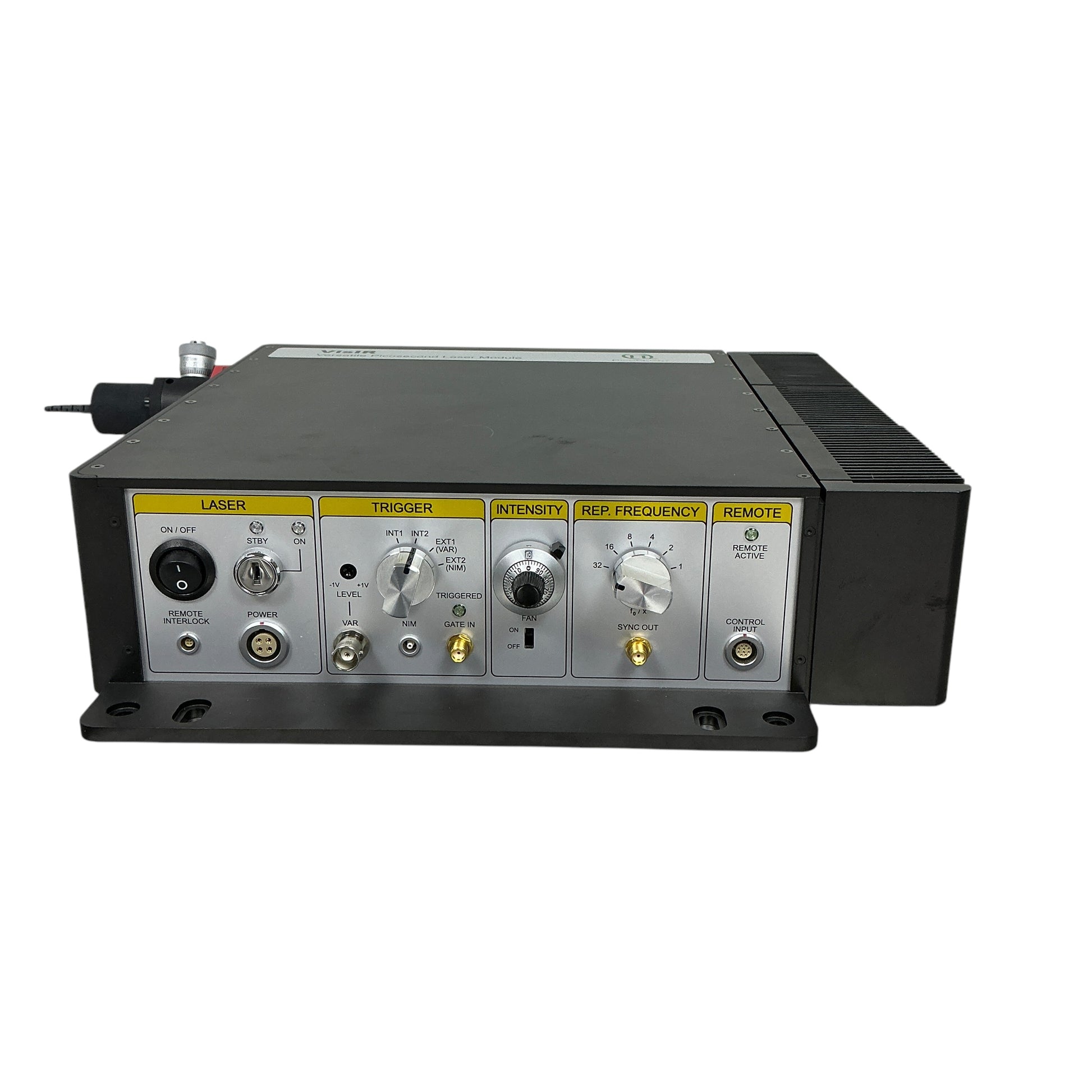

Interface: USB and RS232; compatible with PicoQuant Sepia PDL 828
Applications:
STED microscopy (high-resolution fluorescence imaging)
Fluorescence Lifetime Imaging (FLIM)
Time-resolved spectroscopy
FRET and FCS measurements

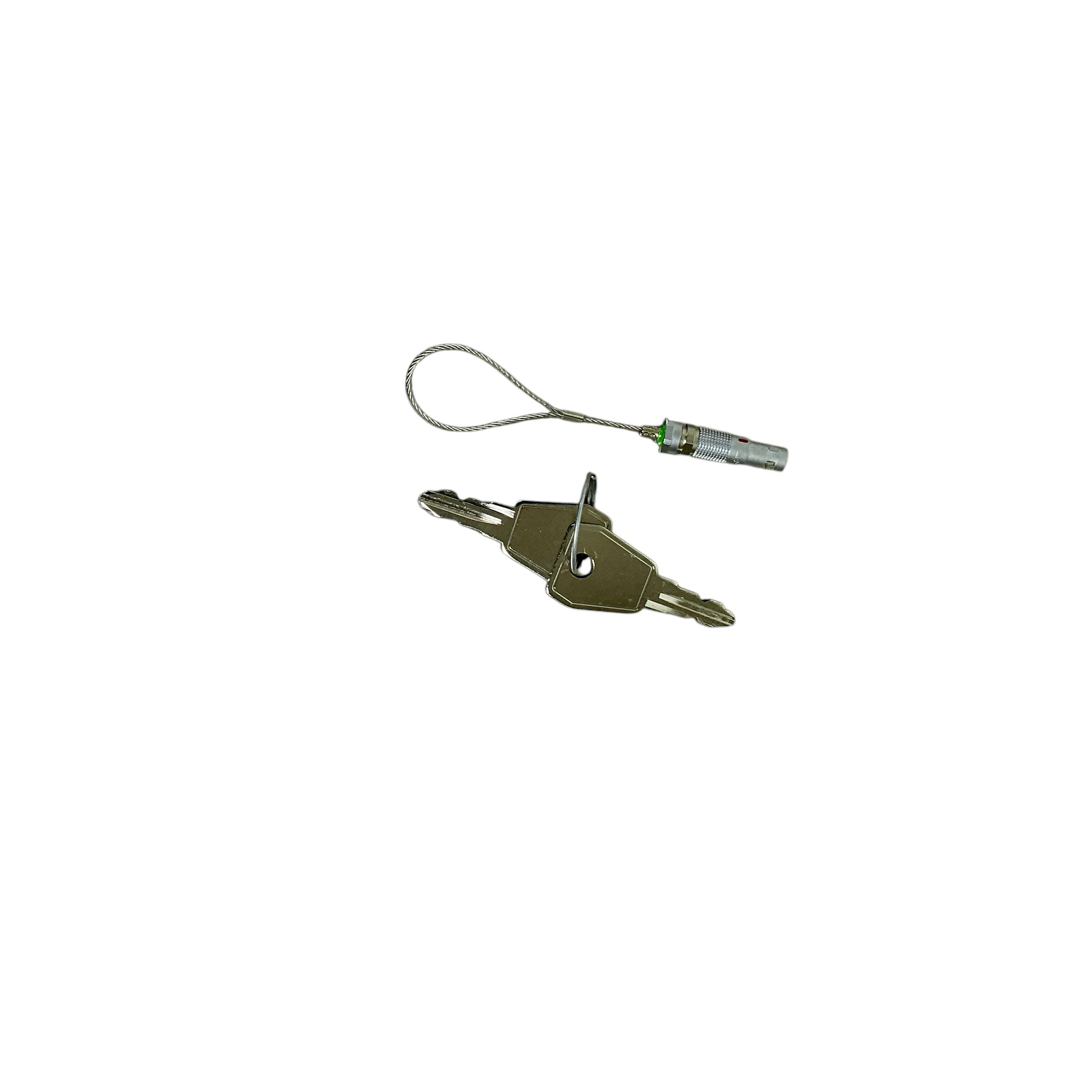

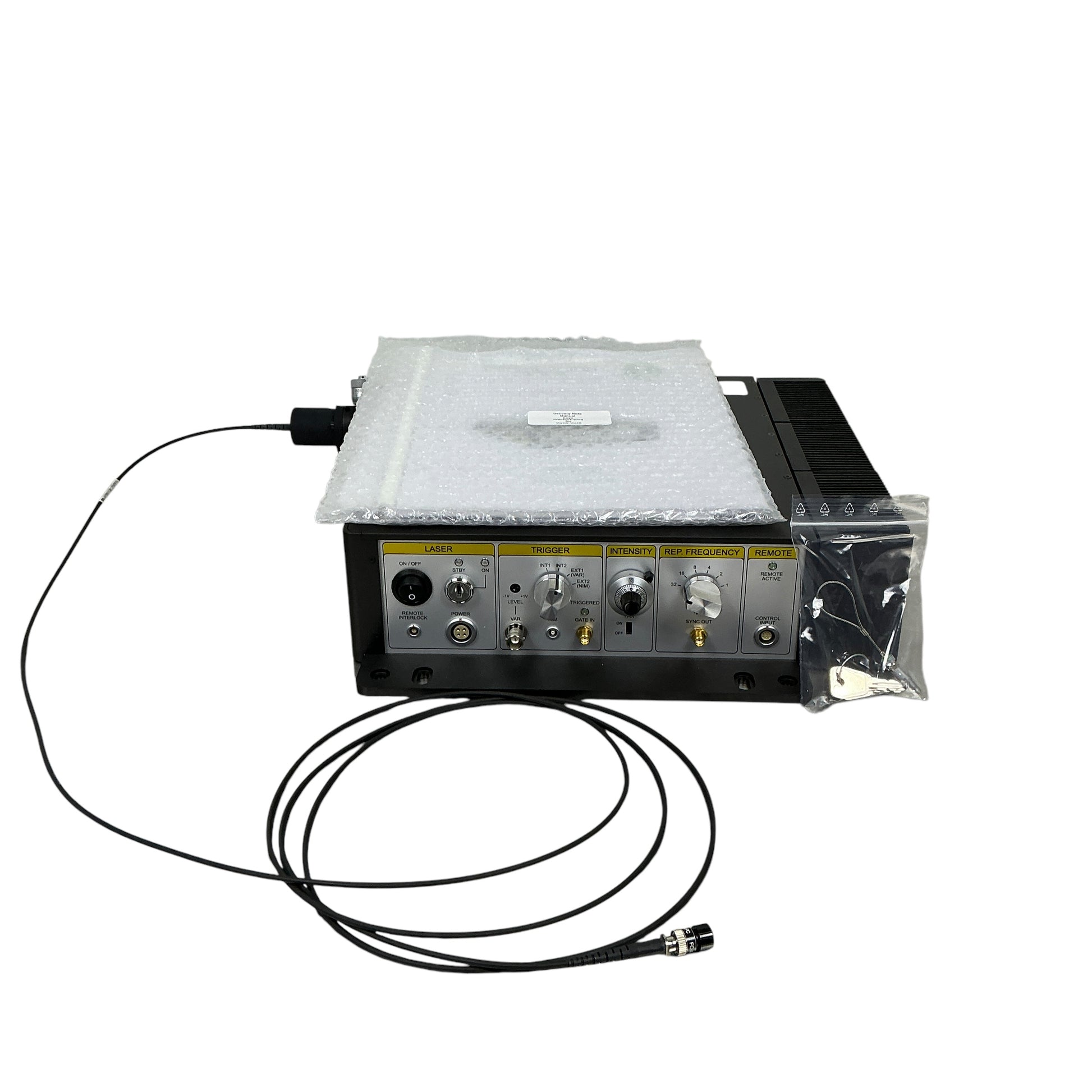

Excellent condition. Lightly used. Removed from surplus at a major local tech company. Power supply not included. Keys and an interlock are included.
The VisIR-765-HP is a high-power, picosecond pulsed laser module developed for STED (Stimulated Emission Depletion) microscopy and other time-resolved optical applications.
Specifications:
Wavelength: 766 nm (range: 765–767 nm)
Pulse Width: Typically 0.5 ns; configurable 0.15–0.5 ns with external pulse generator
Repetition Rate: Selectable 31.25 kHz to 80 MHz; external triggerable (TTL or NIM)
Average Power: >1.5 W
Pulse Energy: >150 nJ
Beam Quality: TEM₀₀, M² < 1.1
Output: Free-space beam; fiber coupling optional
Interface: USB and RS232; compatible with PicoQuant Sepia PDL 828
Applications:
STED microscopy (high-resolution fluorescence imaging)
Fluorescence Lifetime Imaging (FLIM)
Time-resolved spectroscopy
FRET and FCS measurements
Excellent condition. Lightly used. Removed from surplus at a major local tech company. Power supply not included. Keys and an interlock are included.
