Cosmetic Condition:
A+ Grade, New or like new condition. Item has zero signs of use.

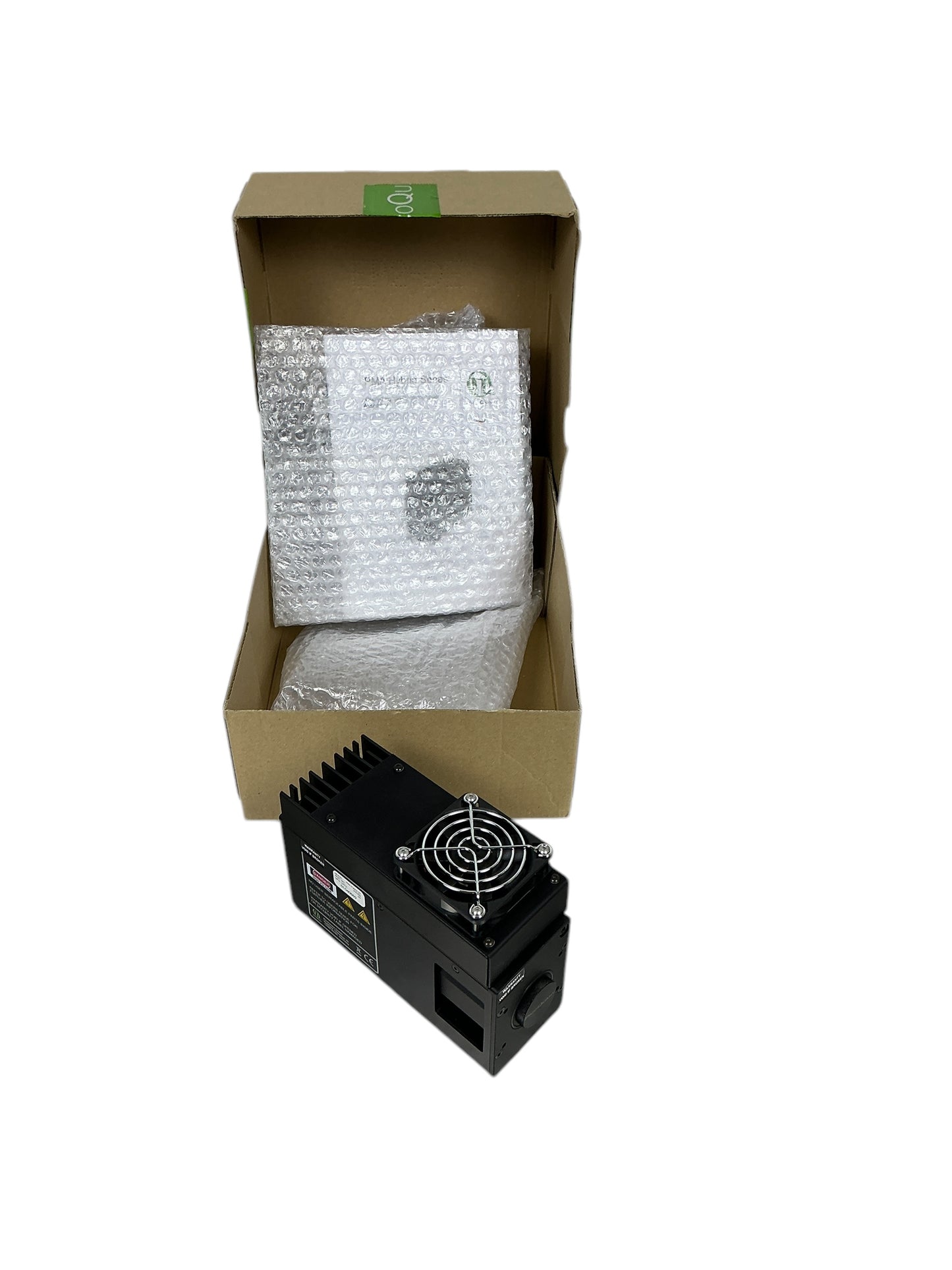

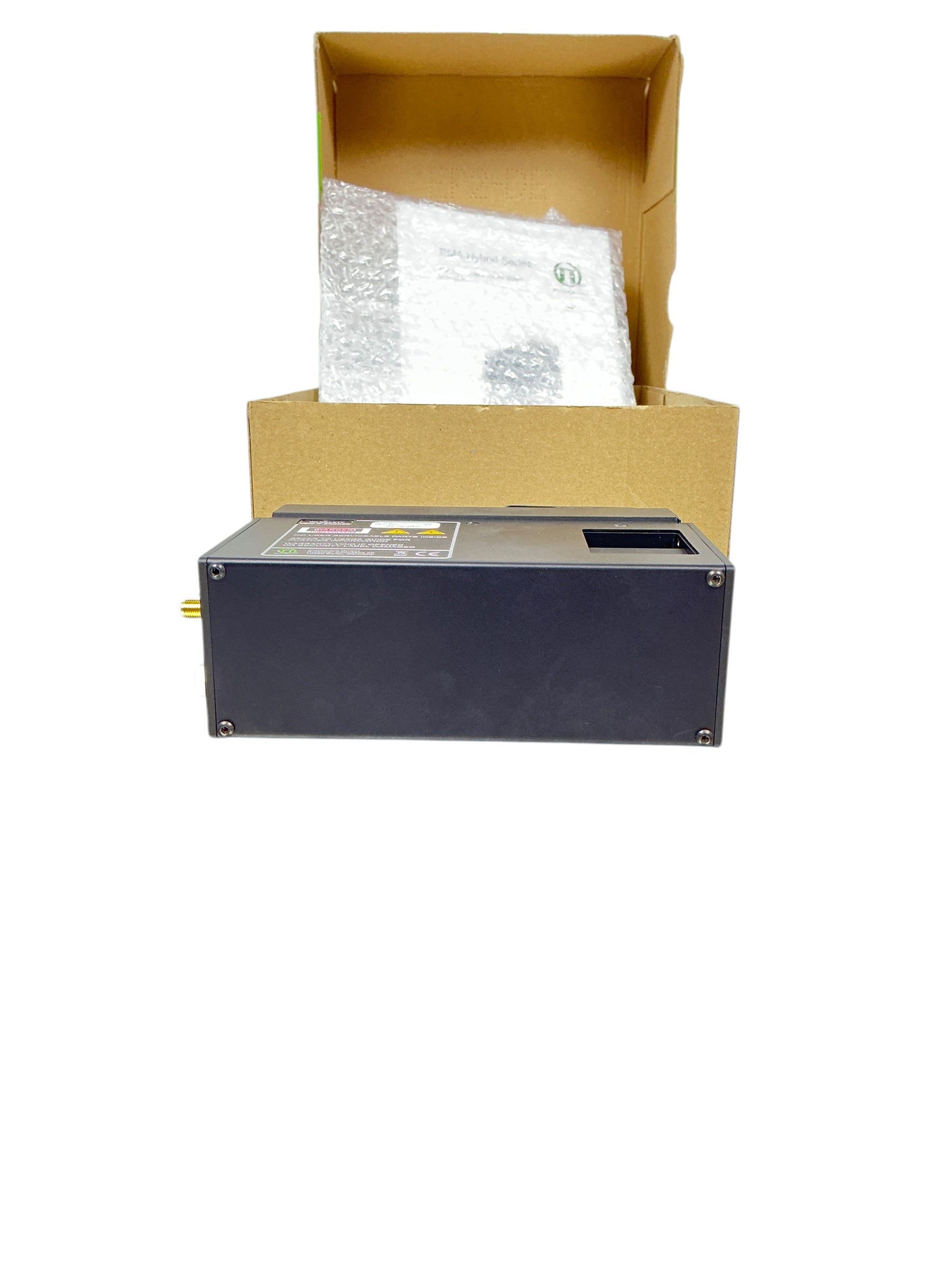

PicoQuant PMA 50 (932205) is a hybrid photon counting detector assembly optimized for near-infrared sensitivity and precise time-resolved measurements.
Key Specifications:
Spectral Range: 380–890 nm
Peak Detection Efficiency: ~15% at 600 nm
Timing Resolution (FWHM): ~160 picoseconds
Dark Count Rate: <1000 cps (cooled)
Active Area: 3 mm diameter

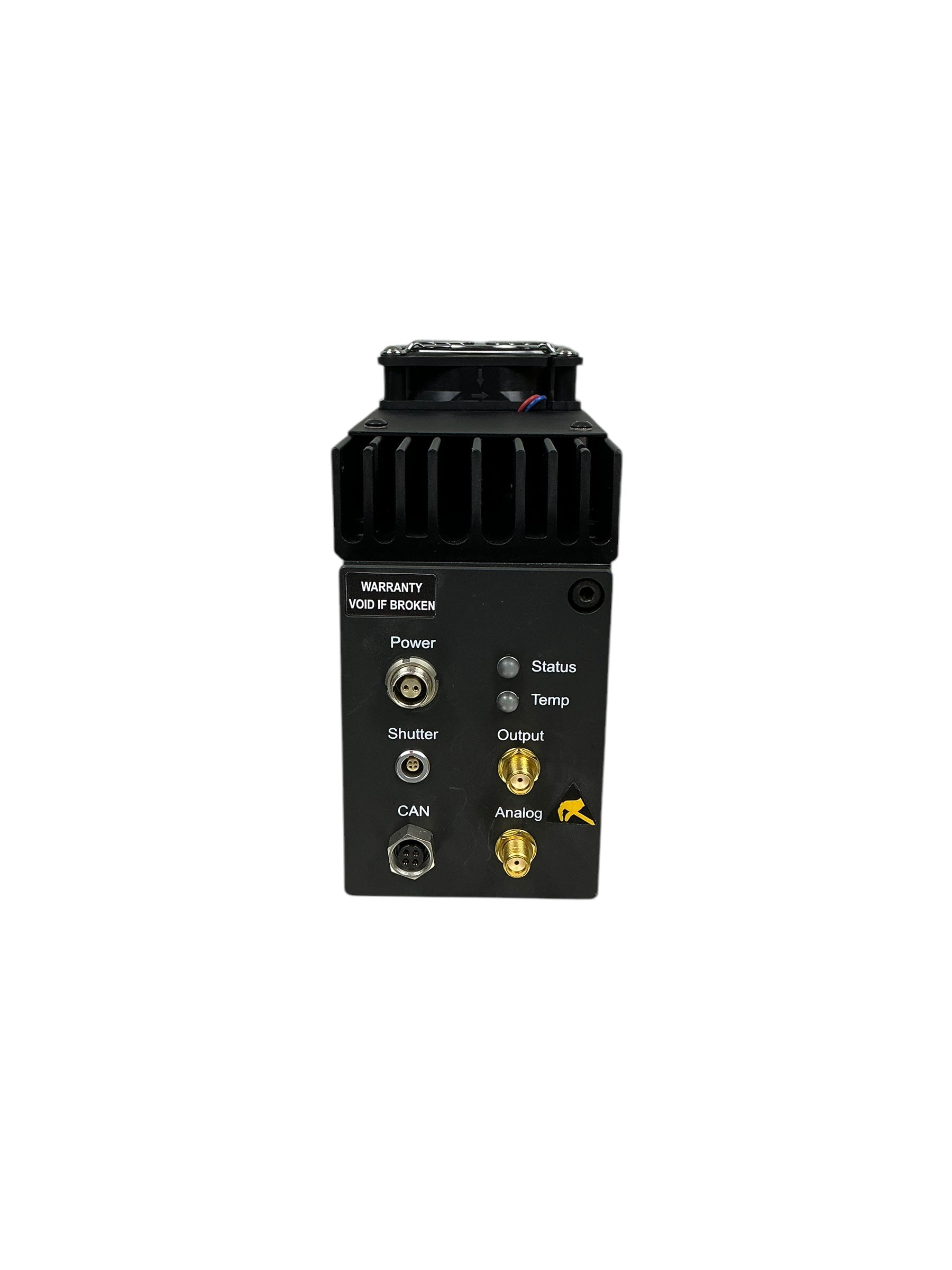

Output Signals:
Timing: Negative pulse via SMA (50 Ω)
Analog: Proportional voltage via SMA (>1 kΩ)

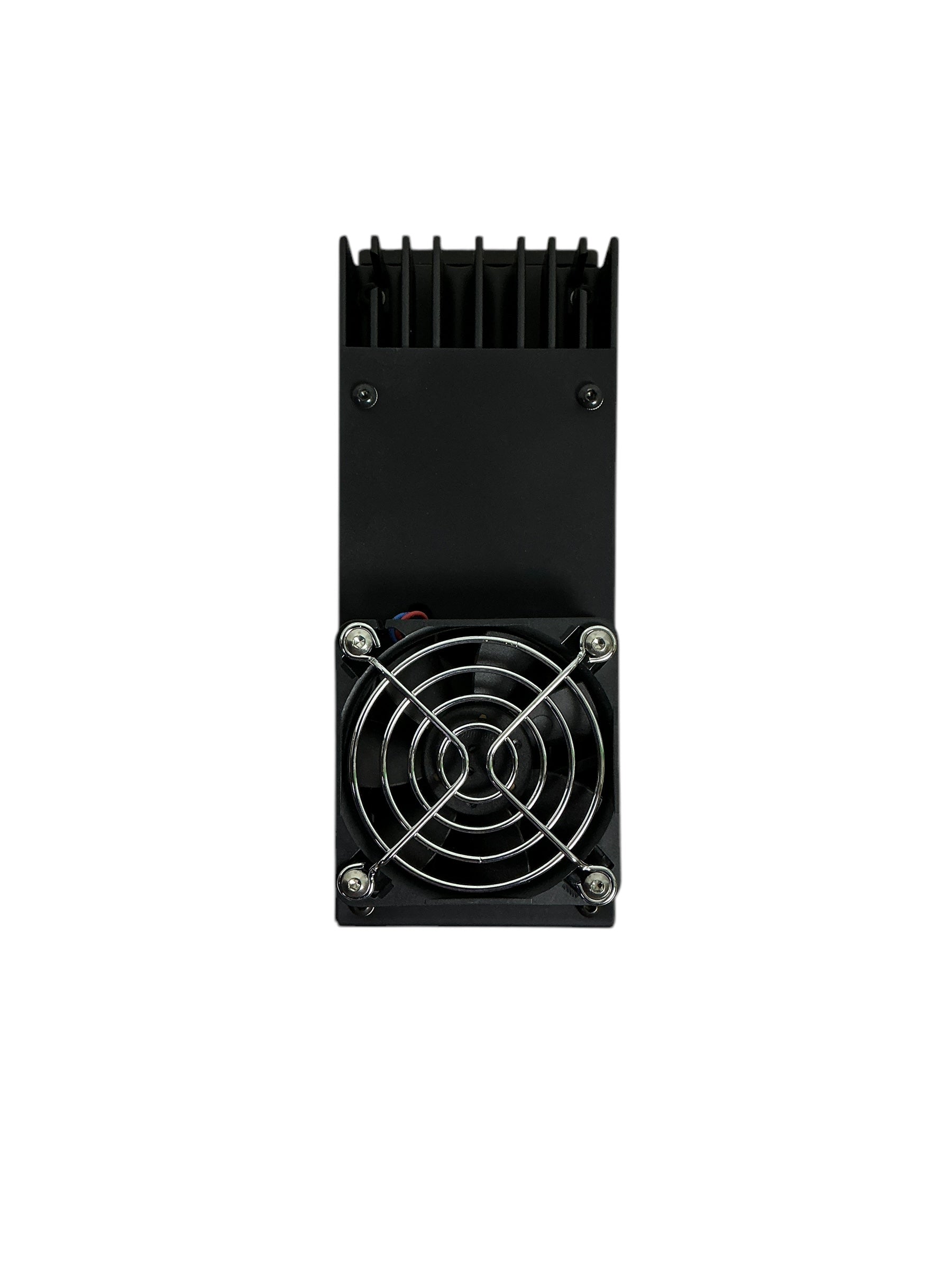

Cooling: Integrated Peltier cooler
Power Supply: 12 V DC
Overload Protection: Auto shutter closure at high count rates

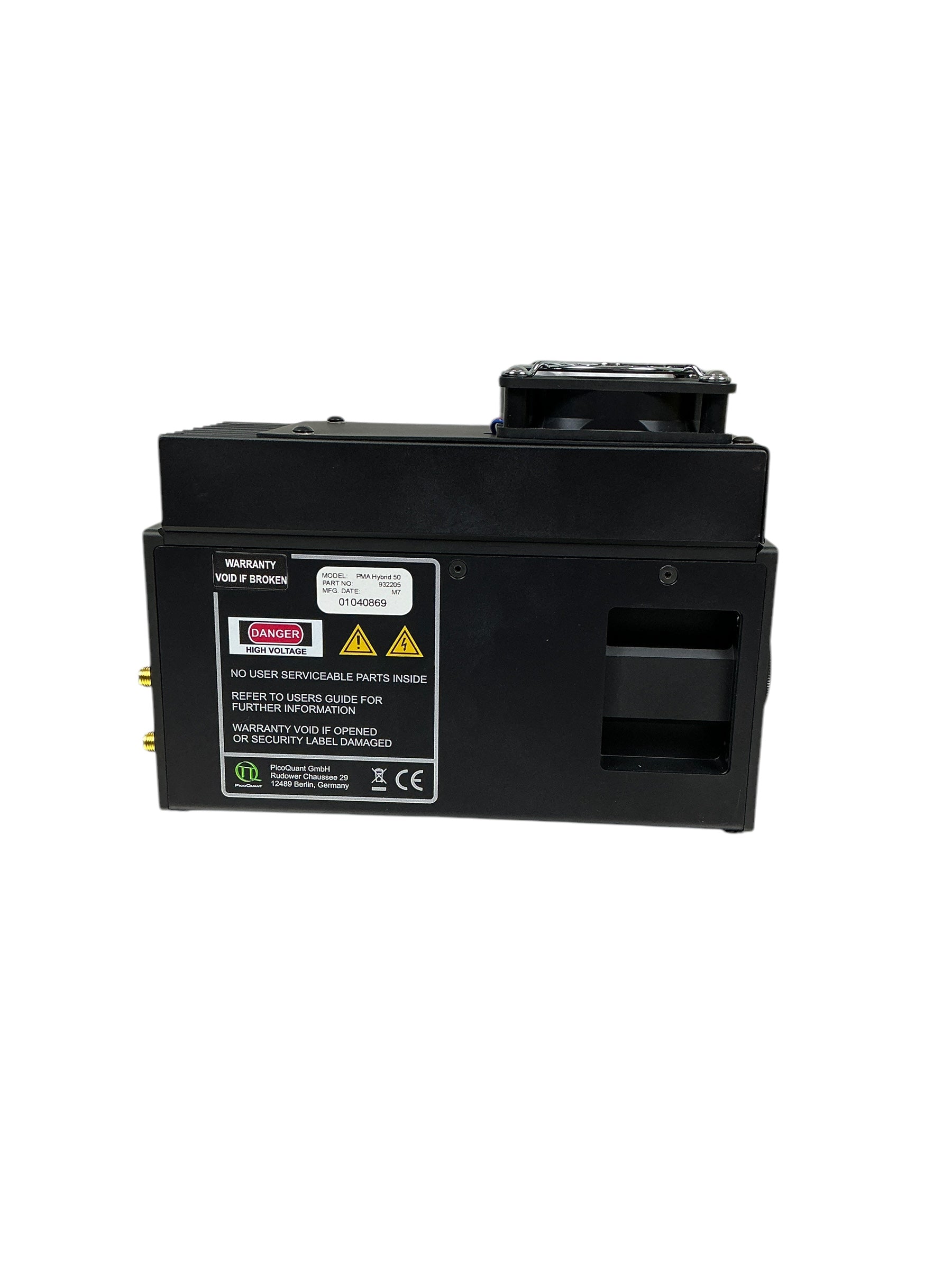

Housing: Nickel-coated aluminum with RF shielding
Applications:
Time-Correlated Single Photon Counting (TCSPC)
Fluorescence Lifetime Imaging (FLIM)
Fluorescence Correlation Spectroscopy (FCS)
Quantum optics
NIR fluorescence detection

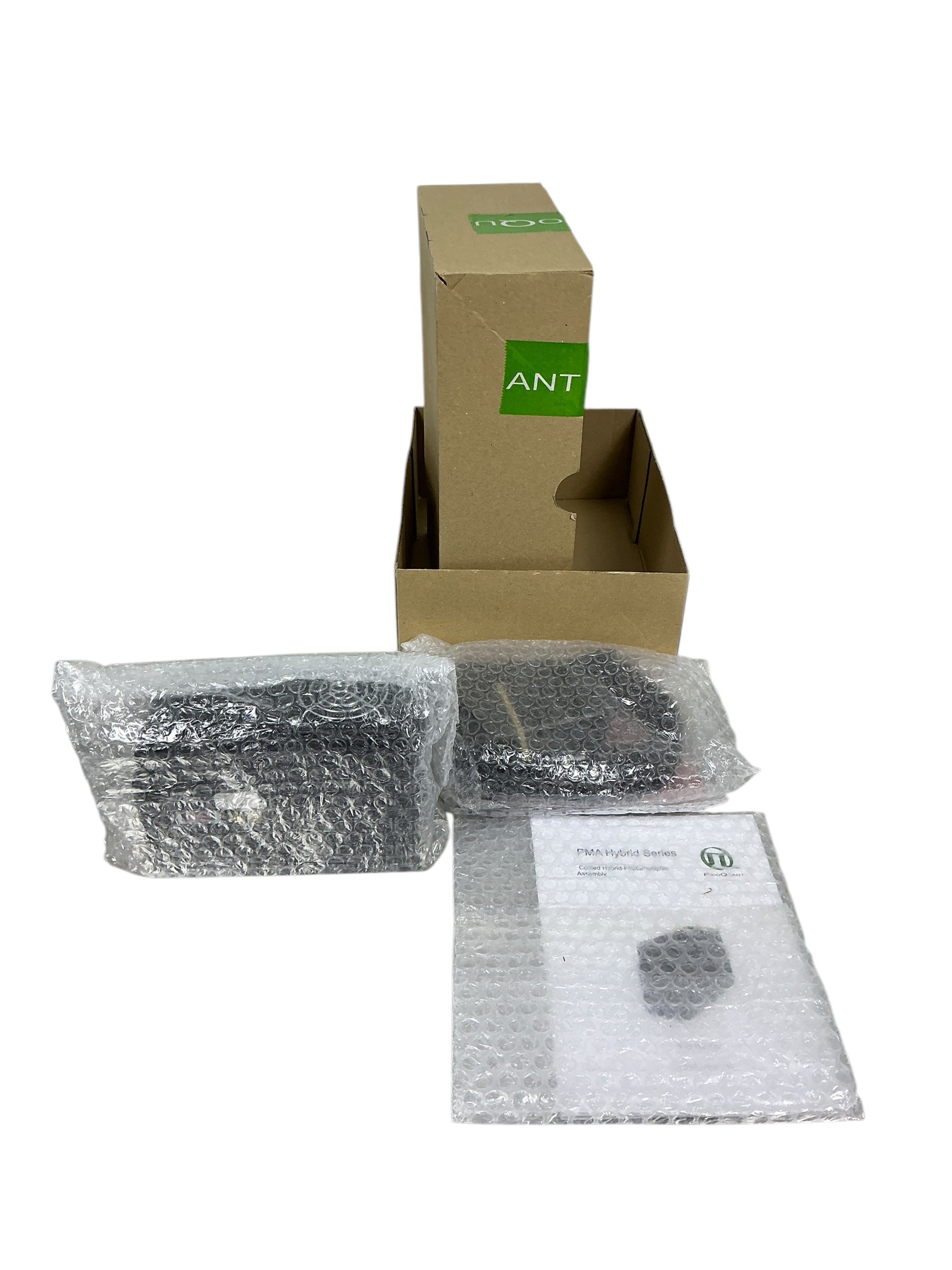

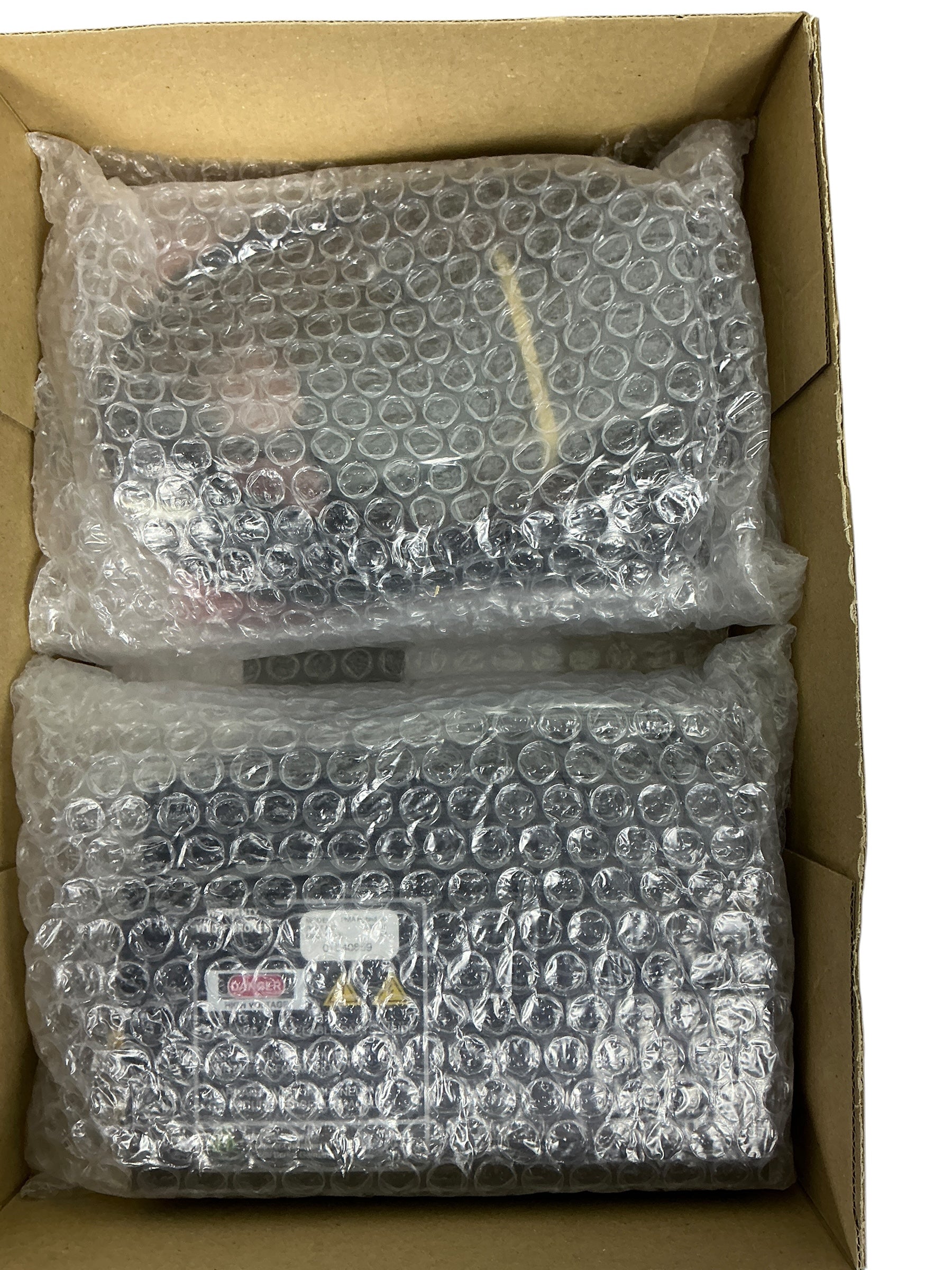

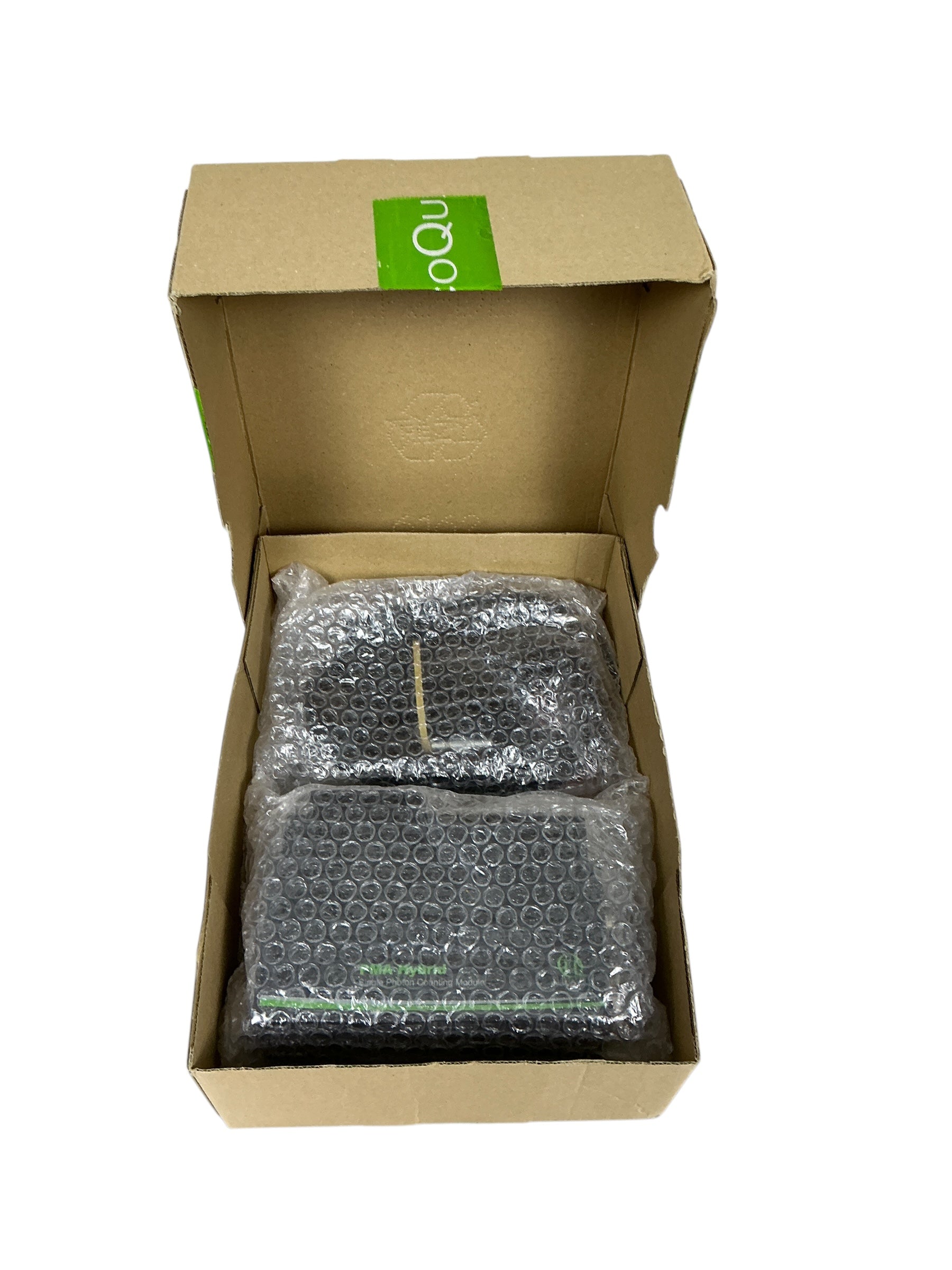

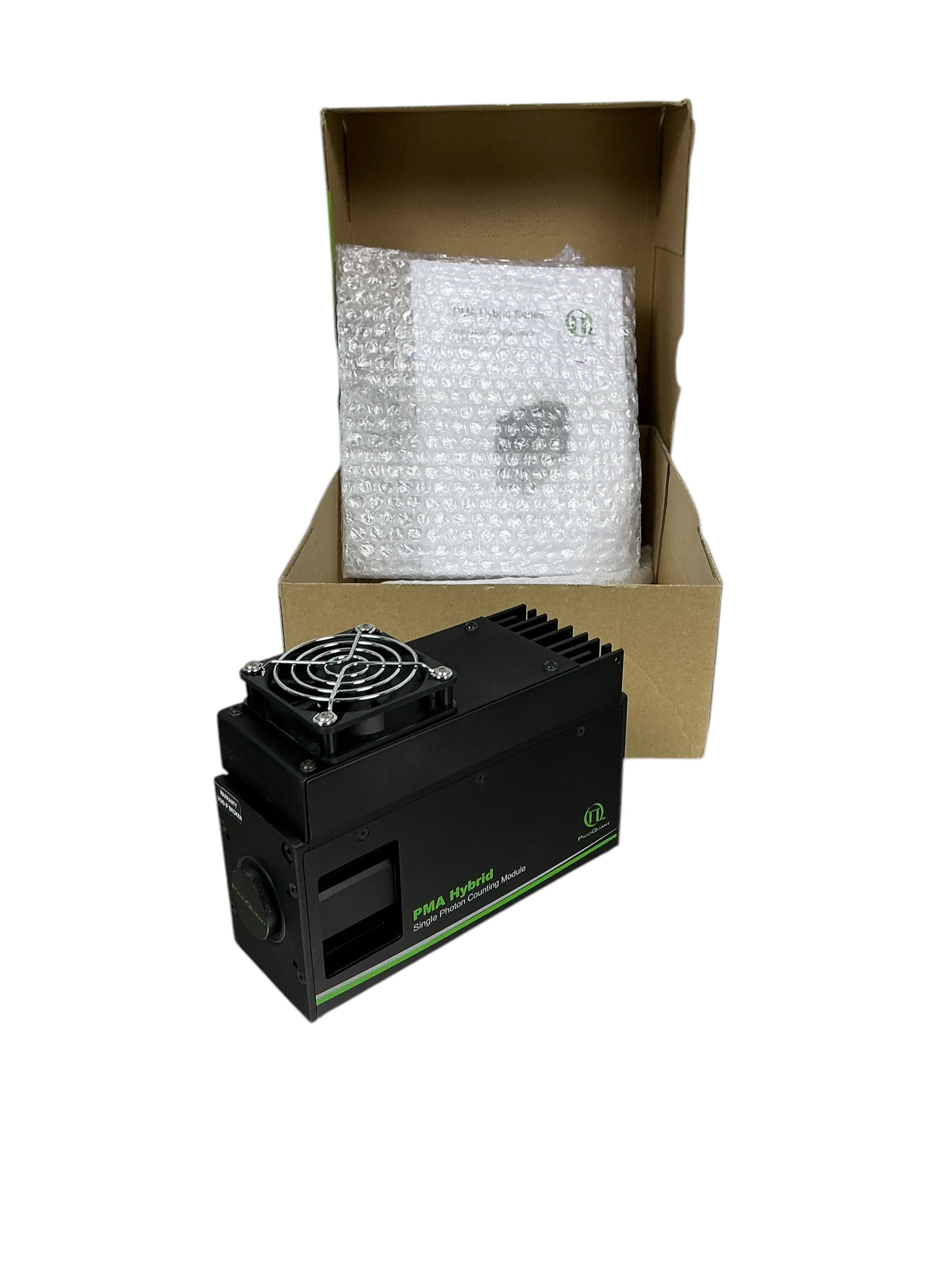

New Open Box Inclues Power Supply, Manual No additional items.
Join our email list to be the first to claim discounted equipment when it drops!
Choosing a selection results in a full page refresh.
Opens in a new window.
×
Please wait...
Make An Offer

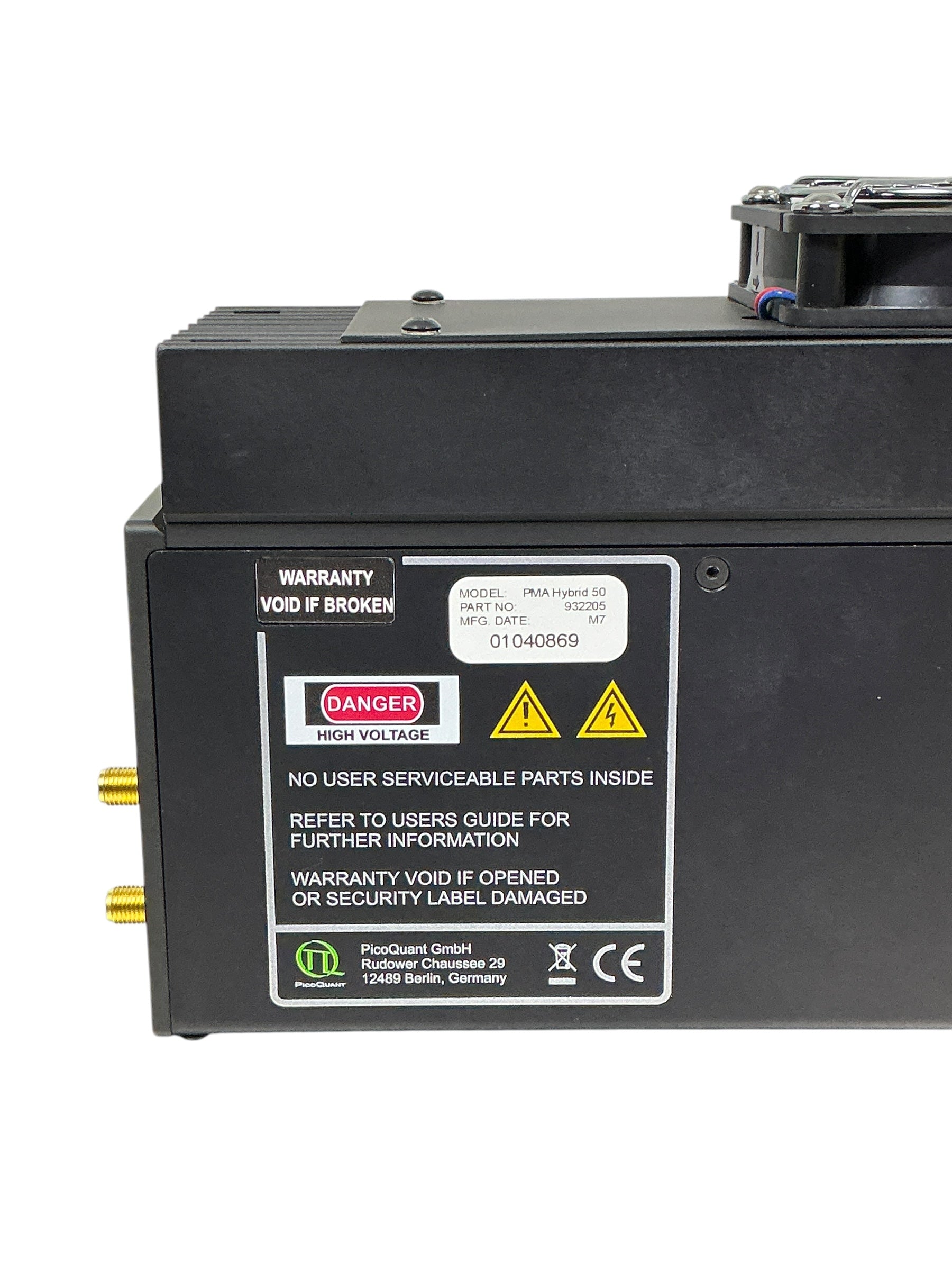

PicoQuant PMA 50 932205 Hybrid Single Photon Counting Module - New Open Box
$8,500.00
PicoQuant PMA 50 932205 Hybrid Single Photon Counting Module - New Open Box
PicoQuant PMA 50 (932205) is a hybrid photon counting detector assembly optimized for near-infrared sensitivity and precise time-resolved measurements.
Key Specifications:
Spectral Range: 380–890 nm
Peak Detection Efficiency: ~15% at 600 nm
Timing Resolution (FWHM): ~160 picoseconds
Dark Count Rate: <1000 cps (cooled)
Active Area: 3 mm diameter
Output Signals:
Timing: Negative pulse via SMA (50 Ω)
Analog: Proportional voltage via SMA (>1 kΩ)
Cooling: Integrated Peltier cooler
Power Supply: 12 V DC
Overload Protection: Auto shutter closure at high count rates
Housing: Nickel-coated aluminum with RF shielding
Applications:
Time-Correlated Single Photon Counting (TCSPC)
Fluorescence Lifetime Imaging (FLIM)
Fluorescence Correlation Spectroscopy (FCS)
Quantum optics
NIR fluorescence detection
New Open Box Inclues Power Supply, Manual No additional items.
