Cosmetic Condition:
C Grade, Item has moderate and noticeable signs of use, including but not limited to scratches, scuffs, paint discoloration, and/or glue residue. See photos and description for more details.

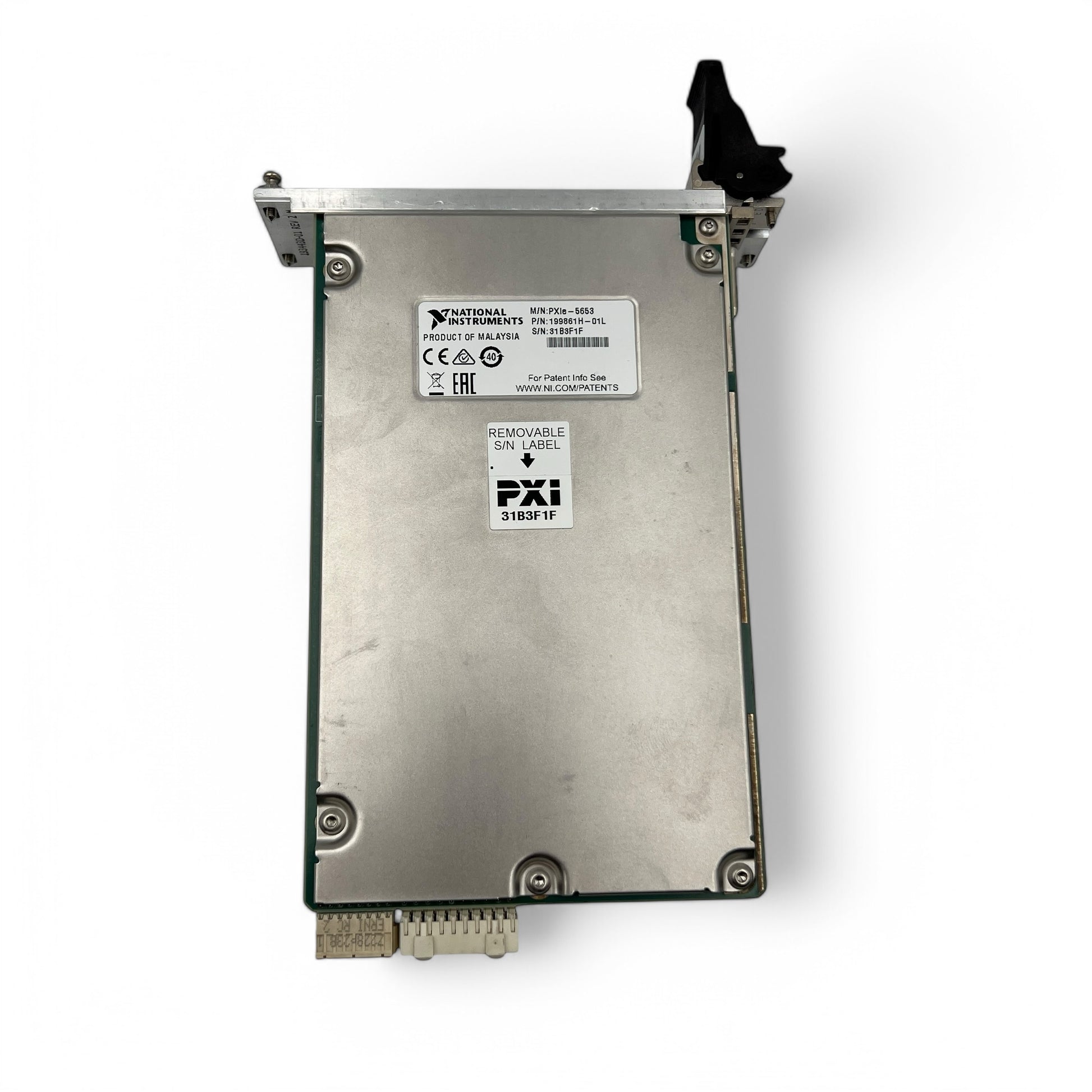

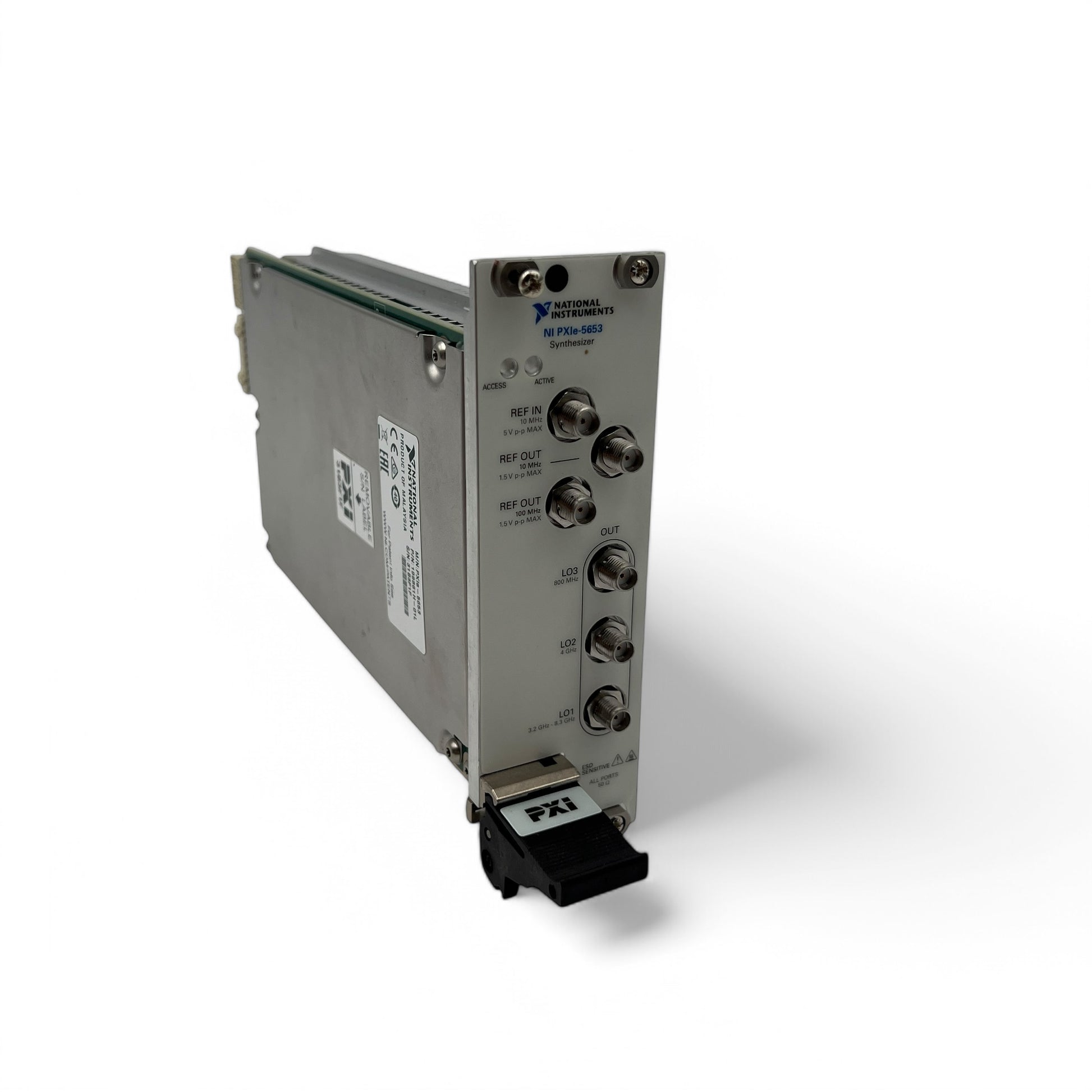

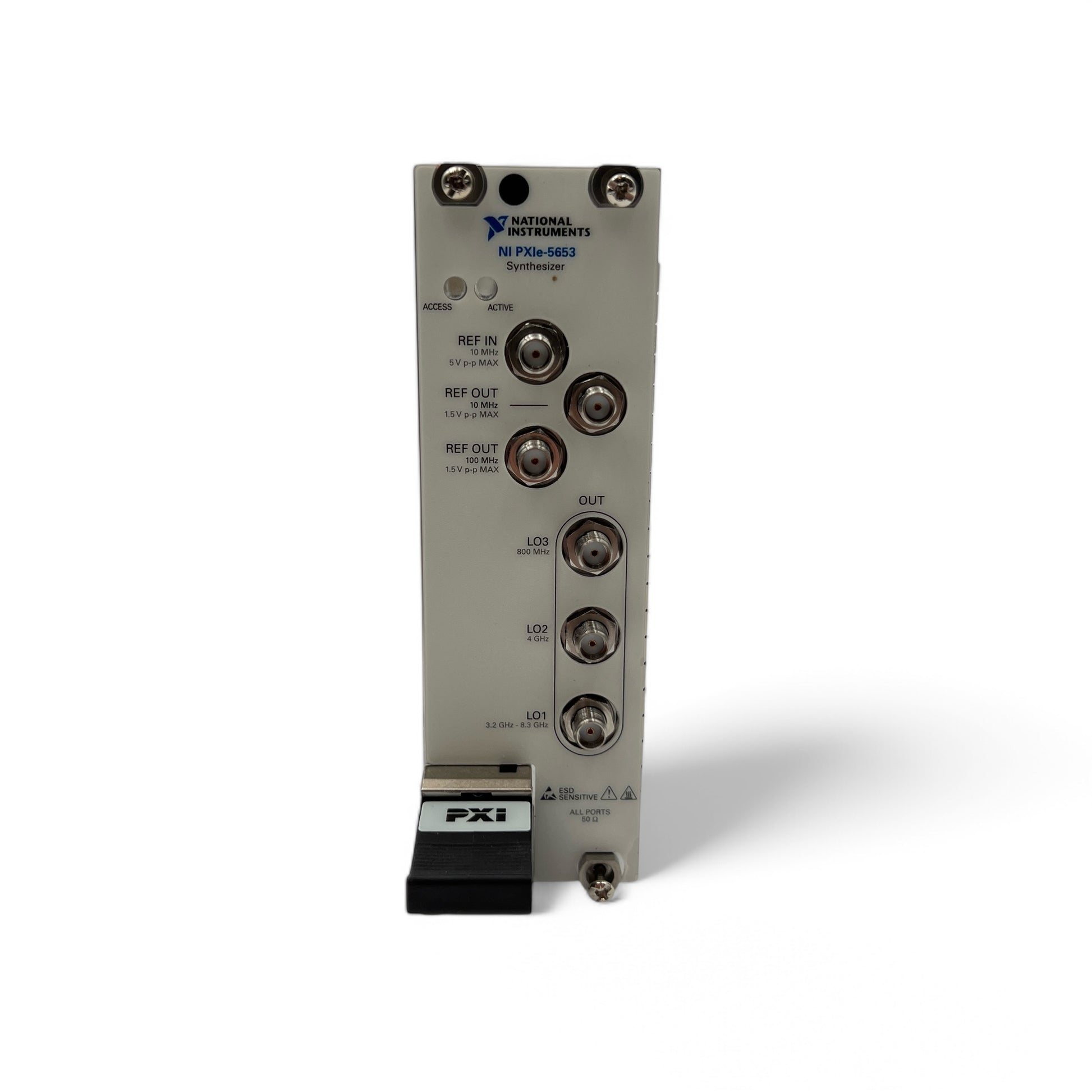

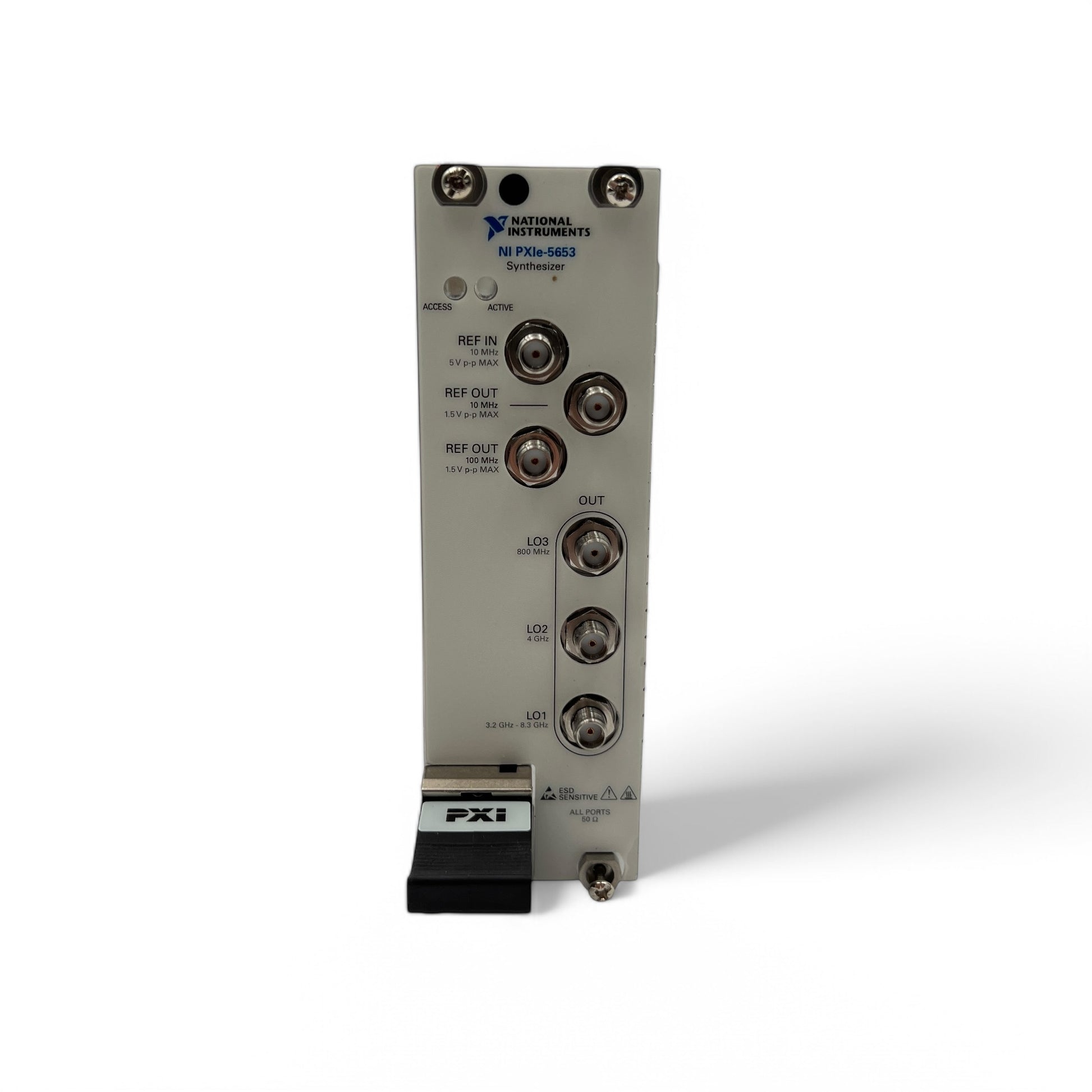

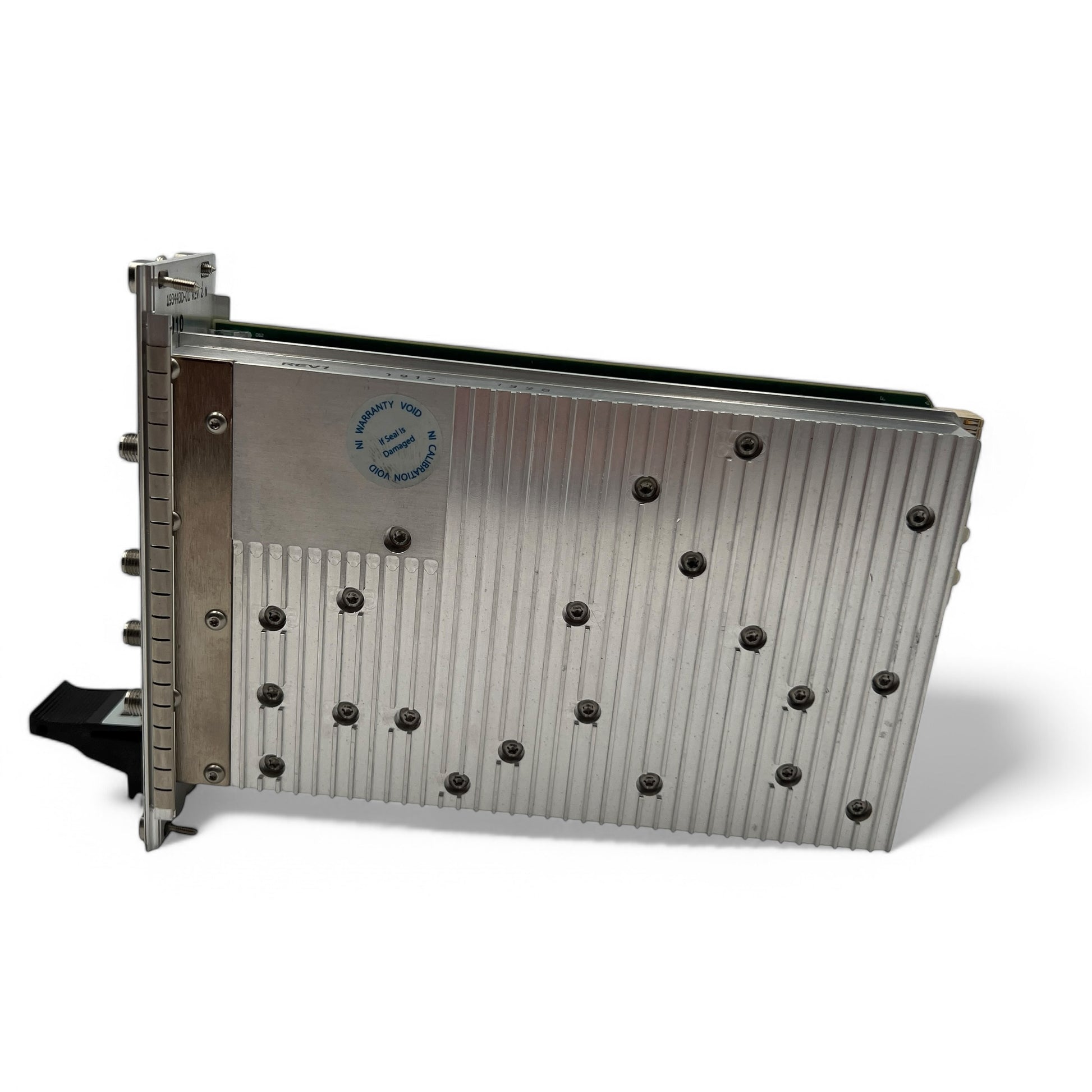

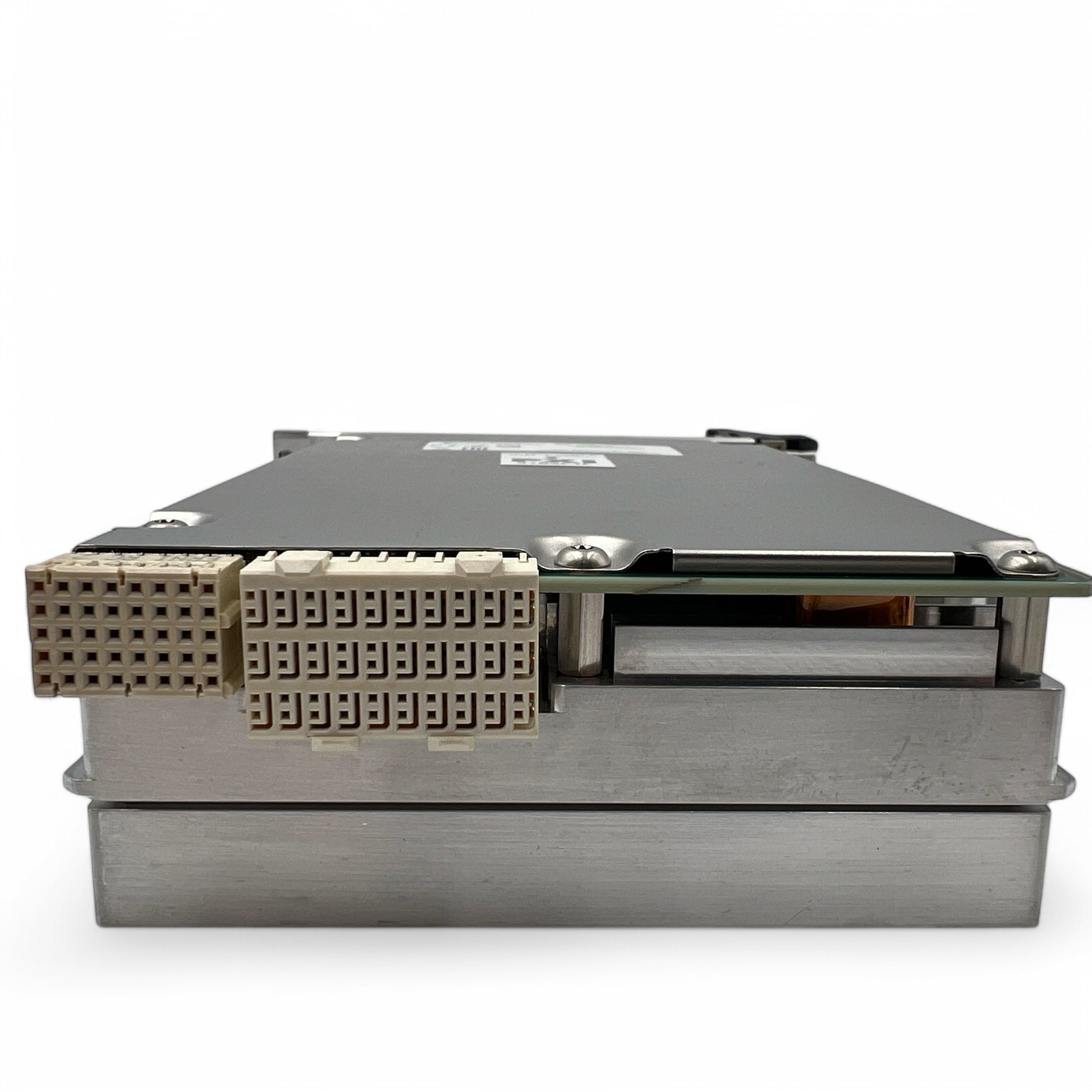

The NI PXIe-5653 is a high-performance RF analog signal generator designed for PXI Express-based modular test systems. It provides precise and stable RF signals for applications requiring high spectral purity and accurate signal generation.
Key Specifications:
Frequency Range: 250 kHz to 8 GHz
Output Power: Typically -145 dBm to +10 dBm
Phase Noise: Low phase noise, typically better than -130 dBc/Hz at 10 kHz offset (at 1 GHz)
Frequency Resolution: 0.001 Hz
Modulation Support:
AM, FM, PM
Pulse modulation
Tuning Speed: Fast frequency settling time (typically <500 µs)
Reference Options:
Internal OCXO with high stability
External 10 MHz reference input
Control Interface:
PXIe interface with software-defined control
NI RF Signal Generators API (LabVIEW, LabWindows™/CVI, C, .NET)

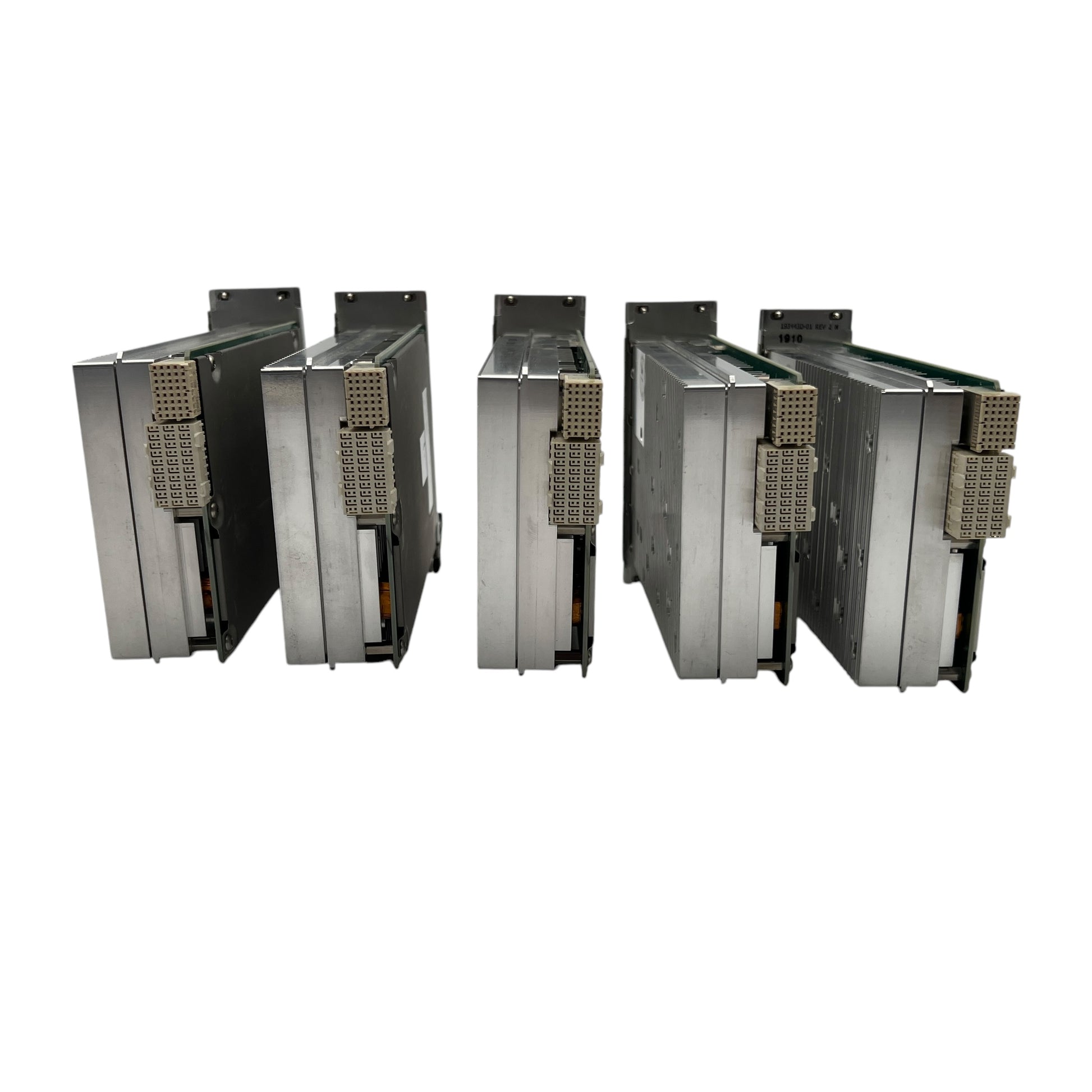

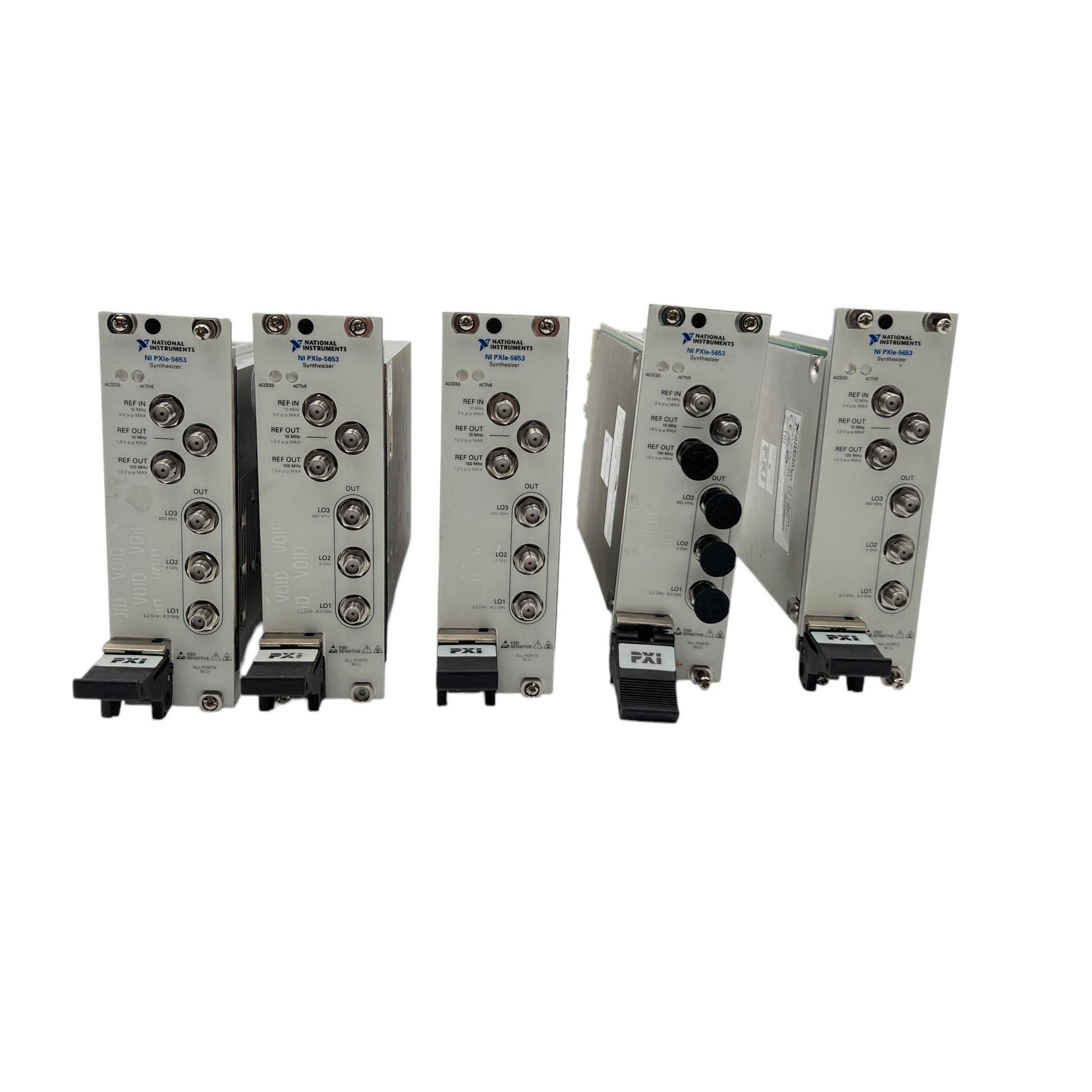

Single Item Listing. 1pc These Units Have Known Issues And Will Require Repairs or Calibration. Such as "Fails 100Mhz Ref" "Fails VSWR" "Fails Phase Noise @ 1khz" "PCL Lock Fail"
