Cosmetic Condition:
B Grade, Item has minor but generally unnoticeable signs of use, including but not limited to scratches, scuffs, paint discoloration, and/or glue residue. See Photos and Description for more details

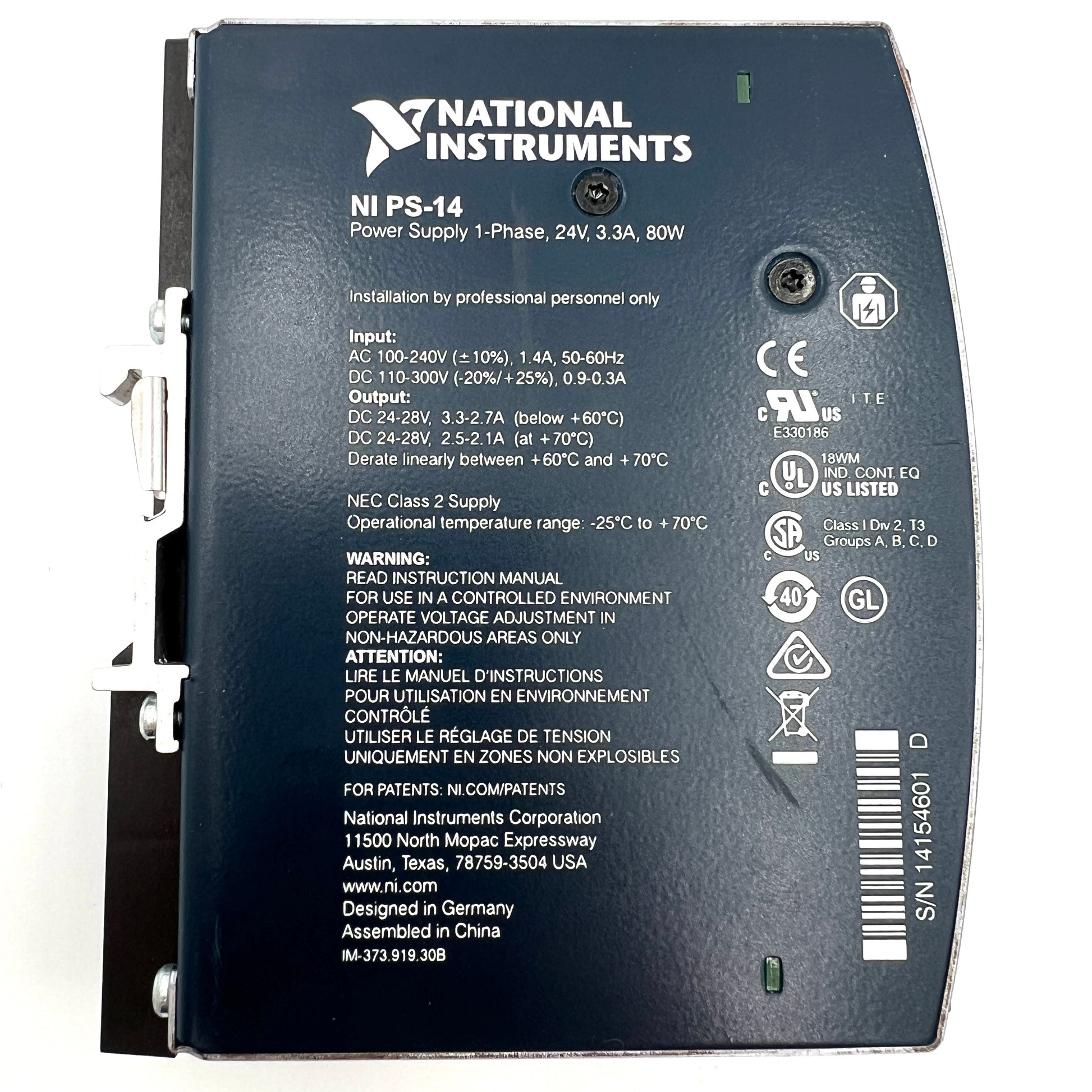

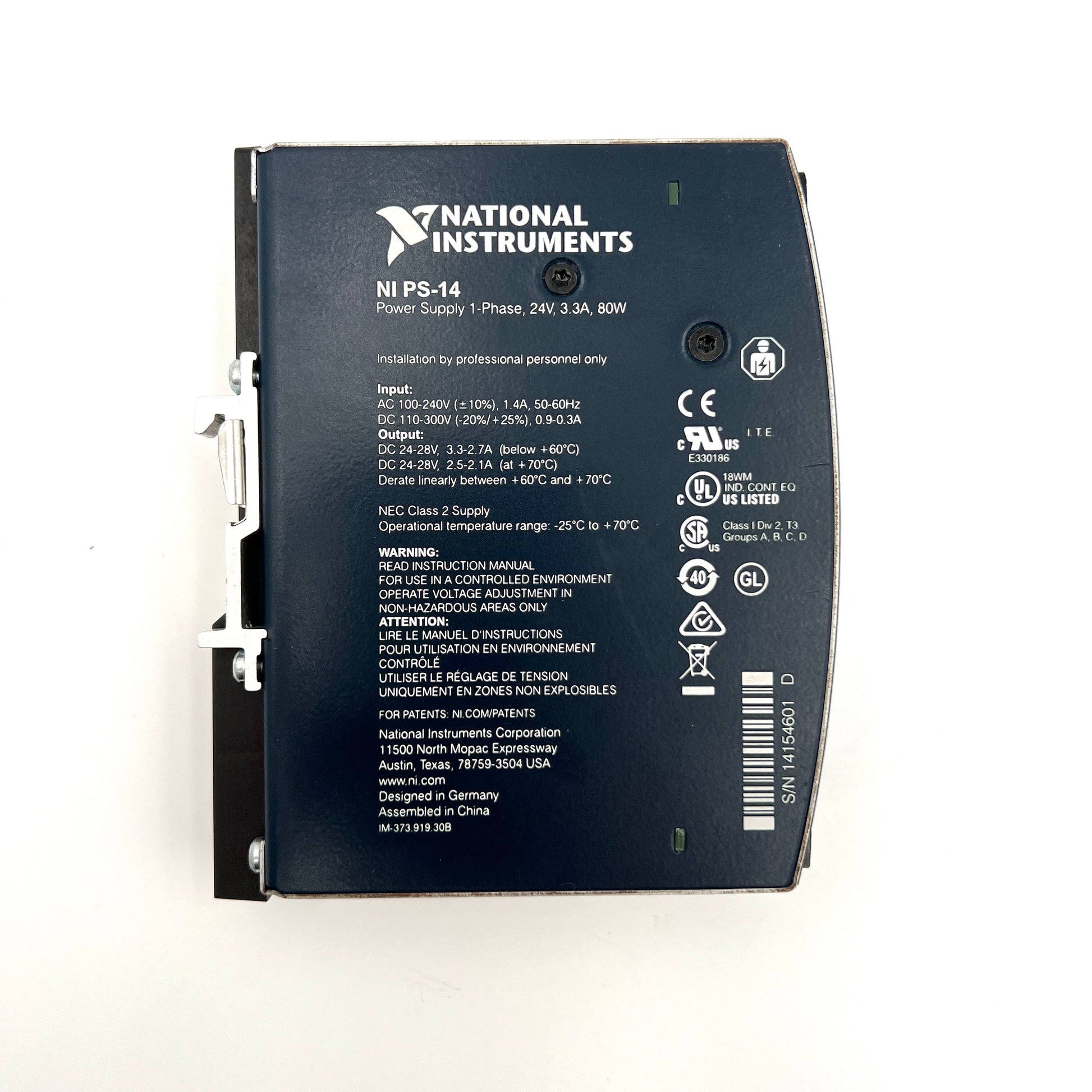

The National Instruments (NI) PS-14 is a 24 VDC industrial power supply designed to provide reliable power for various NI systems, including CompactRIO, CompactDAQ, Single-Board RIO, Smart Cameras, and touch panel computers. It delivers an output current of 3.3 A, resulting in an output power of 80 W. The PS-14 operates efficiently, with an efficiency rating of approximately 90%.

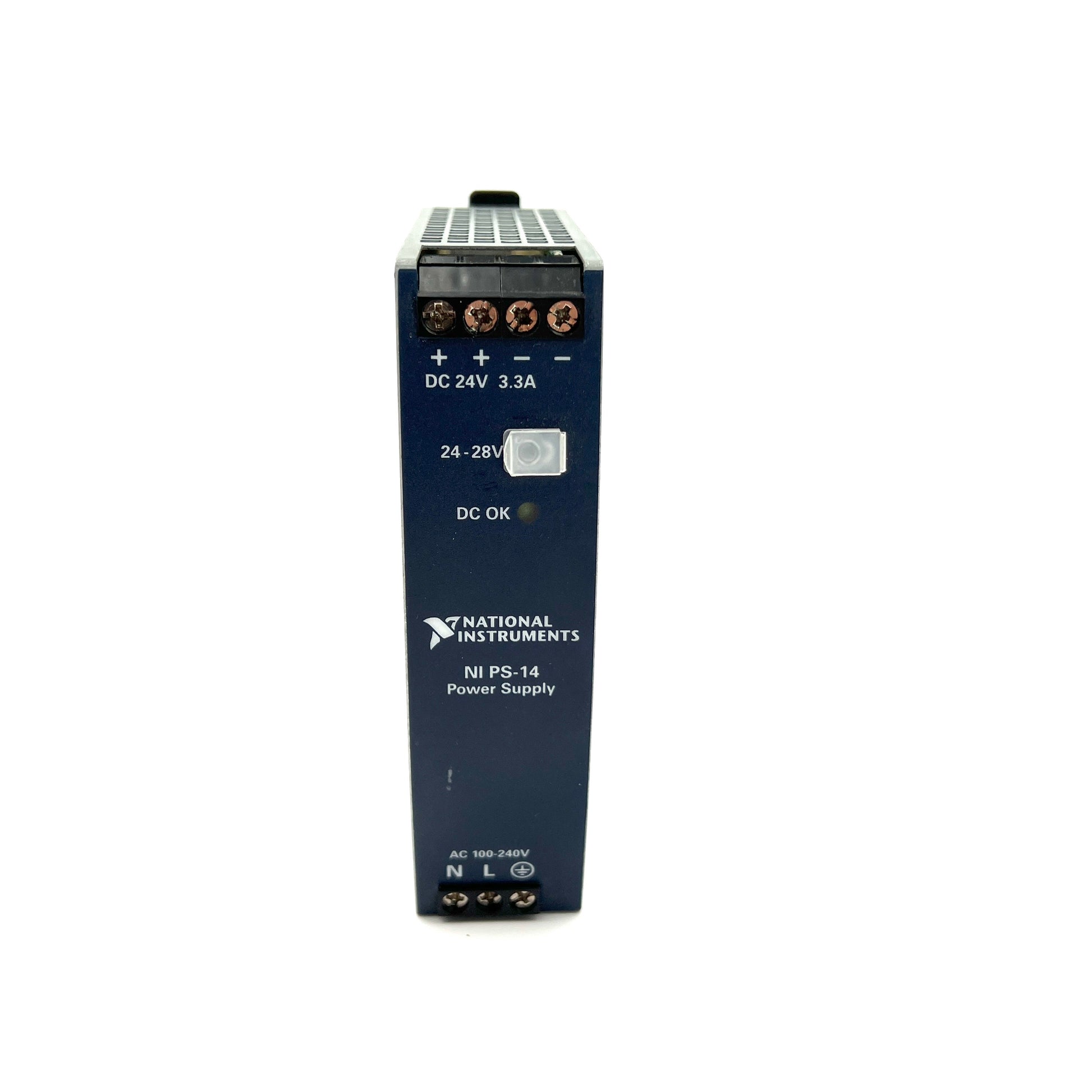

This power supply supports a wide input voltage range from 100 to 240 VAC or 110 to 375 VDC, accommodating various power sources. It features four output terminals—two positive and two negative—that are internally connected for ease of wiring. The output voltage is adjustable between 24 to 28 V using the built-in potentiometer, with a default setting of 24.1 V. However, it's recommended not to exceed 28 V to ensure safe operation.

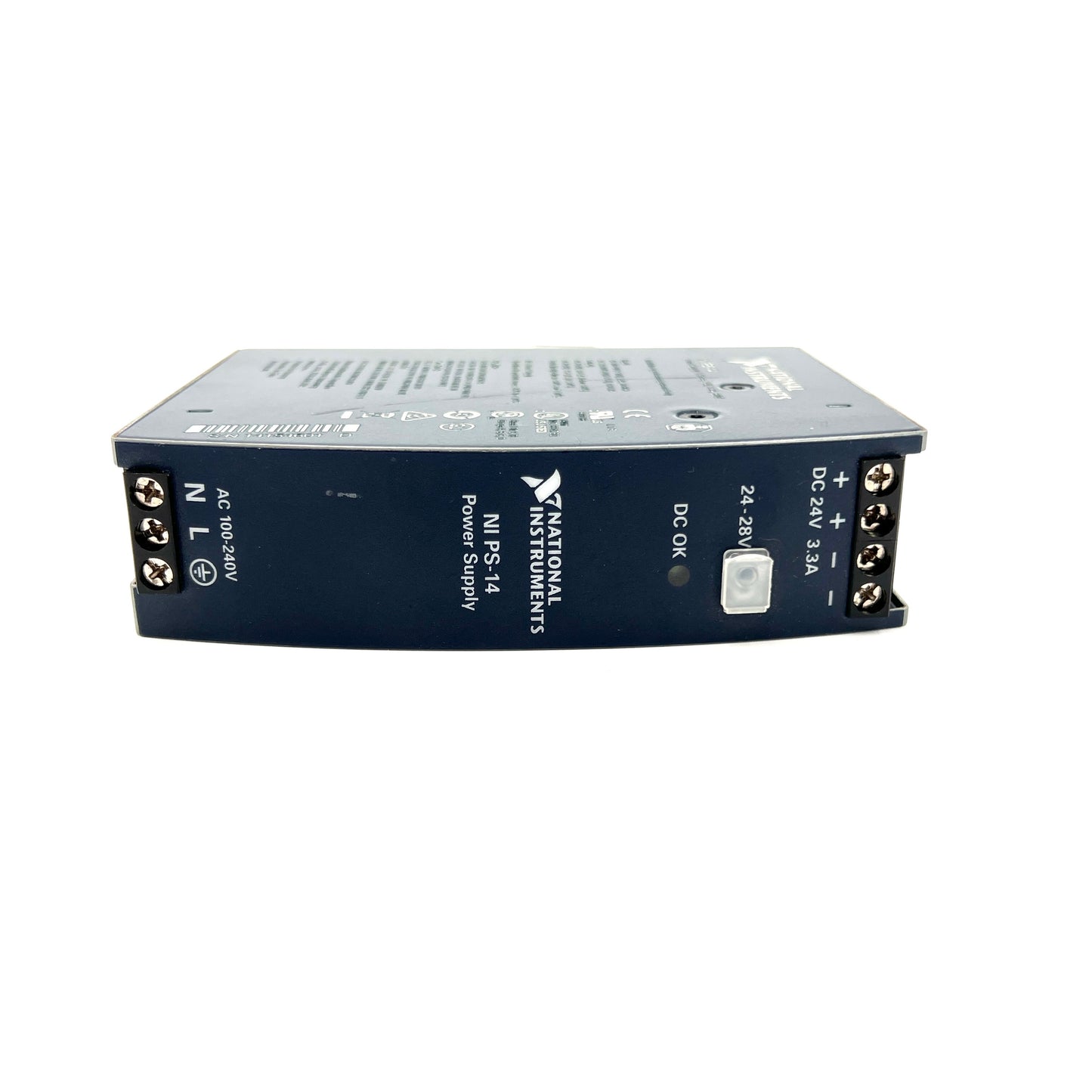

The PS-14 is equipped with three input terminals: Line (hot), Protective Ground, and Neutral. It can rectify both single-phase and two-phase AC inputs, providing flexibility in various installation scenarios. The power supply is designed for DIN-rail mounting, and optional side or panel mounting kits are available to suit different setup requirements.
Join our email list to be the first to claim discounted equipment when it drops!
Choosing a selection results in a full page refresh.
Opens in a new window.
×
Please wait...
Make An Offer
National Instruments NI PS-14 Power Supply 24v, 3.3A, 80W
$99.00
National Instruments NI PS-14 Power Supply 24v, 3.3A, 80W
The National Instruments (NI) PS-14 is a 24 VDC industrial power supply designed to provide reliable power for various NI systems, including CompactRIO, CompactDAQ, Single-Board RIO, Smart Cameras, and touch panel computers. It delivers an output current of 3.3 A, resulting in an output power of 80 W. The PS-14 operates efficiently, with an efficiency rating of approximately 90%.
This power supply supports a wide input voltage range from 100 to 240 VAC or 110 to 375 VDC, accommodating various power sources. It features four output terminals—two positive and two negative—that are internally connected for ease of wiring. The output voltage is adjustable between 24 to 28 V using the built-in potentiometer, with a default setting of 24.1 V. However, it's recommended not to exceed 28 V to ensure safe operation.
The PS-14 is equipped with three input terminals: Line (hot), Protective Ground, and Neutral. It can rectify both single-phase and two-phase AC inputs, providing flexibility in various installation scenarios. The power supply is designed for DIN-rail mounting, and optional side or panel mounting kits are available to suit different setup requirements.
