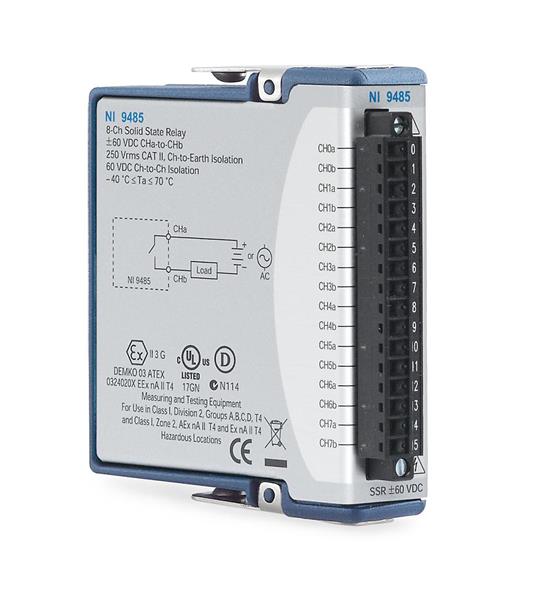

National Instruments NI 9485 8-Channel Relay Output Module 151231B-01L - New
National Instruments NI 9485 8-Channel Relay Output Module 151231B-01L - New
Regular price
$625.00 USD
Regular price
Sale price
$625.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Functional Condition: New
Cosmetic Condition: A+ Grade, New or like new condition. Item has zero signs of use.
Key Features
-
Relay Outputs:
- Each of the 8 channels features a solid-state relay for switching.
-
High Voltage and Current Handling:
- Supports switching of signals up to 60 VDC/30 VAC and currents up to 1 A per channel.
-
Isolated Channels:
- Channel-to-earth ground isolation for safety and reduced noise interference.
-
Durable Design:
- Solid-state relays provide long life and resistance to mechanical wear and tear.
-
C Series Compatibility:
- Works with CompactDAQ and CompactRIO chassis for modular and customizable systems.
Technical Specifications
| Specification | Details |
|---|---|
| Channels | 8 relay outputs |
| Relay Type | Solid-state relay |
| Switching Voltage | 0–60 VDC / 0–30 VAC |
| Max Switching Current | 1 A per channel |
| Isolation | 250 Vrms channel-to-earth ground |
| Connector Type | 10-terminal screw-terminal |
| Power Requirements | Powered through the chassis |
| Operating Temperature | -40 °C to 70 °C |
| Dimensions | 90 mm × 25 mm × 85 mm |
| Weight | ~150 g |
P/N: 151231B-01L

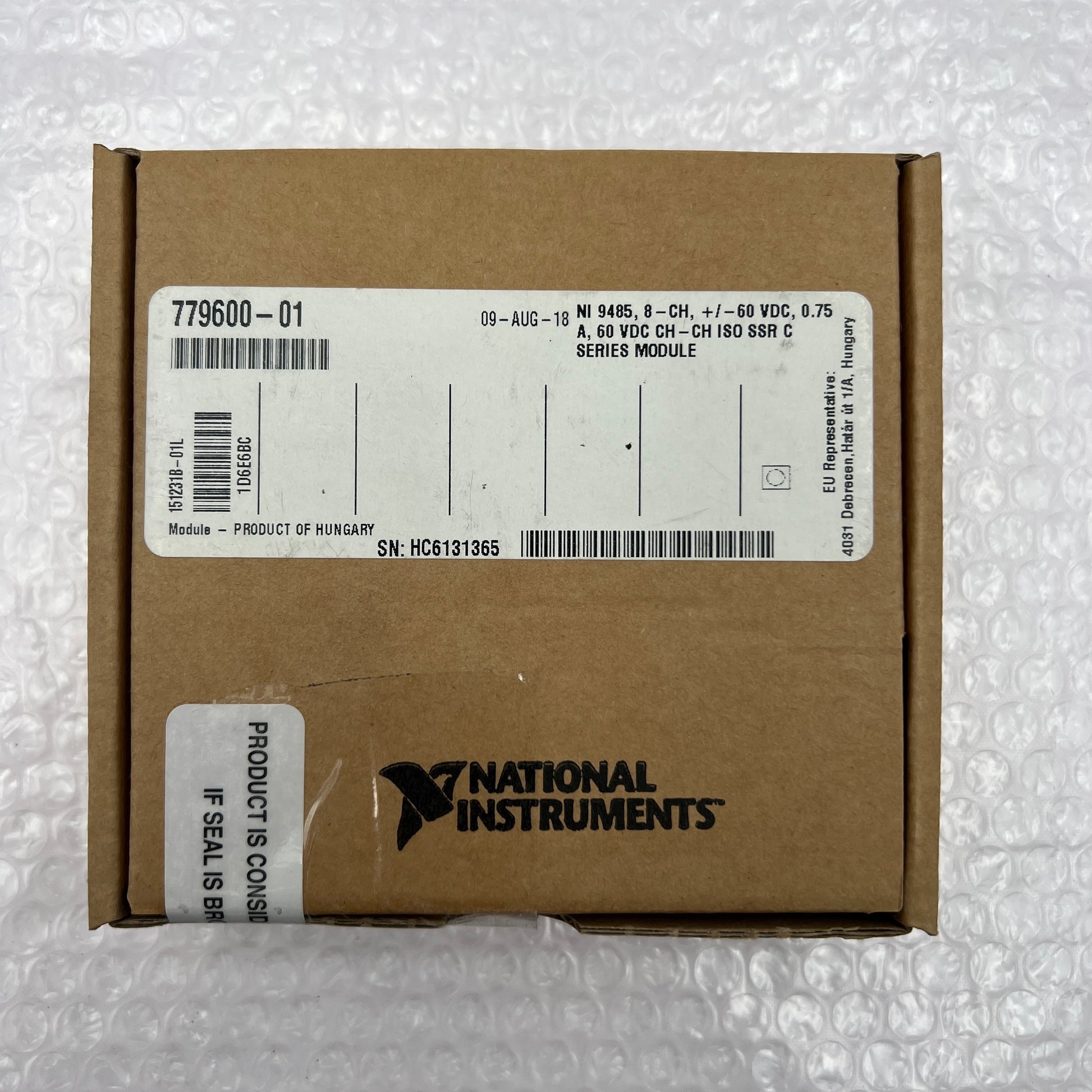

New Sealed Item
SKU:A-000013
