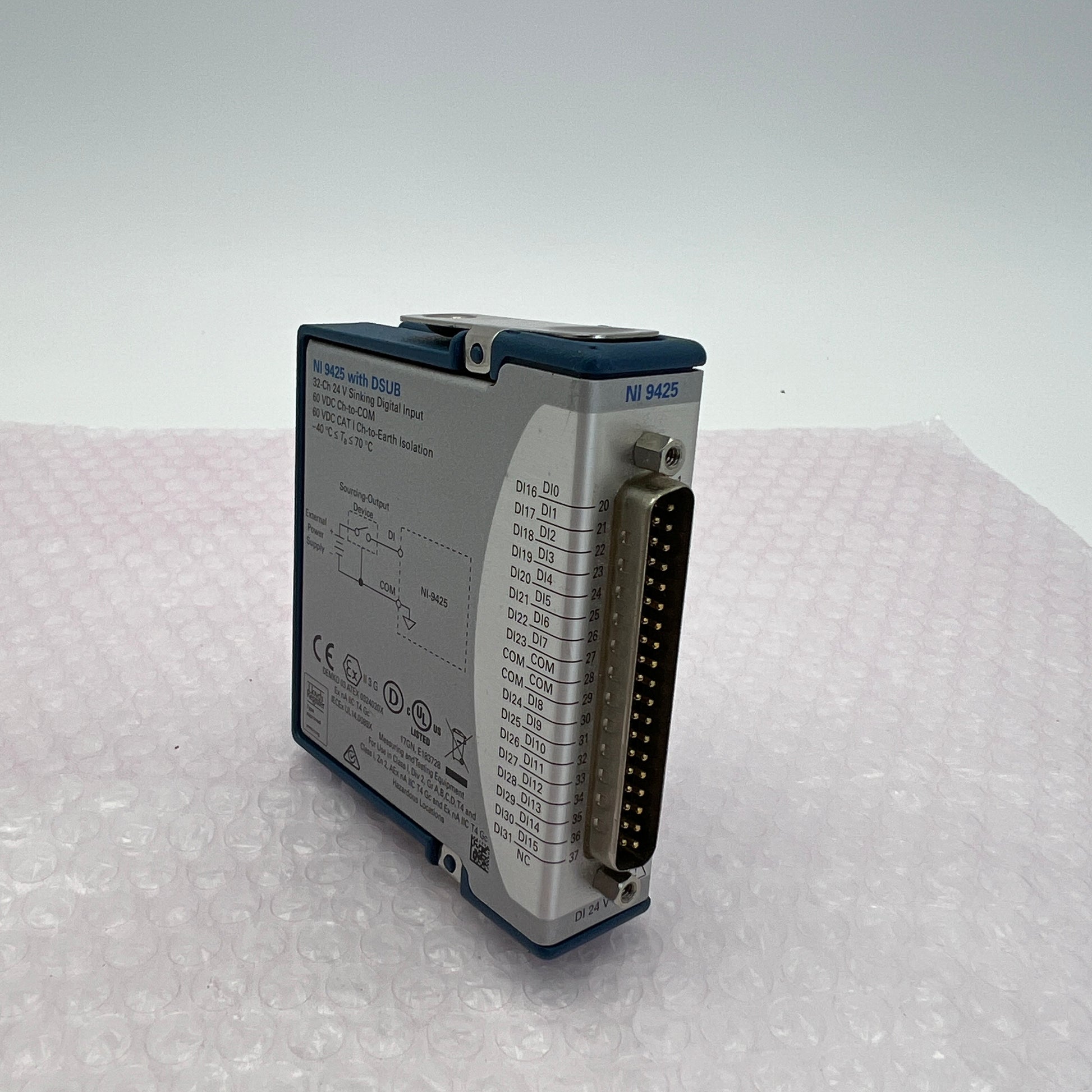

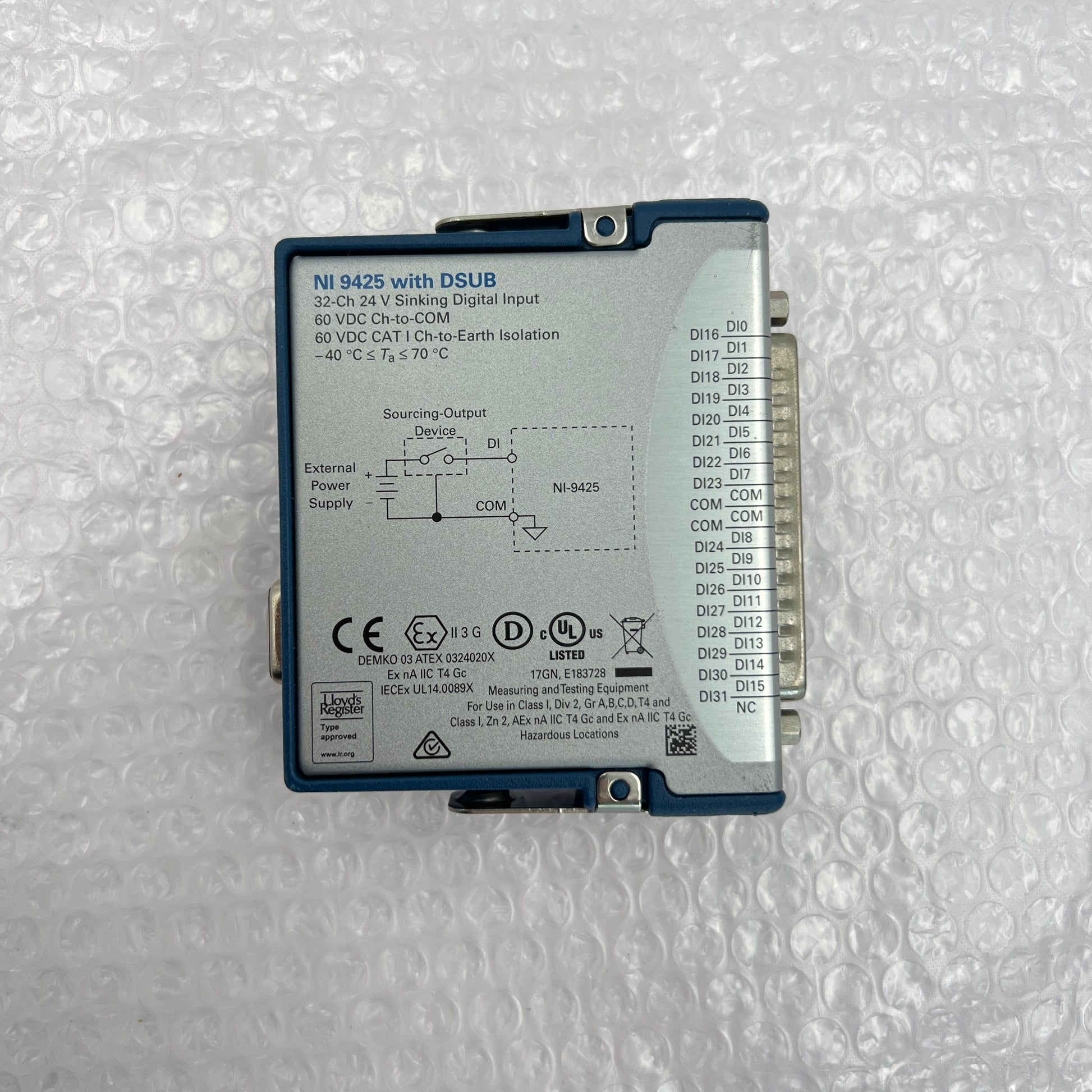

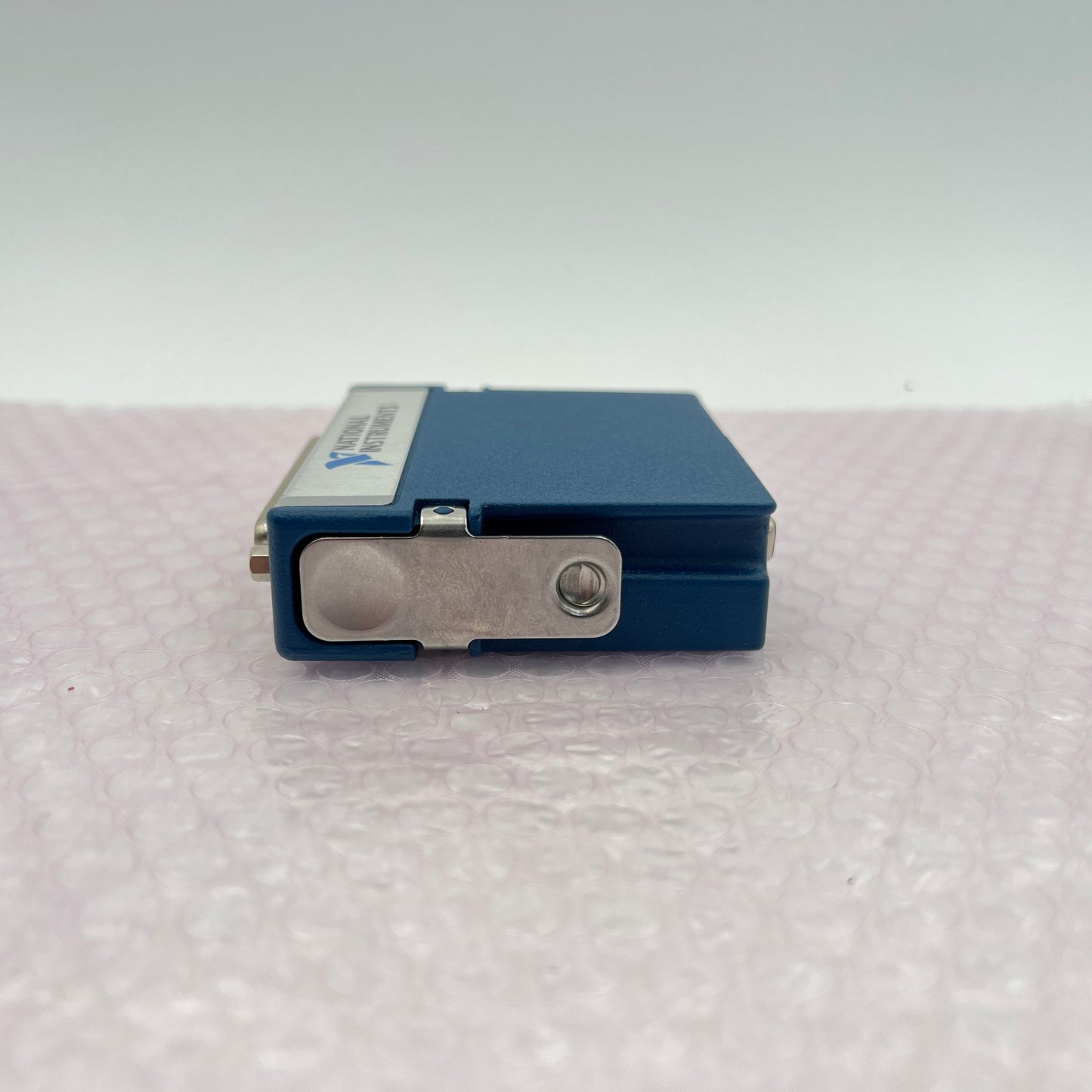

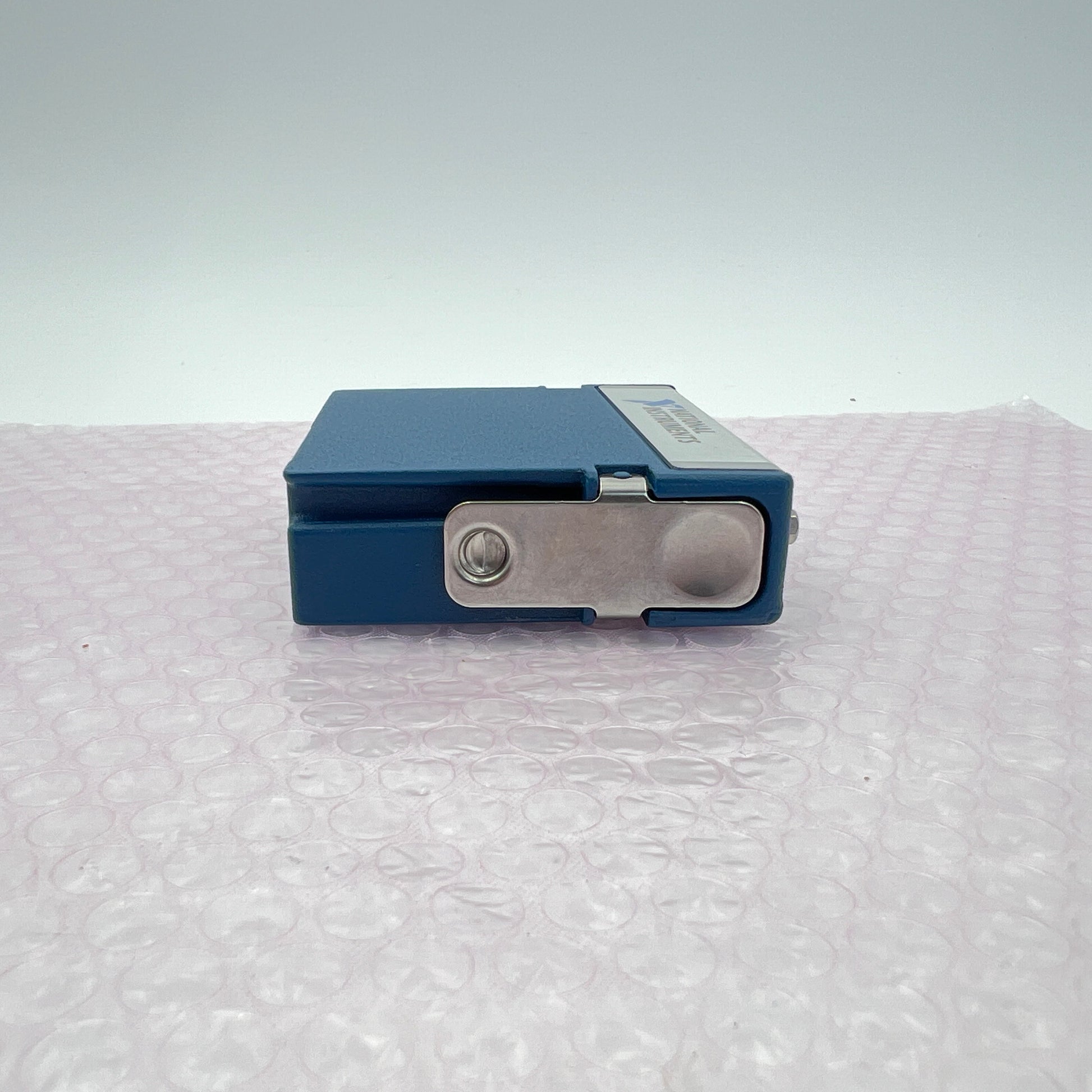

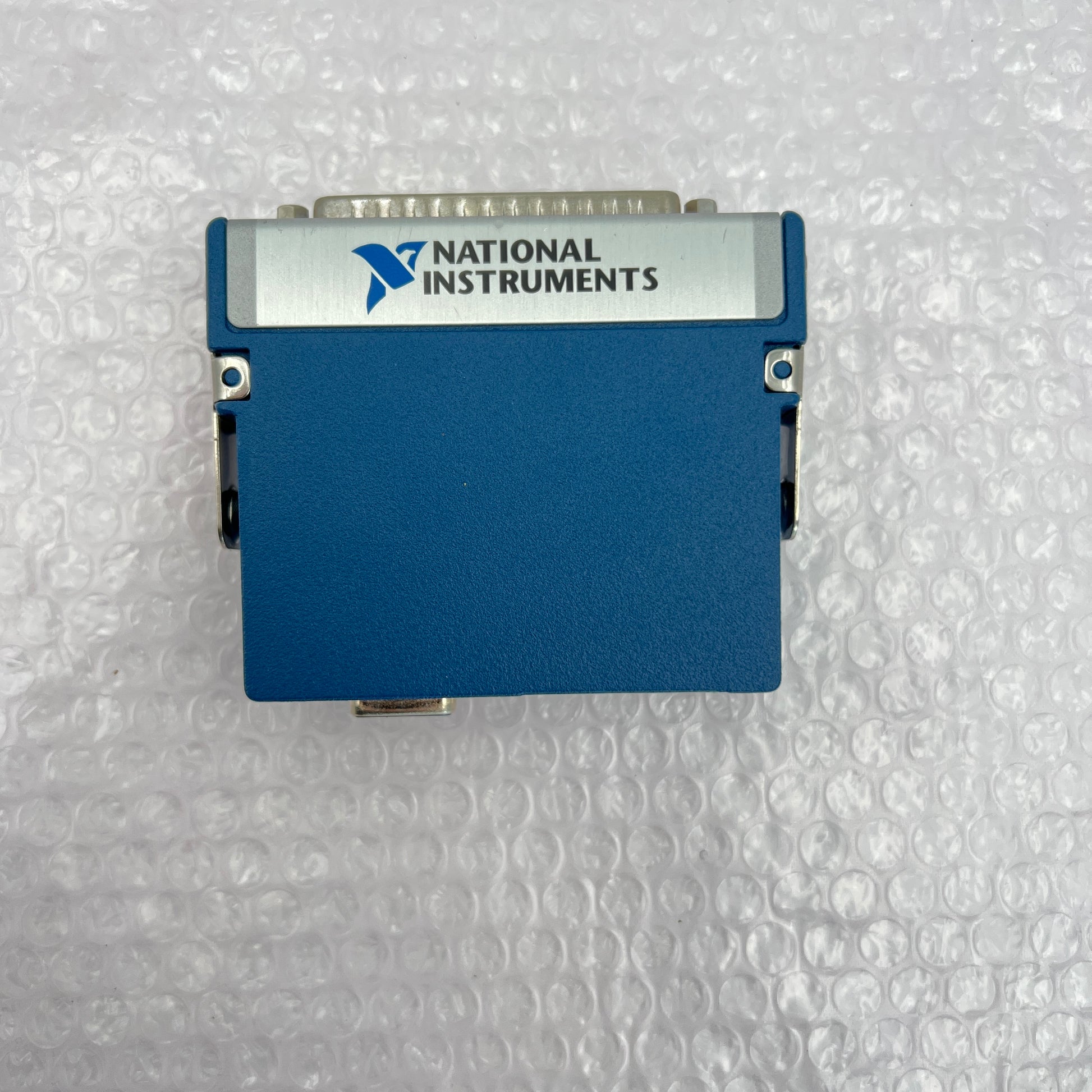

National Instruments NI-9425 32 Channel Sinking Digital Input Module 199019F-01L
National Instruments NI-9425 32 Channel Sinking Digital Input Module 199019F-01L
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Functional Condition: Used & Functioning Normally
Cosmetic Condition: A Grade, Item has unnoticeable signs of wear, including light scratching or scuffs that do not affect functionality
Key Features
-
High-Density Input:
- 32 channels of sinking digital inputs for monitoring multiple devices.
-
Wide Voltage Range:
- It operates with digital signals from 11 VDC to 30 VDC and is suitable for various industrial environments.
-
Channel Isolation:
- Channel-to-earth isolation improves safety and reduces electrical noise.
-
Compact and Modular Design:
- Designed for use with CompactDAQ (cDAQ) and CompactRIO (cRIO) systems.
-
Industrial Compatibility:
- Rugged design for reliable operation in harsh environments.
Technical Specifications
| Specification | Details |
|---|---|
| Channels | 32 sinking digital inputs |
| Input Voltage Range | 11 VDC to 30 VDC |
| Logic Levels | High: 11–30 V Low: 0–5 V |
| Input Impedance | 10 kΩ nominal |
| Isolation Voltage | 250 Vrms channel-to-earth ground |
| Connector Type | 37-pin D-SUB |
| Input Update Rate | Determined by the cDAQ or cRIO system capabilities |
| Power Requirements | Powered through the chassis |
| Operating Temperature | -40 °C to 70 °C |
| Dimensions | 90 mm × 25 mm × 85 mm |
| Weight | ~150 g |

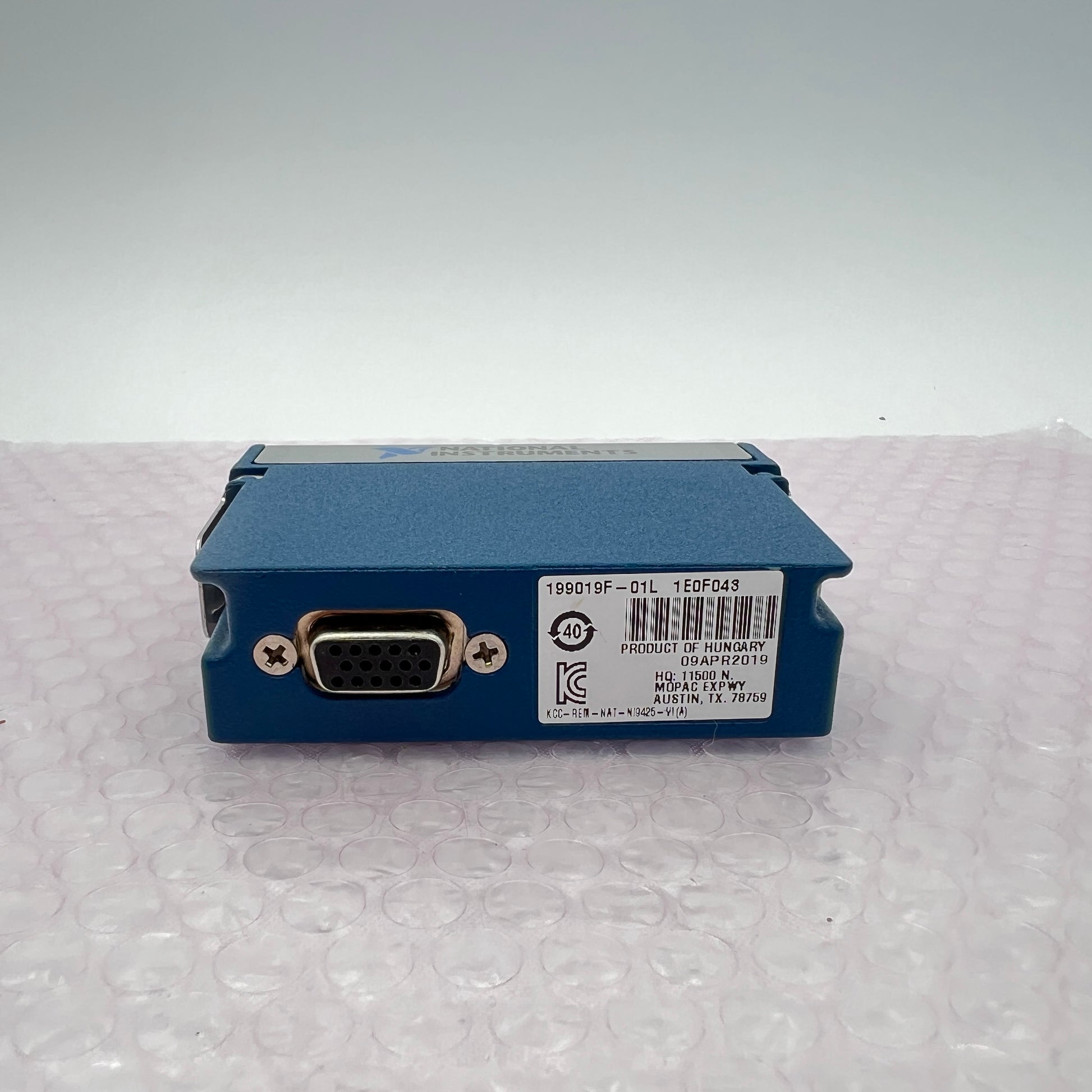

P/N: 199019F-01L
No Additional Items, No Software
SKU:A-000018
