Mitutoyo M plan Apo 2x Objective Lens 378-801-6 - New

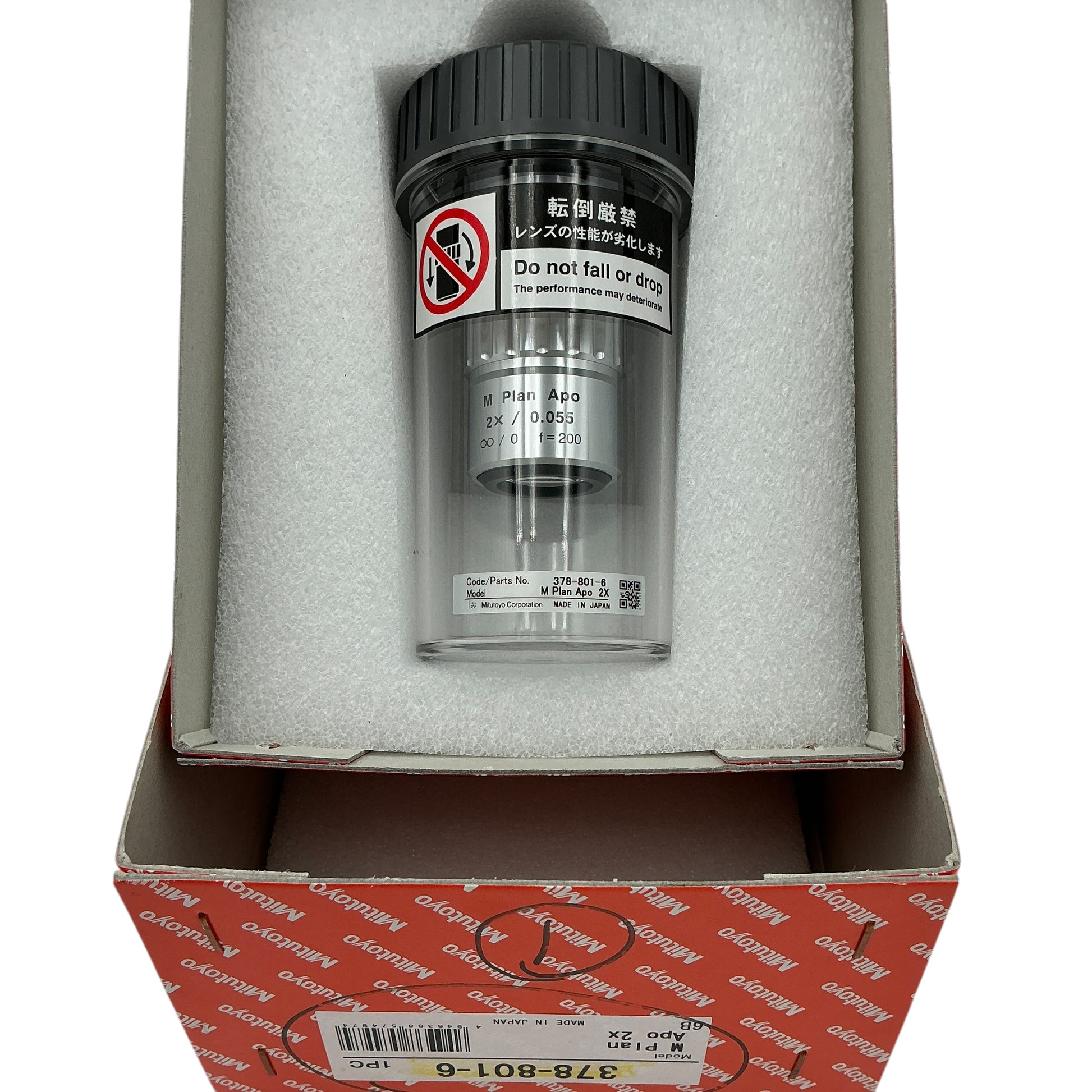

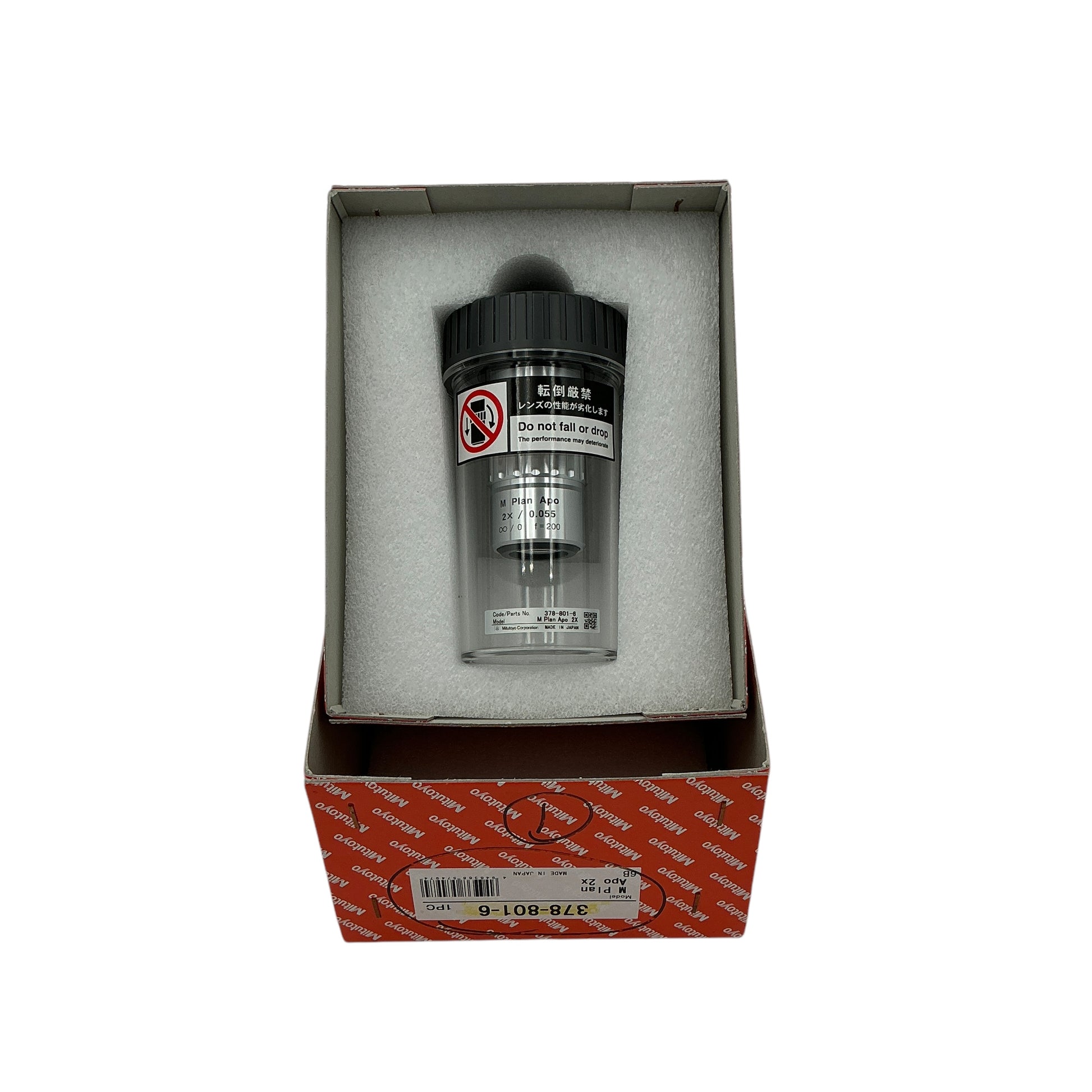

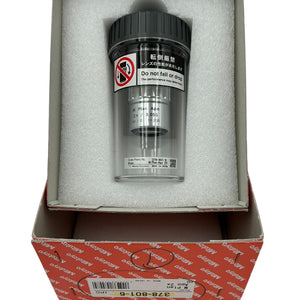

Mitutoyo M Plan Apo 2x Objective – 378-801-6

The Mitutoyo M Plan Apo 2x (Part No. 378-801-6) is a high-performance infinity-corrected objective lens designed for precision metrology, inspection, and imaging applications. It belongs to Mitutoyo's renowned M Plan Apo series, which is known for its exceptional optical clarity, long working distances, and superior flatness across the field of view.

Key Specifications:

Model: M Plan Apo 2x

Part Number: 378-801-6

Magnification: 2×

Numerical Aperture (NA): 0.055

Working Distance (WD): 34.0 mm

Cover Glass Requirement: None (designed for use without a cover glass)

Optical Correction: Apochromatic – corrected for chromatic aberrations across a wide wavelength range

Thread Type: M26 x 0.706

Compatibility: Infinity-corrected optical systems (used in combination with tube lenses, typically 200 mm focal length)
