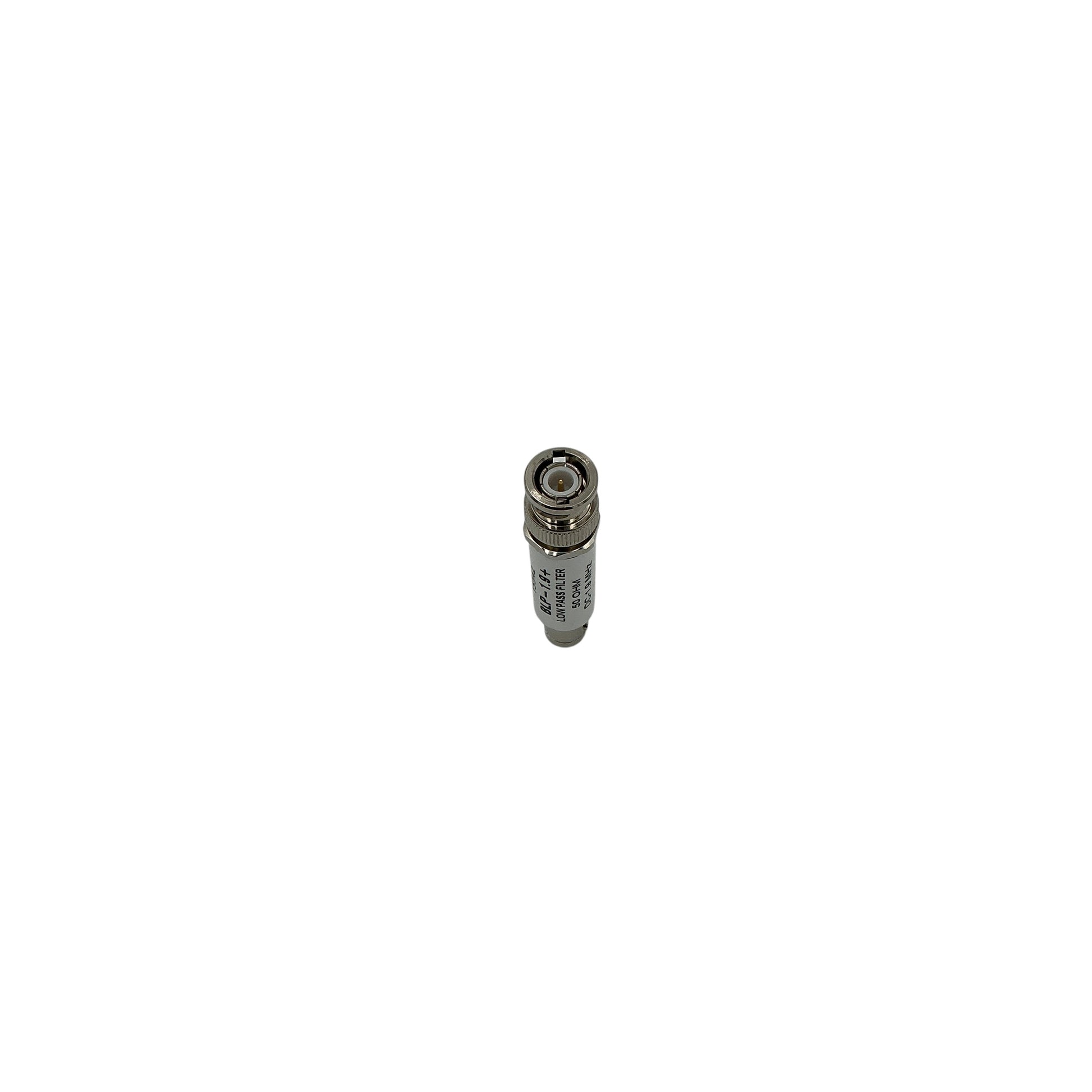

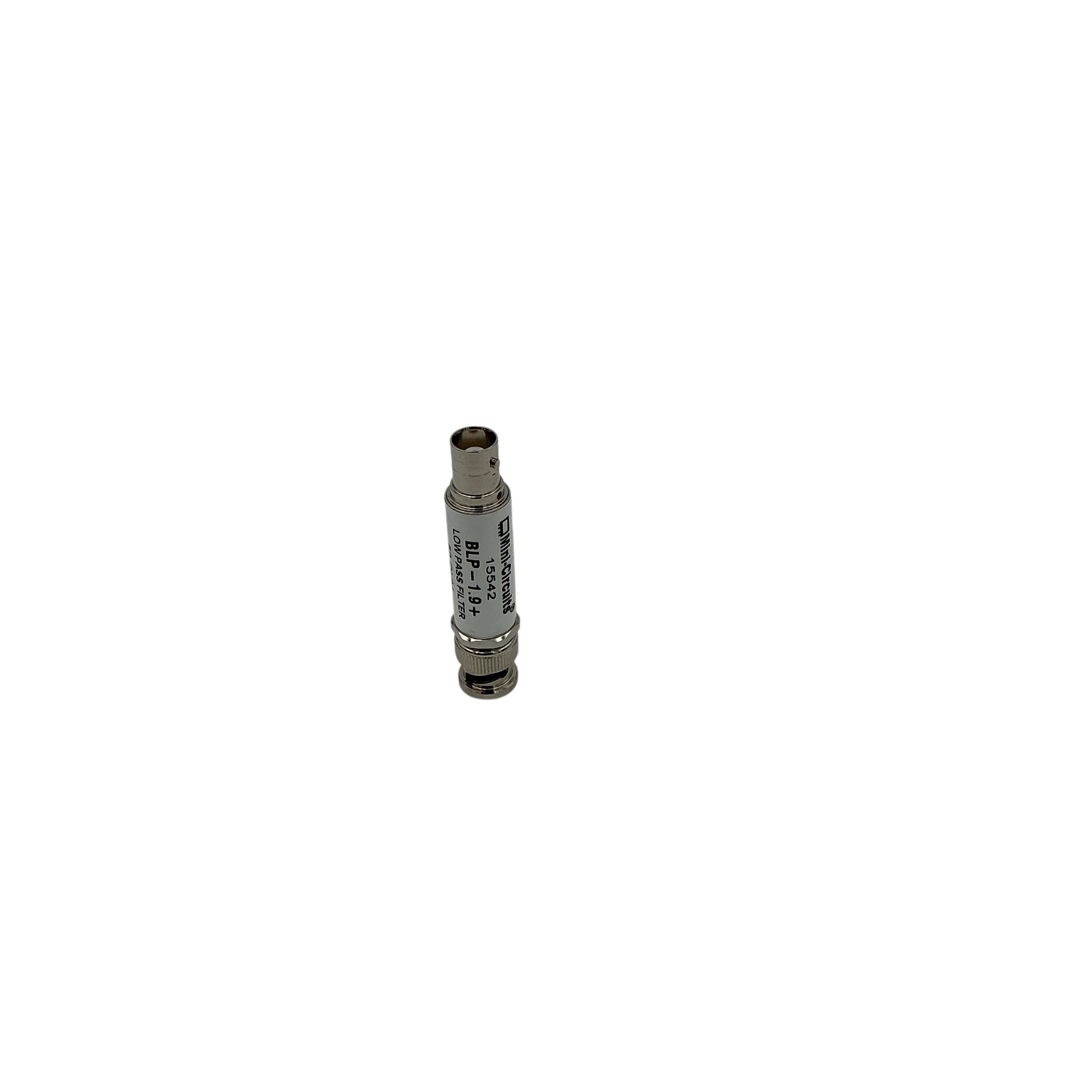

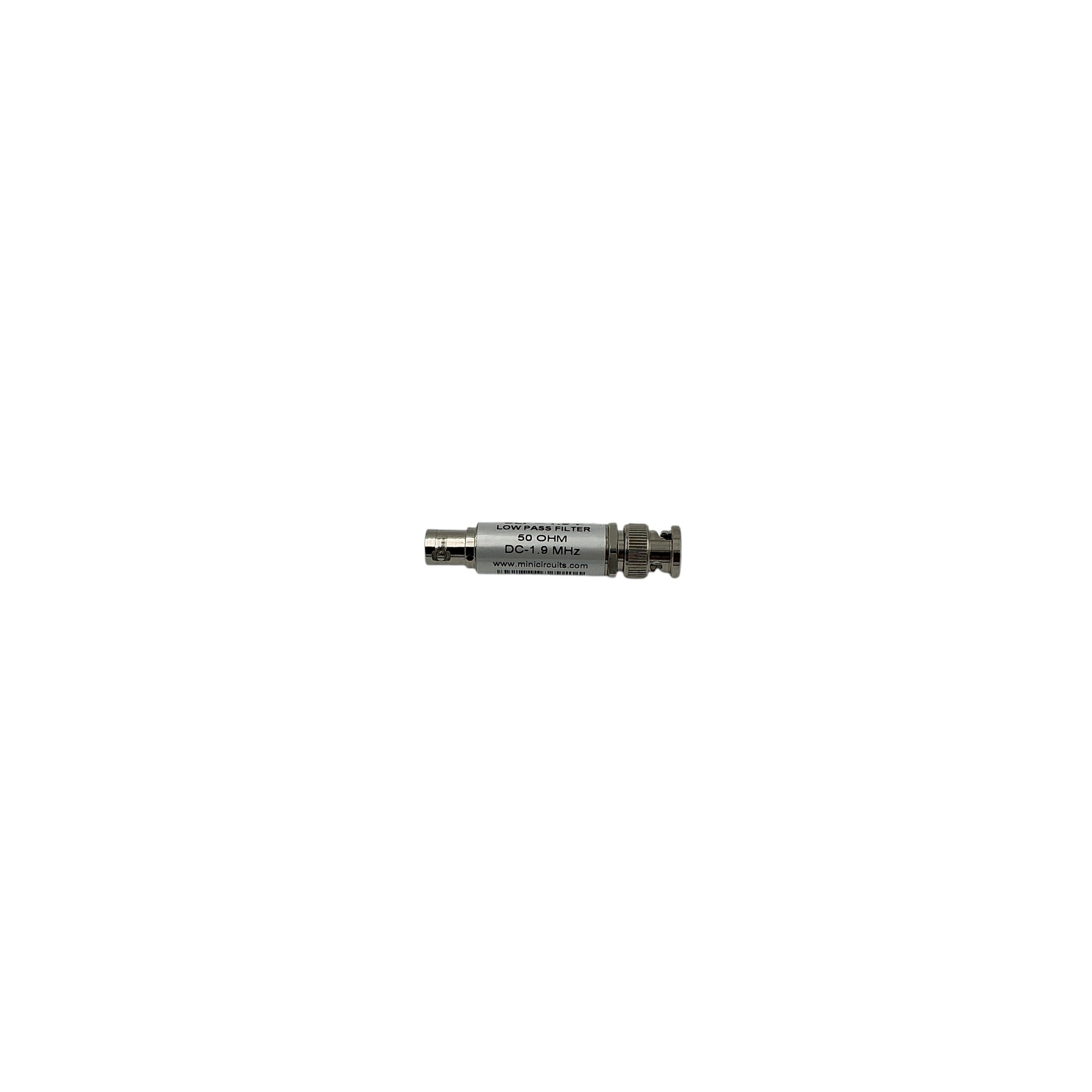

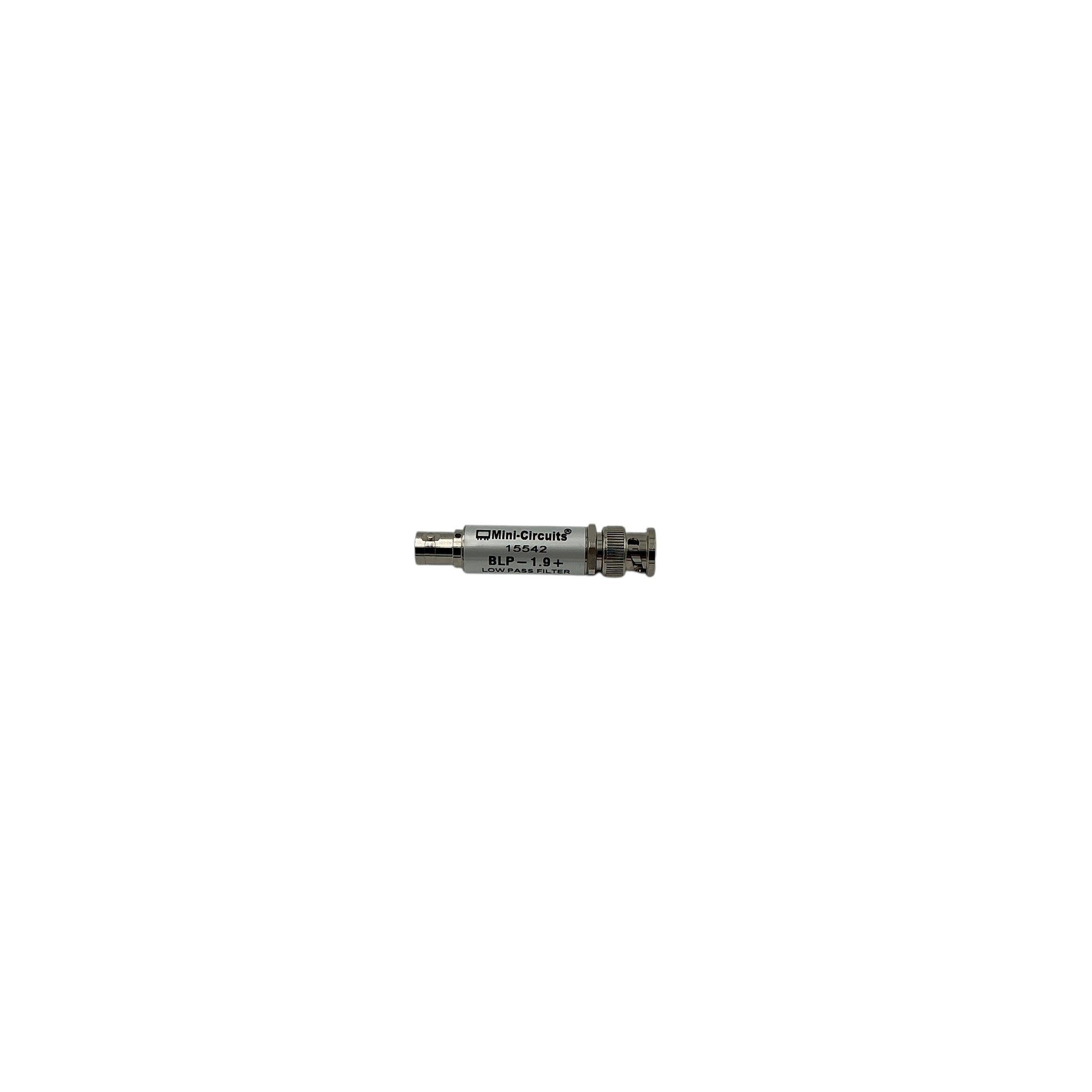

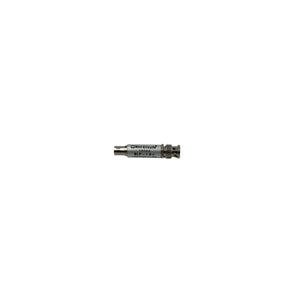

Mini-Circuits BLP-1.9+ Low Pass Filter – DC to 1.9 MHz (P/N: 15542)

The Mini-Circuits BLP-1.9+ is a compact, high-performance low pass filter designed for applications requiring suppression of higher-frequency signals while allowing signals from DC up to 1.9 MHz to pass with minimal attenuation. It's widely used in test and measurement, RF systems, and signal conditioning circuits.

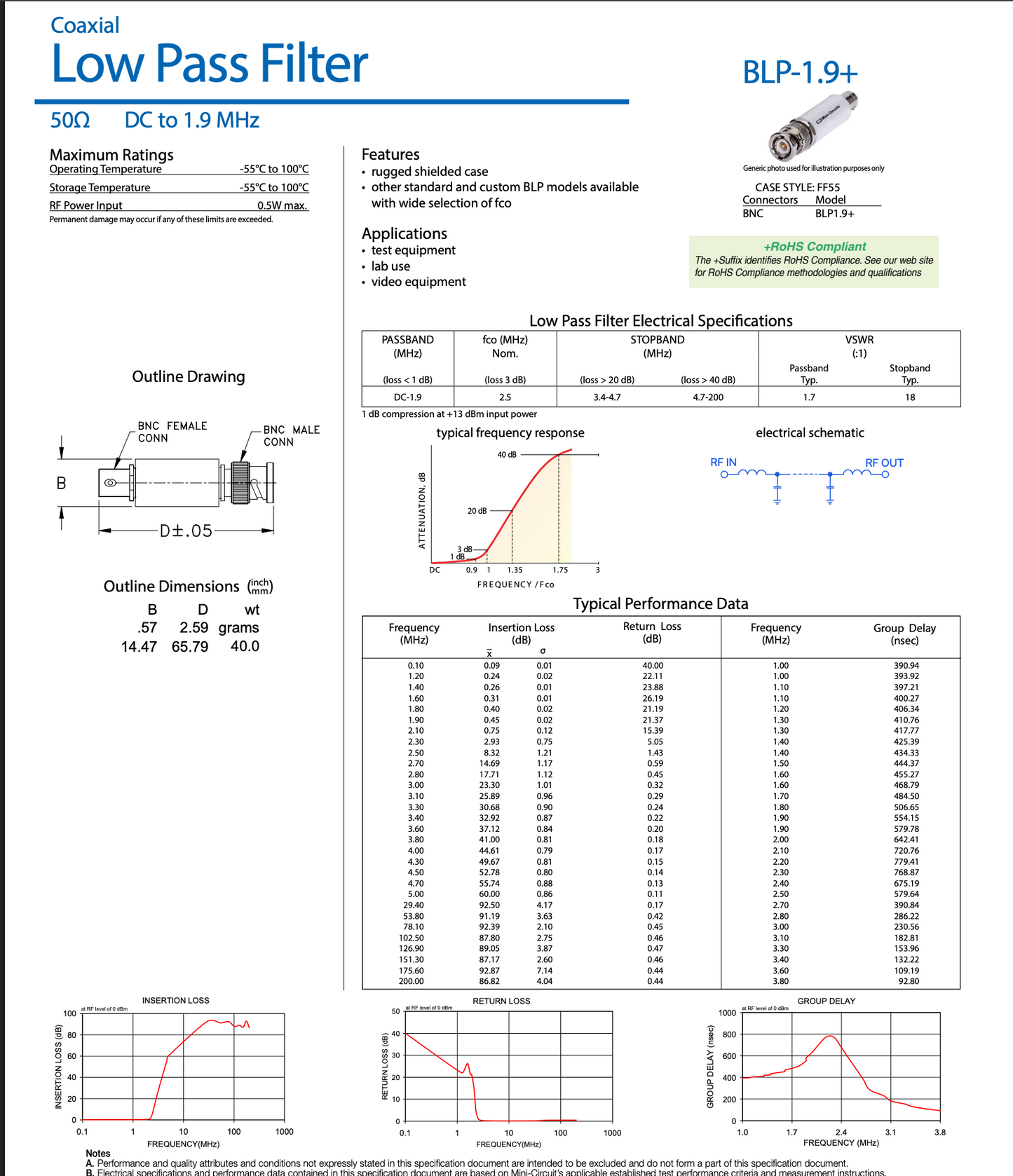

Key Specifications:

Model: BLP-1.9+

Mini-Circuits Part Number: 15542

Frequency Range: DC to 1.9 MHz

Passband Insertion Loss: Typically 0.5 dB max up to 1.9 MHz

Stopband Rejection: 40 dB at 4.5 MHz and above

VSWR: 1.3:1 typical in passband

Impedance: 50 Ω (input and output)

Connector Type: SMA female (input and output)

Power Handling: Up to 1W typical (continuous), derated for temperature

Size: Small shielded metal case for easy integration in lab setups or compact systems

1pc - New - Unused
