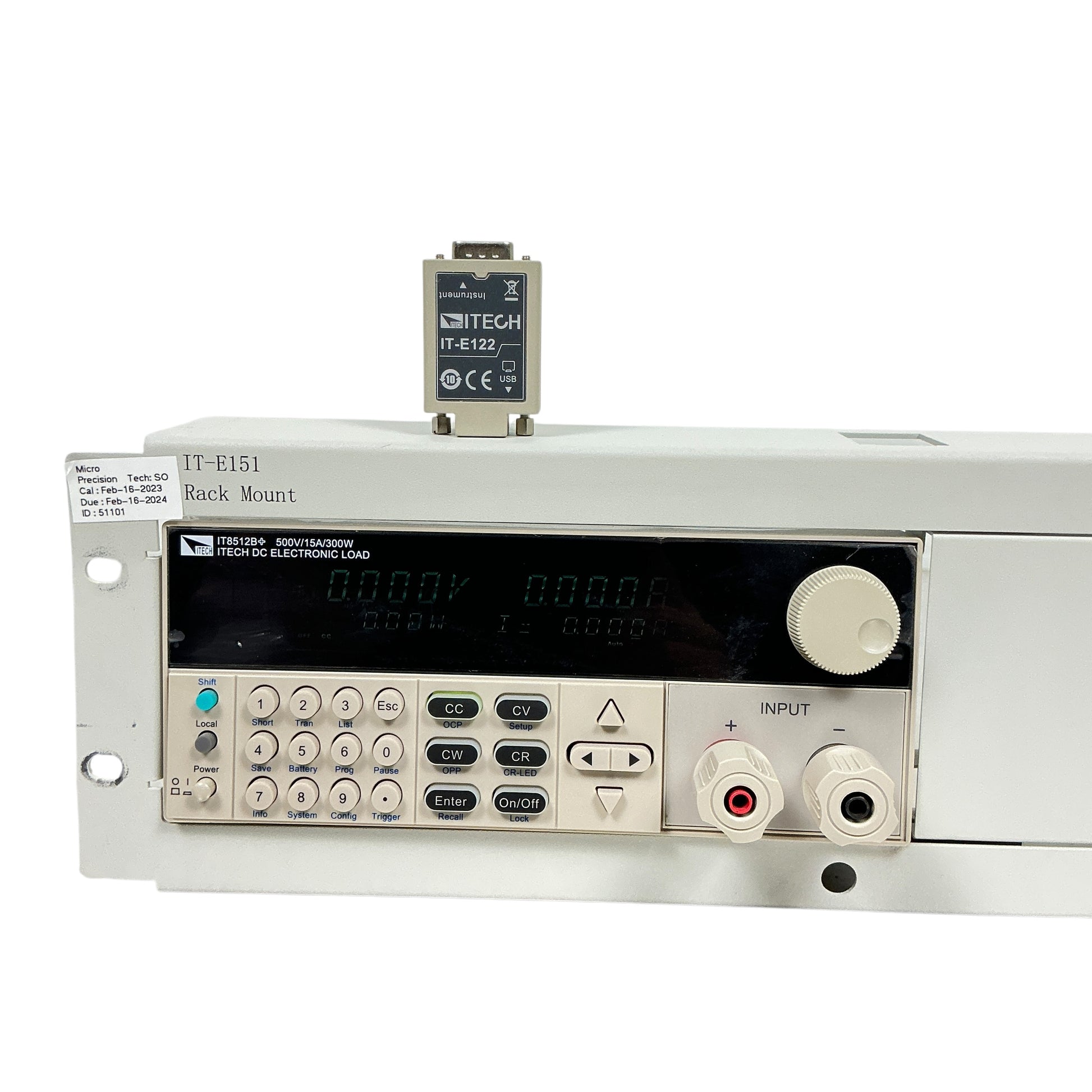

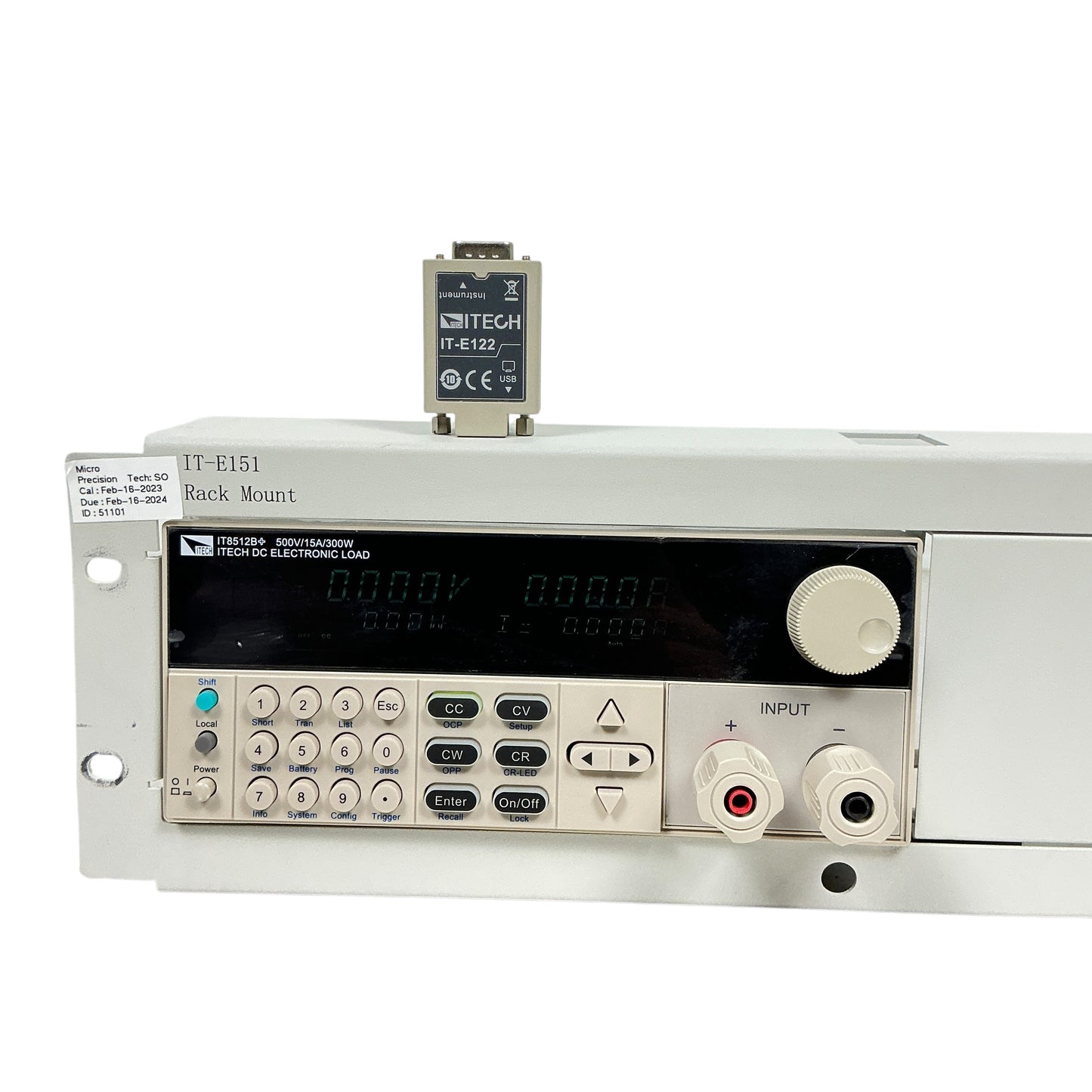

ITECH IT8512B+ Programmable DC Electronic Load – 500 V / 15 A / 300 W

ITECH IT8512B+ Programmable DC Electronic Load – 500 V / 15 A / 300 W

Overview:
Single-channel electronic load for testing power supplies, batteries, and converters with programmable modes and high precision.

Key Specs:

Voltage range: 0.6 V to 500 V

Current range: 0 A to 15 A

Power: Up to 300 W

Modes: CC, CV, CR, CP

Dynamic mode frequency: up to 10 kHz

Resolution: 0.1 mV / 0.1 mA

Measurement speed: Up to 40 kHz

Transient response: 50 µs to 3600 s

Remote sensing: Supported

Interface options: RS232, USB, RS485 (optional)

Weight: ~10.3 lbs

Features:

Battery test mode with cutoff voltage/time/capacity

List mode: 84 steps with a minimum 50 µs step time

Short-circuit simulation

Over-voltage, over-current, over-power, over-temp, and reverse protection

Stores 100 parameter groups

Applications:

Power supply evaluation

Battery discharge and performance testing

LED driver testing

Automated testing in labs or production lines

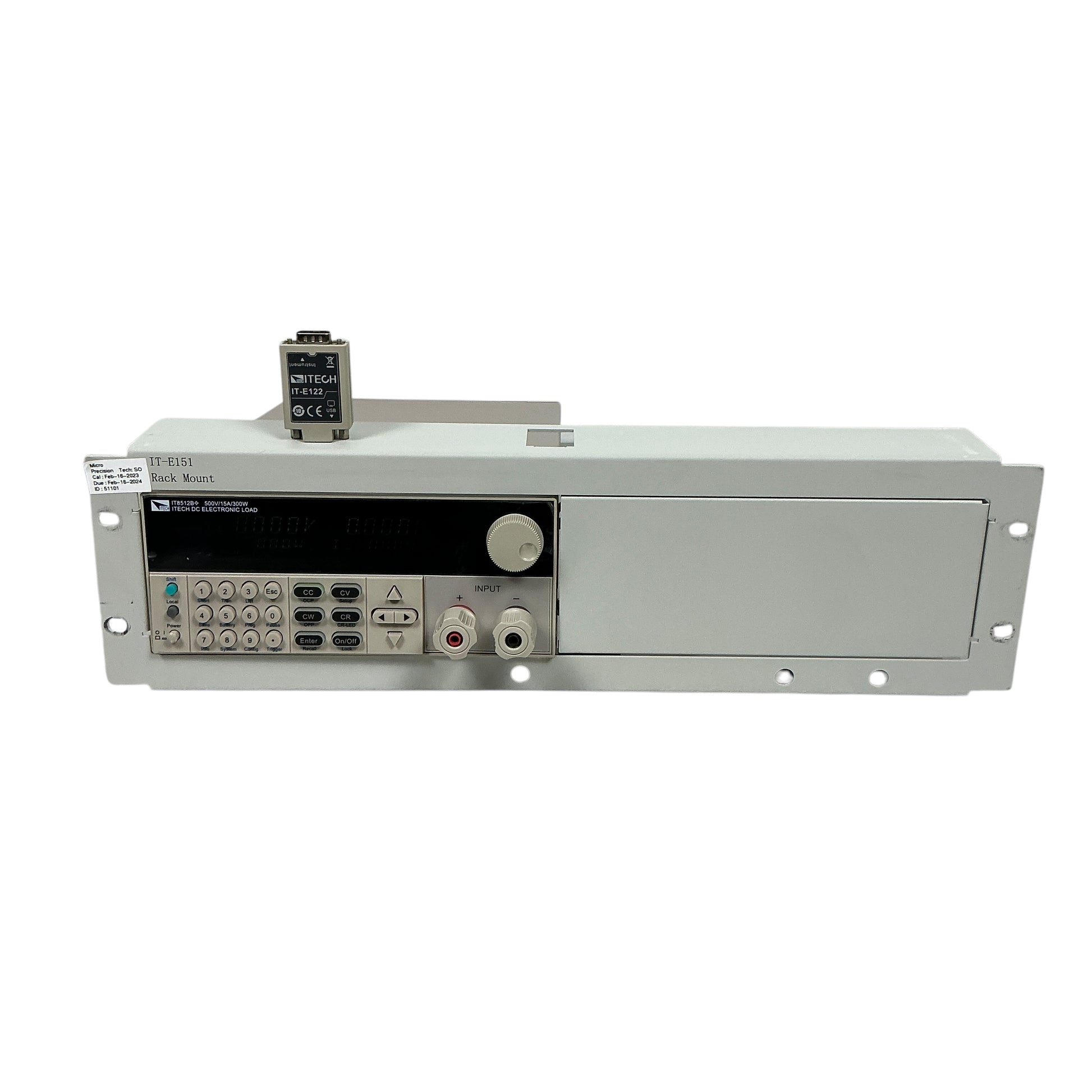

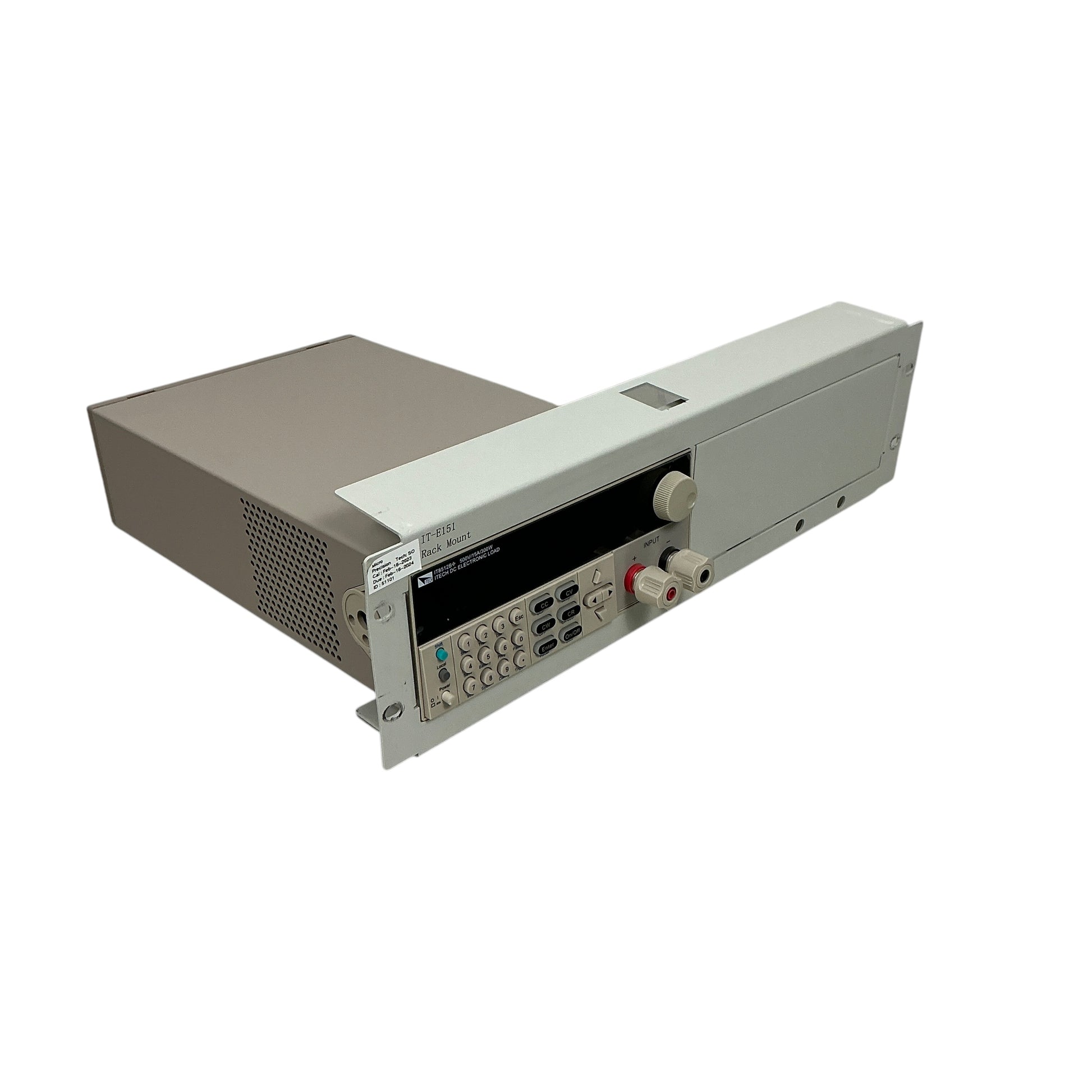

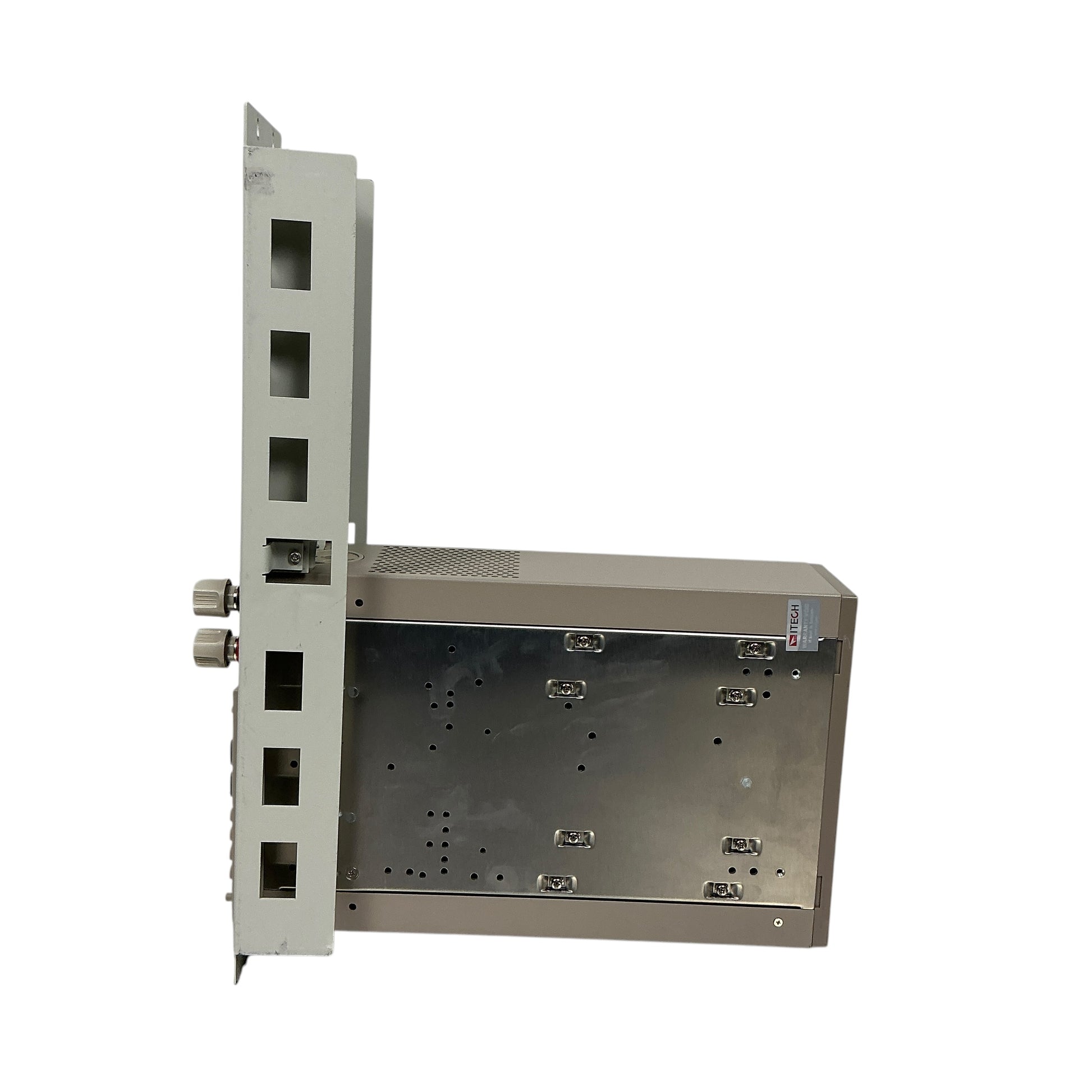

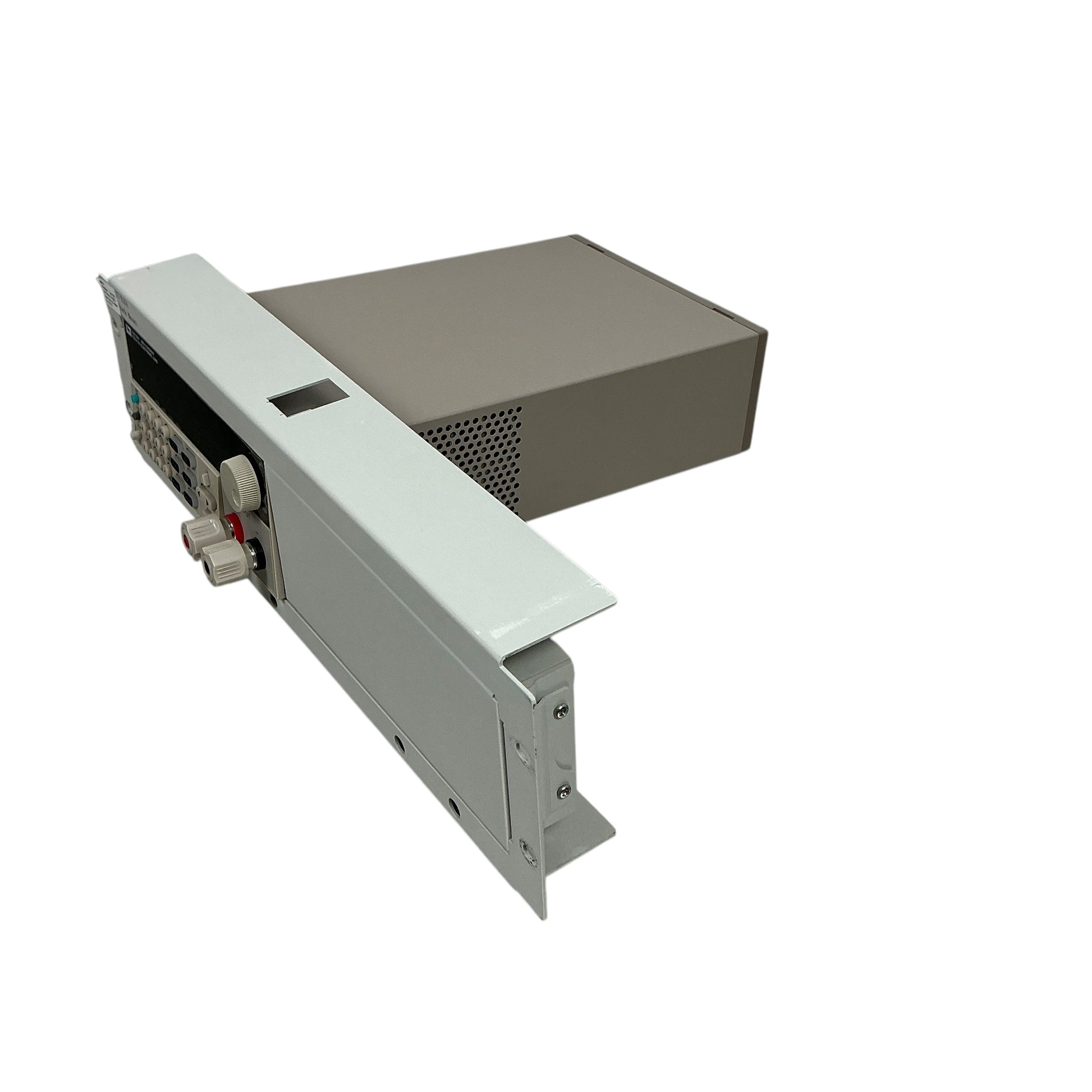

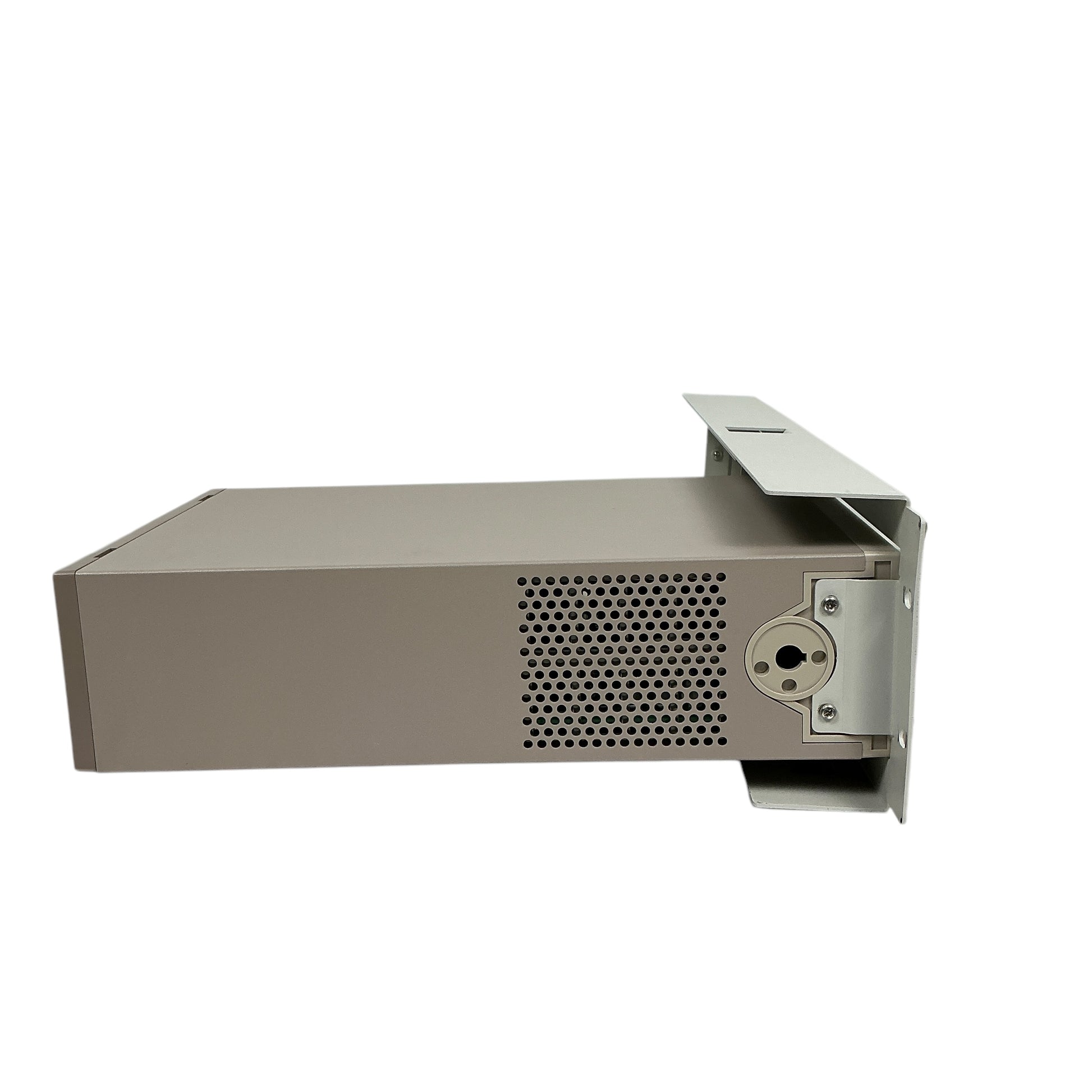

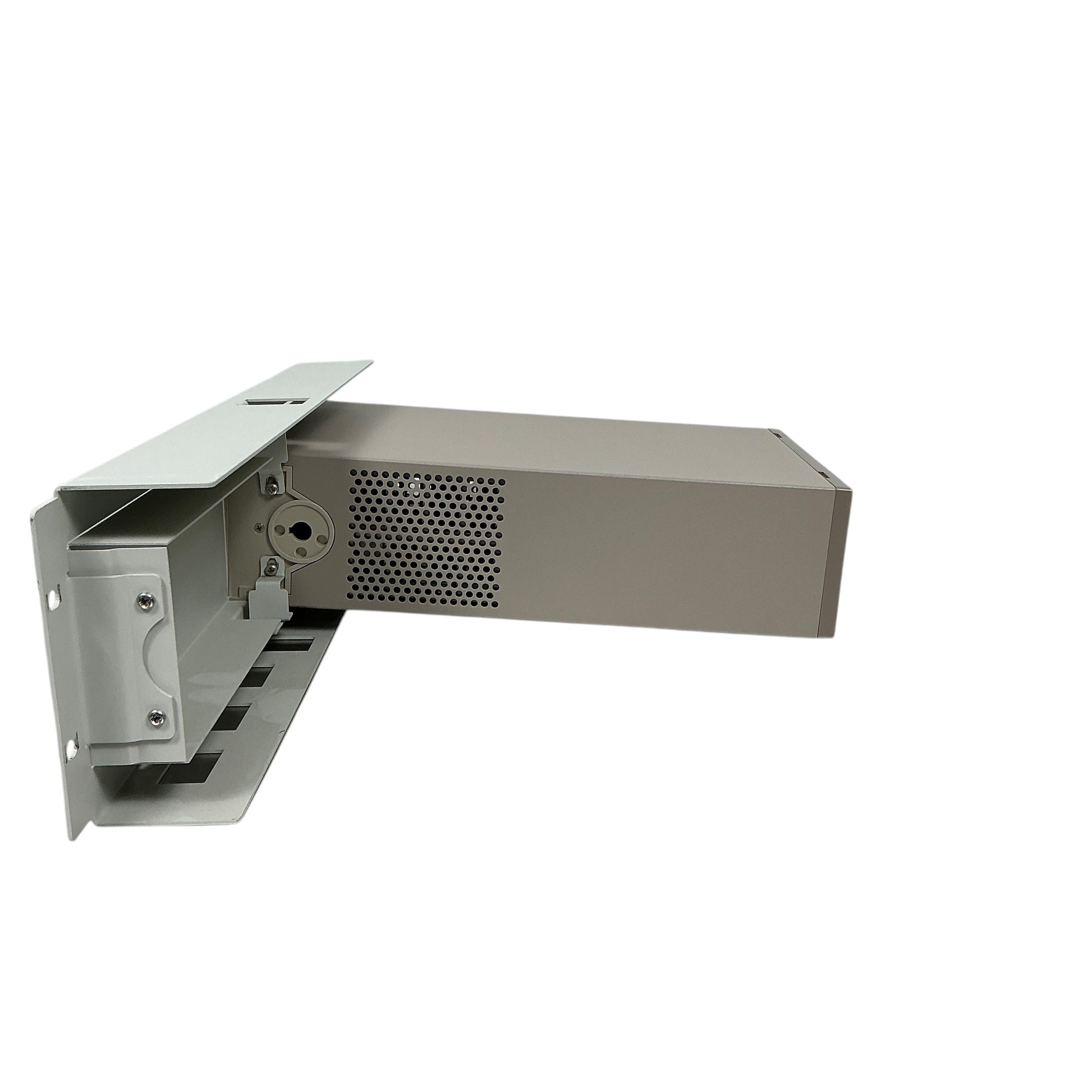

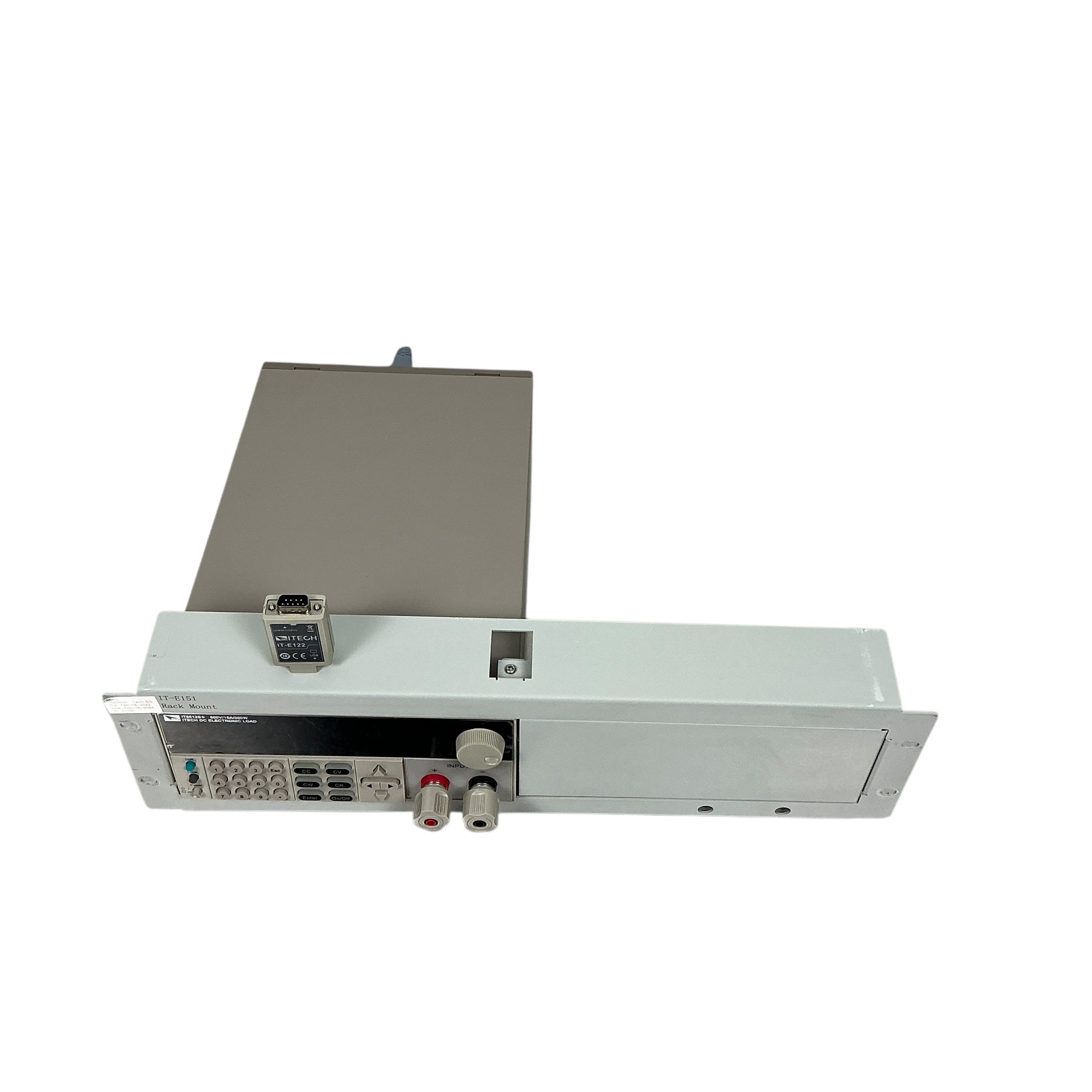

Includes Power Cord And Rack Mount IT-E151

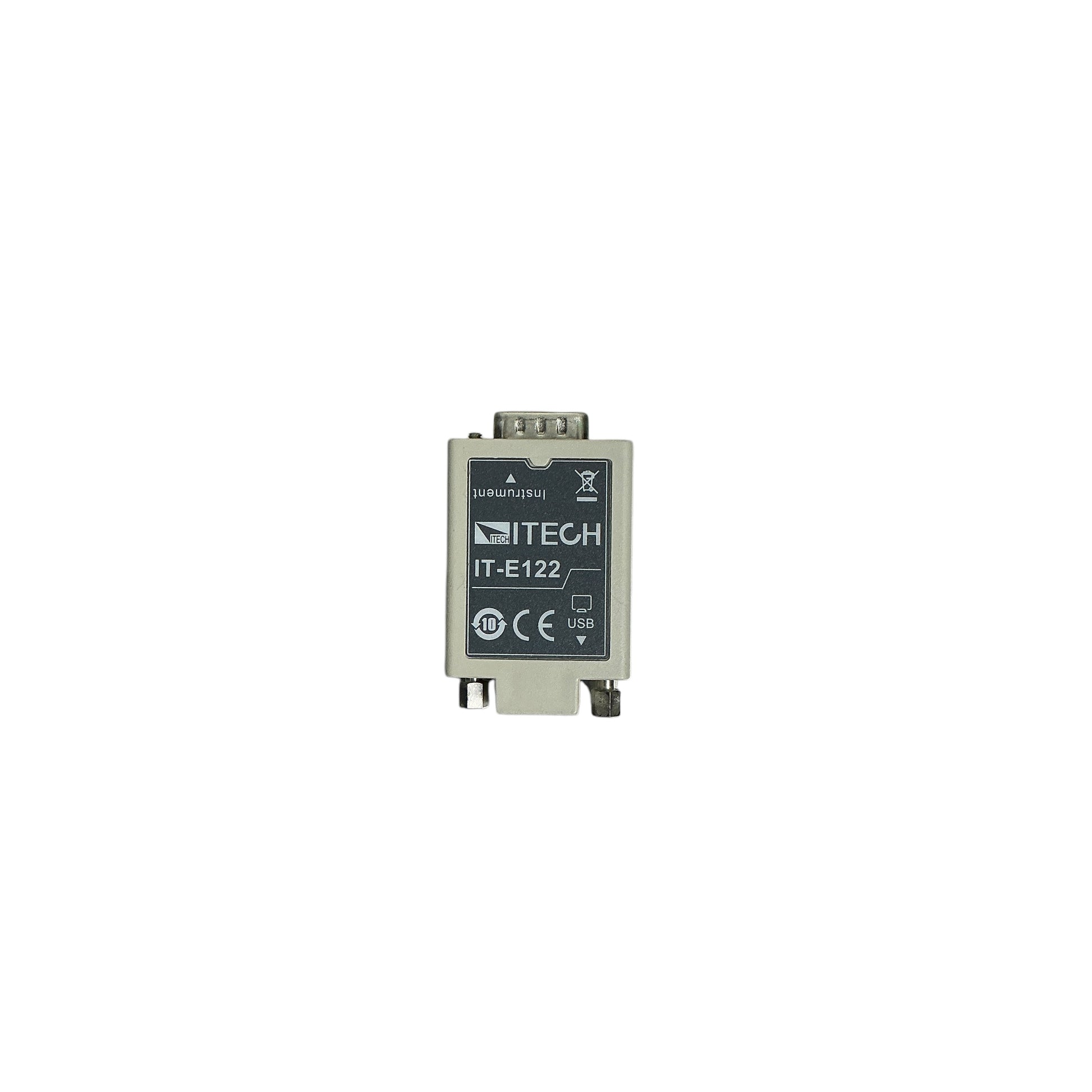

Itech IT-E122 RS232 to USB
No Software Included.
