Cosmetic Condition:
B Grade, Item has minor but generally unnoticeable signs of use, including but not limited to scratches, scuffs, paint discoloration, and/or glue residue. See Photos and Description for more details

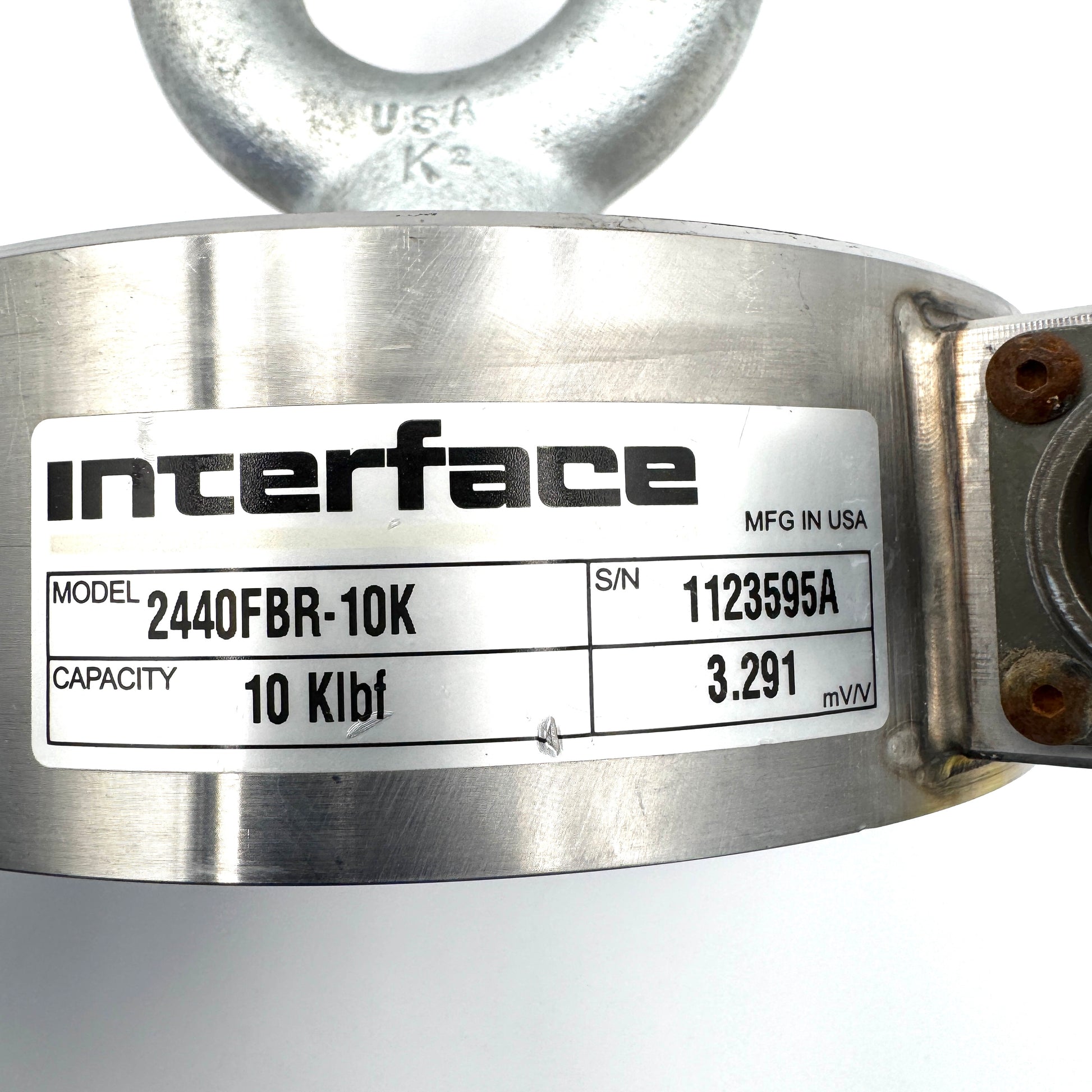

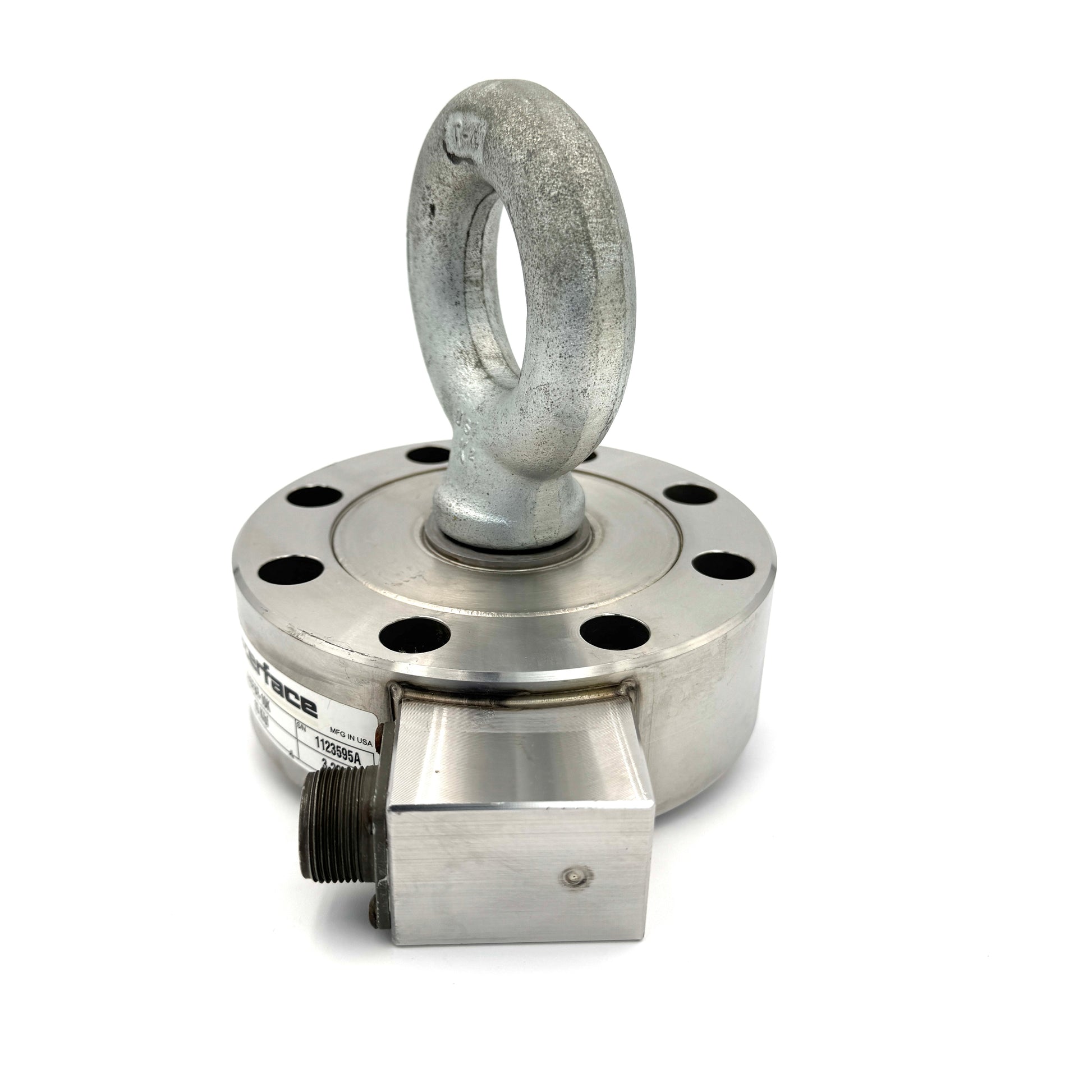

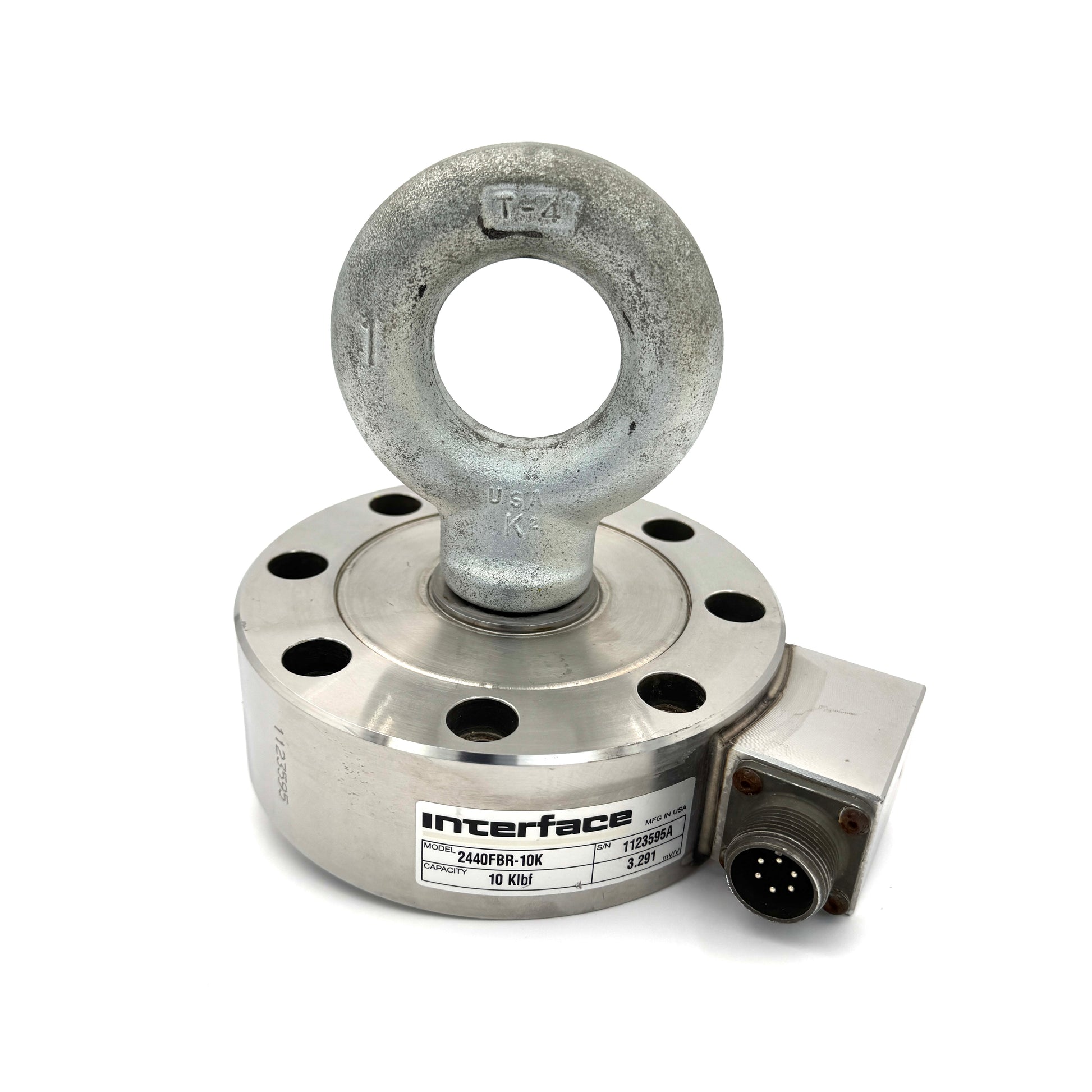

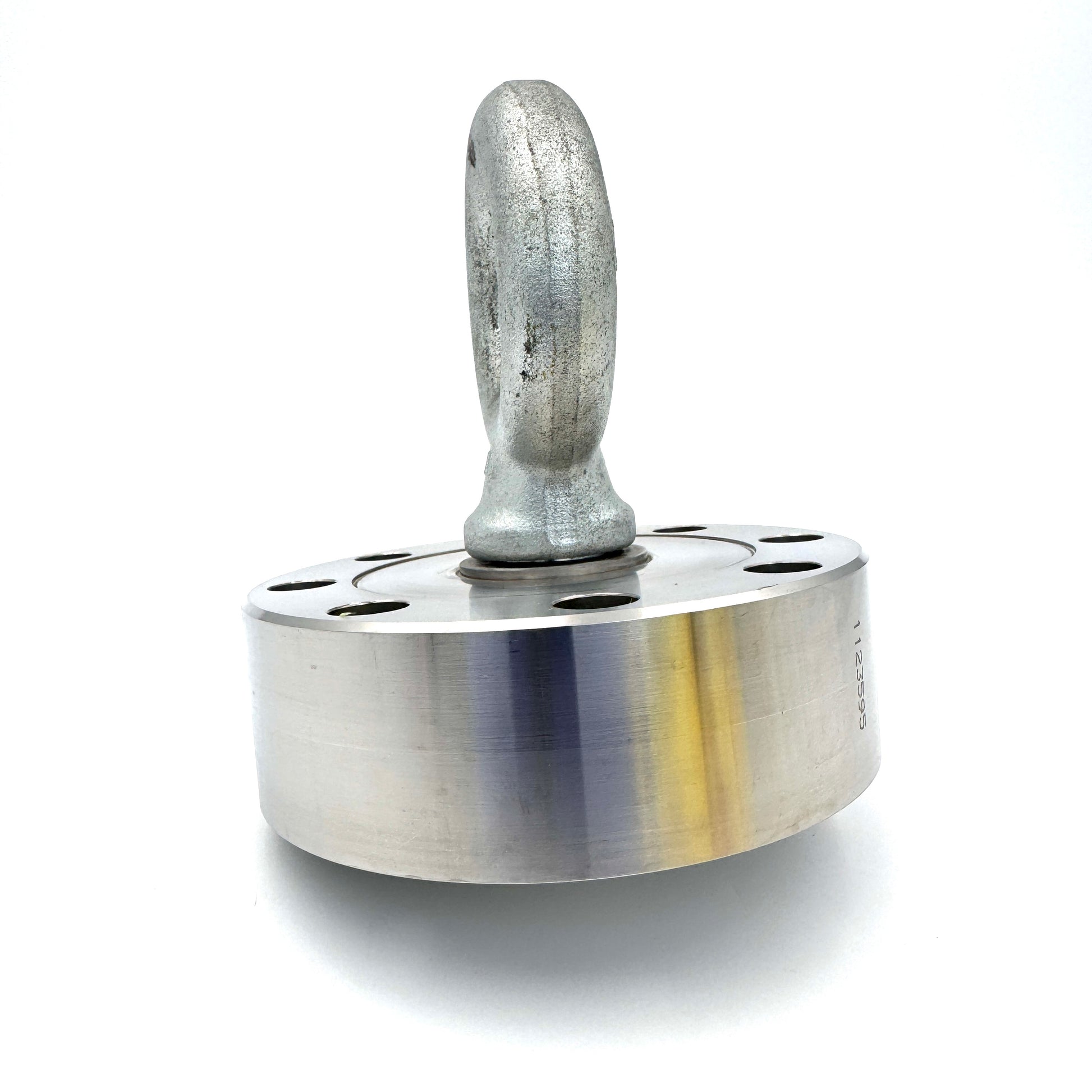

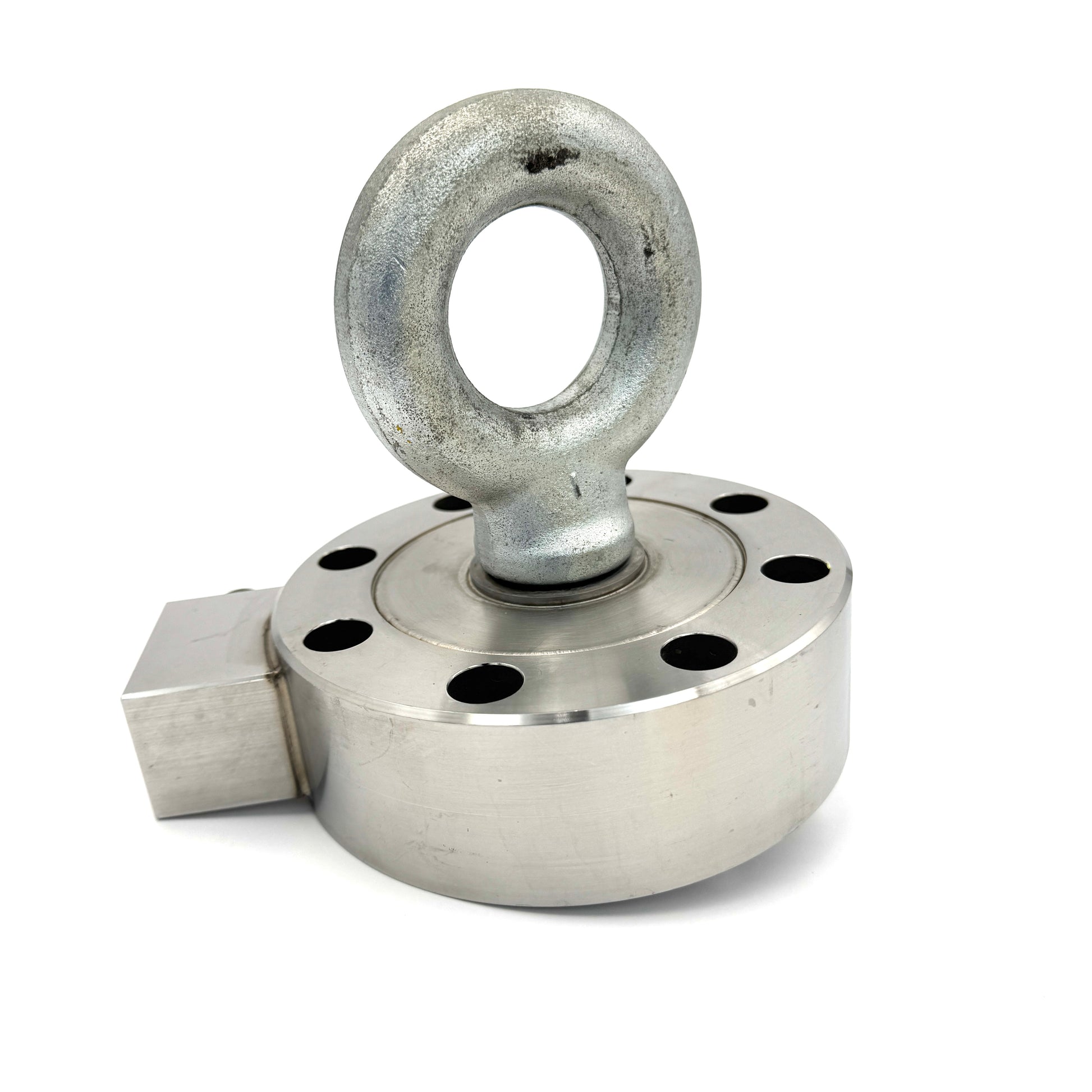

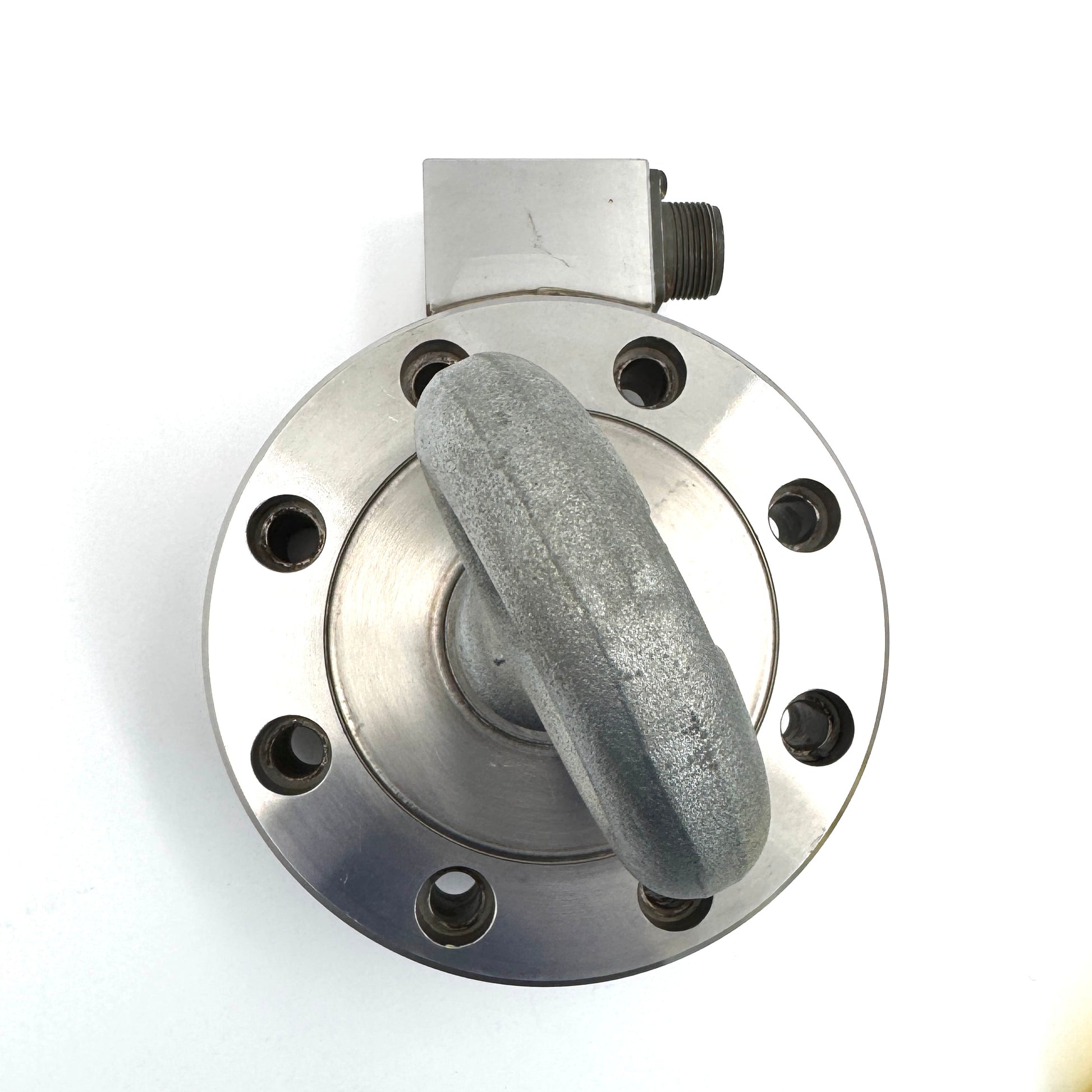

The Interface 2440FBR-10k is a high-capacity, stainless steel load cell designed for both tension and compression applications. Below are its key technical specifications:
Specification
Details
Capacity
10,000 lbf (approximately 44.5 kN)
Rated Output
3.0 mV/V (nominal)
Excitation Voltage
Up to 15 VDC
Bridge Resistance
350 ohms (nominal)
Nonlinearity
±0.10% of full scale
Hysteresis
±0.08% of full scale
Nonrepeatability
±0.02% of rated output
Creep (20 minutes)
±0.05%
Compensated Temperature Range
+15°F to +115°F (-10°C to +45°C)
Operating Temperature Range
-65°F to +200°F (-55°C to +90°C)
Temperature Effect on Zero
±0.002% of rated output per °F
Temperature Effect on Output
±0.002% of rated output per °F
Safe Overload
150% of capacity
Deflection at Rated Load
Approximately 0.002 inches (0.051 mm)
Construction
Stainless steel with welded diaphragm; hermetically sealed

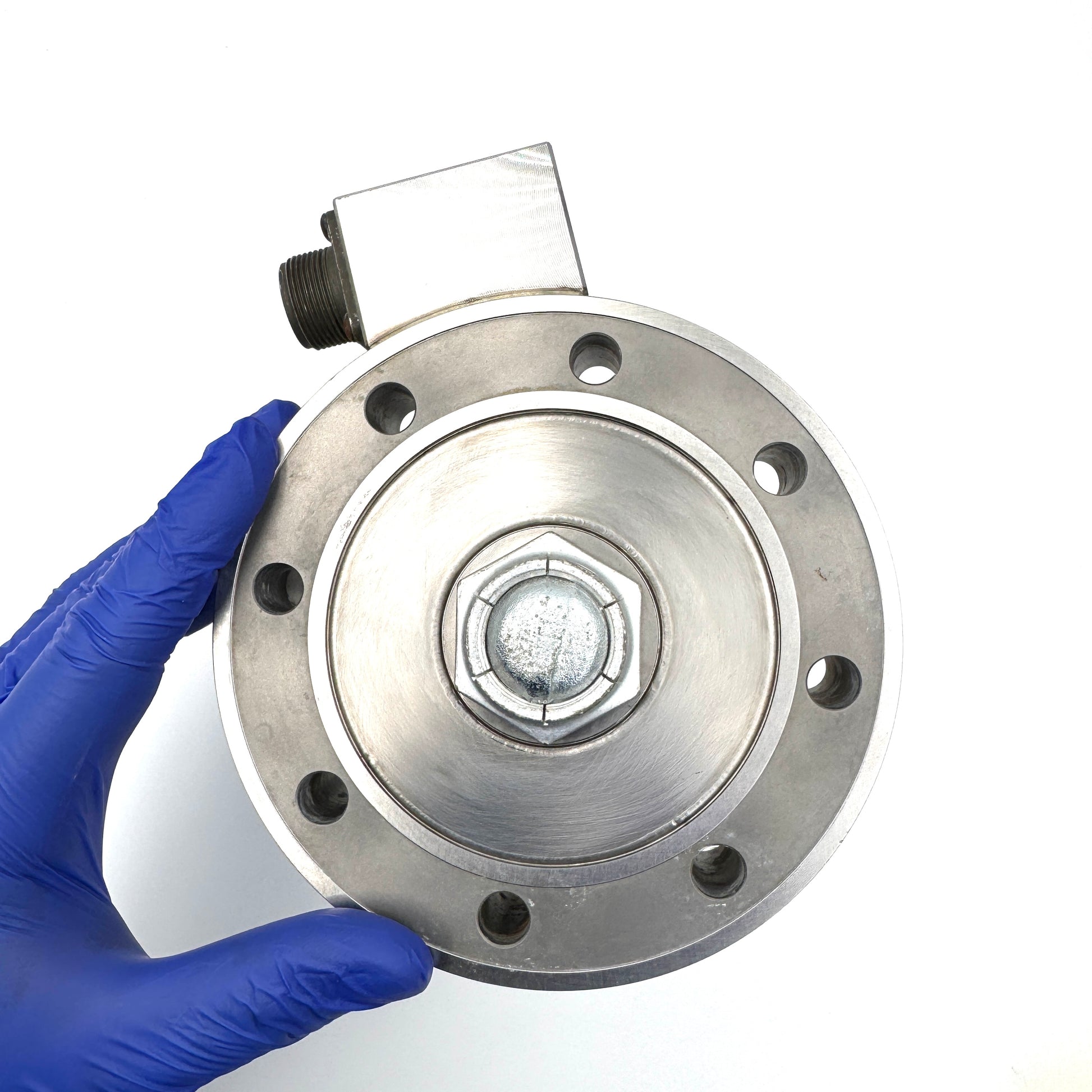

Mounting
Counterbored mounting holes; specific dimensions available in the product datasheet
Electrical Connection
MS3102E-14S-6P connector; optional configurations available
Functional Condition: Functions as normal Cosmetic Condition: IncludedAccessories: No accessories included
