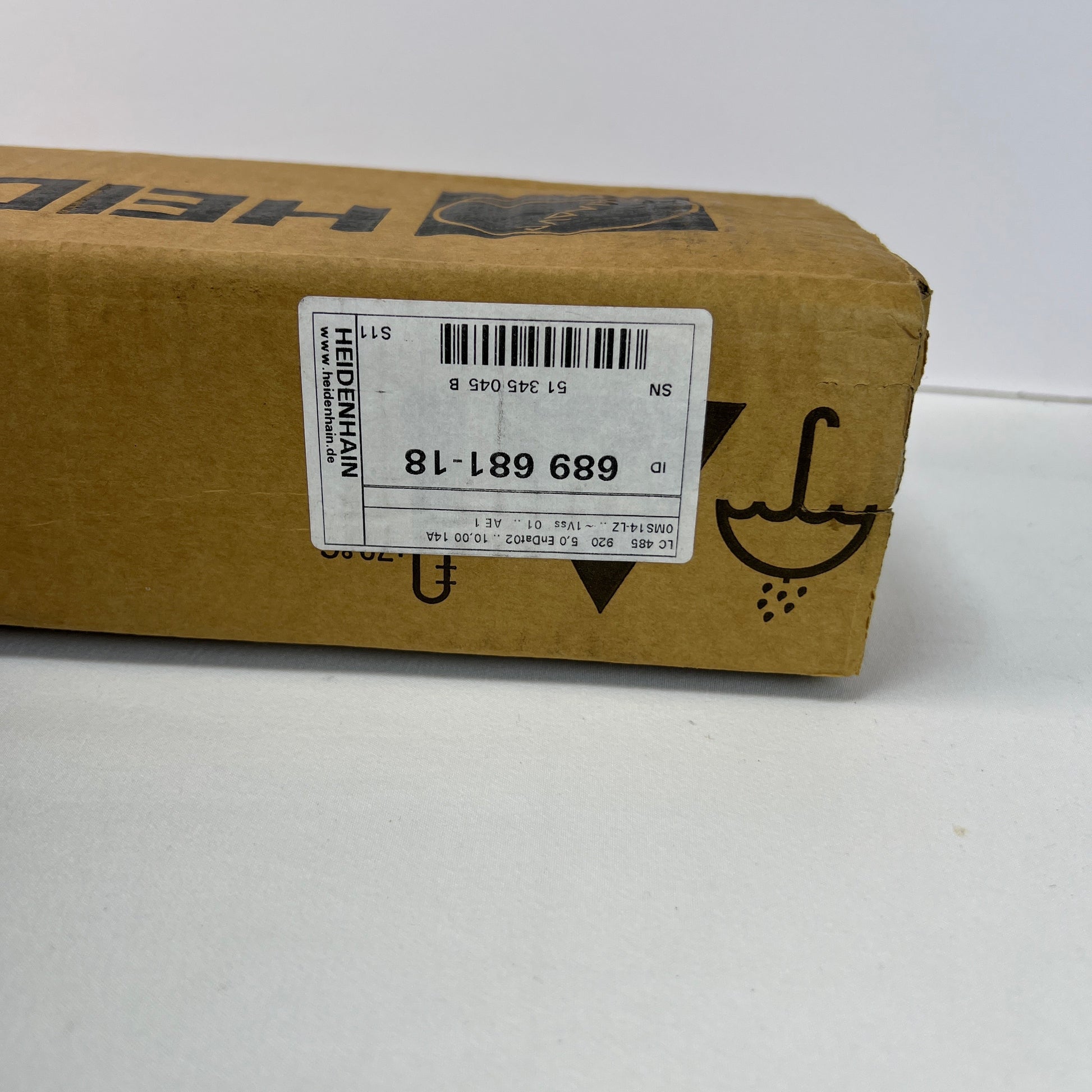

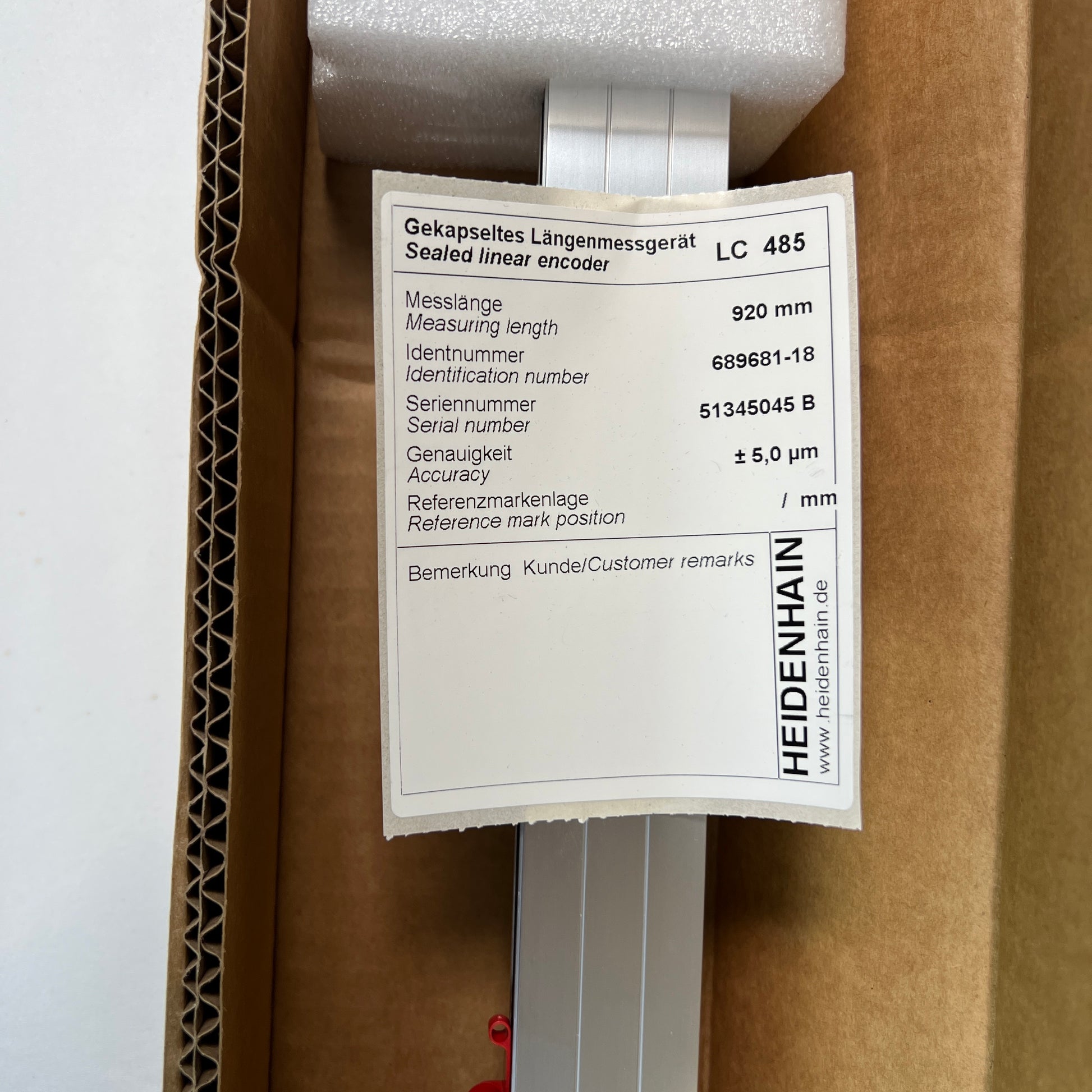

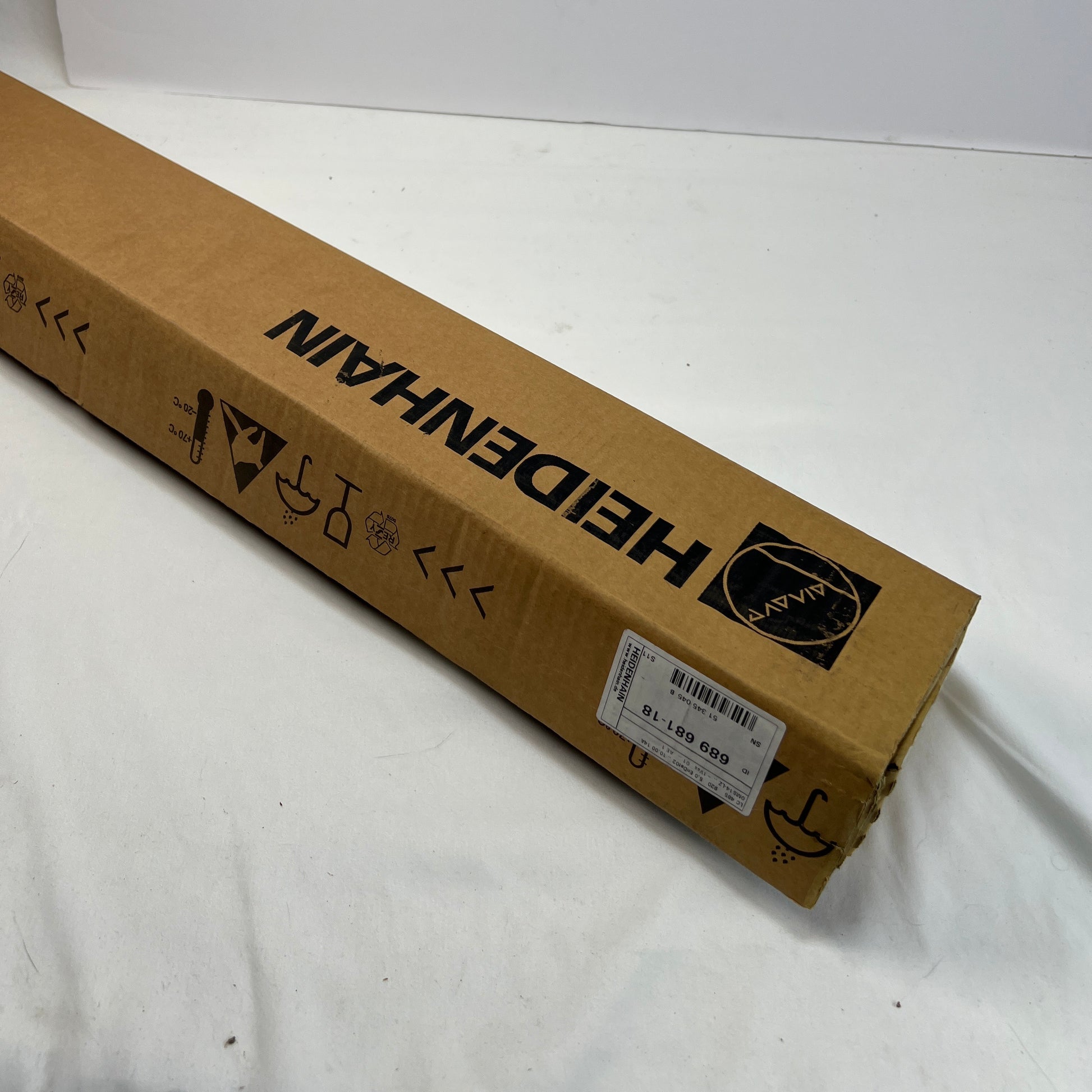

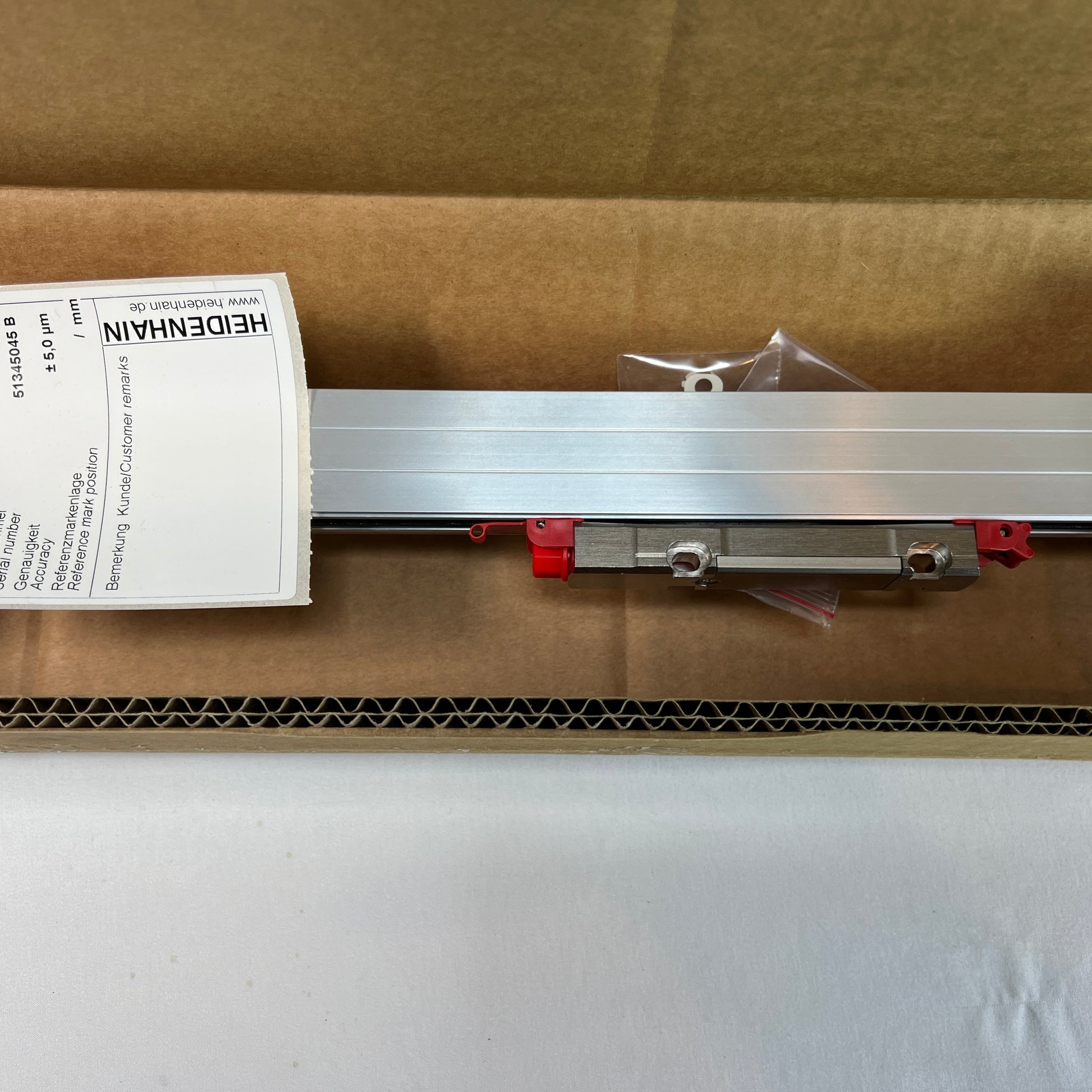

HEIDENHAIN 689681-18 Linear Encoder LC 485 920 mm Sealed New

The Heidenhain 689681-18 Linear Encoder LC 485 is a precision measurement device commonly used in applications requiring high accuracy, such as CNC machining, automation, and measurement systems. Below are some of the key details about the LC 485 series encoder:

General Features:

1. Encoder Type: Linear encoder.
2. Measuring Principle: Incremental or absolute, depending on configuration.
3. Accuracy: High precision; typically ±3 µm to ±5 µm.
4. Measuring Lengths: Various lengths are available, depending on the model.
5. Output Signal: May feature TTL, HTL, or other digital signal formats.
6. Resolution: Fine resolutions in the nanometer range, depending on interpolation.
7. Interface: Typically includes a standard interface for integration with controllers or data acquisition systems.
8. Temperature Range: Usually operates within a wide temperature range suitable for industrial environments.
9. Sealing: Robust design with protection against dust, debris, and other contaminants.
