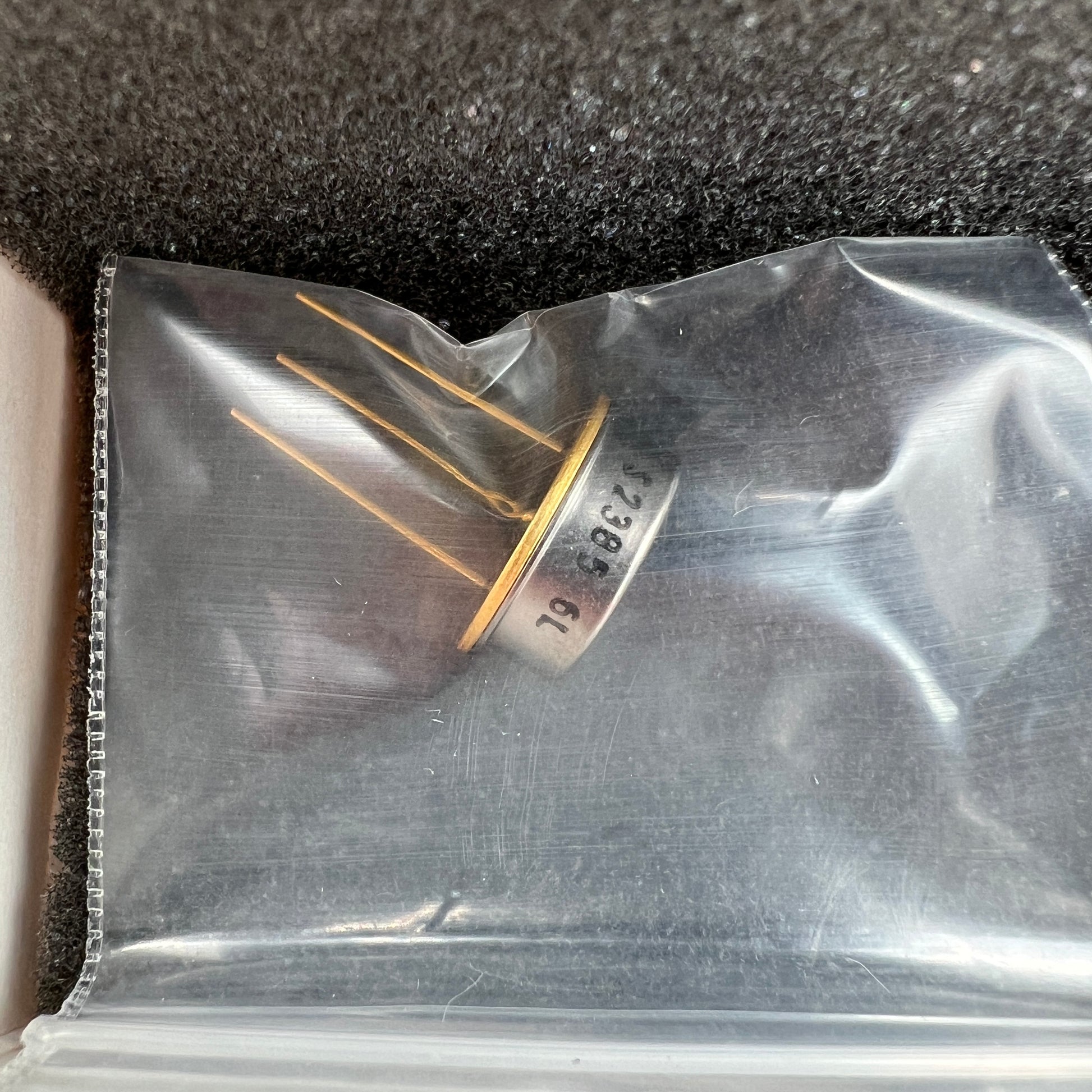

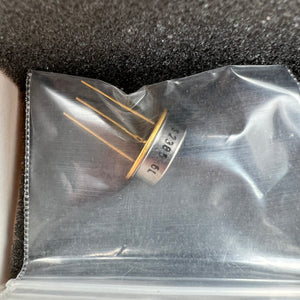

Hamamatsu S2385 | 5.0mm NIR (400-1000nm), Si APD 58266 - Open Box

Hamamatsu S2385 | 5.0mm NIR (400-1000nm), Si APD
High Sensitivity and Low Noise
High-Speed Response
Low-Light Level Measurement
Hamamatsu Avalanche Photodiodes (APDs) are silicon photodiodes with an internal gain mechanism. As with a conventional photodiode, the absorption of incident photons creates electron-hole pairs. A high reverse bias voltage creates a strong internal electric field, which accelerates the electrons through the silicon crystal lattice and produces secondary electrons by impact ionization. The resulting electron avalanche can produce gain factors up to several hundred.

Si APDs are used when light signals are too high for photomultiplier tubes and too low for conventional photodiodes. Si APDs are often used in high-speed applications since the excess noise from the avalanche process is still lower than the noise that would be generated in connecting an external amplifier to a conventional photodiode operated at high frequencies. Typical applications include low-light level measurement, spectroscopy, range finding, and spatial/fiber optic communication. Both our short-wavelength type and near-infrared detection types are hermetically sealed in a metal package with a clear glass window.

Photosensitivity (S) and Quantum Efficiency QE): For the NIR and UV/VIS Si APDs, λ=800nm and λ=620nm, respectively. QE and S are given for M equal to 1.
Gain (M) is given at λ=800nm and λ=650nm for the NIR and UV/VIS Si APDs respectively.
Terminal capacitance is measured at the gain specified.

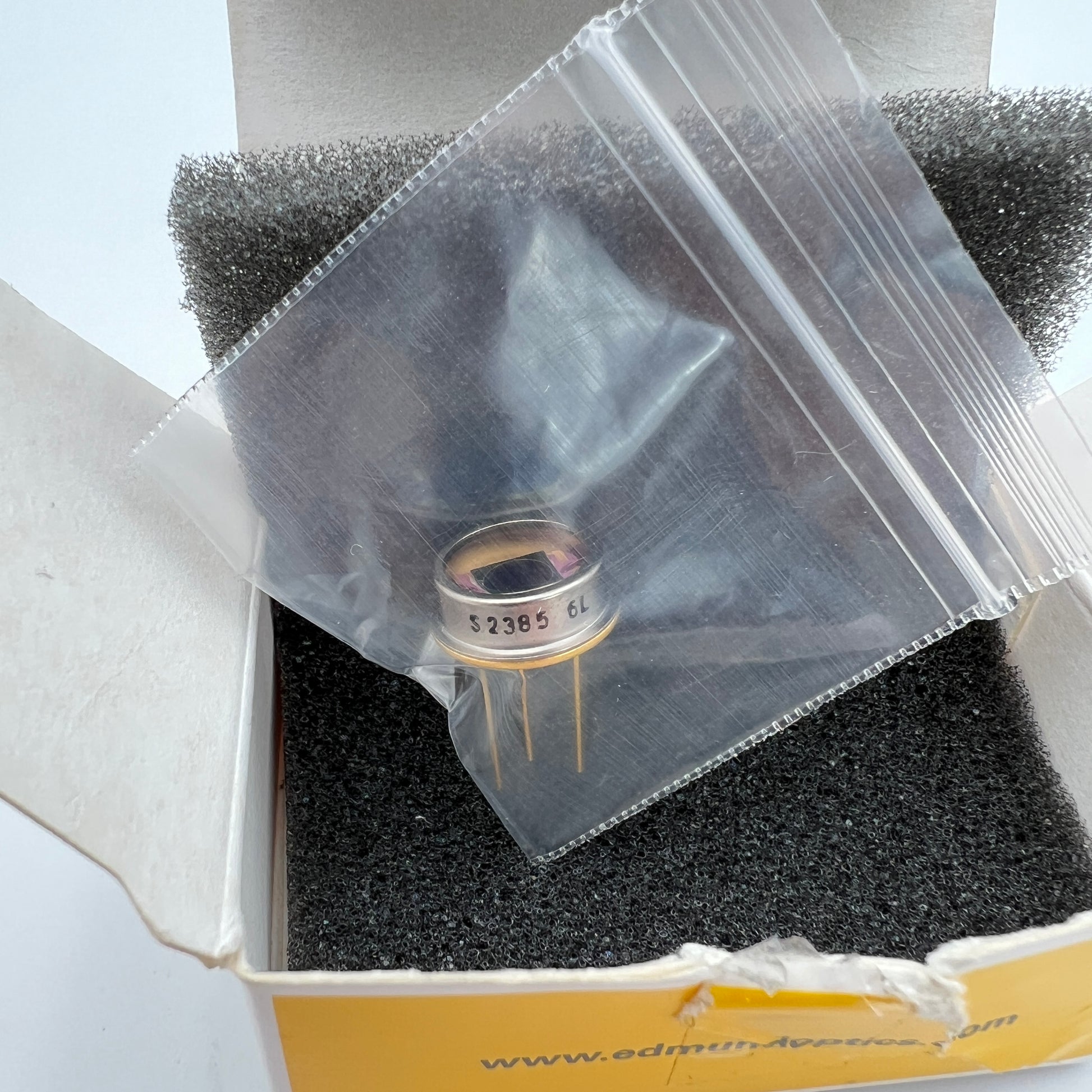

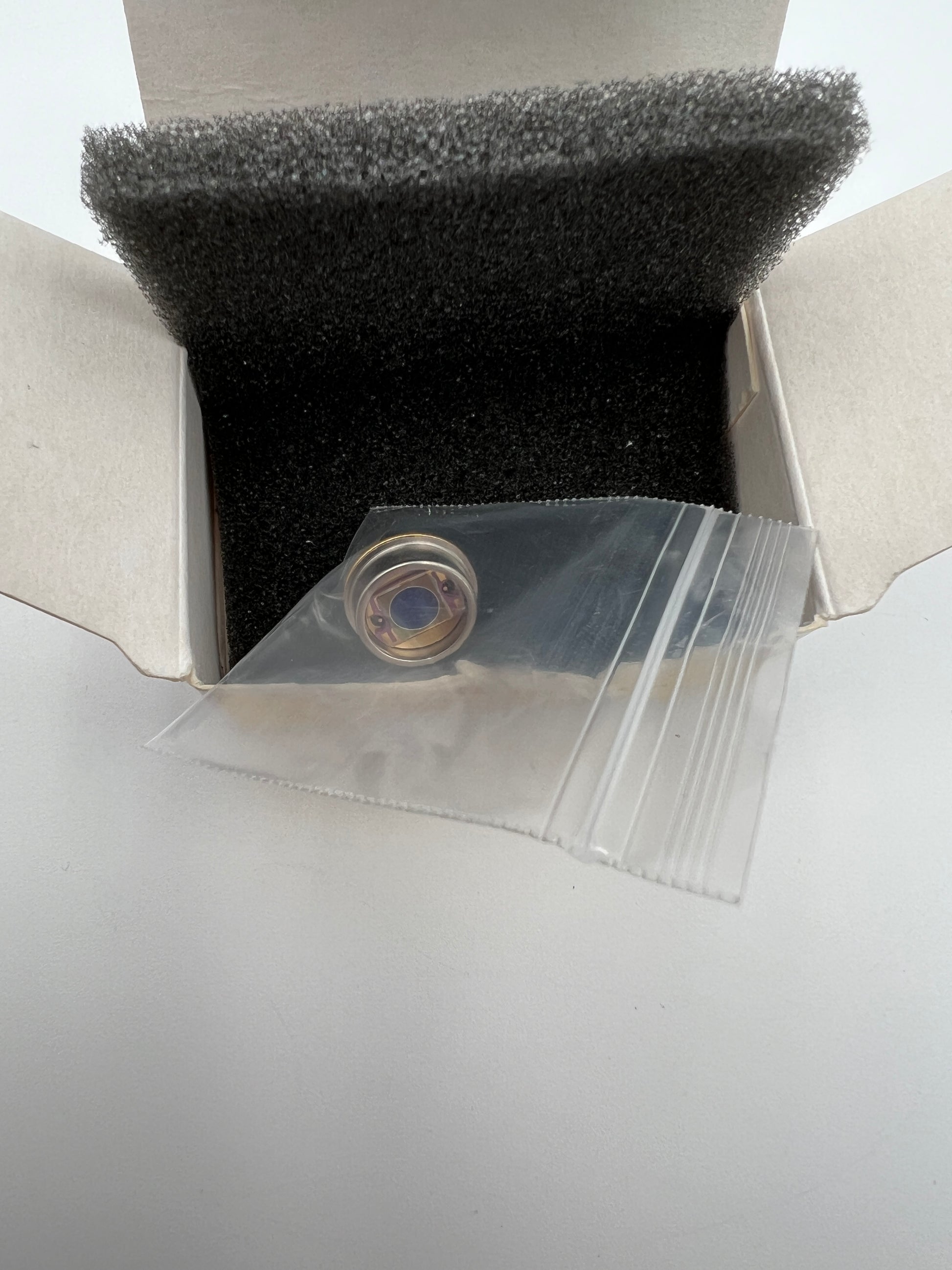

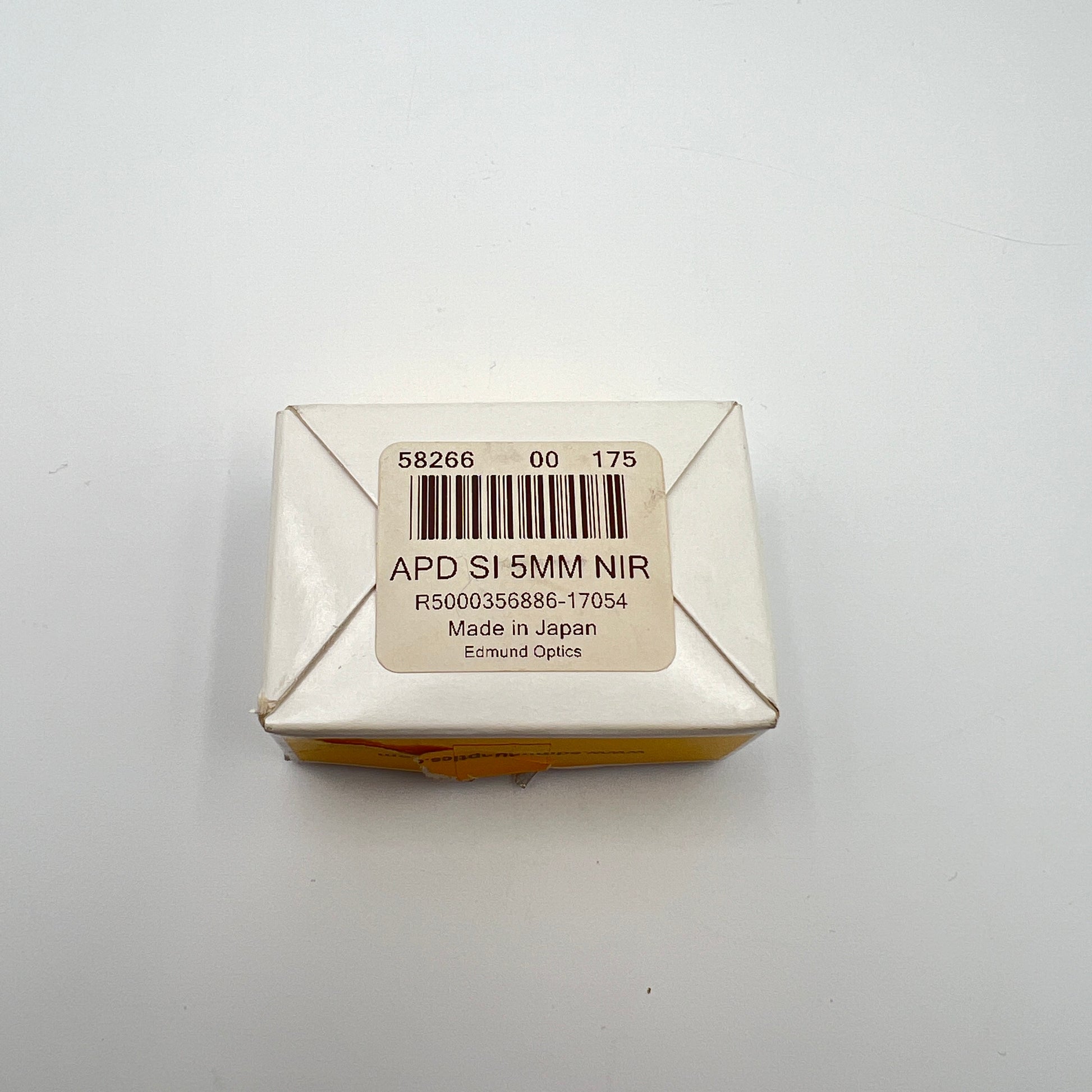

One - Open Box Edmund Optics 58266 ADP SI 5MM NIR

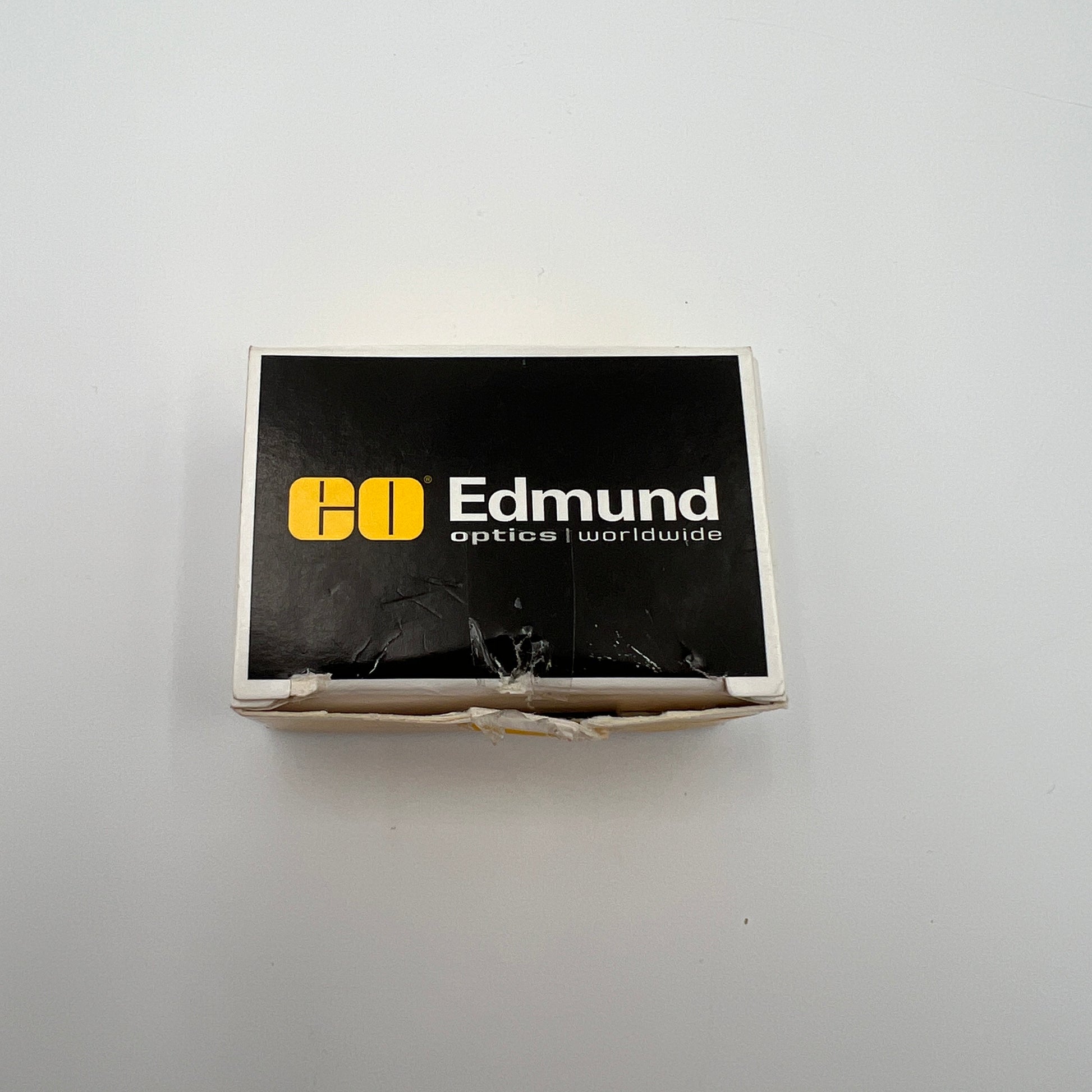

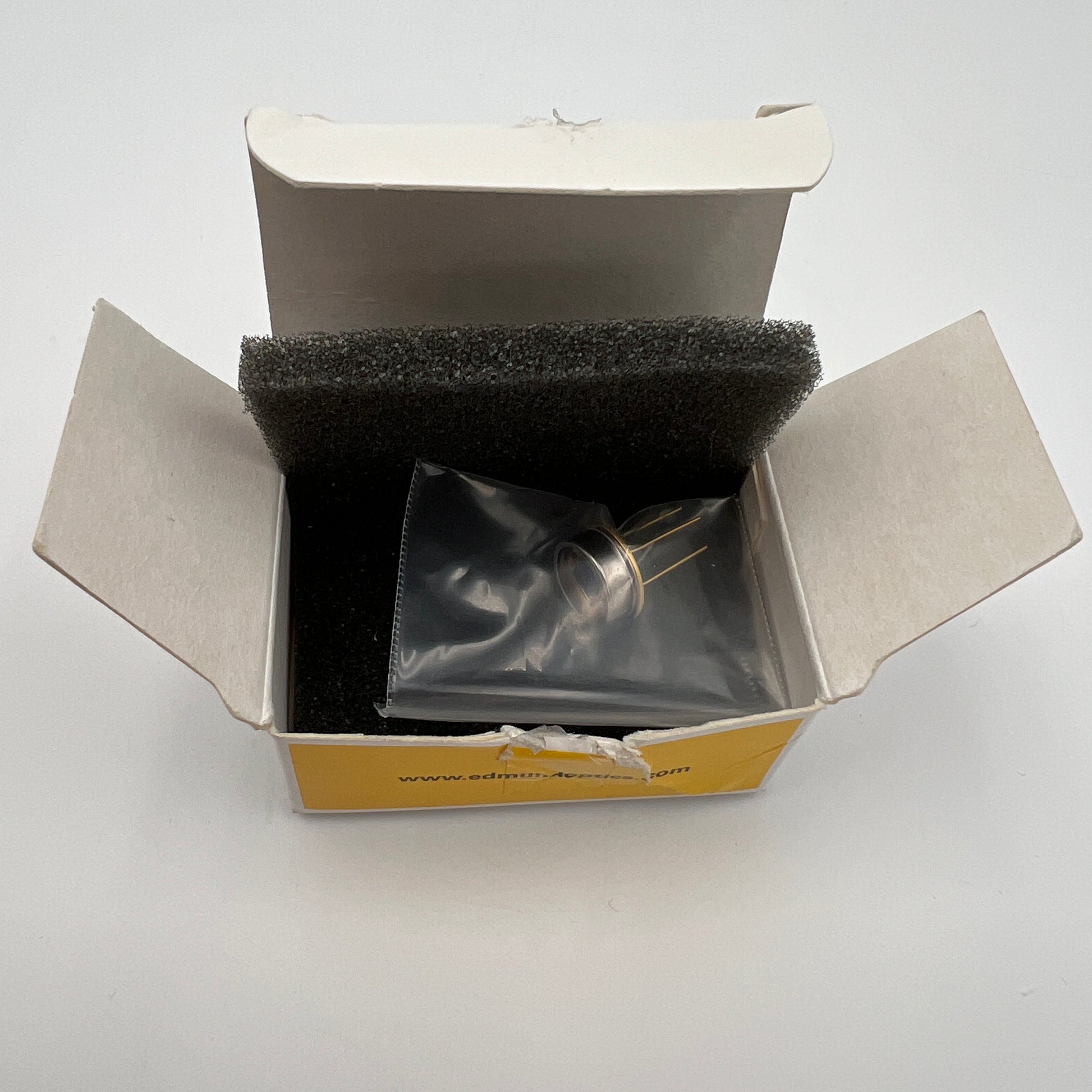

Box Was opened item was removed from the original packaging and never used in the field of use.
