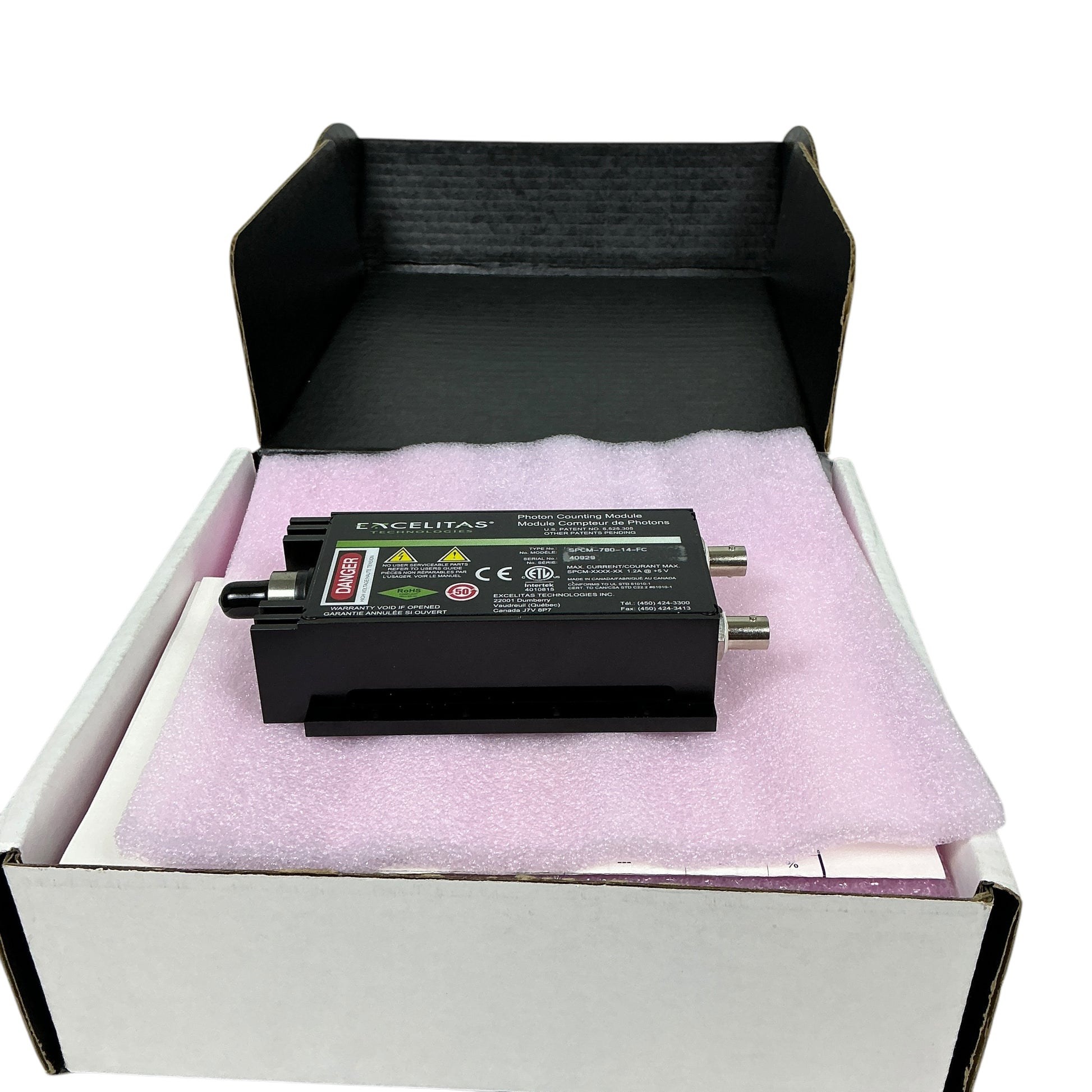

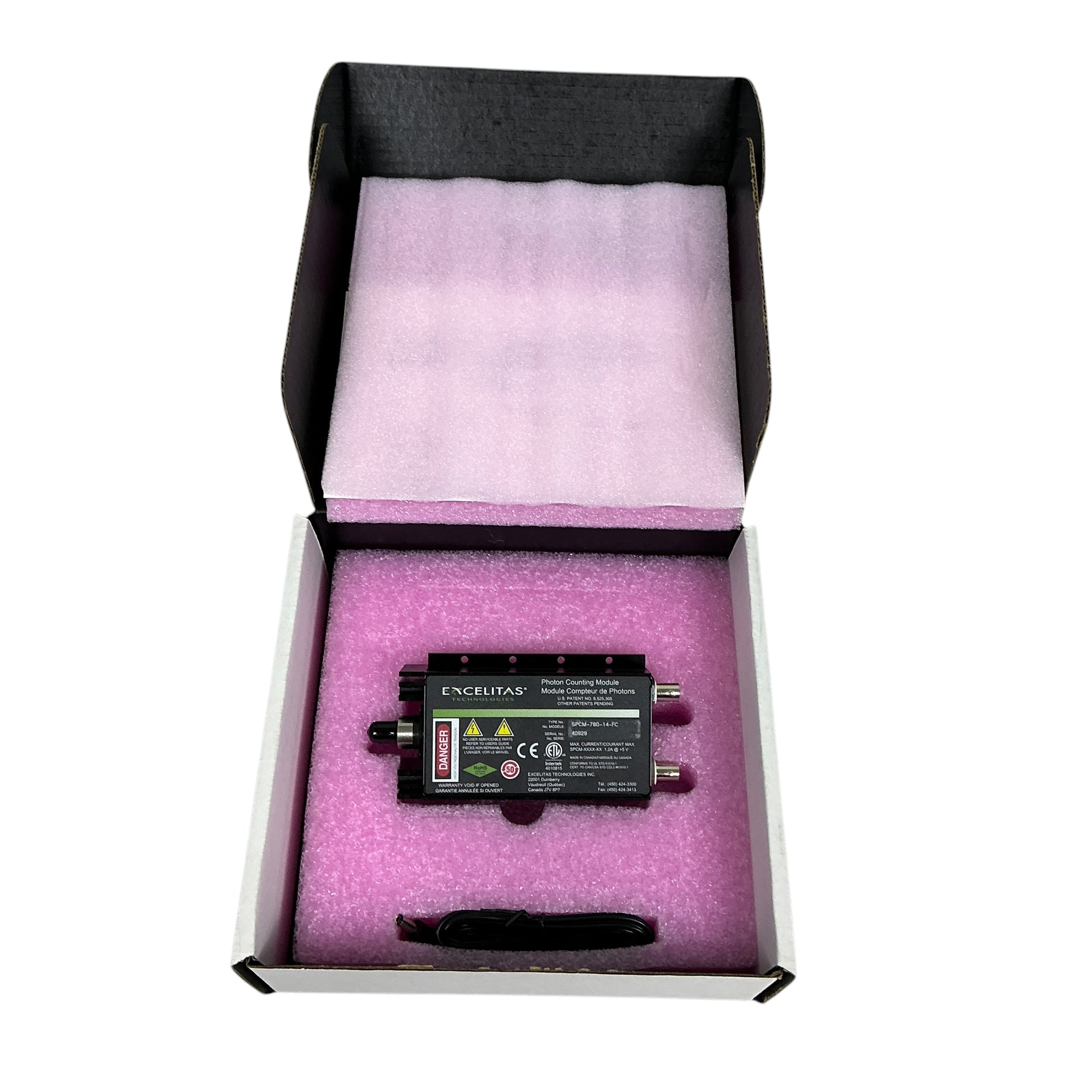

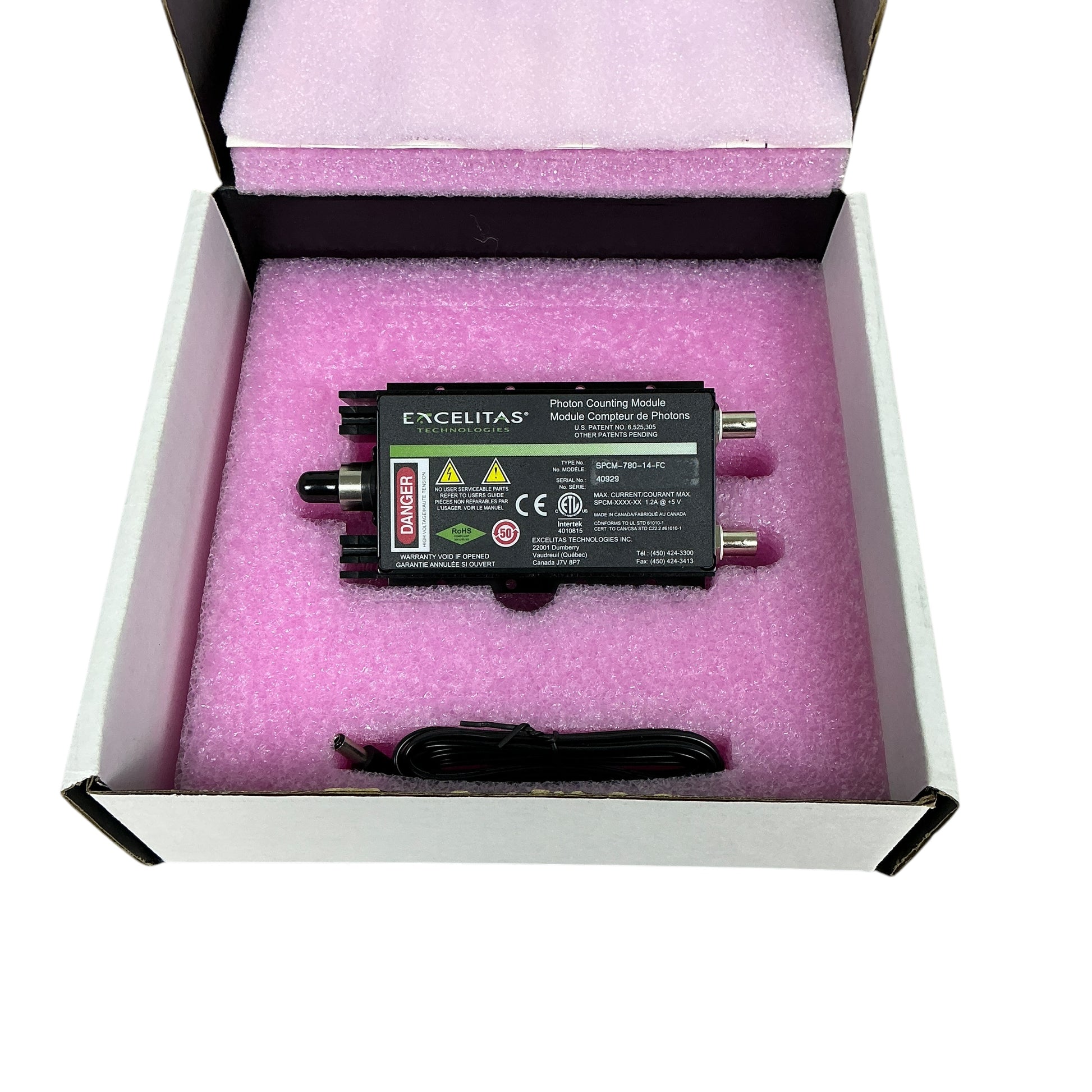

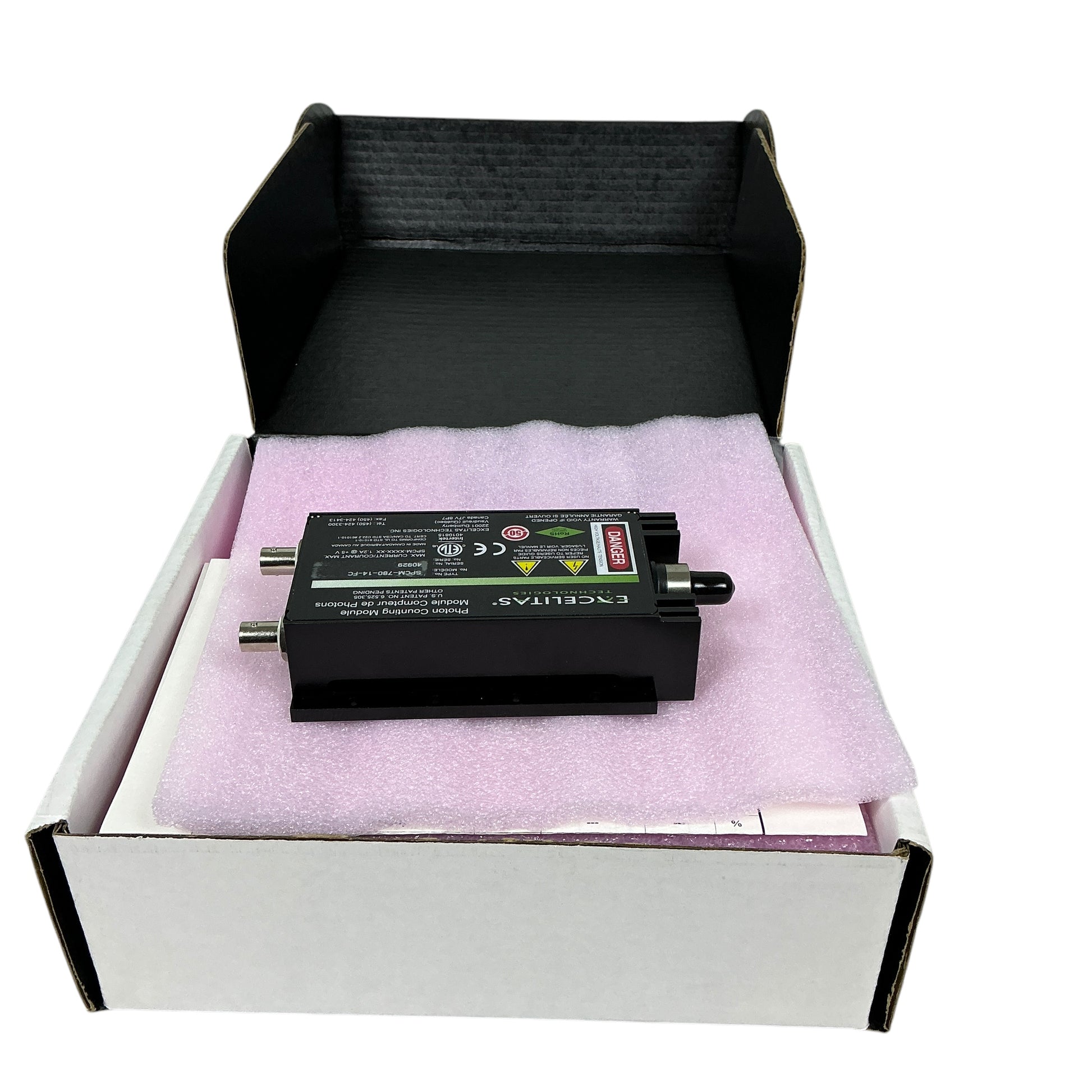

Excelitas SPCM-780-14-FC Single Photon Counting Module - New

Excelitas SPCM-780-14-FC is a high-sensitivity photon counting module optimized for 780 nm, commonly used in quantum optics, LiDAR, and advanced microscopy.

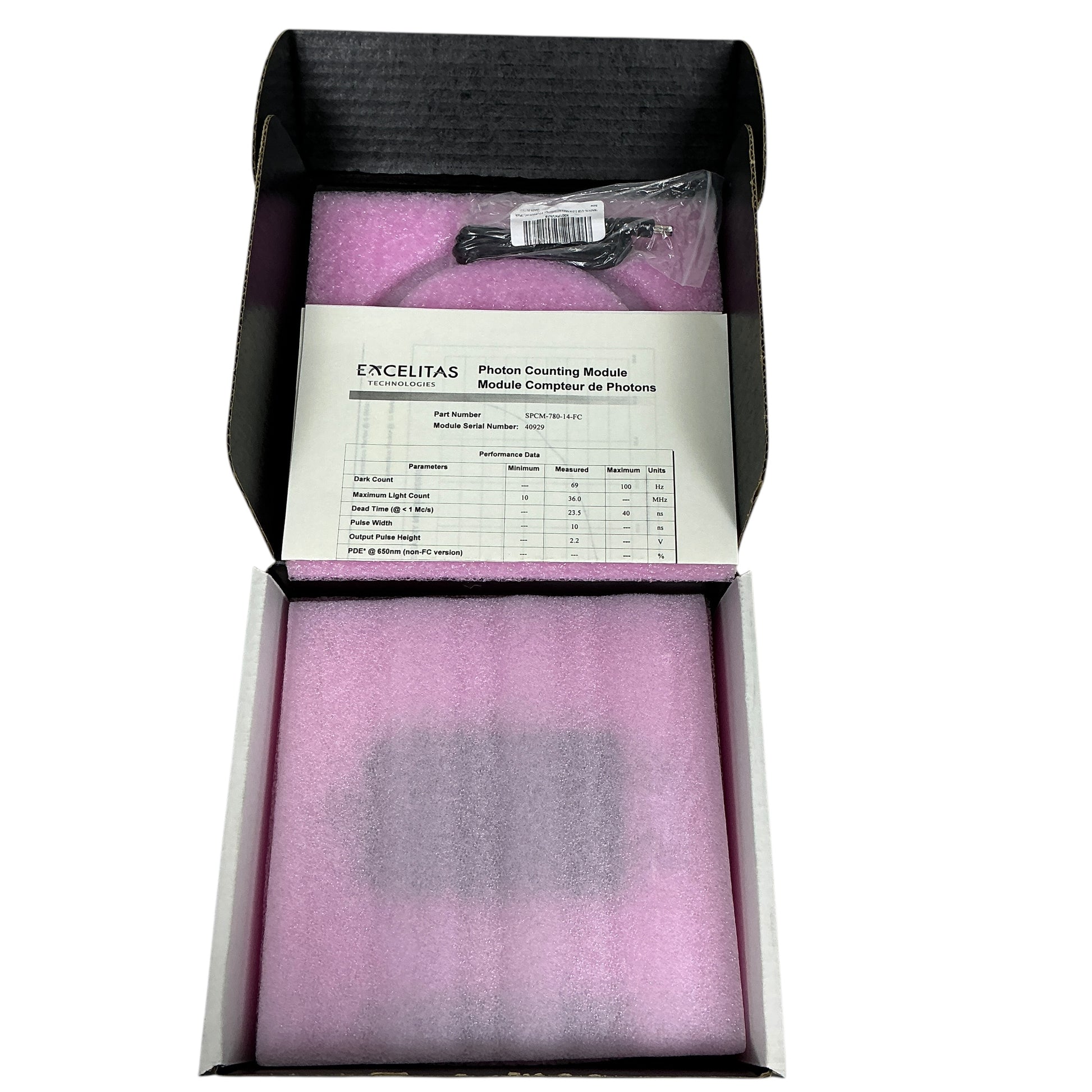

Key Specifications:

Peak Detection Efficiency: ~70% at 780 nm

Wavelength Range: 400–1060 nm

Dark Count Rate: 100 cps

Dead Time: 22 ns

Max Count Rate: 37 Mcps

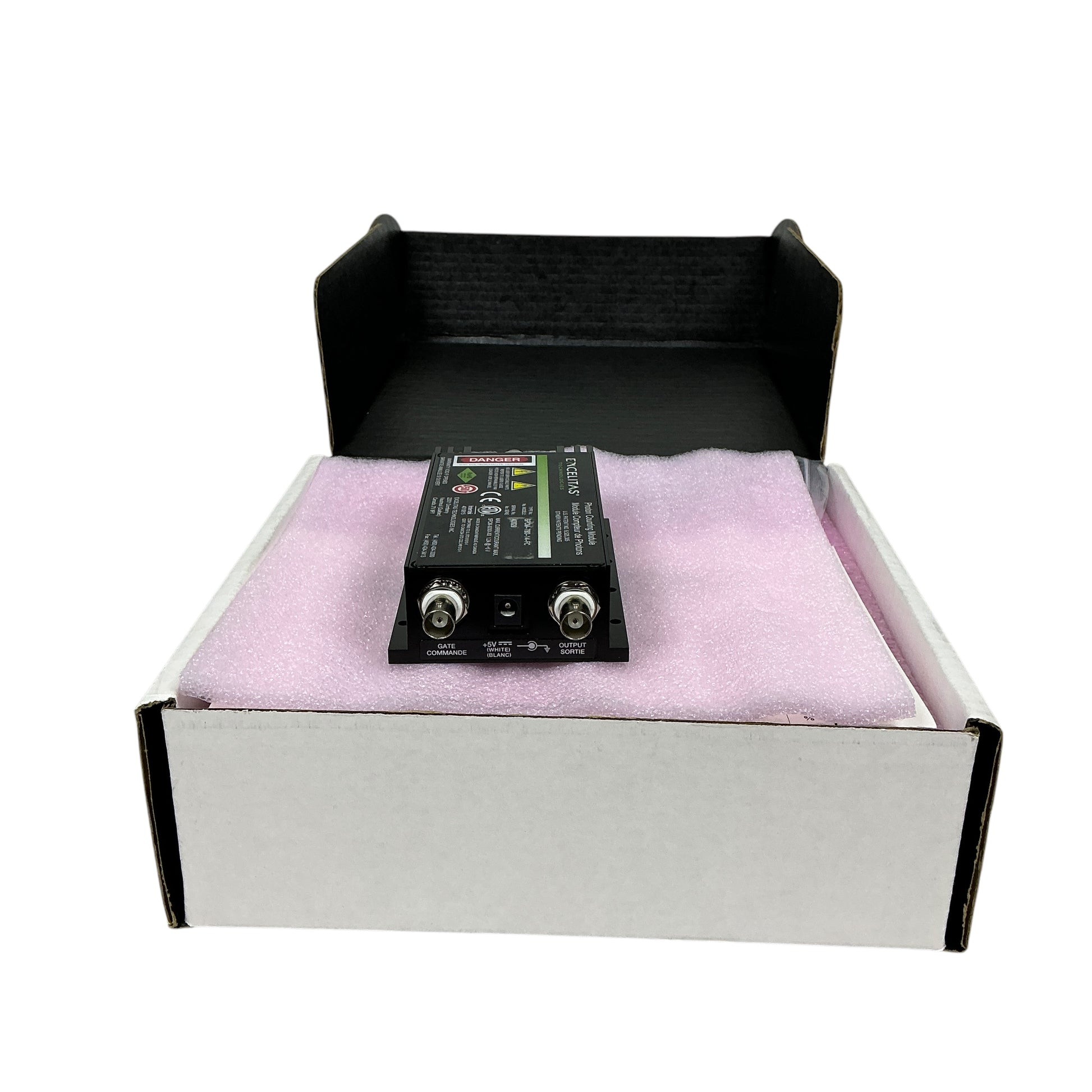

Output: TTL pulse, 10 ns width, 2.2 V amplitude

Active Area: 180 µm diameter

Operating Temperature: 5°C to 70°C

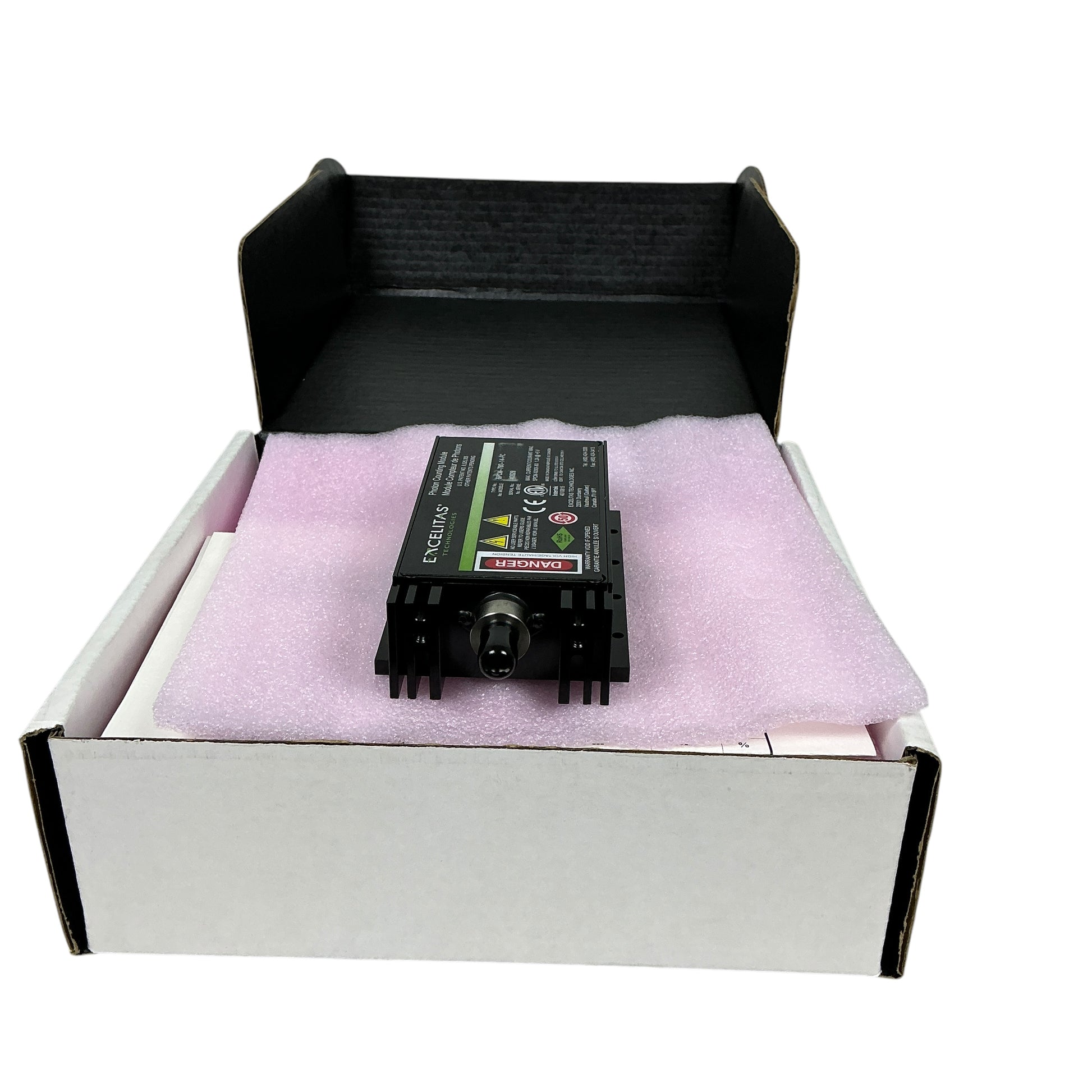

Optical Input: FC fiber adapter

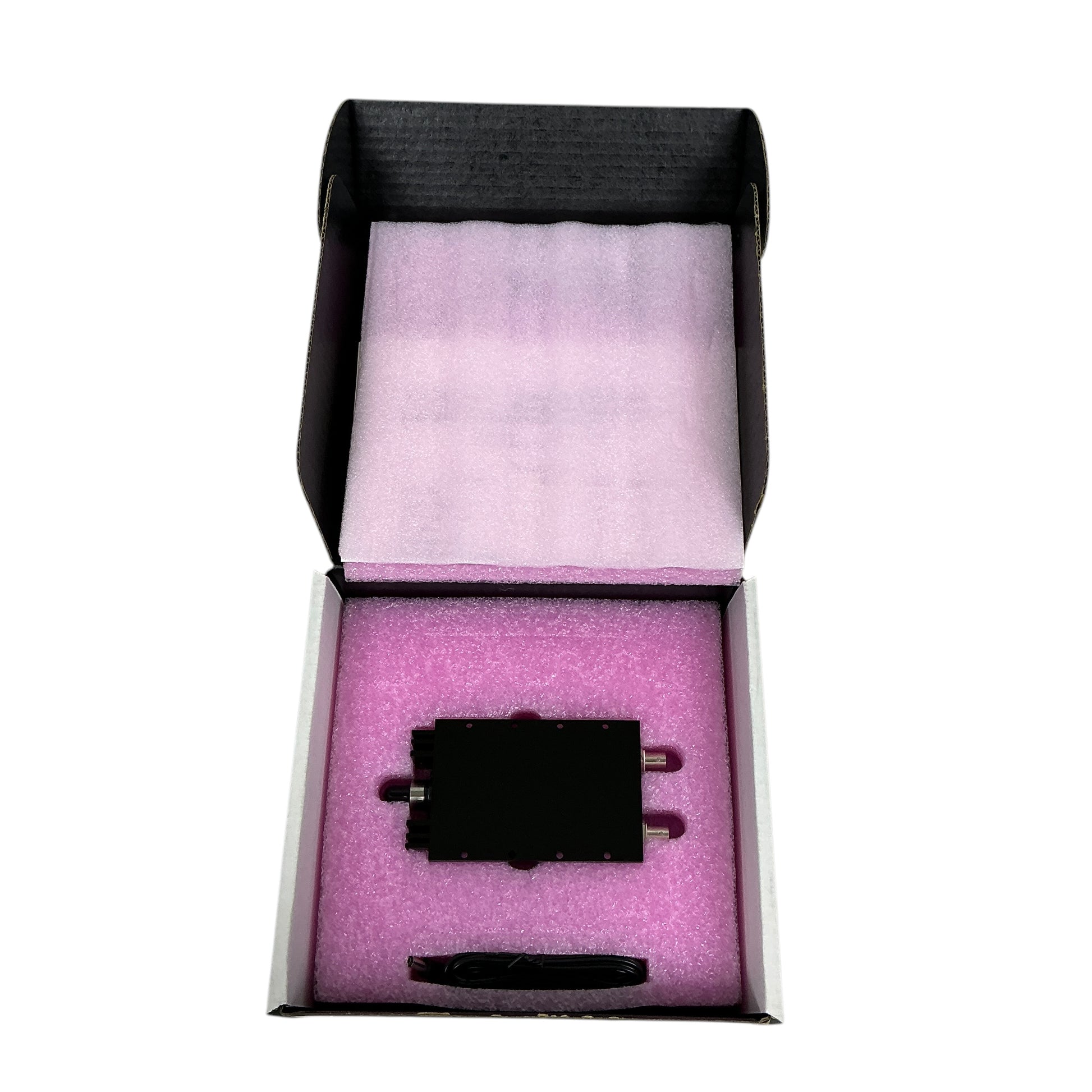

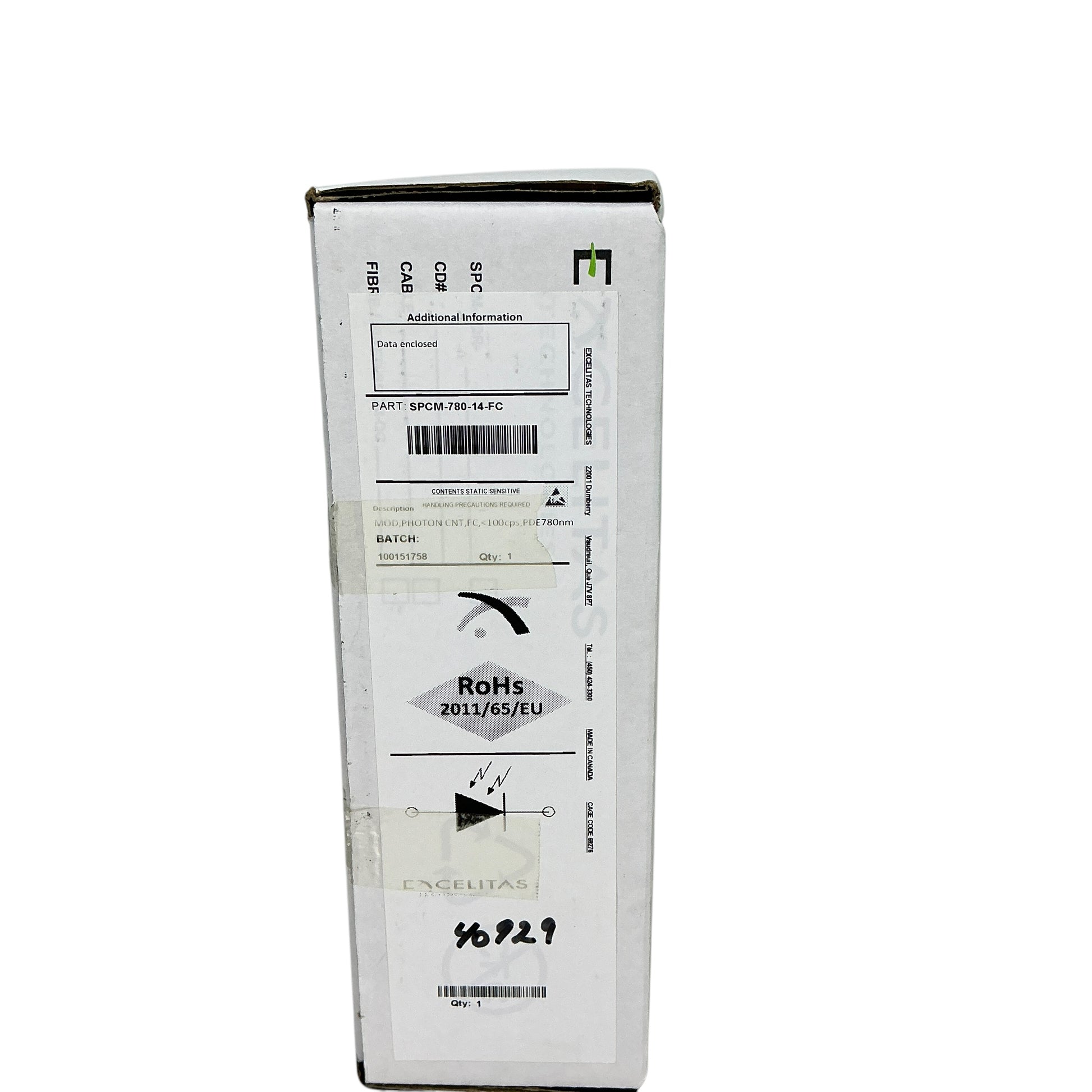

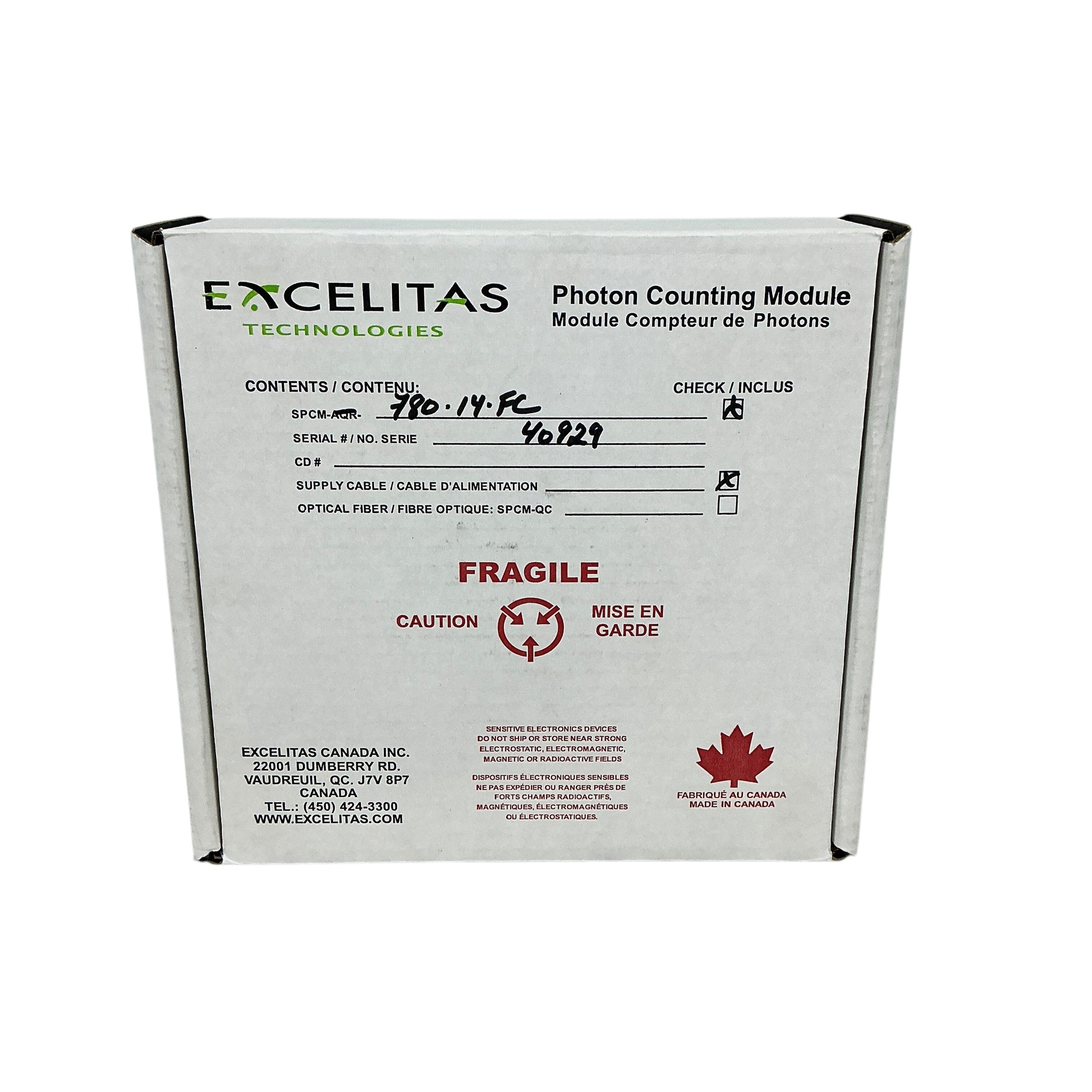

New Open Box
