Tested for Power Only – Not Functionally Tested in Field of Use. Calibration May Be Required Before Operation. Sold As Shown.
Included Items
Agilent T1142A
Agilent T1141A

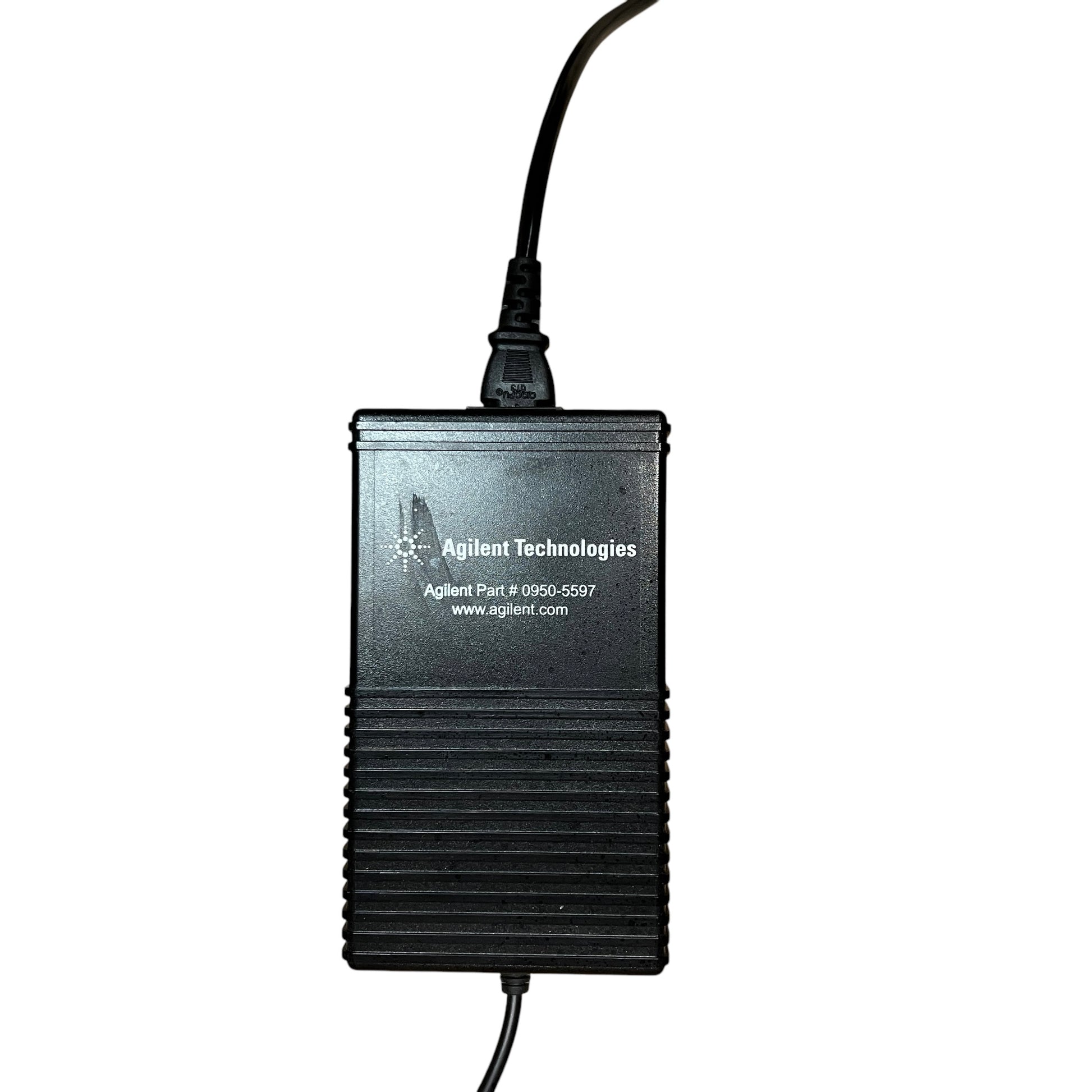

Power Supply

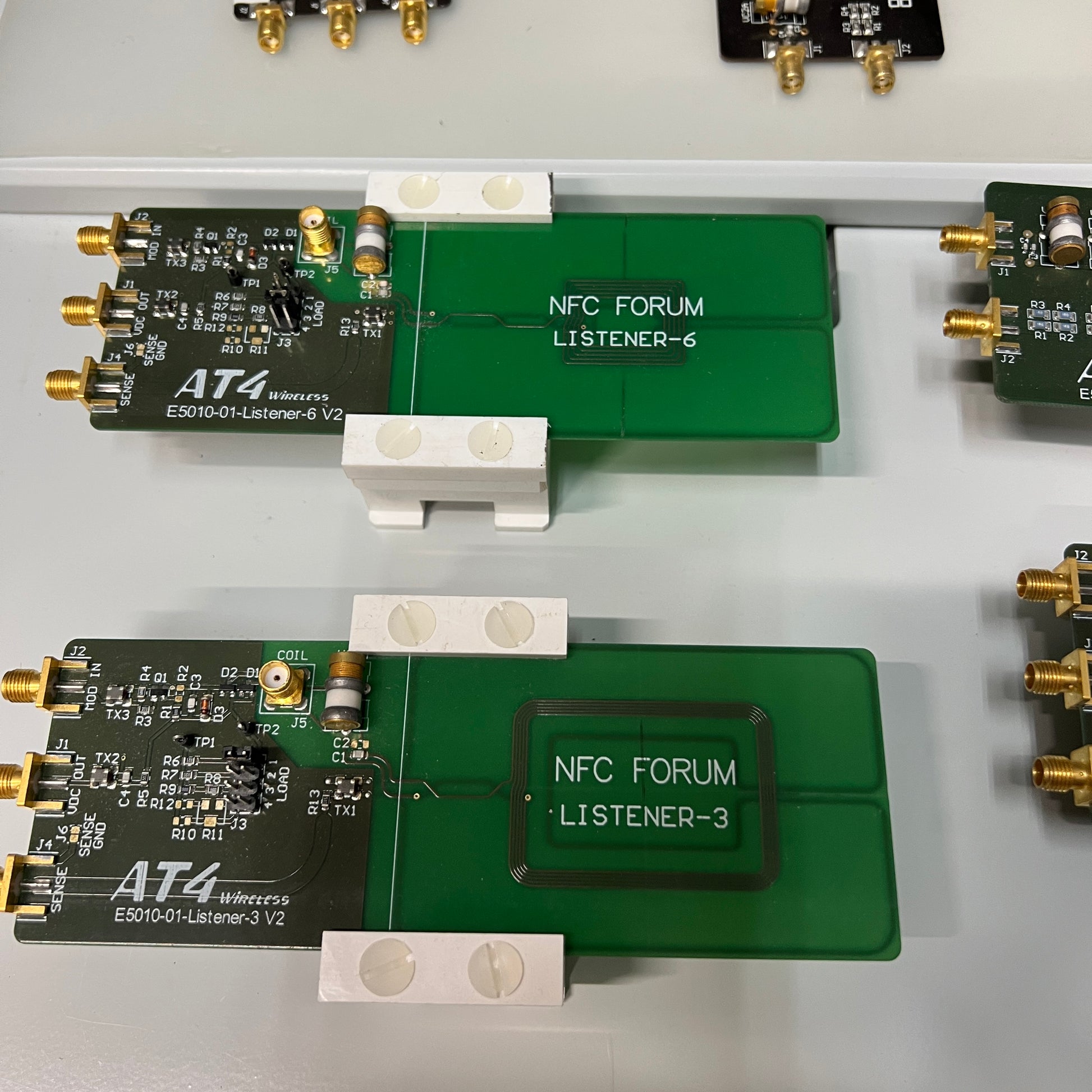

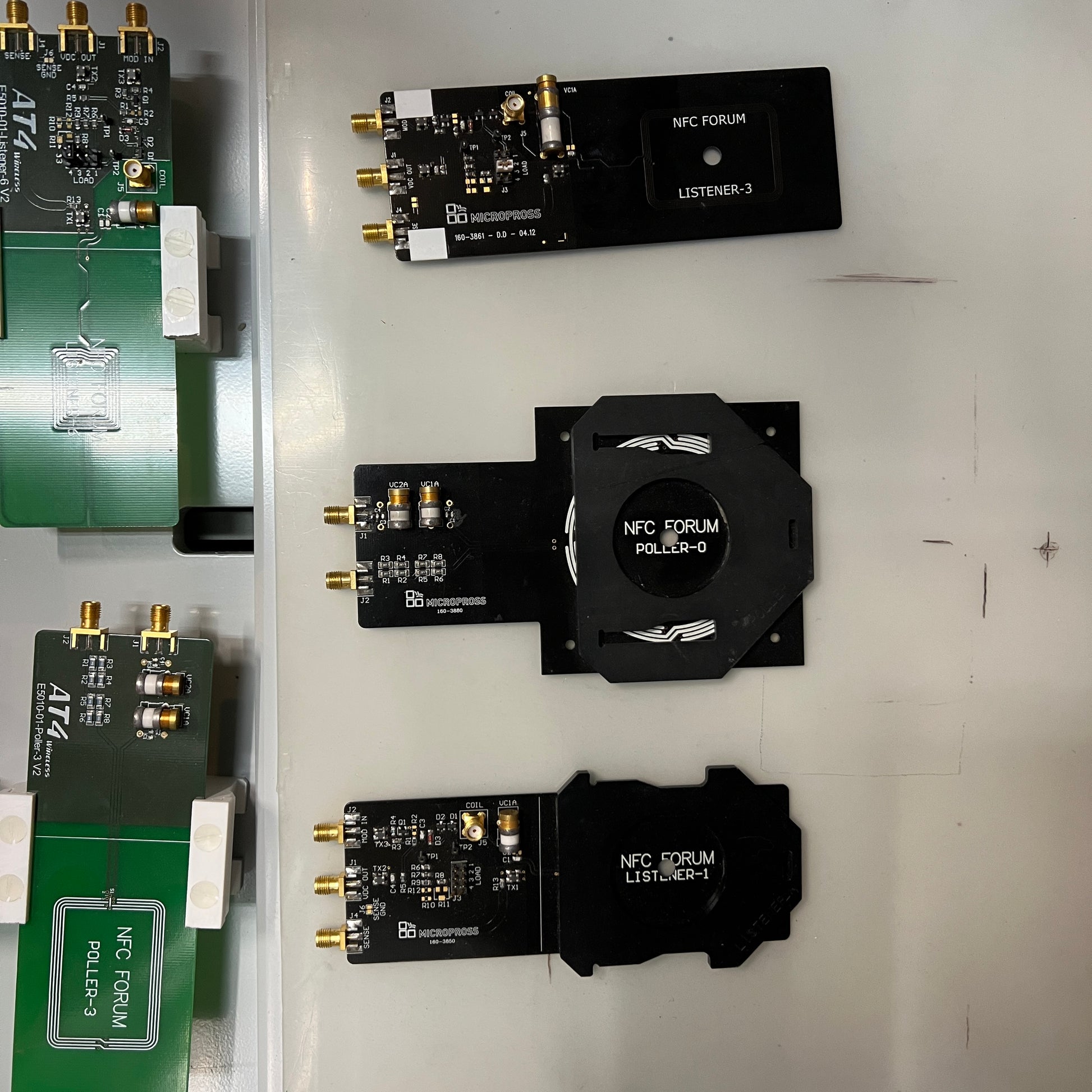

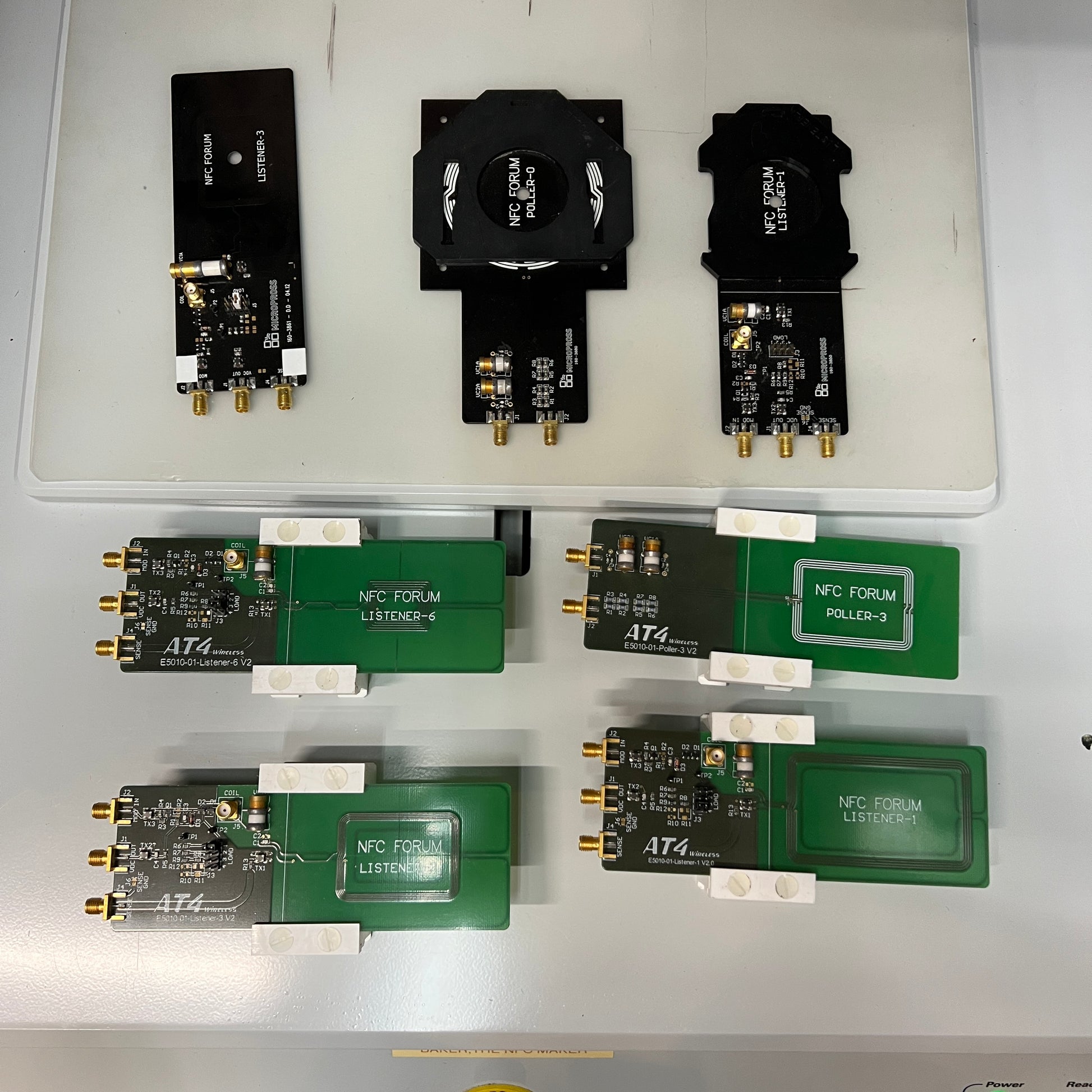

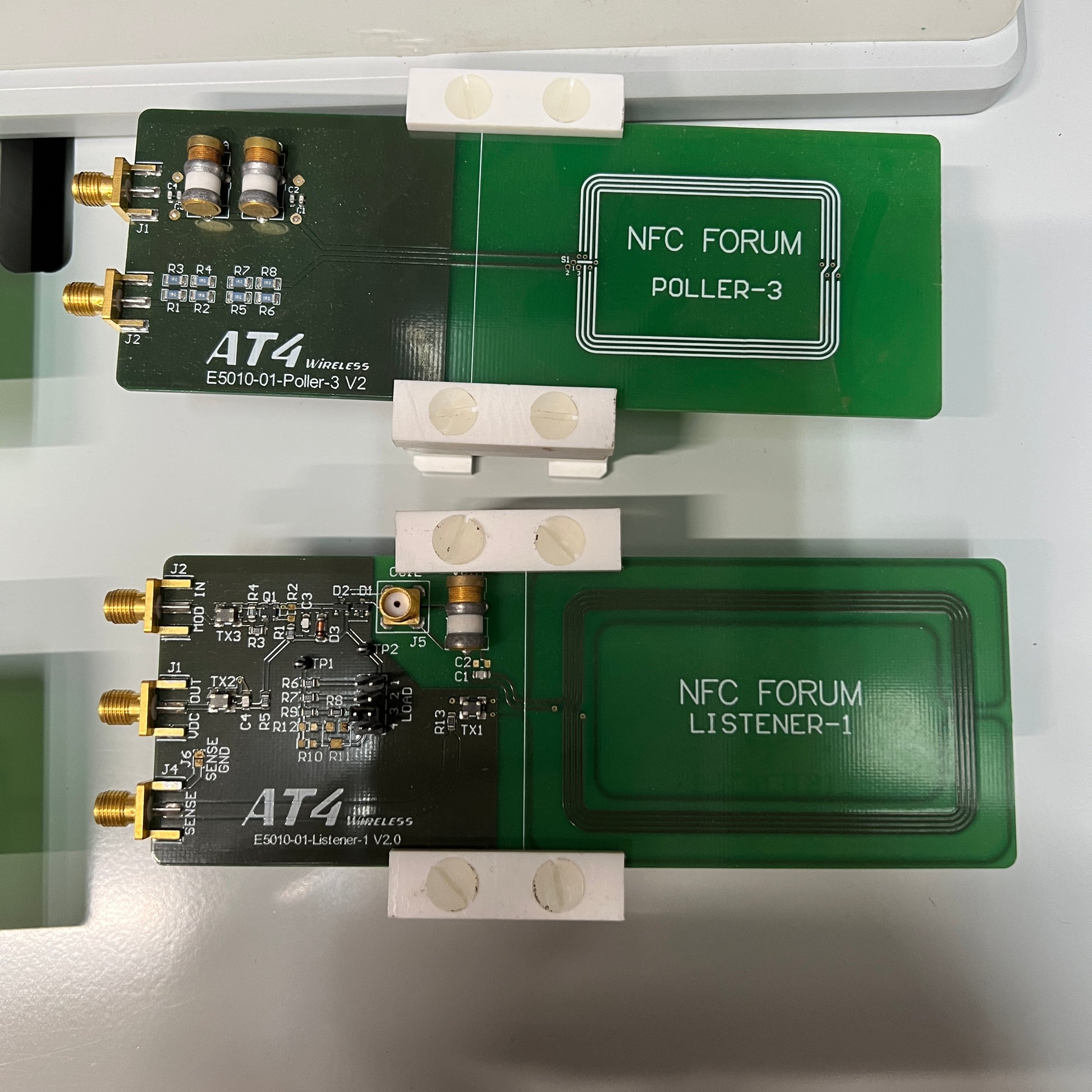

Test Fixtures Shown
Test Fixture Cables
No Software Included.

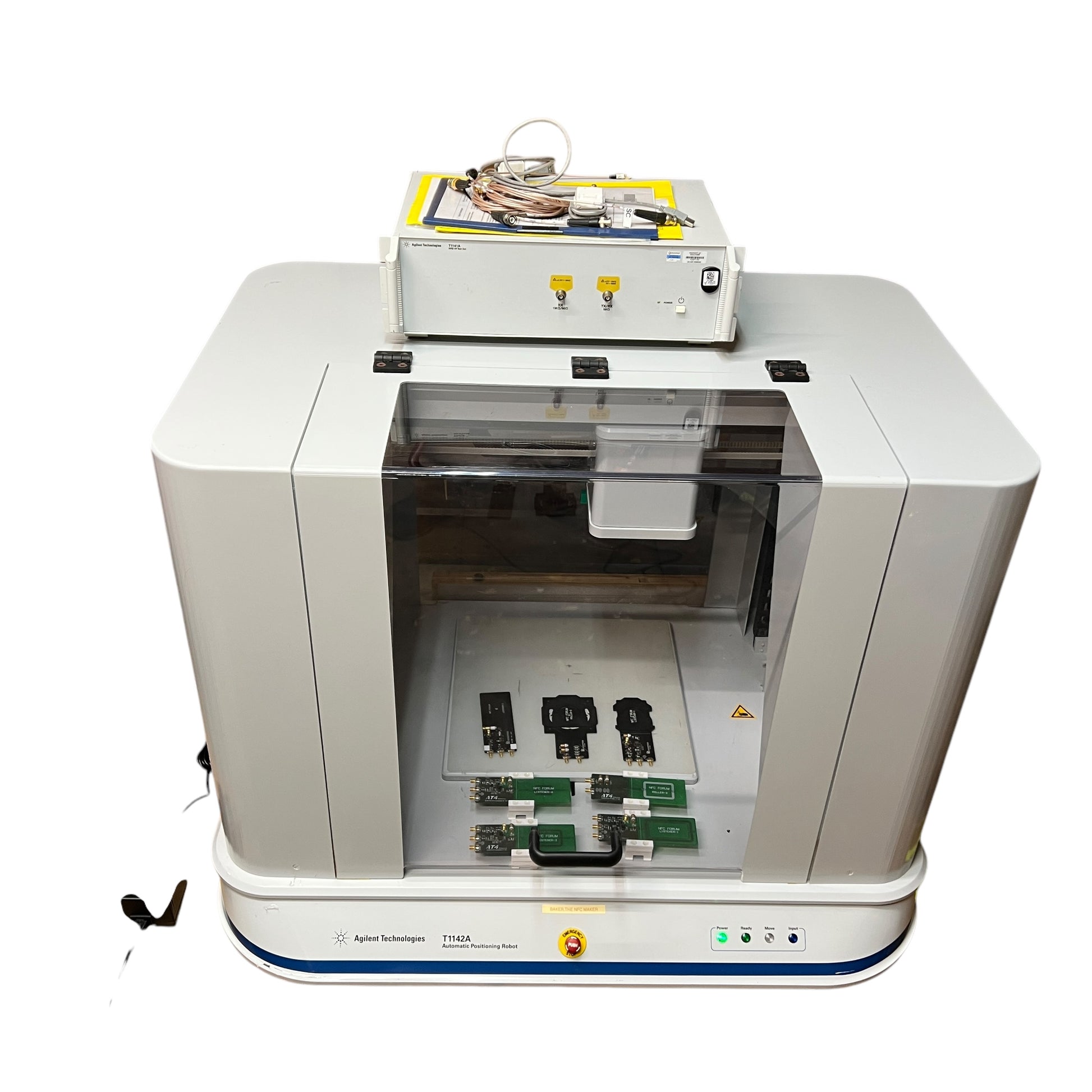

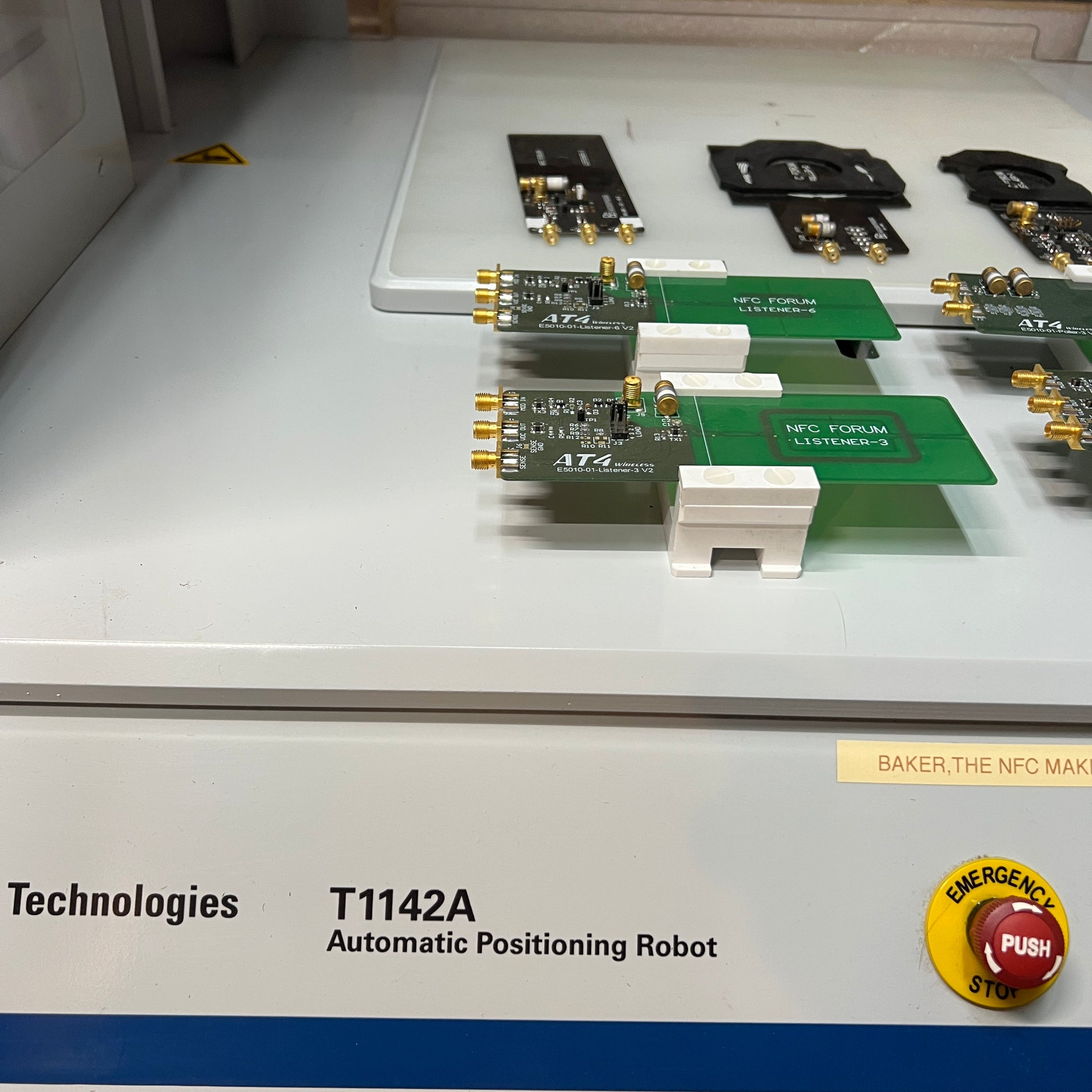

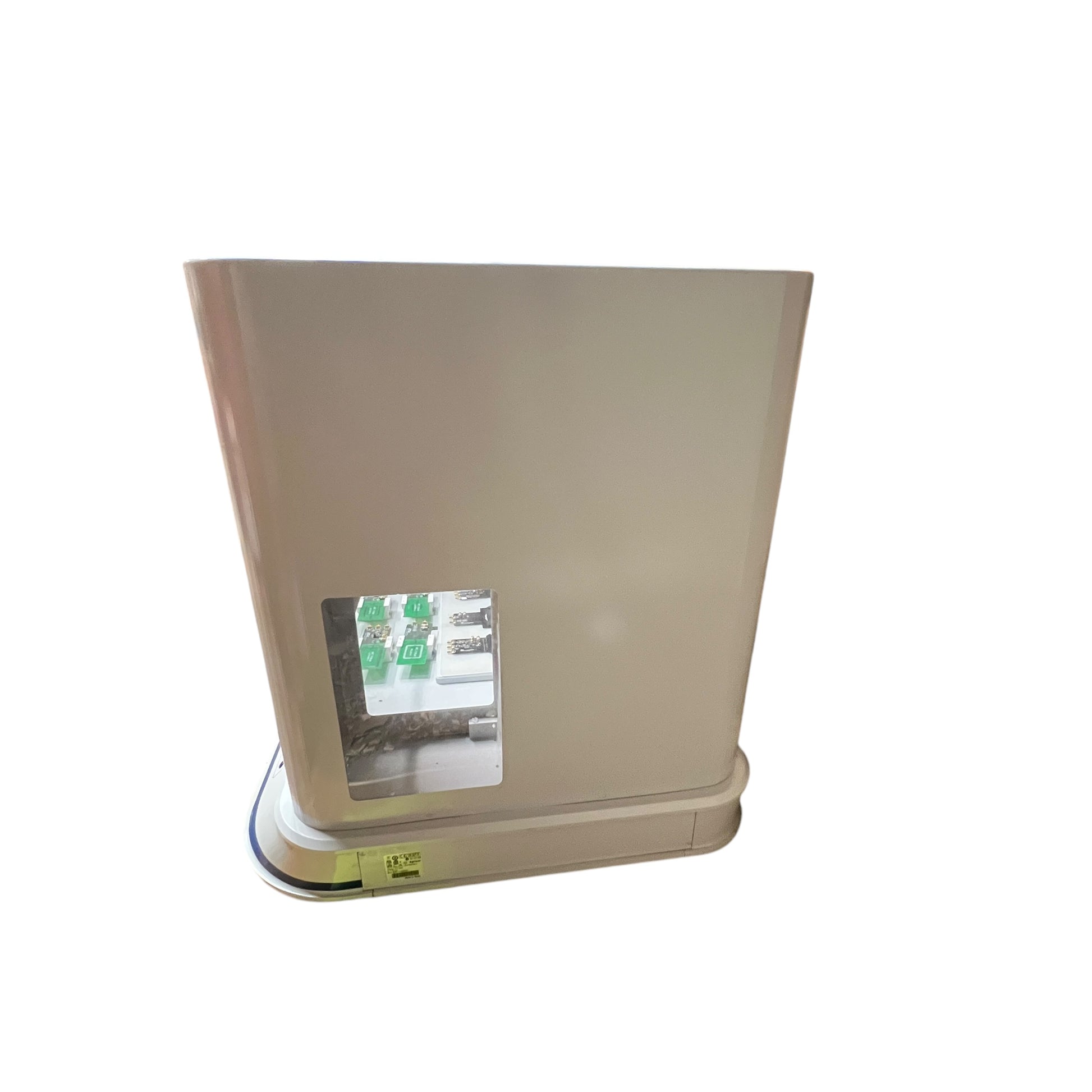

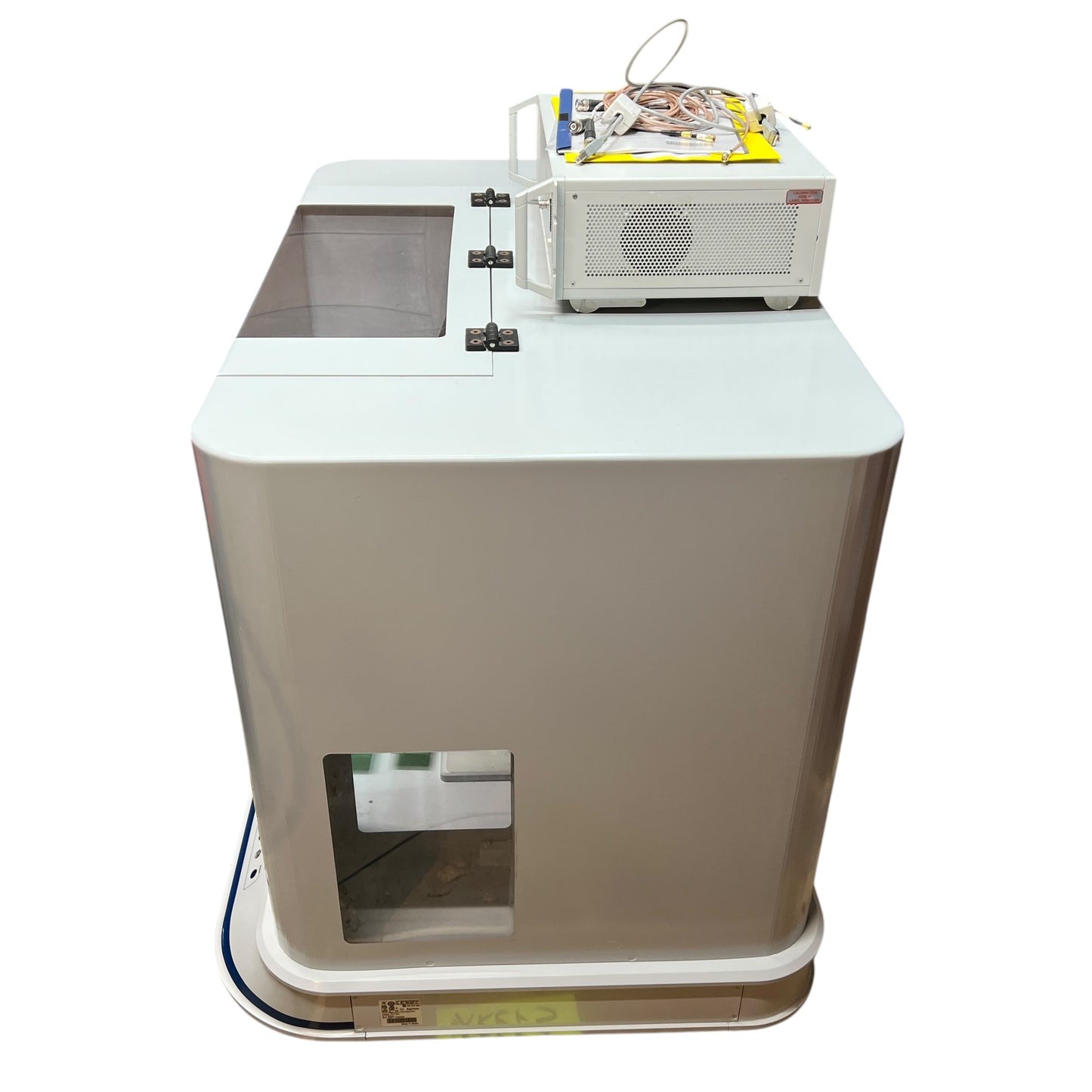

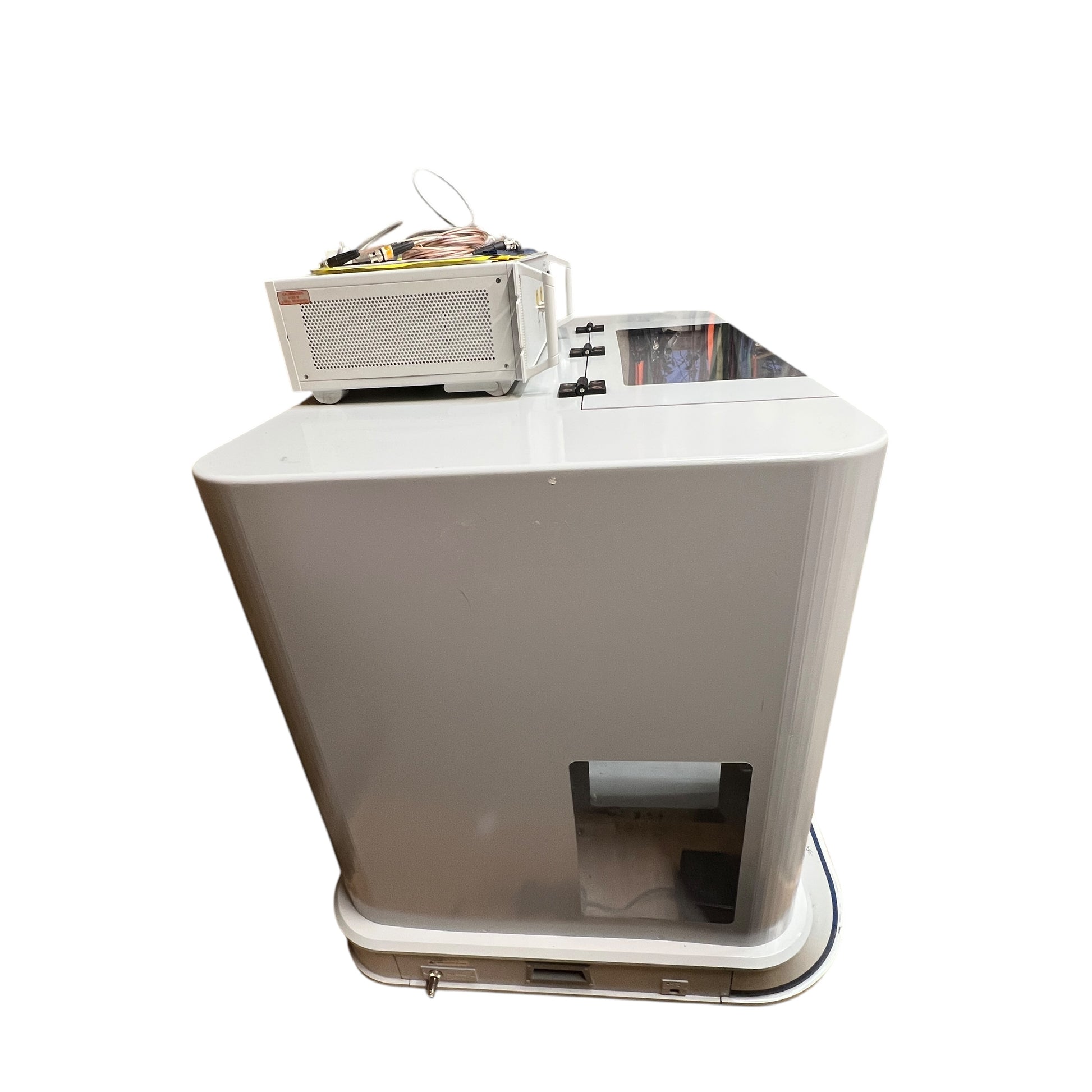

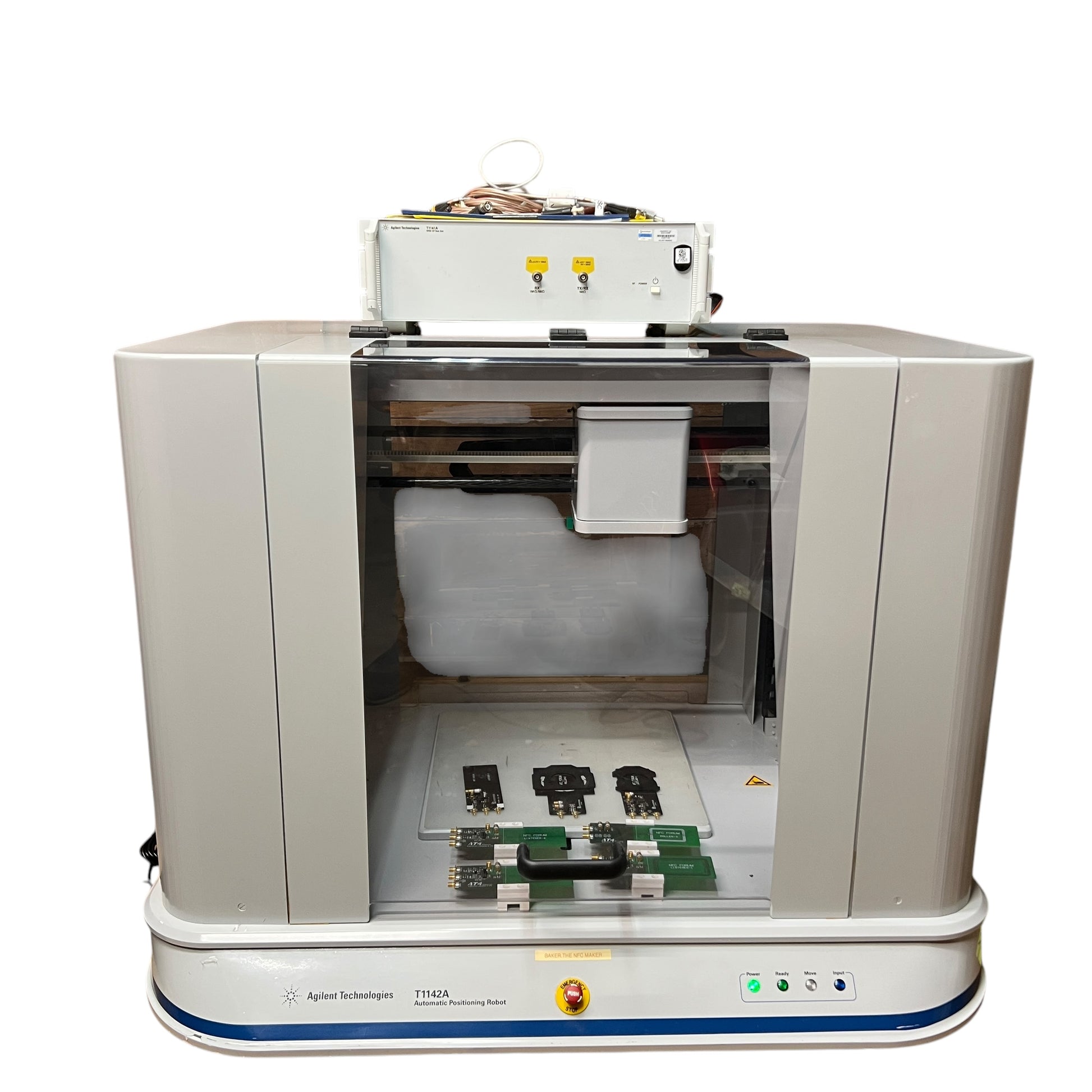

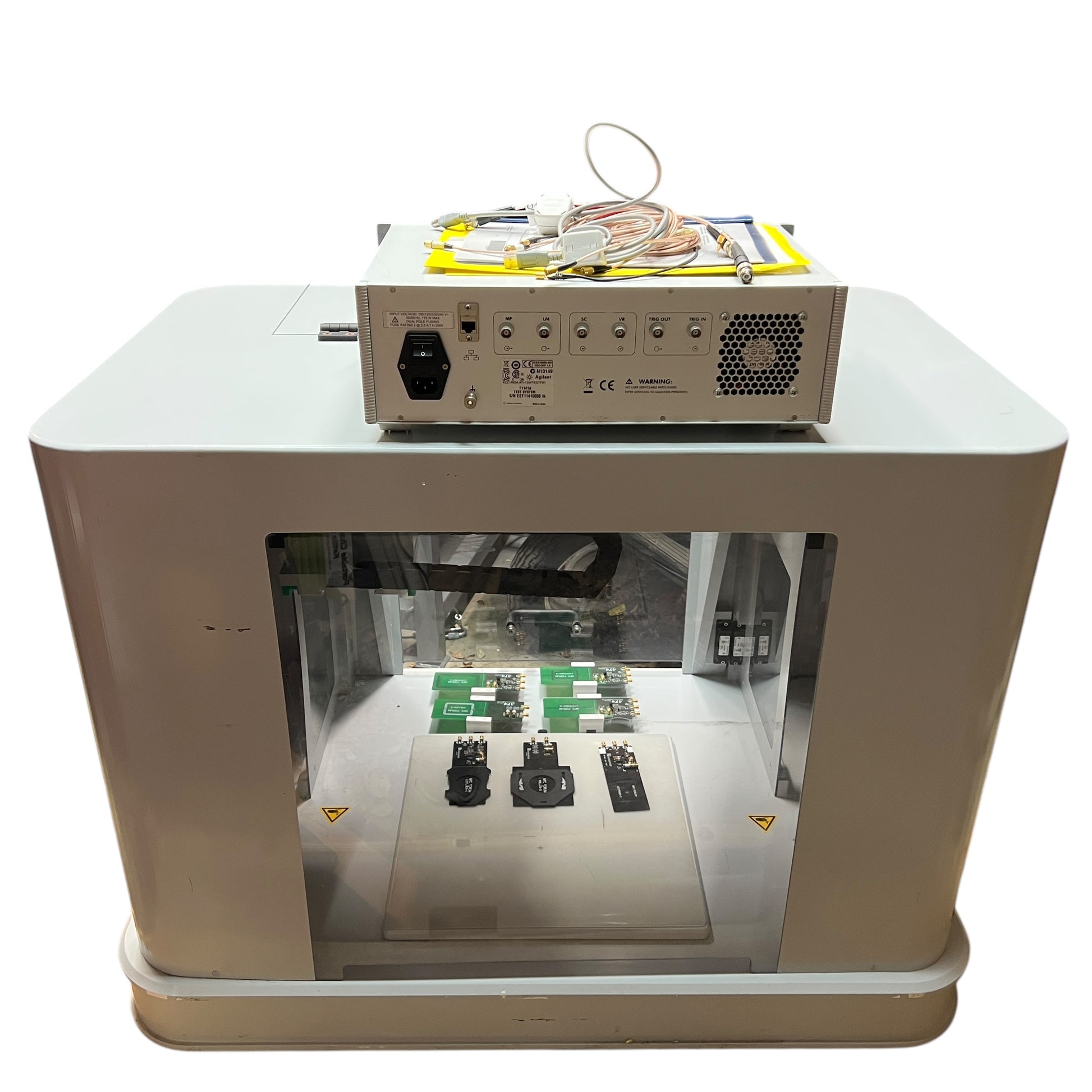

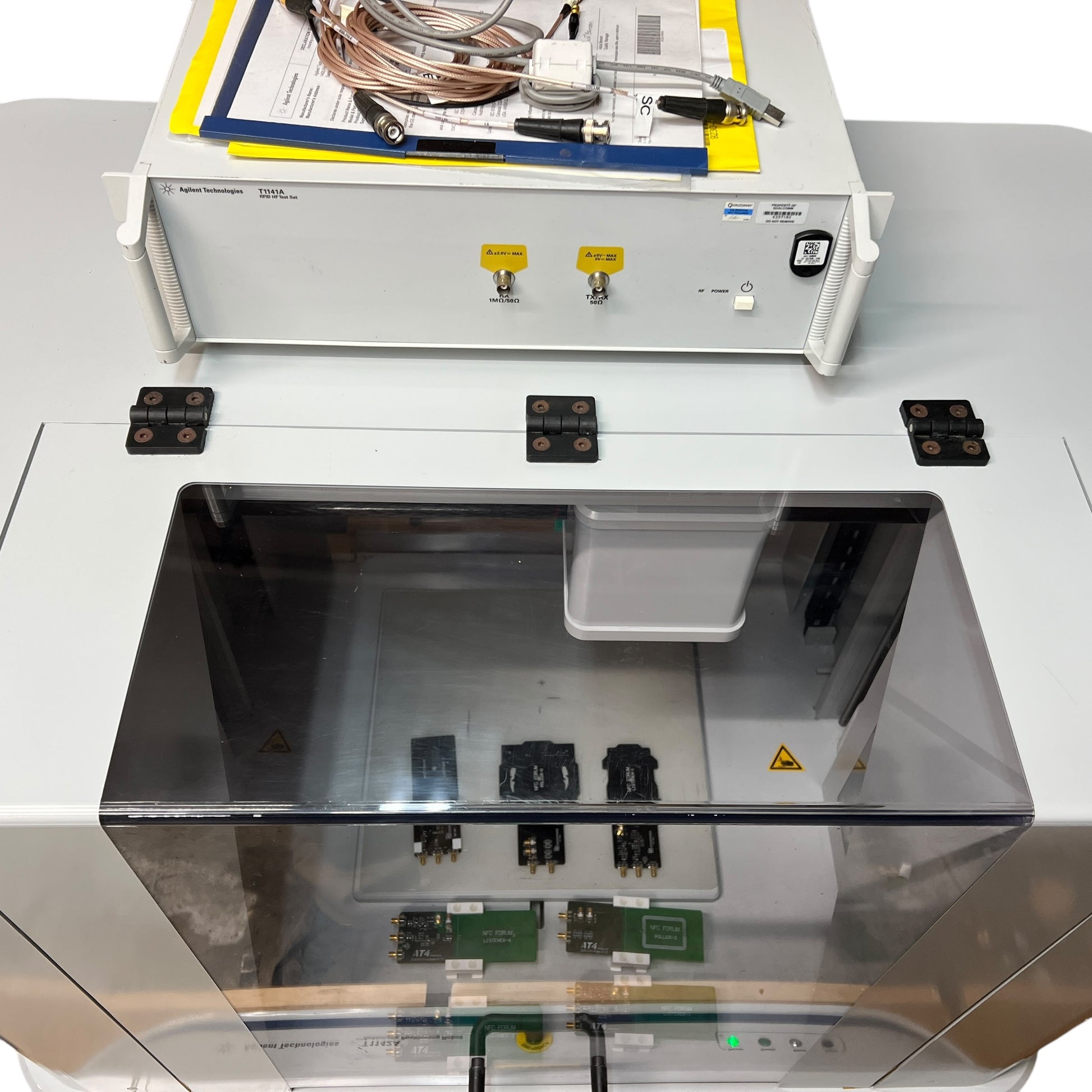

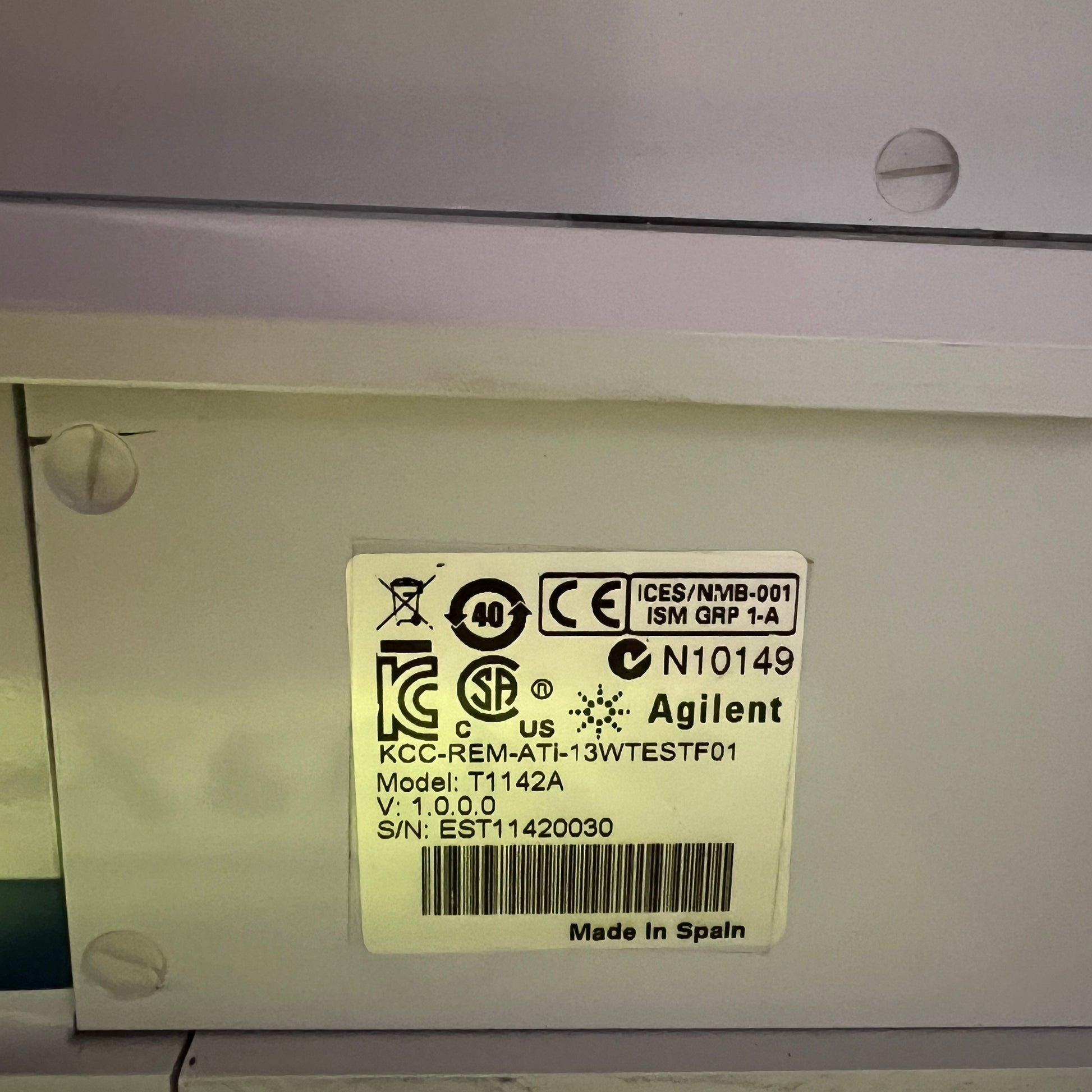

Agilent T1142A Automatic Positioning Robot – Overview
The Agilent T1142A Automatic Positioning Robot is a precision mechanical positioning system used primarily in automated probing applications within functional test systems — especially in ATE (Automatic Test Equipment) platforms such as the Agilent TS-5400 Series.
It is designed to automatically and accurately move probes (or test heads) to specific test points on a Unit Under Test (UUT), typically in high-reliability test environments like military, aerospace, and avionics electronics testing.
Key Features:
High-Precision X-Y-Z Positioning:
Enables automatic alignment of probes or interface pins to test pads, connectors, or fixture locations.
Precision is usually within micrometer-level accuracy, depending on calibration.
Repeatable and Automated Test Setup:
Automates the positioning of test interfaces, reducing human error.
Ideal for test scenarios where the UUT varies in form factor or test point layout.
Integrated with TS-5400/TS-5000 Series Systems:
Designed to work seamlessly with Agilent's functional test system architecture.
Can be controlled programmatically via the test executive software or custom control scripts.
Modular and Configurable:
The robot can accommodate different probe heads, tools, or fixtures, depending on the application.
Modular mounting options for flexible test setups.

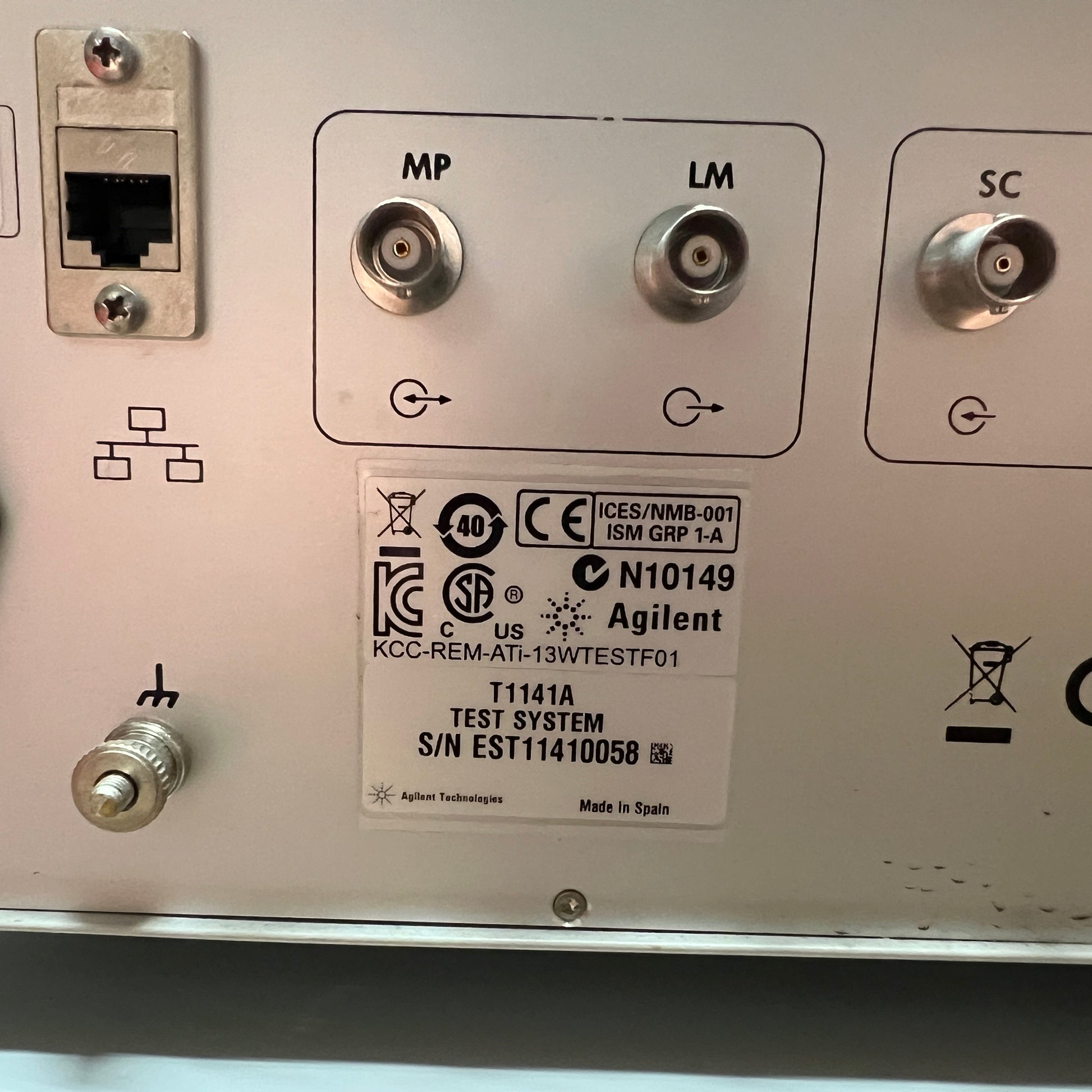

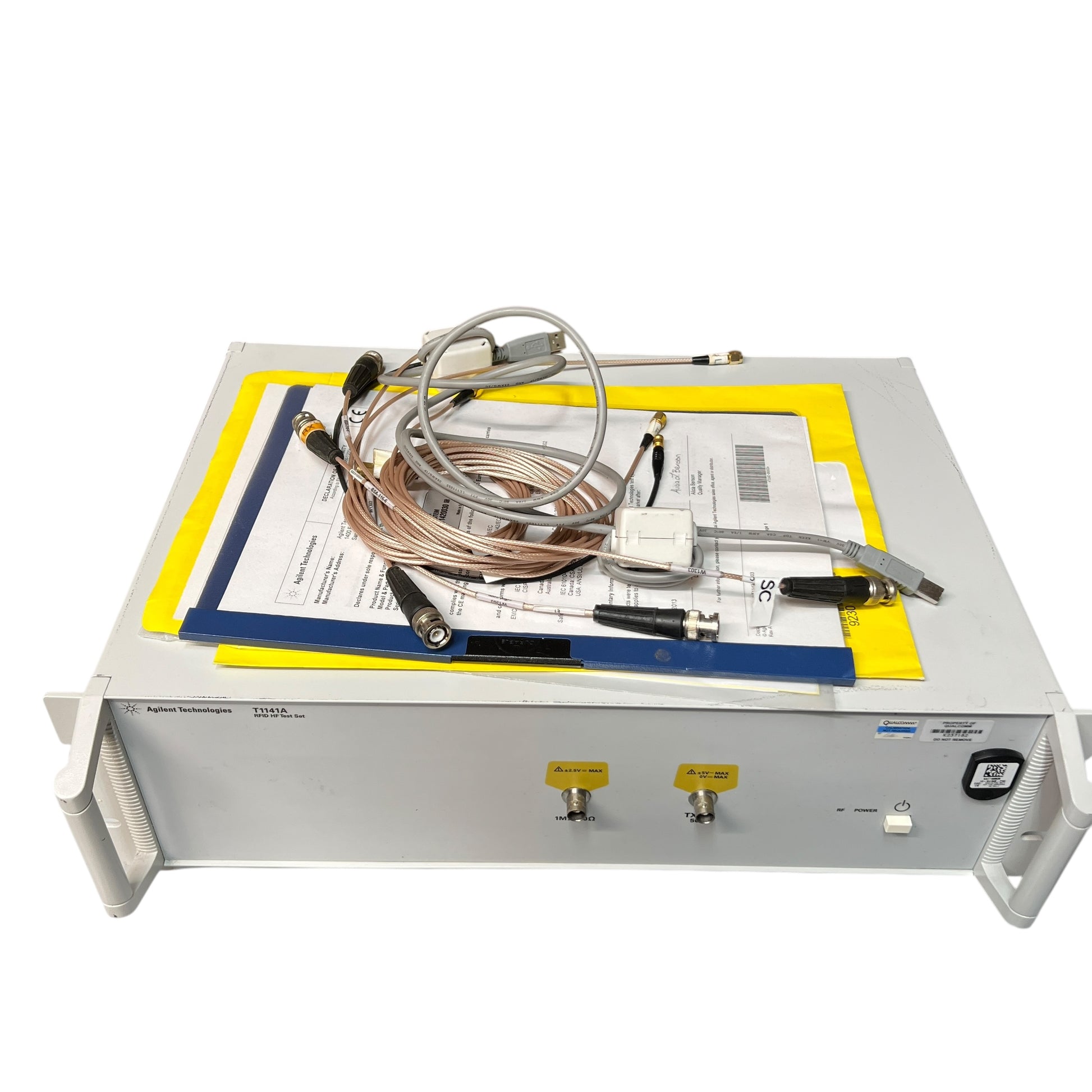

Agilent T1141A RFID HF Test Set – Overview
The Agilent T1141A is a Radio Frequency Identification (RFID) HF Test Set, developed specifically to evaluate and characterize High Frequency (HF) RFID devices, typically operating at 13.56 MHz. It is used for compliance testing, interoperability validation, and performance evaluation of HF RFID tags and readers, particularly those conforming to international standards like ISO/IEC 14443, ISO/IEC 15693, and ISO/IEC 18000-3.
Purpose and Application:
Provides a standardized, repeatable test environment to evaluate HF RFID systems.
Enables tag conformance and performance testing (e.g., read range, modulation accuracy, load modulation characteristics).
Used in R&D, production test, and quality assurance of RFID components.
