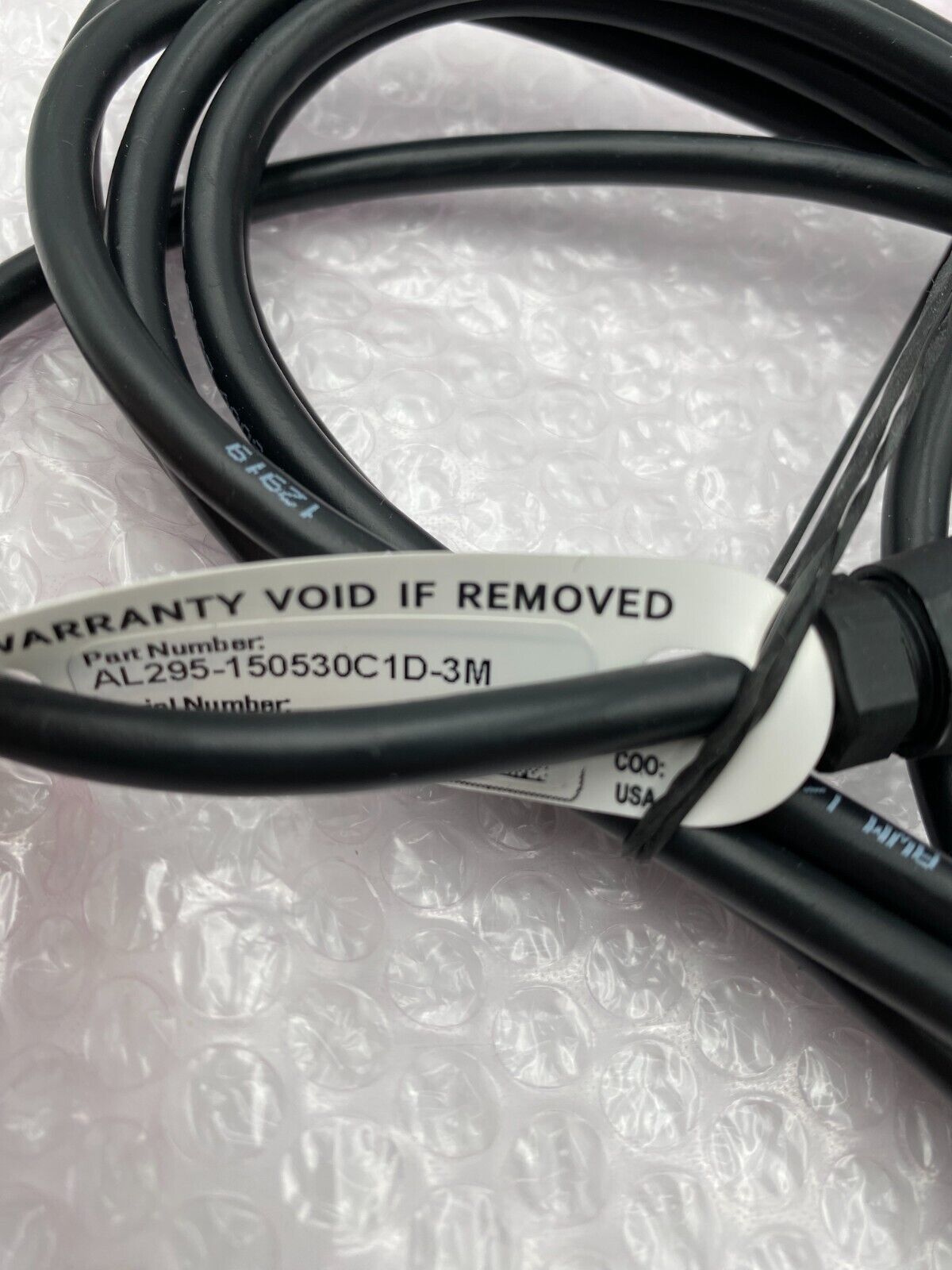

Advanced Illumination Machine Vision Led Light Bar AL295-150530C1D-3M
Overview
-
The Advanced Illumination AL295-150530C1D-3M is a 150 mm MicroBrite™ bar light designed for machine vision applications. It features green LEDs with a wavelength of 530 nm, providing high-intensity illumination suitable for various inspection tasks.

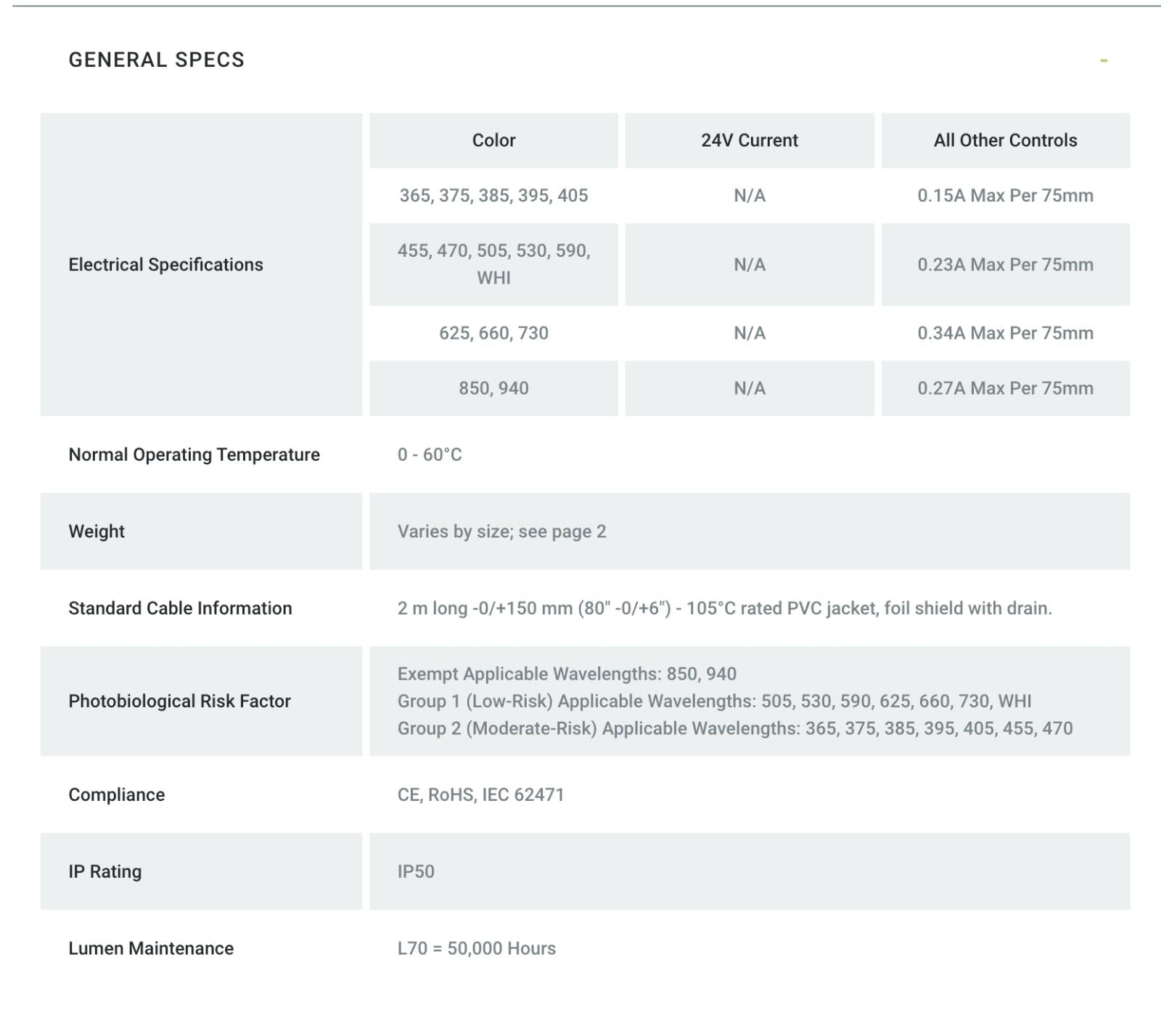

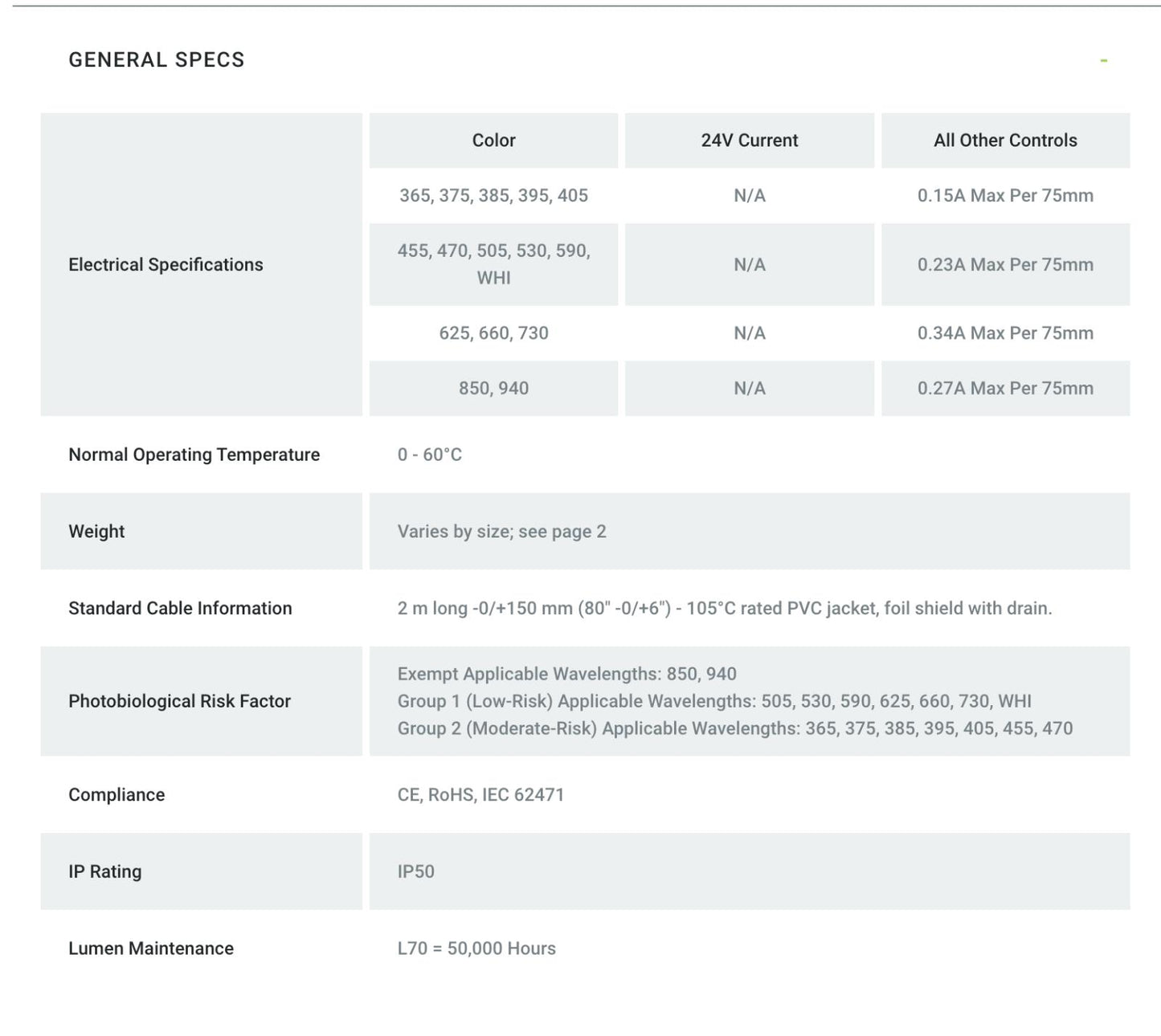

Key Specifications:
-
Illuminated Length: 150 mm
-
Wavelength: 530 nm (Green)
-
Lens Type: Medium
-
Driver: C1D (Constant current driver with dimming capability)
-

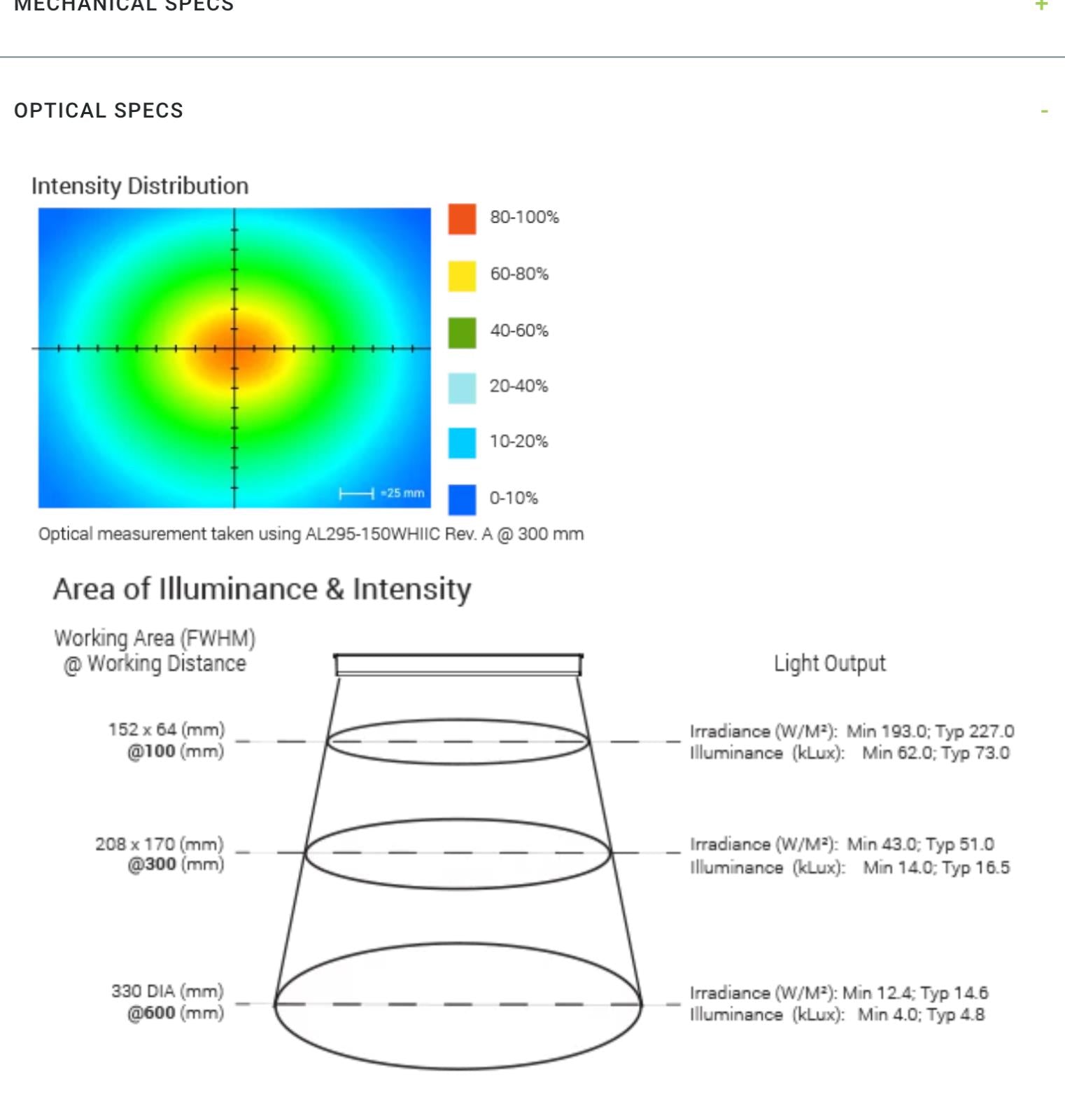

Intensity: Approximately 73 kLux at a working distance of 100 mm
-
Ingress Protection: IP50
-
Operating Temperature: 0 - 60°C
-
Lumen Maintenance: L70 = 50,000 hours
This bar light is part of the MicroBrite™ family, known for delivering high performance in a compact form factor. The AL295 series offers expandable sizes in 75 mm increments up to 450 mm, accommodating various application requirements.
Condition
- USED ITEM IN GOOD COSMETIC CONDITION. NO ADDITIONAL ITEMS INCLUDED. READY FOR REUSE.
Included Accessories
Additional Features

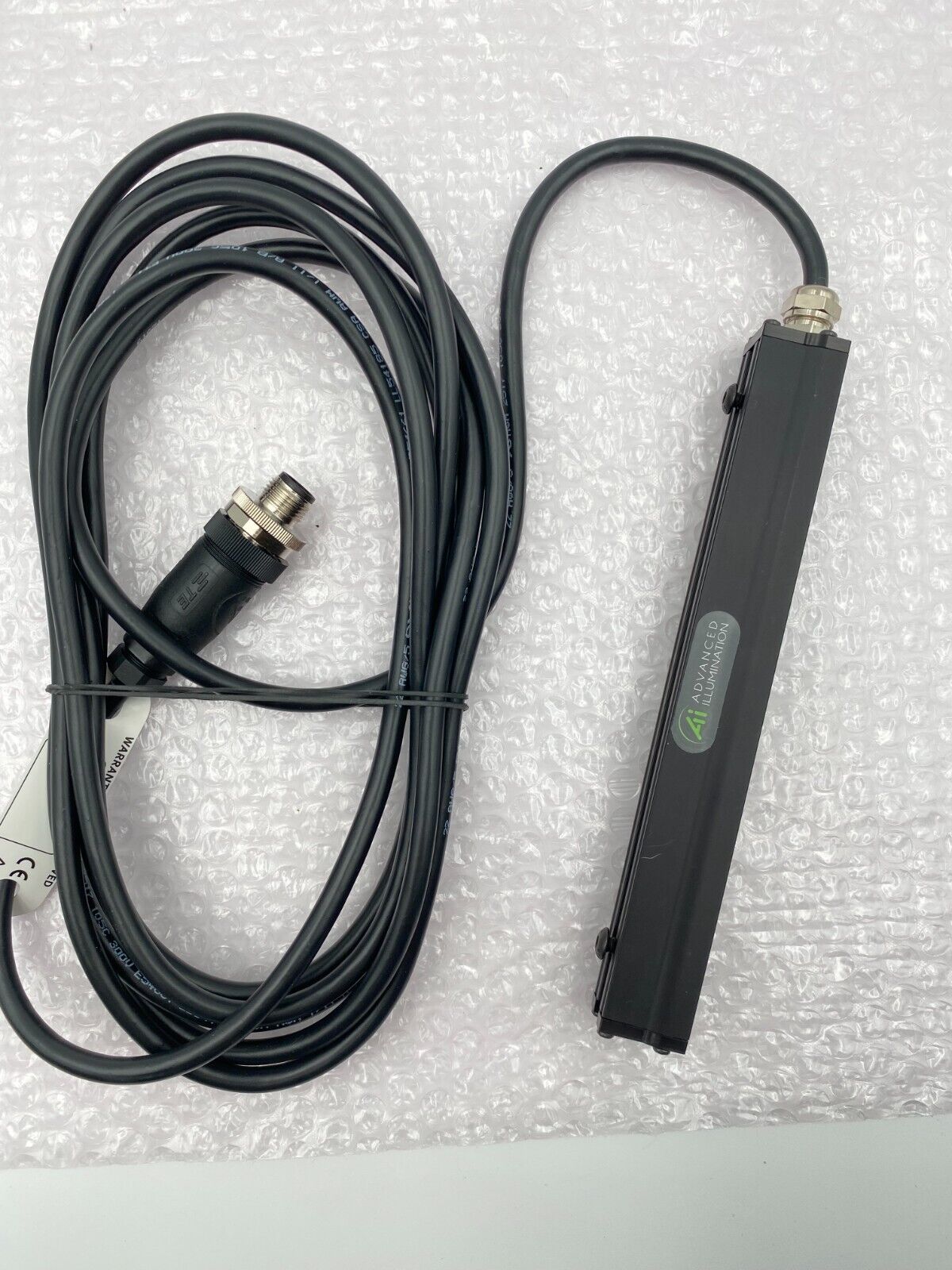

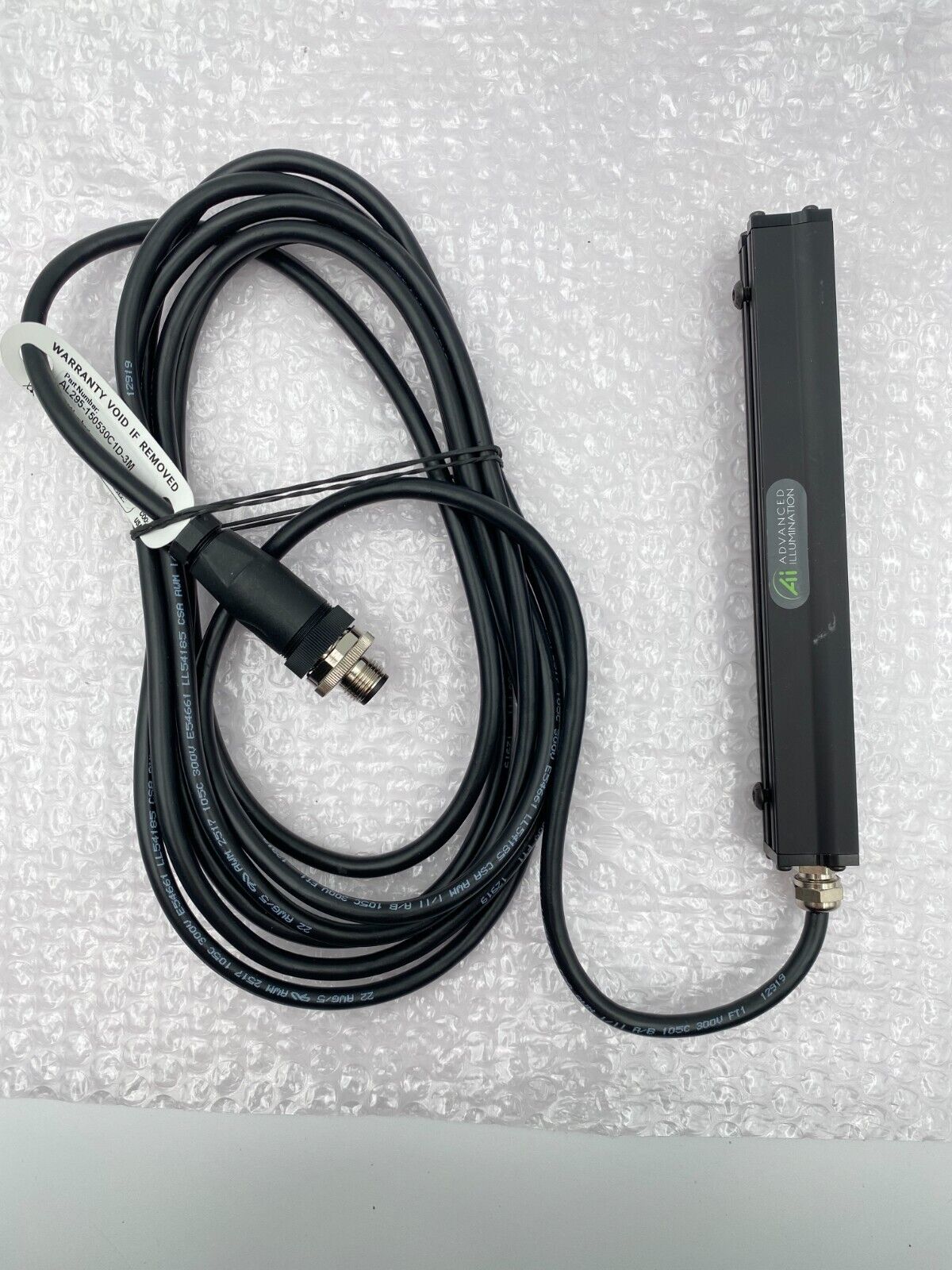

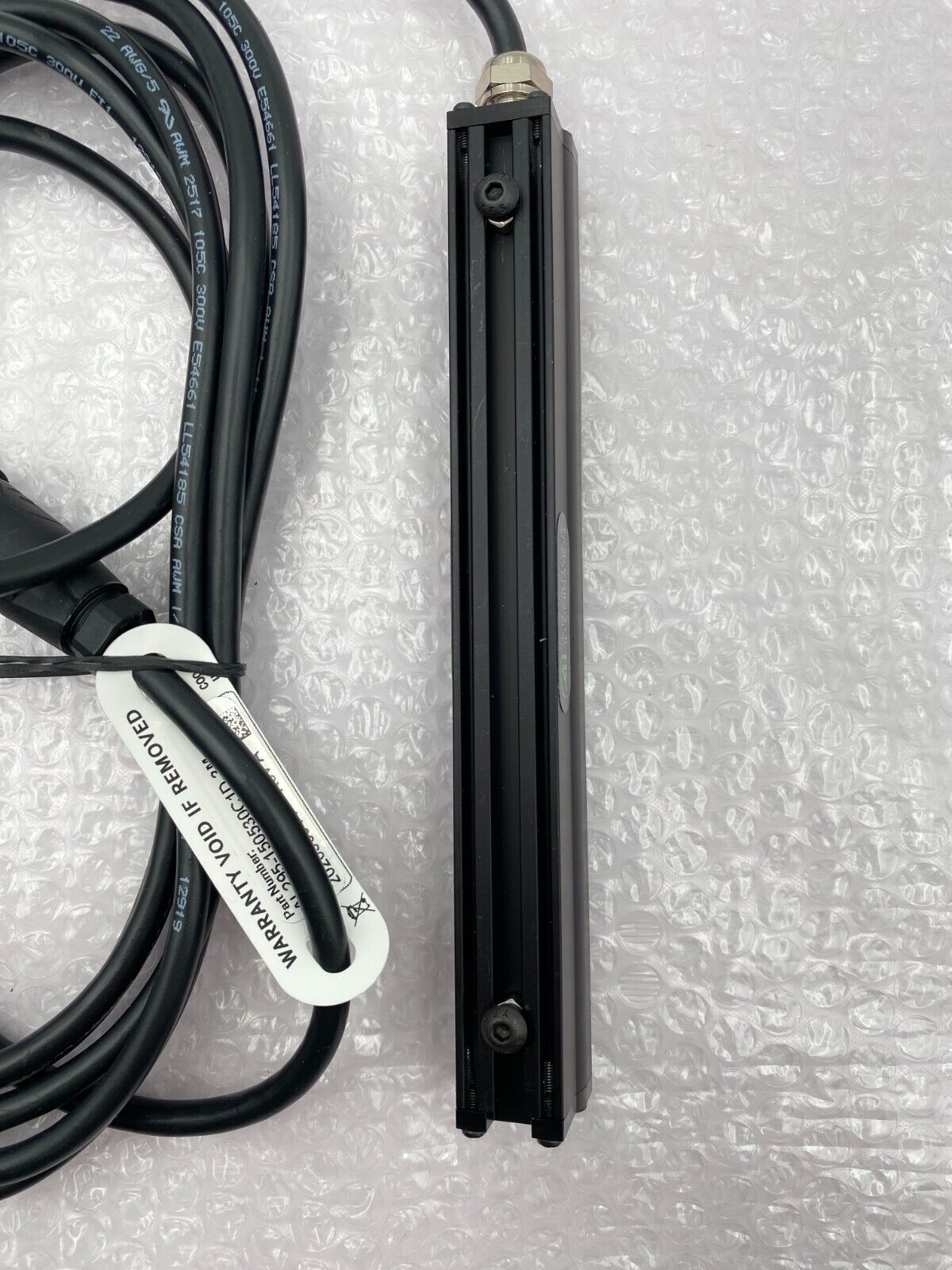

NO ADDITIONAL ITEMS INCLUDED IF NOT SHOWN OR DESCRIBED. SEE PHOTOS FOR BEST DETAILS.
*We are an equipment re-marketer, and the items we sell oftentimes come from clear-outs and 3rd party labs. We test each piece of equipment to the best of our ability to relay the functionality. Please message us with any specific questions or requests. We're happy to help!
