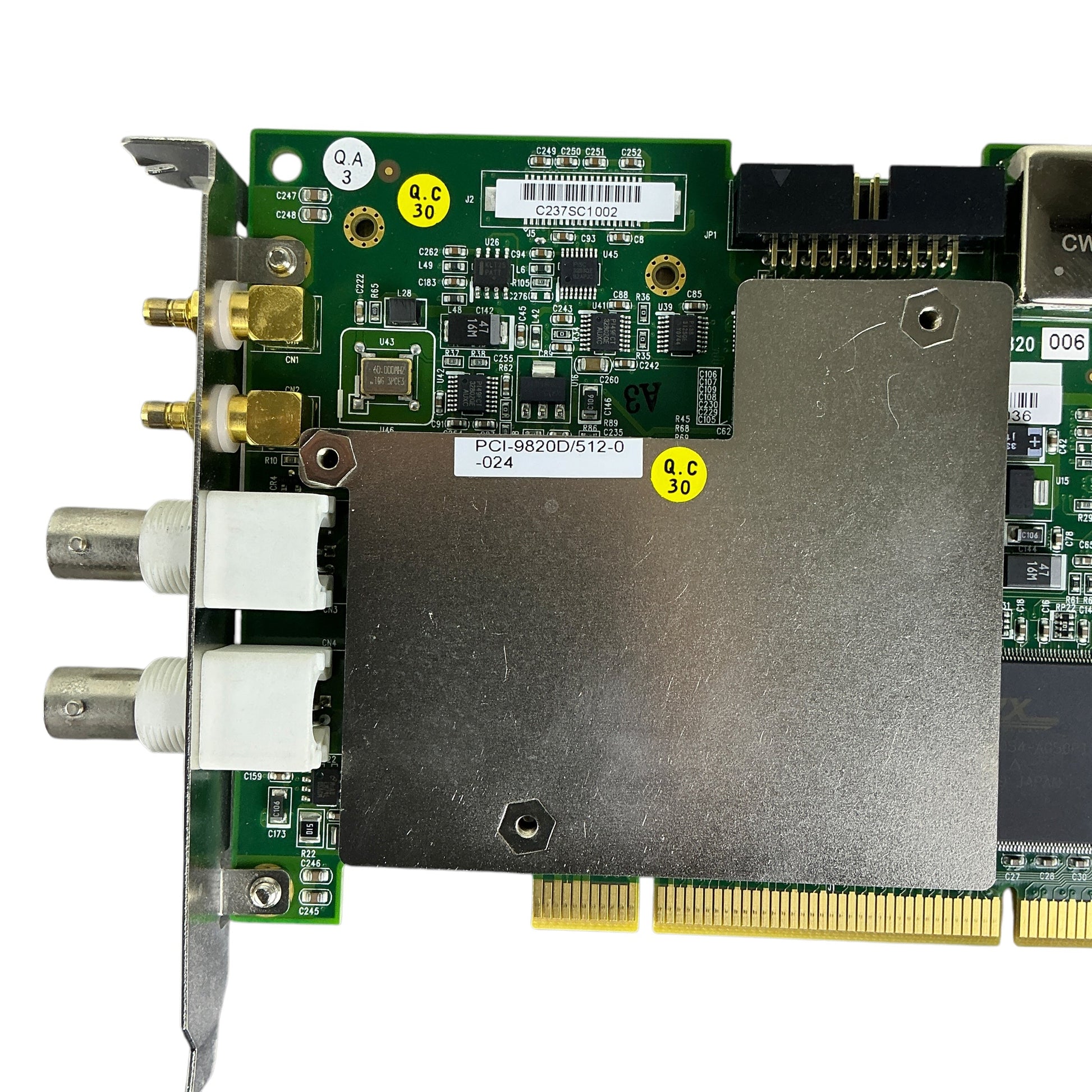

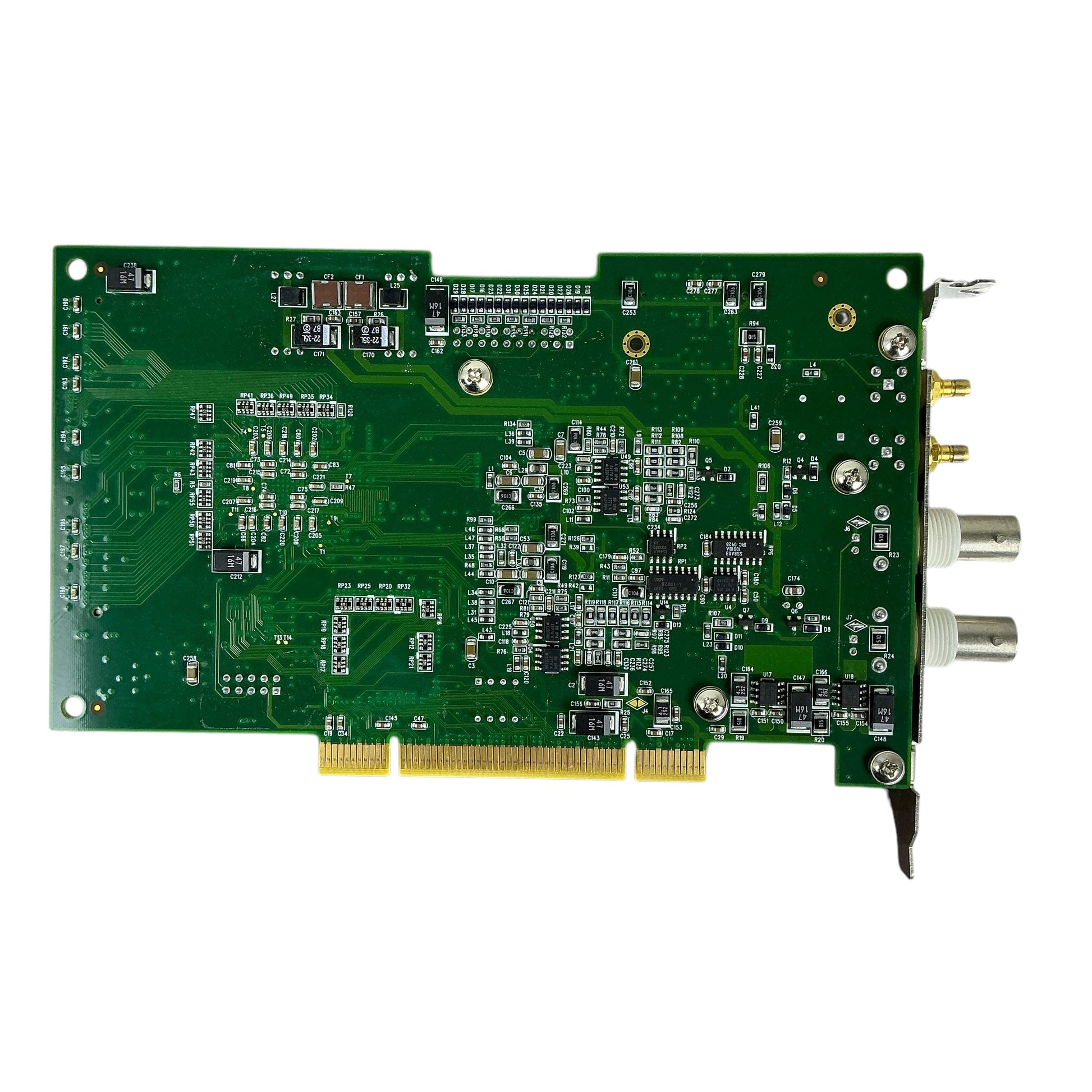

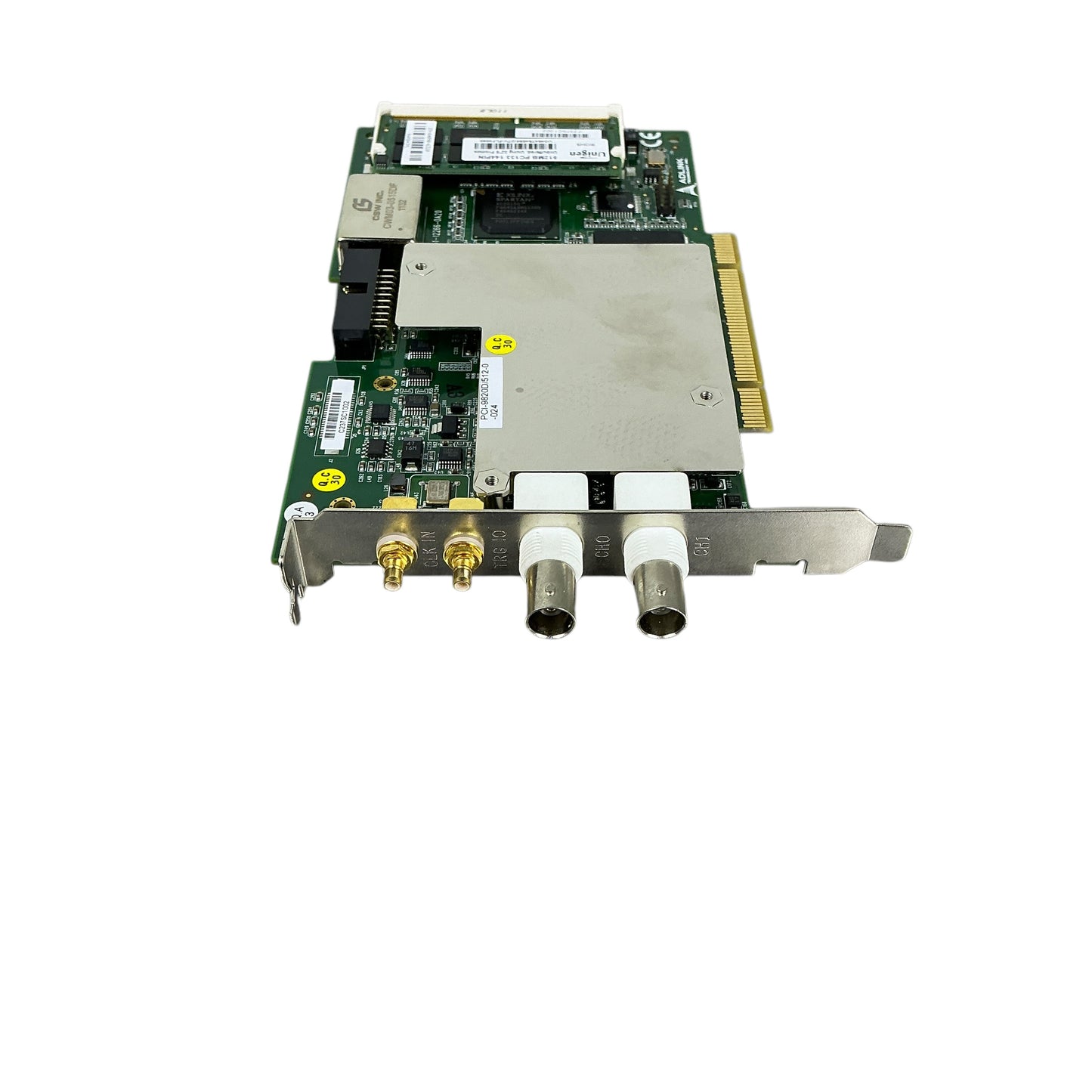

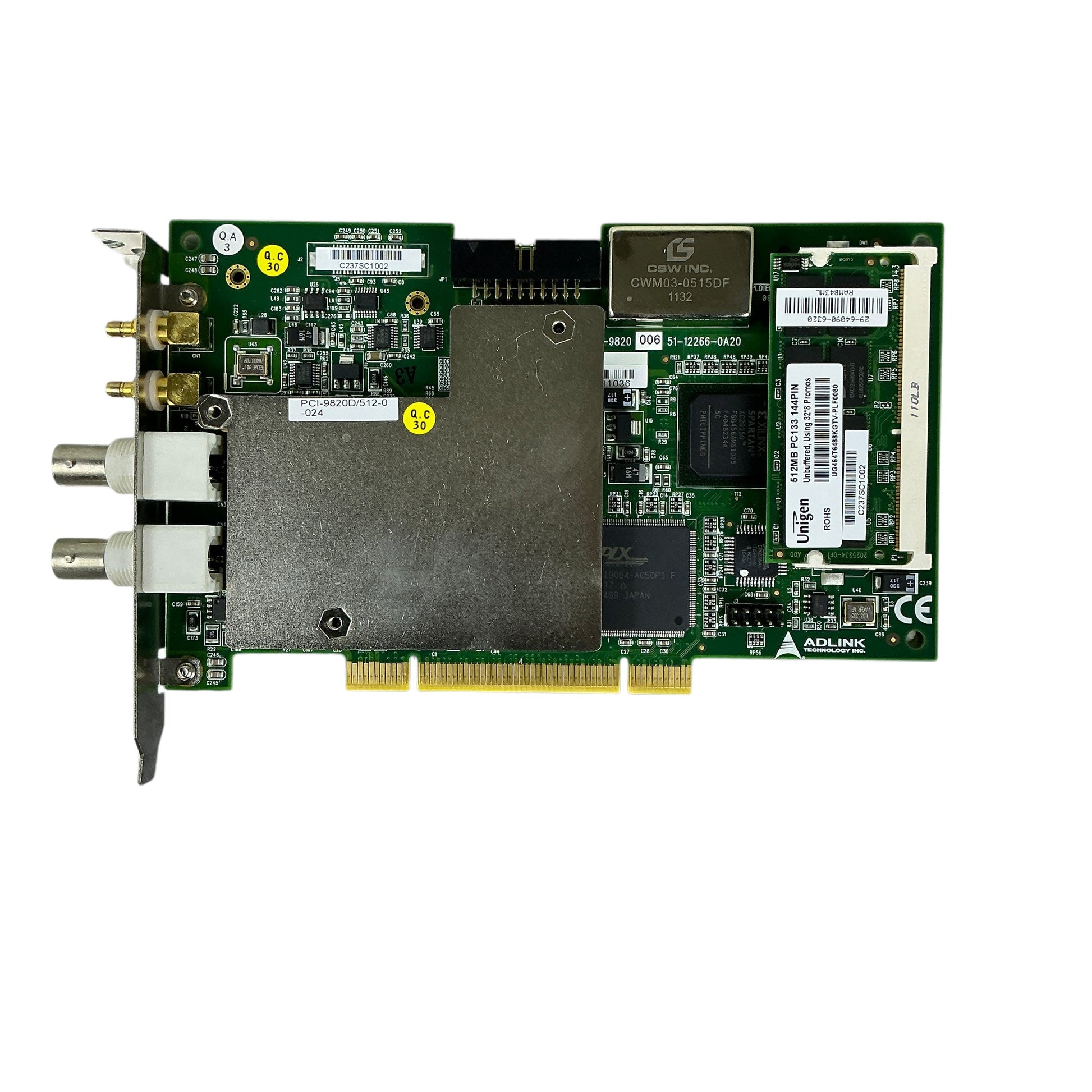

Adlink PCI-9820D/512-0 High-speed PCI Data Acquisition

Adlink PCI-9820D/512-0 – Overview

High-speed PCI Data Acquisition (DAQ) Card

2 Analog Input Channels (Simultaneous Sampling)

Sampling Rate: Up to 20 MS/s per channel

Resolution: 14-bit

Input Type: Differential

Input Range: ±0.5 V to ±5 V (programmable)

Analog Bandwidth: 20 MHz

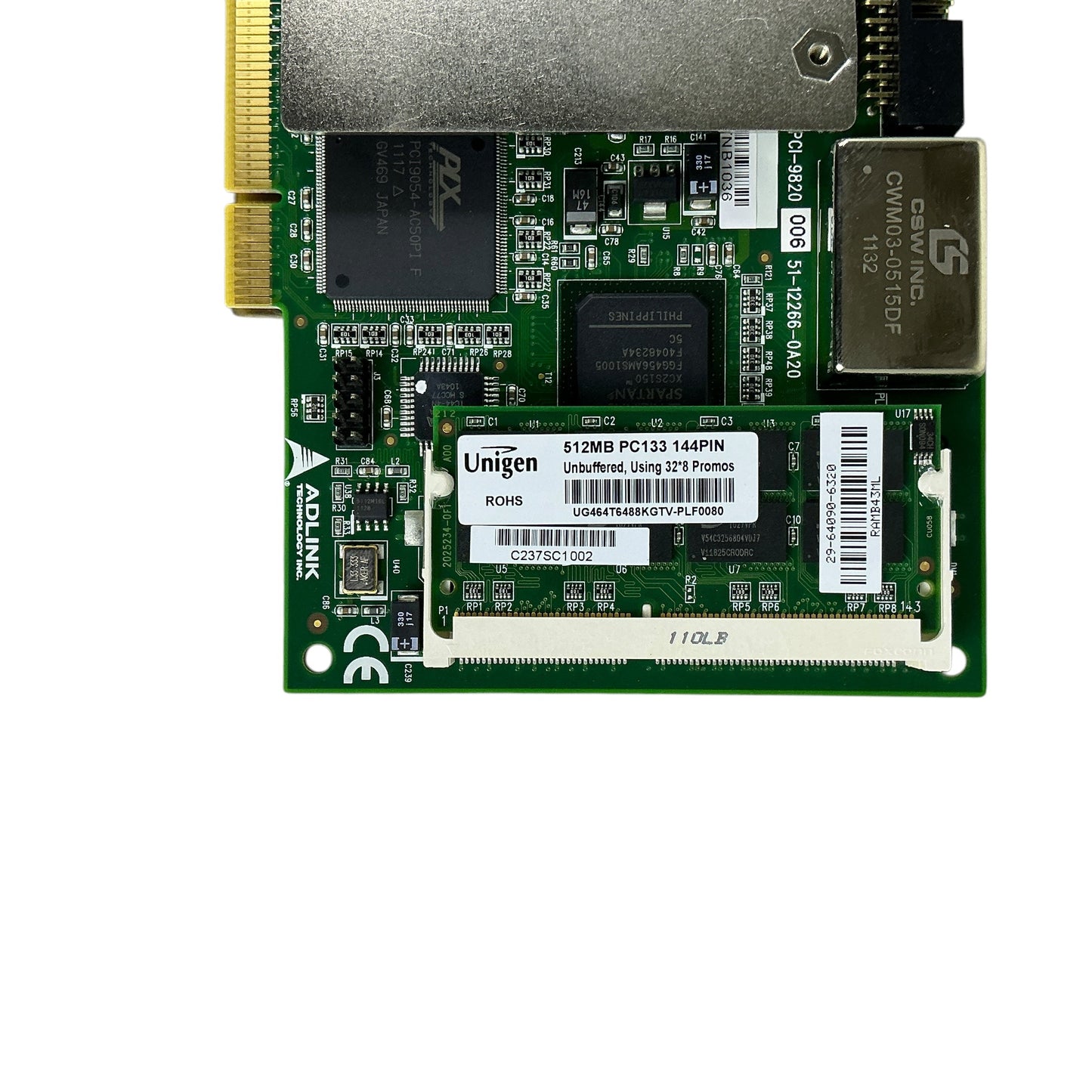

Onboard Memory: 512 MB acquisition buffer

Input Impedance: 1 MΩ typical

Trigger Options: Analog trigger, digital trigger, pre/post trigger

Bus Interface: 32-bit PCI

Model Breakdown

PCI-9820 = Base model

D = Differential input configuration

512 = 512 MB onboard memory

-0 = Standard configuration

Applications

Transient signal capture

Vibration analysis

Automated Test Equipment (ATE)

Power electronics testing

Scientific instrumentation

Software Support

DAQPilot driver package

Compatible with: LabVIEW, MATLAB, C/C++, .NET

Windows OS support (XP/7/10 – check driver version)

Card Only - No Drivers or Software Included.
