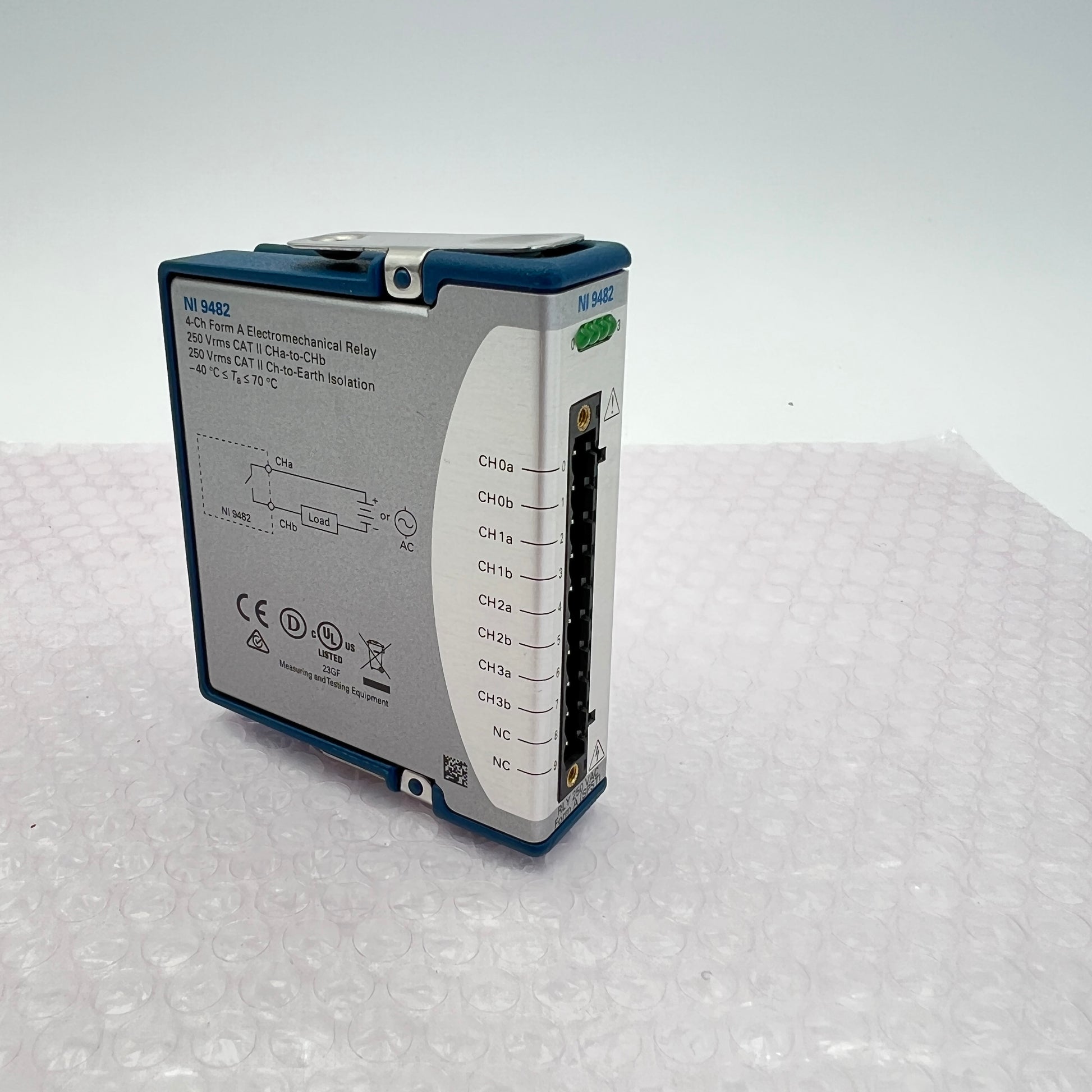

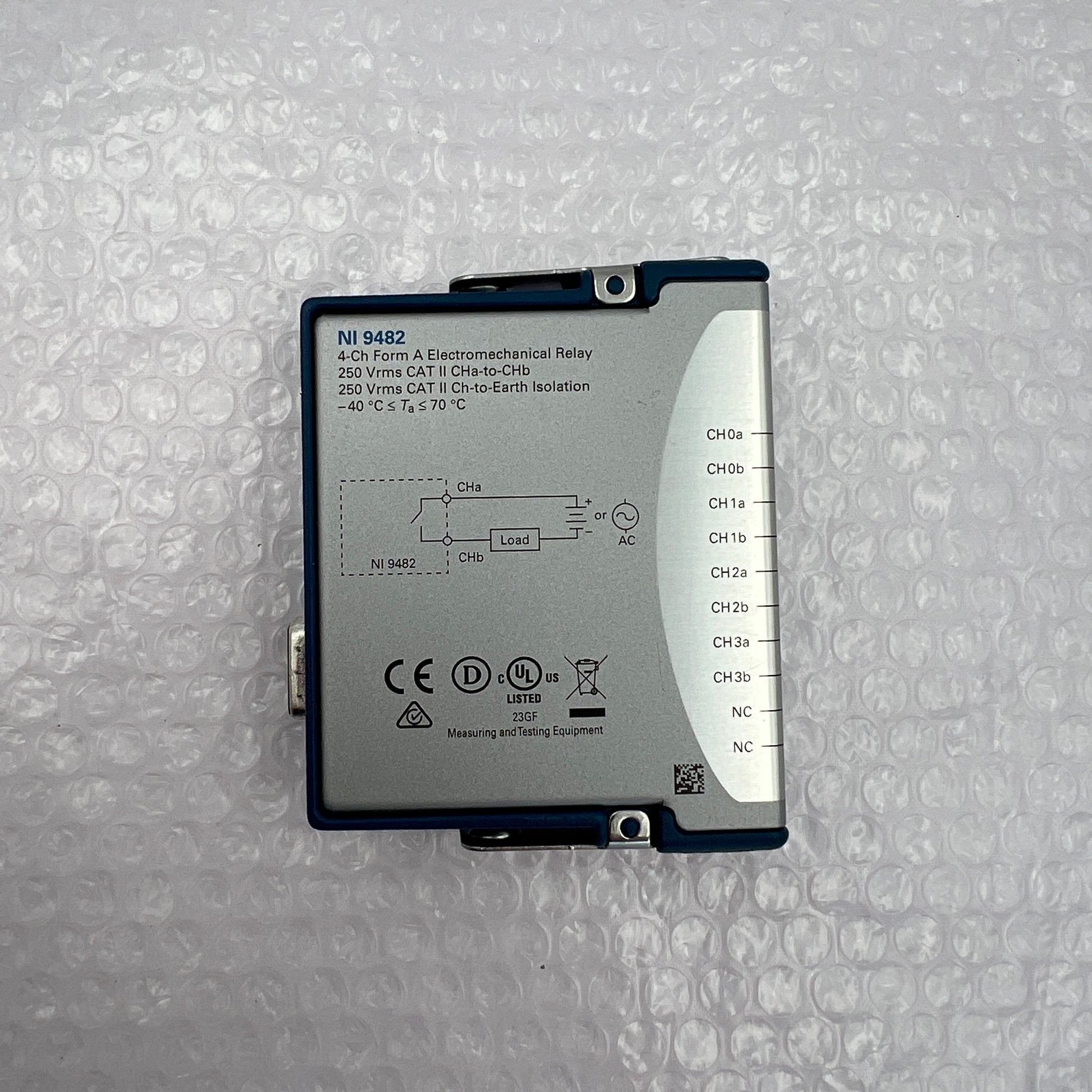

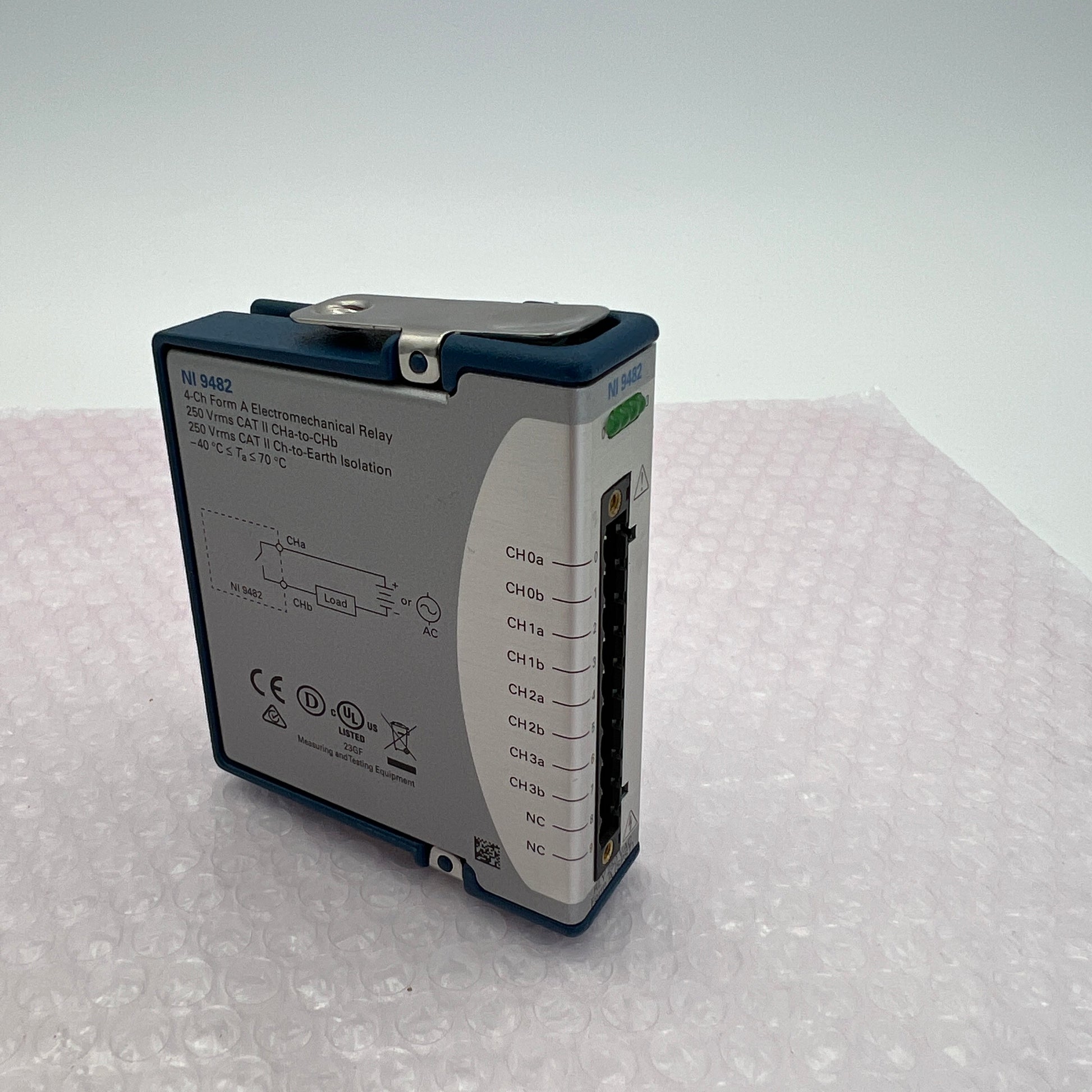

National Instruments NI 9482 cDAQ Relay Output Module 155304B-01L

National Instruments NI 9482 cDAQ Relay Output Module 155304B-01L

$275.00 USD
$275.00 USD
Sale Sold out
Shipping calculated at checkout.

Functional Condition: Used & Functioning Normally

Cosmetic Condition: A Grade, Item has unnoticeable signs of wear, including light scratching or scuffs that do not affect functionality

Key Features

  1. Relay Outputs:

    • Four channels of mechanical relay outputs for high-current or high-voltage switching.

  2. Wide Voltage and Current Range:

    • Capable of switching loads up to 30 VDC/250 VAC and 2 A per channel.

  3. Channel-to-Earth Isolation:

    • Provides 250 Vrms isolation between channels and earth ground for safety and noise immunity.

  4. Durable Design:

    • Mechanical relays ensure robust performance for long-term operation in industrial environments.

  5. C Series Compatibility:

    • Designed for use in CompactDAQ and CompactRIO systems, allowing modular system design.

Technical Specifications

Specification Details
Channels 4 relay outputs
Relay Type Mechanical SPST (Single Pole Single Throw) relays
Switching Voltage 0–30 VDC / 0–250 VAC
Switching Current Up to 2 A per channel
Maximum Switching Power 60 W (DC) / 500 VA (AC)
Relay Life 10 million cycles (no load), 100,000 cycles (full load)
Isolation 250 Vrms channel-to-earth ground

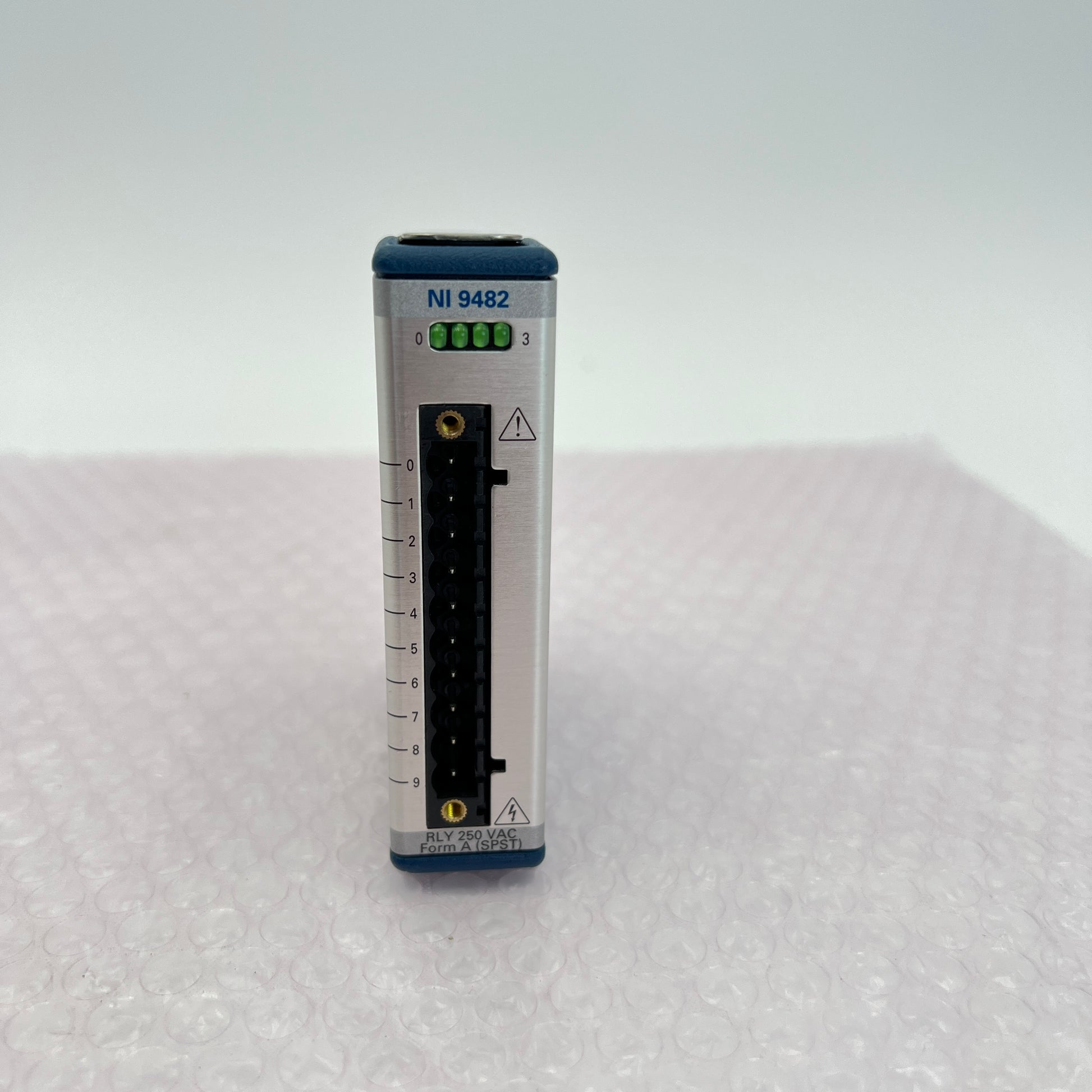

Connector Type 10-terminal screw-terminal block
Power Requirements Powered through the chassis
Operating Temperature -40 °C to 70 °C
Dimensions 90 mm × 25 mm × 85 mm
Weight ~150 g

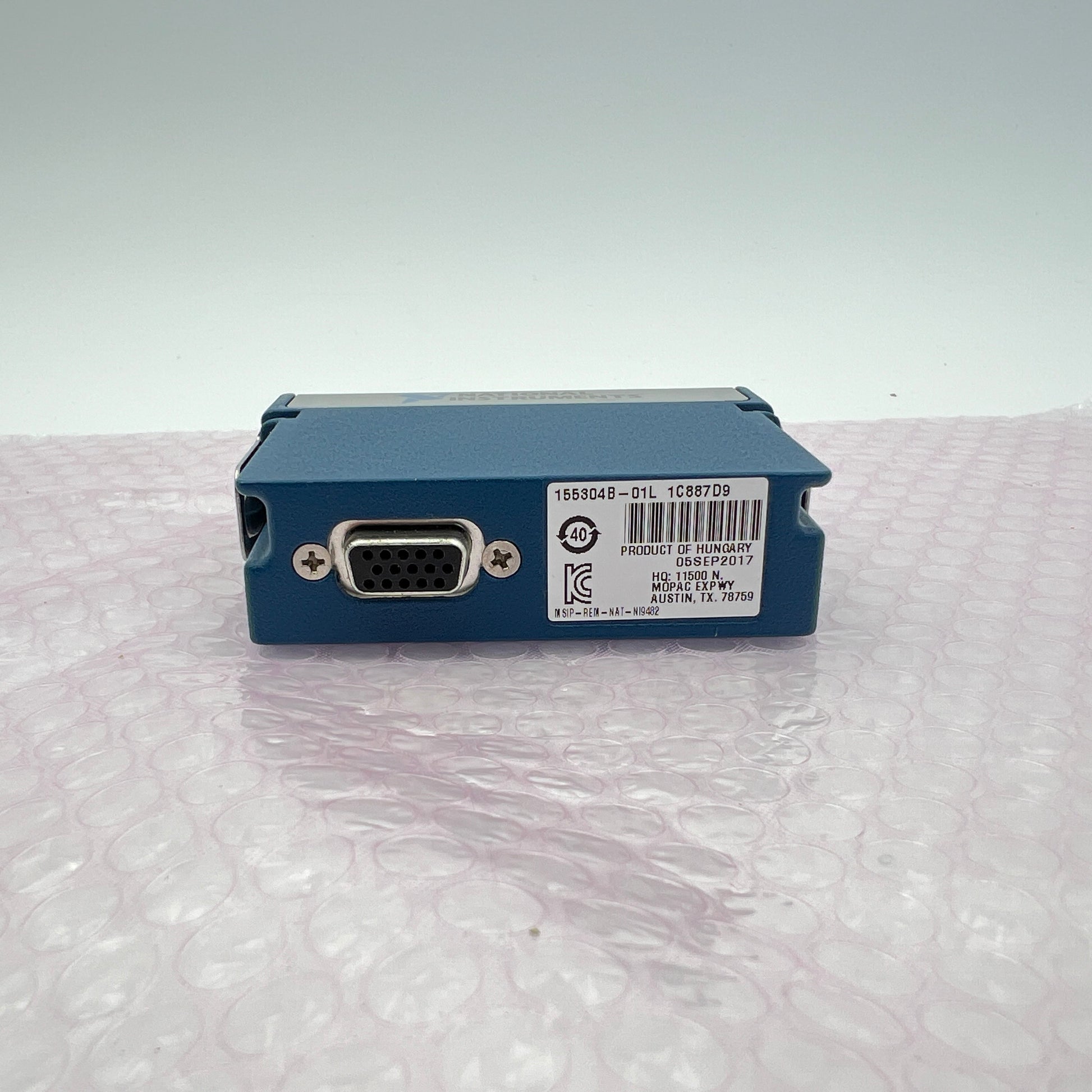

P/N: 155304B-01L
No Software.
No Additional Items Included.

A-000017
